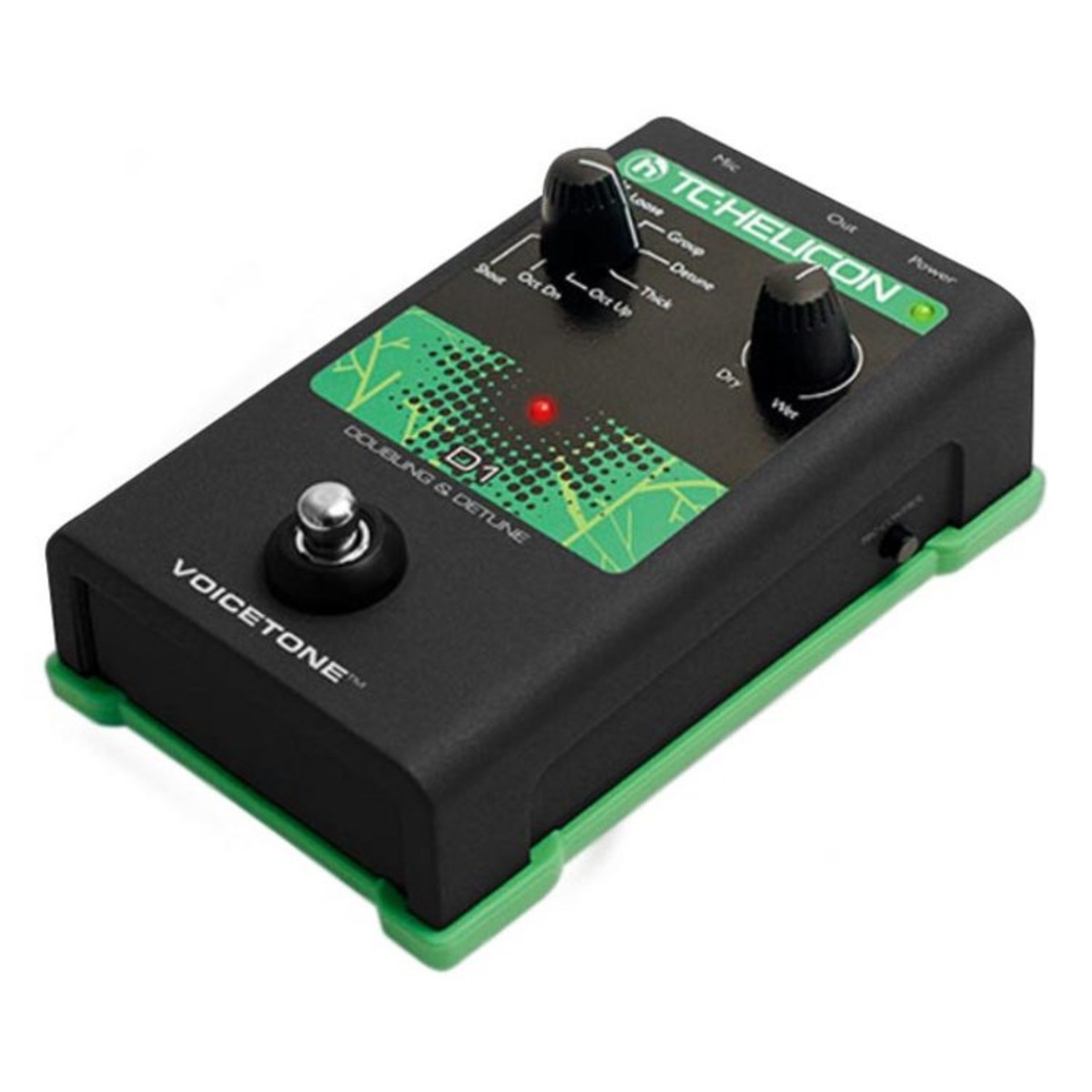

Thicken your live vocals with the Voicetone D1. Give your voice realistic doubling emulations, octaves, and detune effects with ease. That studio doubling just found its way to the stage. You can connect it between your mic and mixer, it boasts aigh quality signal path and tough enclosure and it can be chained to additional VoiceTone Singles. If you have a TC-Helicon MP75-Microphone, the Mic-Control offers you remote on/off via the microphone's thumb switch.
There are several different double styles:
- Tight
- Loose
- Group
- Detune
- Thick
- Octave Up
- Octave Down
- Shout
Convincing Vocal Effects
The VoiceTone D1's doubling effect produces convincing group unison vocal effects, thanks to TC-Helicon's research into differentiating pitch-shifted voices. There are single and multi-voice natural doubling styles, including classic fixed detune effects, octave shifted variants, and even a group shout.
As simple as plugging in your mic
Easily plug in your mic and turn the effect on. You can change the style or the amount of effect with ease.
Part of the VoiceTone Family
Like the other VoiceTone singles, the Voicetone D1 possesses a clean, quiet mic preamp which rivals high-end touring mixers, a die-cast metal case, rubberized no-slip base, studio quality analog to digital conversion, and the same quality processing you'd expect from vocal processors like VoiceLive® 2.
Mic Control Circuit
The VoiceTone D1's incredible Mic Control circuit allows for an optional TC-Helicon MP-75 Modern Performance Vocal microphone (not included), to be used for remote on/off. The microphone's thumb switch controls this. You can even chain multiple VoiceTone singles pedals together and control each one independently or turn them all on or off in combination.
Features/Specifications
Control
- Double style
- Double mix
- Footswitch on/off
- Mic Control on/off
Physical Specs
- Dimensions:
- Height: 5.4 inches (140 mm)
- Width: 3.5 inches (90 mm)
- Depth: 2.3 inches (60 mm)
- Weight: 0.92 lb. (0.42 kg)
- Construction:
- Two part dies cast metal
- Rubberized base
Analog Inputs
- Connectors, balanced: Mic.: XLR
- Mic Input Level @ 0 dBFS: -42dBu to +1dBu
- EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu
- Mic input SNR: >104 dB
- Guitar Input impedance: 1 MOhm
- Guitar Input Level @ 0 dBFS: -7 dBU to 17 dBu
- Guitar Input SNR: >115dB
Analog Outputs
- Output Impedance, Bal./Unbal.: 200/100 Ohm
- Output Full Scale: +1 dBu
- Dynamic Range: >104 dB, 20 Hz to 20 kHz
- Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz
Control
- USB for firmware and control
- Mic Control using TC-Helicon MP-75
Power
- Power Supply (Supplied): 12V .4A
- Power Consumption: 5.6W
Safety
- EMC: Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
- Safety: certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
Operating Requirements
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: -22°F to 167°F (-30°C to 70°C)
- Humidity: Max. 90 non-condensing
Included Accessories
- Region specific power supply
- USB cable
- User guide
