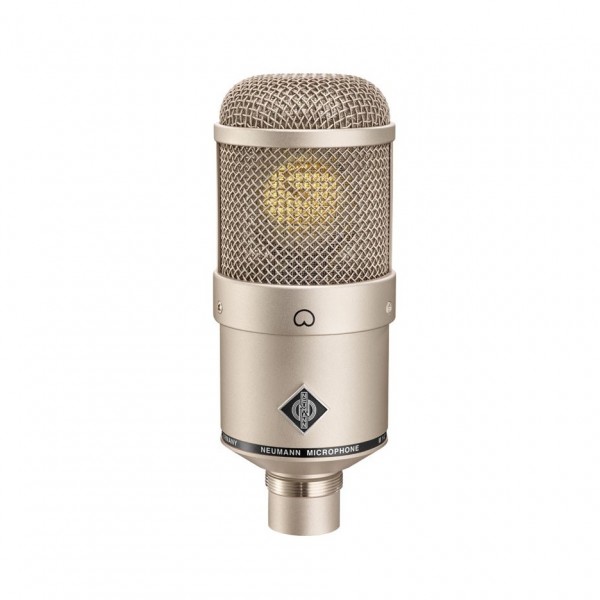

Neumann M 147 Tube Condenser Mic
Neumann M 147 Tube Condenser MicDetails
Neumann tube sound with a cardioid directional characteristic and a classic design. The double diaphragm capsule is derived from that of its legendary predecessors, the U 47 and M 49.

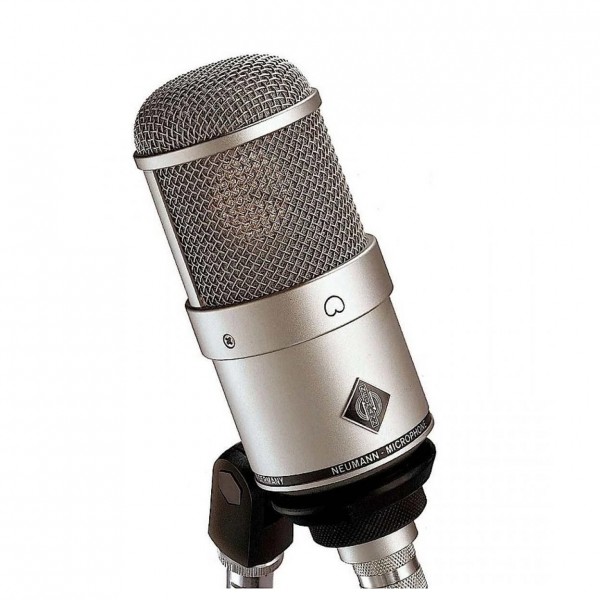

Image for illustration only - shockmount available separately
Product Ref: 0806View Full Description
Buy on finance from £59.67 per month Finance from £59.67 per month
Please note: This is only available where all items in the order are dispatched in a single delivery.
To make it as easy as possible for you to get the gear you want, we offer a range of instant finance options. If you spend £250 or more online, you can choose to pay over 48, 36 or 24 months. The majority of decisions are given instantly, so you could get your new gear sooner than you thought!
To help you understand how our finance options work, the examples below are based on a total order value of £250:
|Finance||APR||Deposit to Pay||Payments||Total Payable|
|Classic Credit 48 Months 14.9%||14.9%||No Deposit||48 months: £6.83 |
Final payment: £6.83
No settlement fee
|Classic Credit 36 Months 15.9%||15.9%||No Deposit||36 months: £8.65 |
Final payment: £8.65
No settlement fee
|Classic Credit 24 Months 18.9%||18.9%||No Deposit||24 months: £12.41 |
Final payment: £12.41
No settlement fee
How to Apply
Applying for finance couldn't be easier - if your order totals £250 or more, simply proceed through the checkout as normal, then select Pay by Finance on the payment page, then click the orange APPLY FOR INSTANT FINANCE button. This will start your application with V12 Retail Finance, our finance partner, and completing this form should take approximately 10 minutes.
You should get an instant answer on whether your application has been successful, though in some rare cases V12 may need to look at the application in more detail.
Please note: This is only available on orders placed via the website consisting of a single delivery, and is not available in store or via phone currently.
Full DescriptionView Full Description
The M 147 Tube is a vacuum tube condenser microphone with cardioid characteristic. At the heart of this microphone is the K 47 dual diaphragm capsule, inherited from this model's now legendary predecessors, the U 47 and the M 49.
Following the capsule is a tube that functions as an impedance converter. The next stage is an efficient, transformerless output circuit, that guarantees an extremely low self-noise level. Note: This innovative combination of current tube technology with the most advanced solid-state circuitry was decisive in awarding the 1997 TEC Award to the related M 149 Tube mic.
The microphone is delivered as a complete set in a high-quality aluminum case. Included with the microphone are a microphone cable, a metal swivel mount for a mic stand, and a compact universal power supply for standard mains sockets. Our modern manufacturing methods makes it possible to offer this complete set at a very attractive price.
The famous capsule, together with complimenting tube characteristics, makes the M 147 Tube especially well suited as a vocal mic. In addition, it is a superb spot mic for all types of musical instruments. The extremely low self-noise of its tube circuitry makes the mic perfectly suited for use in modern recording chains, analog and digital.
The M 147 Tube is addressed from the side, where the microphone body has the diamond-shaped Neumann company logo. The black color identifies tube microphones. The capsule is equivalent to the one used in the U 47, and is the deciding factor in determining the sound characteristic. It has a flat frequency response to the upper midrange, and a boost of up to 3 dB above 2 kHz. The headgrille design is a smaller version of the U 47. It protects the capsule effectively against popping and wind noise.
The M147 Tube has a cardioid characteristic, leaning more toward super-cardioid due to its distinctive capsule design. At higher frequencies the pattern becomes more directional. This is very similar to the model after which this new tube microphone was patterned, the U 47 and the successor, the U 47 fet.
When compared to other microphones, the impedance converter used in the M 147 Tube is distinguished by its extremely low self-noise level of only 12 dB-A / 24 dB CCIR weighted.
The ideal operating conditions (anode current, heater voltage) of the tube are maintained throughout its life expectancy. A sensor lead detects any voltage drop that occurs through the microphone cable and compensates for it in the N 149 A power supply. The tube warms up gradually using inverse current limiting to guarantee long life.
The electronic circuitry of the M 147 Tube mic has a flat frequency response from 20 Hz to well above 20 kHz. Only the attributes of the capsule determine the typical sound characteristics of the microphone.
Both, the capsule and the entire circuitry are shock mounted to prevent any structure-borne noise. Because of its wide operating range, the M 147 Tube can reproduce extremely low frequency signals without distortion.
