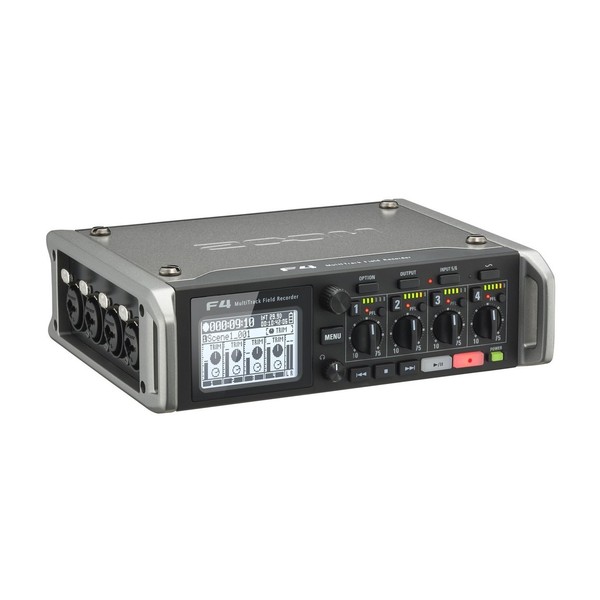

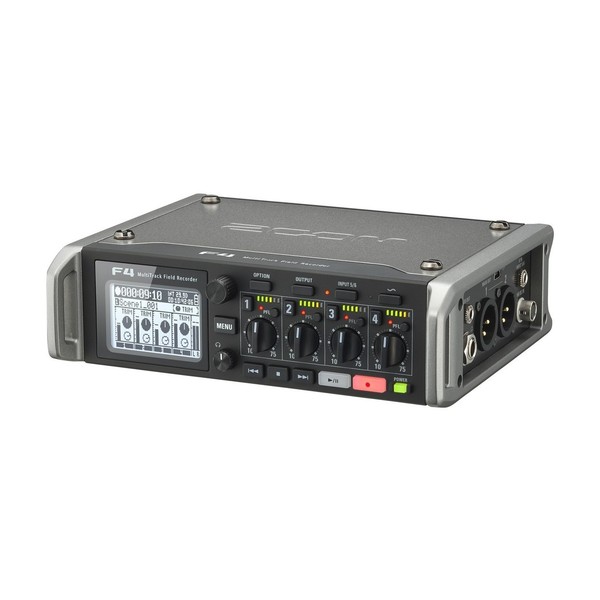

Zoom F4 Professional Field Recorder
Super-Low Noise Preamps
The Zoom F4 features exceptional microphone preamps which enable pristine recording and playback at resolutions up to 24-bit/192kHz. The impressive audio specs also include an extremely low noise floor (-127dBu EIN) and high gain (up to 75dB), with +4dB line-level inputs.
TCXO Time Code
For precise audio/video syncing, the F4 Field Recorder utilises a Temperature Compensated Crystal Oscillator (TCXO) that produces time code at 0.2ppm accuracy - a first for this price point. The Zoom F4 also supports all standard drop frame and non-drop formats, while also being able to jam sync to time code provided by external devices. Additionally the BNC connectors allow you to seamlessly integrate the F4 into any setup.
Onboard Advanced Limiters
The onboard limiters provide overload protection which allows you to capture audio in a wide range of dynamic sound environments. Limiting can also be applied to all four channels simultaneously at full resolution, with 10dB of headroom and controls for setting the threshold, attack and release.
Interchangeable Microphone Capsules
The F4 Professional Field Recorder features Zoom's proprietary capsule input which allows you to connect any of the available Zoom mic capsules - such as the SGH-6 Shotgun or the XYH-6 Stereo X/Y Capsule. The optional ECM extension cable also allows you to remotely position all external capsules.
Flexible Inputs and Outputs

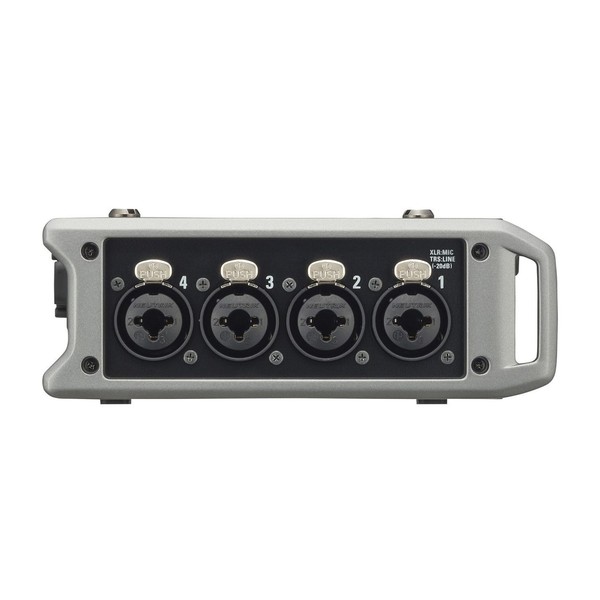

The four discrete inputs are equipped with locking Neutrik XLR/TRS combo connectors, along with a dedicated preamp, gain control knob, phantom power and a six-segment LED level meter. The F4 also features a variable-frequency slate tone generator which confirms the levels.

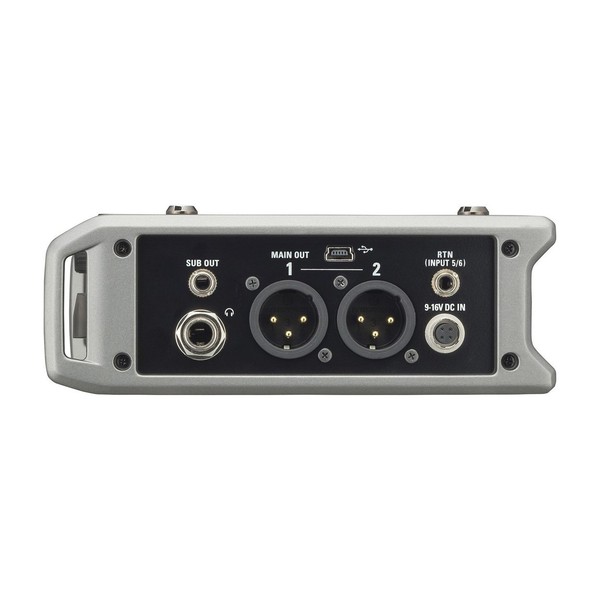

In addition to the 1/4'' headphone jack with dedicated volume control, the Zoom F4 provides you with four other output connections. Two Main Outs - on balanced XLR jacks - let you connect to external mixers and processing devices. Two Sub Outs - on a single unbalanced 1/8'' stereo mini-jack - ensure easy connection to a camera. Additionally the front panel output button allows easy access to output levels and signal routing.
Onboard Mixer and Effects
The integrated onboard mixer enables flexible signal routing from all inputs to all outputs - pre or post-fader - with user-adjustable level, pan and input/output delay. The built-in limiters can be applied to all channels and tracks simultaneously, while the built-in high-pass filtering reduces the sound of wind and other background noises.

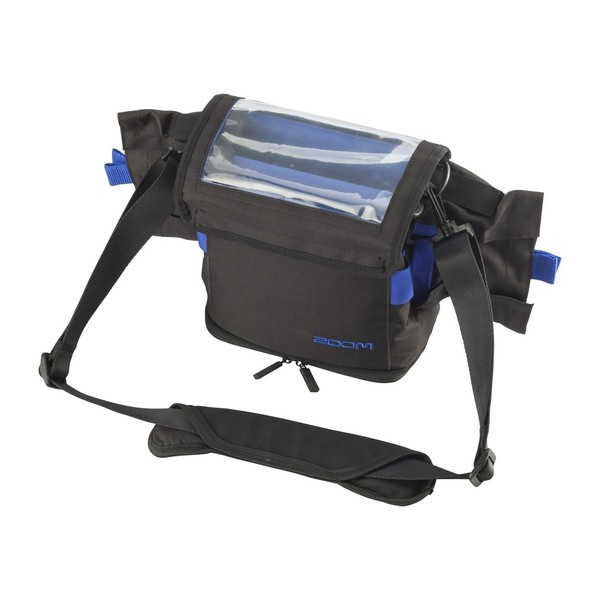

Zoom F4 Soft Case
Durable And Lightweight

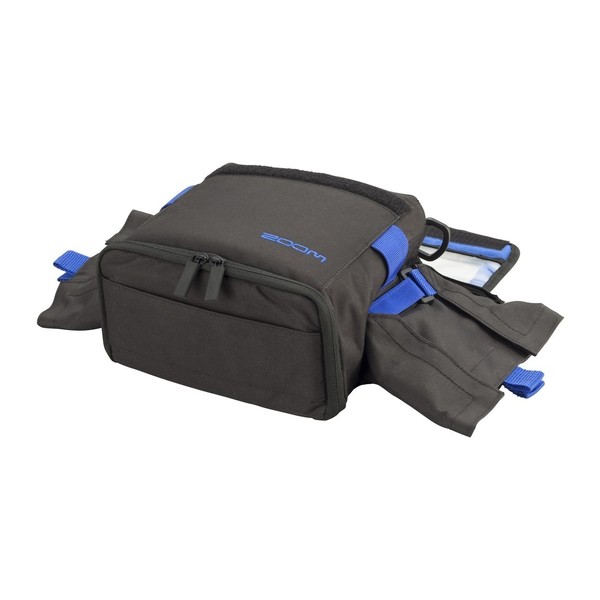

If you record with a ZOOM F4 or F8 and need an effortless way to carry it with your other gear, then the PCF-4 Protective Case is an essential for you to have in the field. Durable and lightweight, this water-resistant protective case is suitable for any indoor or outdoor environment. It offers top, side, and bottom access to the unit as well as a clear-windowed top cover so you can monitor the recorder’s screen in all production conditions.
Separate Compartments

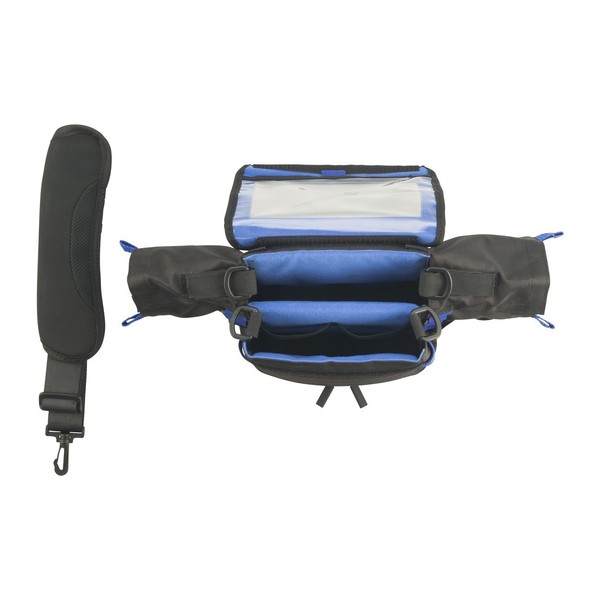

The PCF-4 case includes two separate compartments—one for your field recorder and another for small accessories. Protective sleeves with velcro fasteners on each side make it easy to access the unit's input and output cables while also protecting them from rain, dust, and other elements. And to ensure the recorder sits properly within the case, the PCF-4 includes velcro straps that fasten around the bottom of the unit.
Features
Zoom F4 Professional Field Recorder
- 6-input/8-track multitrack field recorder with integrated mixer
- 6 discrete inputs, including with 4 locking Neutrik XLR/TRS combo connectors, a stereo 3.5mm input, and Zoom mic capsule input
- Input 5/6 can be used as a camera return for monitoring only
- Compact and lightweight metal chassis, weighing just 2 pounds (without batteries)
- High-quality mic preamps with up to 75 dB gain, less than -127 dBu EIN, and +4 dB line inputs
- Support for up to 24-bit/192 kHz recording as well as 96 kHz, 88.2 kHz, 48 kHz, and 44.1 kHz, plus 47.952 kHz/48.048 kHz for HD video compatibility; 16/24-bit resolution
- Accurate time code (0.2 ppm) I/O on standard BNC connectors; drop frame/non-drop formats with Jam Sync
- Three different power supply options: 8x AA batteries, external DC battery pack with 4-pin HIROSE connector, and Zoom AD-19 12V AC Adapter with DHC-1 DC-HIROSE cable (included)

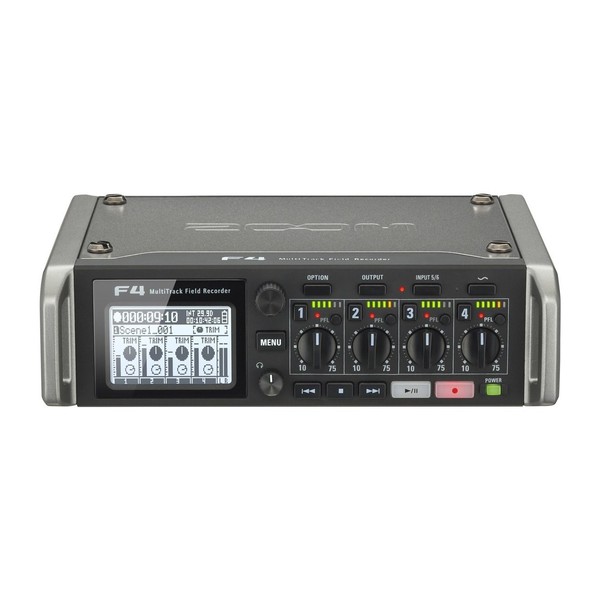

- Dedicated gain control knob, 6-segment LED level meter, and PFL/Solo switch for each channel
- Phantom power (+48V/+24V) on every preamp
- High pass filter, phase invert, and Mid-Side decoder
- Advanced onboard limiters for input and output
- Input delay of up to 30 msec per channel / output delay of up to 10 frames per output
- Compatible with all Zoom mic capsules; optional ECM extender cable enables remote positioning (not included)
- Dedicated headphone output (100 mW) with front panel volume control
- Dual XLR balanced Main Outs plus 1/8" stereo mini-jack Sub Out
- Front panel OPTION button gives quick access to important shortcuts
Zoom F4 Soft Case
- Designed to accommodate the F8 and F4 field recorders
- Side openings with drawstring for XLR/TRS cable input and protection
- Detachable, water-resistant cover with clear window for visual monitoring, plus inlay opening for personal notes
- Adjustable strap and shoulder pad combined with three latchhooks per side for a custom carry position
- Velcro inner divider which is removable to open up space or use as a table surface for F4 and F8 units
- Front and side pockets for extra storage

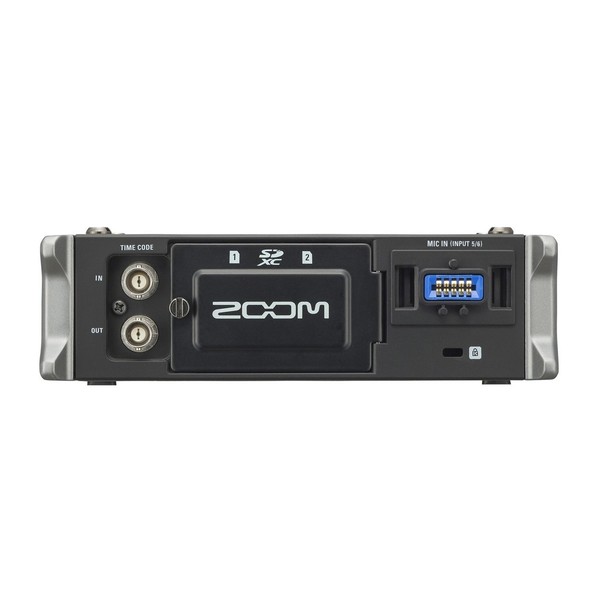

- Removable bottom panel to access rear of F4 and F8 units (BNC Time Code connectors, removable AA battery pack, and ZOOM mic capsule input)
