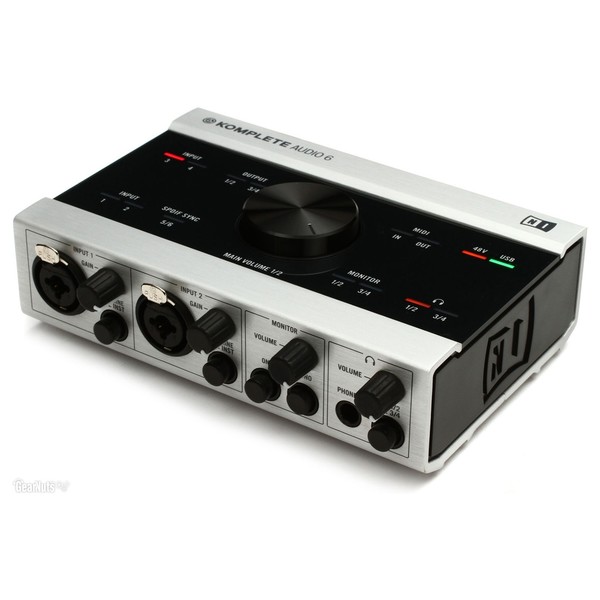

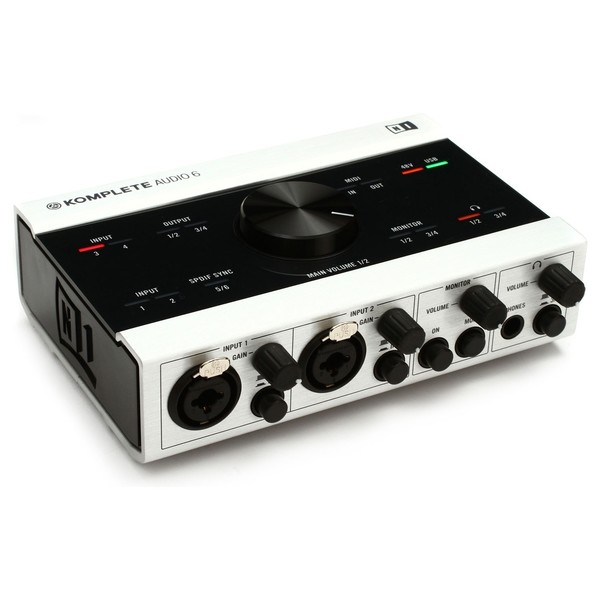

Flexible Audio Interface
Experience every facet of your sound, whether you're playing virtual instruments or recording audio. If you're already a user of Maschine or Komplete Instruments and Effects, you're armed with an array of sounds in the highest possible audio fidelity. Komplete Audio 6 provides you with the hardware to match.
With included software such as Komplete Elements, Traktor LE 2 and Cubase LE 6, you're ready to produce complete tracks and songs in any style, right from the word go. Designed to be flexible, Komplete Audio 6 has plenty of options for connecting mics, guitars, MIDI instruments or outboard gear. With 4 balanced analog inputs and 4 balanced analog outputs to match, plus MIDI and digital stereo I/Os, Komplete never sounded so good.
Exceptional Audio Quality & Performance
Taking the award-winning sound quality of the Audio Kontrol 1 to a new level, Komplete Audio 6 boasts a streamlined circuit design, hand-picked components and a distinct analog volume knob on top of the unit. Completely USB-powered, Komplete Audio 6 also has a headphone output with independent level control and source switch. New chips, new audio drivers and new circuitry ensure that latency is low, and the direct monitoring option provides 100 percent latency-free monitoring for recording guitars, vocals, or other live sources. 48V phantom power enables you to use condenser mics and active DI boxes, whilst 15 status LEDs provide visual feedback for all signals and indicate clipping.
Reviews
"Sounds good, works first time and is built to last." - Future Music
"Komplete Audio 6 packs a lot of compatibility into a small space and the big, top-positioned volume knob lets you whack the volume down or up quickly and easily next time the neighbours start knocking." - Mixmag
"The Komplete Audio 6 is a handsome piece of equipment with high quality, low latency converters and enough I/O for most home and project studio needs." - Oh Drat Digital
Specifications
-
Dimensions (mm): 52 x 159 x 122
-
Weight (g): 850
Audio Converters
-
A/D Channels, D/A Channels: 4, 4
-
Sample Rates: 44.1, 48, 88.2, 96 kHz
-
Bit Resolution: 16, 24 Bit
Inputs 1/2 (Line; Instrument; Mic)
-
Input Impedance: 44 kOhm, balanced; 1 MOhm, unbalanced; 3.4 kOhm, balanced
-
Full-Scale Input Level @ max. Gain: -4 dBu; -9.7 dBu; -36 dBu
-
Maximum Input Level: +14.3 dBu; +8.4 dBu; 0 dBu
-
Gain: -inf - +15 dB; -inf - +21 dB; +11 dB - +47 dB
-
Dynamic Range @ Unity Gain: 98.3 dB (A); 98.3 dB (A); 98.0 dB (A)
-
THD+N (Full-Scale Level, Unity Gain): 0.013; 0.013; 0.013
-
Frequency Response(96 kHz), -1 dB: 13 Hz - 42 kHz; 12 Hz - 42 kHz; 13 Hz - 45 kHz
-
Equivalent Input Noise @ Max. Gain:N/A; N/A; -127.5 dBu (A)
Inputs 3/4 (Line)
-
Input Impedance: 44 kOhm, balanced
-
Full-Scale Input Level: +12 dBu
-
Gain: -1 dB
-
Dynamic Range: 98.5 dB (A)
-
THD+N (Full-Scale Level): 0.013
-
Frequency Response (96 kHz), -1 dB: 12 Hz - 43 kHz
Line Outputs (D/A)
-
Full Scale Output Level @ Max. Volume: +11 dBu
-
Dynamic Range @ Max. Volume: 102 dB (A)
-
THD+N: 1/2: 0.01 , 3/4: 0.02
-
Frequency Response (96 kHz), -1 dB: 10 Hz - 45 kHz
Headphone Output
-
Maximum Output Level (High Impedance): +12 dBu, 3.0 Vrms
-
Maximum Output Power: 20 mW @ 100 Ohms, 11 mW @ 33 Ohms
-
Dynamic Range: 102 dB (A)
-
THD+N @ Max Level, 100 Ohms: 0.014
-
Frequency Response (96 kHz), -1 dB: 9 Hz - 45 kHz
Digital I/O: 2 channels (5/6), SPDIF in/out, coaxial
Music Software Included
-
Komplete Elements: Over 3 GB of inspiring instruments and effects
-
Cubase LE 6: Sequencer and recording software
-
Traktor LE 2: DJ software
System Requirements
Windows
Windows 7 Windows 7, Windows 8, or Windows 10 (latest Service Pack, 32/64-bit), Intel Core 2 Duo or AMD AthlonTM 64 X2, 4 GB RAM (6 GB recommended for large KONTAKT Instruments)
Mac
Mac OS X 10.6, 10.7 or 10.8 (latest update), Intel Core 2 Duo, 4 GB RAM (6 GB recommended for large KONTAKT Instruments)
General
Monitor with 1024 x 768 screen resolution, USB 2.0, DVD drive.
Supported Drivers
- ASIO
- Core Audio
- DirectSound
- WASAPI
