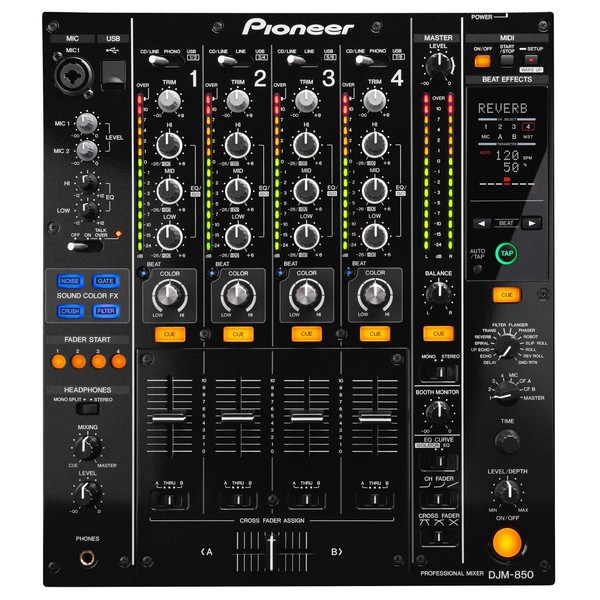

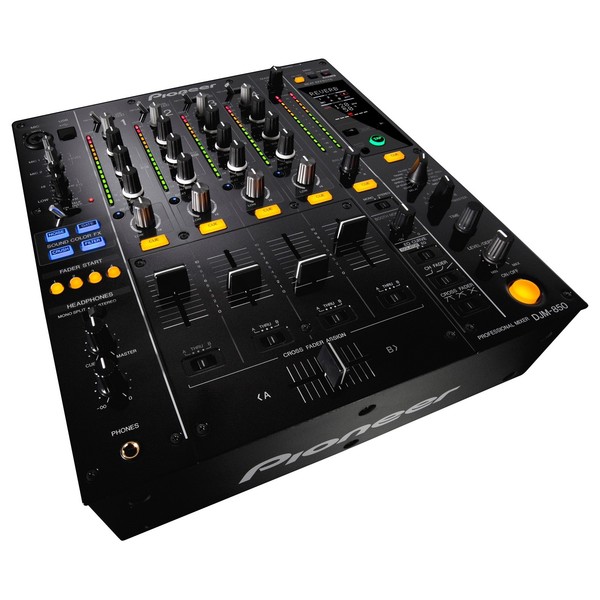

DISC Pioneer DJM 850-K Professional DJ Mixer, Black

Full Description

Premium-Grade DJ Mixer

The Pioneer DJM 850-K Professional DJ mixer utilises future-proof technology, making it easily stand the test of time. The highly intuitive layout features everything you will need for a professional DJ set, ranging from built-in, multi-layered FX to the built-in USB sound card and more. The 4-channel configuration features 3-band EQ isolators on each channel, allowing you to create seamless transitions between songs and deliver exceptional mixes. The DJM 850-K also acts as a fully assignable MIDI controller, allowing you to use the mixer with external devices as a MIDI controller. It also features a range of dedicated controls for all major functions in an ergonomic layout.

Integrated USB Sound Card

The DJM 850-K also features a built-in USB sound card, allowing simultaneous iO of stereo signals from 4 ins and 4 outs. The built-in sound card delivers exceptional audio performance thanks to the 96kHz/24-bit high-sampling processor. The USB sound card also means you can connect the mixer directly to your computer or laptop. This allows you to use the setting utility tool to configure the mixer, audio routing and sound card to your own preference.

Multi-Layered FX

The Pioneer DJM 850-K Professional DJ Mixer features a range of built-in, high-quality effects. The multi-layered FX rang from 13 enhanced Beat FX as well as Beat Colour FX for optimal versatility. The 13 Beat FX can be edited and controlled using the level/depth parameters, allowing you to dial in the required level. Taking the Sound Colour FX to a new level, the Beat Colour FX allows you to add new parameters in time with the beat of the music for tempo-based effects. The high-quality effects range from Echo and Reverb to Delay, Flanger, Phaser, Rolls and more.

Versatile Connectivity

The highly robust design of the Pioneer DJM 850-K makes it a powerhouse of a DJ mixer, and a centre-piece of any professional mixing setup. When used with the recordbox DJ software and rekordbox DVS Plus Pack, the DJM 850-K is ideal for low latency scratch control. You can also plug a laptop or CDJ directly into the mixer for DVS (Digital Vinyl System) control of supported software. You can also edit the curve of the crossfader, EQ and channel fader to cater to your own style. A Neutrik combo and 1/4 inch jack input are included for connecting microphones and more, ideal for hosting and vocalists. The mic section even features a 3-position talkover switch, allowing you to easily duck out the music for announcements and more. It also features a range of output including Booth, headphone monitor RCA, S/PDIF, XLR, and Mini-Jack outputs for optimal flexibility.

Features

• Professional-grade, 4-channel DJ mixer
• Integrated 4-in, 4-out sound card
• 24-bit/96kHz sample rate
• Built-in multi-layered FX
• Dedicated beat effects display
• Adjustable fader, crossfader and EQ curve control
• 13 built-in enhanced beat FX
• Beat colour FX/Sound colour FX
• Exceptional audio quality
• Dual microphone inputs
• Intuitive layout

Specifications

• Sampling Rate: 96kHz
• A/D Converter: 24 bit
• A/D Converter Master: 32 bit
• S/N Ratio Line: 106 dB
• S/N Ratio Phono: 92 dB
• S/N Ratio Mic: 84 dB
• Crosstalk Line: 82 dB
• Distortion: < 0.004 percent
• Headroom: 19dB
• Power Consumption: 30 W
• Master Level Meter Size: 7 segment
• EQ/ISO: 3 band
• EQ/ISO Range: Switchable isolator: -∞ +6 dB / Standard: -24 dB +6 dB
• Level Meter Type: Individual
• Channel Meter Size: 15 segment
• Channels: 4
• Sound Colour FX:
  • Crush
  • Filter
  • Gate
  • Jet
• Beat FX:
  • Delay
  • Echo
  • Flanger
  • Filter
  • Phaser
  • Reverb
  • Reverse Roll
  • Robot
  • Roll
  • Slip Roll
  • Spiral
  • Trans
  • Up Echo
• Mic Connection: Neutrik Combo
• Mic EQ: 2 band
• Mic EQ Range: -12 dB +12 dB
• Talkover: 3-position switch
• MIDI Out (DIN): 1 (5P DIN)
• Sound Card Connection: USB
• Stereo Inputs: 4
• Stereo Outputs: 4
• Sample Rate: 24-bit
• Sound Card Frequency:
  • 44.1 kHz
  • 48 kHz
  • 96 kHz
• Inputs: 1 Mic (1/4 inch Jack), 1 MIC (XLR/Jack Combo), 2 Phono (RCA), 6 CD/Line (RCA)
• Send/Return: 1 Return (1/4 inch Jack), 1 Send (1/4 inch Jack)
• USB: 1 USB A Port
• Outputs: 1 Booth (1/4 inch Jack), 1 Headphone monitor (1/4 inch Jack), 1 Rec (RCA), 1 S/PDIF Digital (RCA), 2 Master (XLR, RCA), 4 Control (Mini-jack)
• Dimensions (WxHxD): 320 x 108 x 381 mm
• Weight: 7.7kg
