Build me up
Small enough to fit in the back of the car. Big enough to drown the venue in sound.

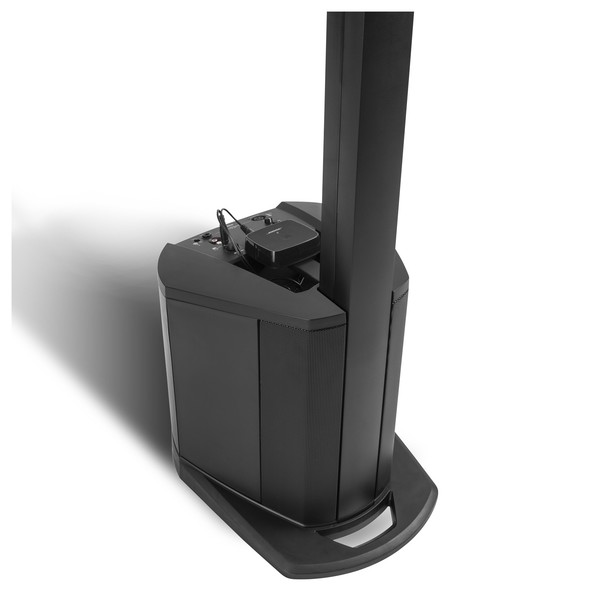

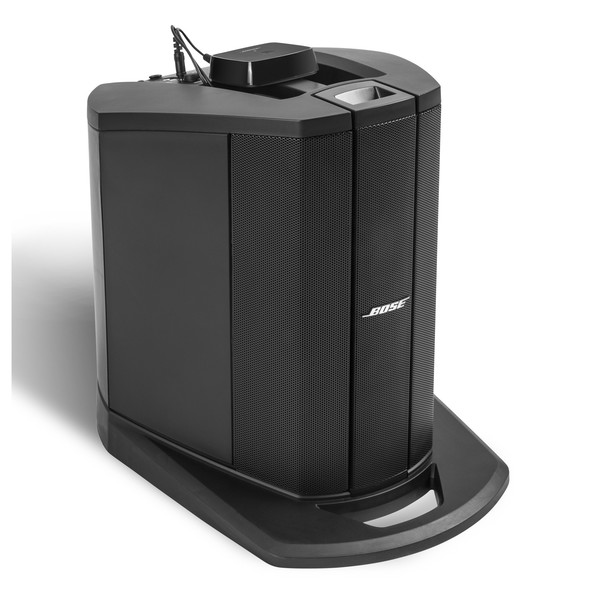

With its modular design, you can take the L1 apart and put it back together again in one fell swoop. Transporting and setting up your equipment has never been so efficient. Arrange it in either a collapsed or extended configuration, whatever works best for the venue you're working in. You'll always have the ultimate coverage and sound quality whether the venue is small or large. Go short, go tall. You don't need any extra gear, no hoisting speakers onto stands, no cables. You're good to go with the L1. It's ready.
Perfect for mobile DJs, touring musicians, corporate events, and much more. The Bose L1 system offers road-ready reliability and extremely efficient transportation, set-up, and dis-assembly.
All in one
When you're going from venue to venue you don't want to be lugging loads of equipment backwards and forwards. With the L1 you don't have to. With an amplifier, mixer, and base cabinet all integrated into one system, you have everything you need in one place.
The amplifier and bass speaker live in the system's power stand and deliver a pristine and precise amplification. The built-in mixer provides four inputs and two outputs, including a microphone XLR input, an instrument input, and an RCA Stereo input and output. And not only this, customised with a ToneMatch™ preset, your hand-held microphone or acoustic guitar's tone is automatically optimised. You will only produce the best of sound when using the L1. Show off your talent.
A great spread
Thanks to Bose Spatial Dispersion™ technology, the L1's sleek and slim loudspeaker distributes sound with absolute clarity and uniformity. Featuring six small drivers mounted at precise angles inside the vertical enclosure, it delivers 180° of horizontal sound coverage. No one will miss a beat. Sound remains consistent even at the most extreme sides of the system. No matter where your audience is situated, no matter who's stuck in the corner, everyone will experience your music with the same impact.
Extra perks

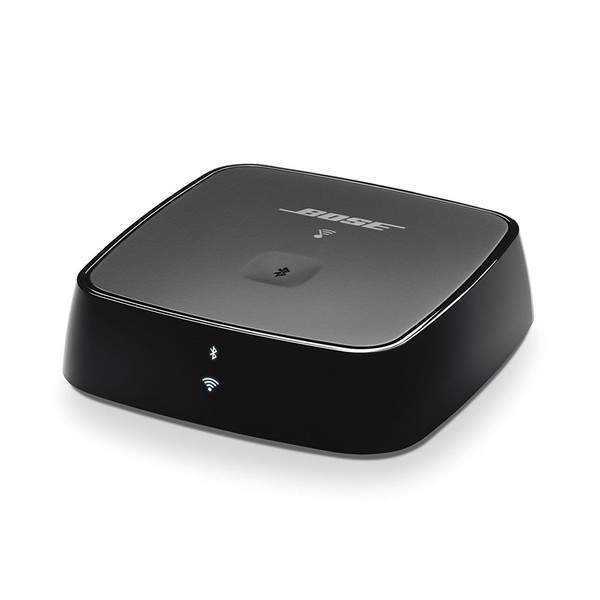

The Bose SoundTouch Link Adapter provides versatile connectivity for the L1 Compact PA system, allowing you to wirelessly stream audio via either Wi-Fi or from Bluetooth-compatible devices. Controlled via the SouchTouch app, for iOS and Android devices, the SoundTouch Link Adapter can be used to access your music library or stream from your favourite music services including Spotify®, Deezer, and Internet radio stations.
In The Box
- 1 x L1® Compact Power Stand
- 1 x Power Stand/Loudspeaker Array Slip Cover
- 1 x L1® Compact Loudspeaker Array
- 1 x L1® Compact Extensions
- 1 x SoundTouch Wireless Link Adapter
- 1 x Patch Cables
- 1 x Extensions Carrying Bag and Array Slip Cover
Features
- Spatial Dispersion™ loudspeaker technology utilises six small drivers mounted at precise angles inside a slim, vertical enclosure
- Proprietary Bose® technology delivers nearly 180 degrees of horizontal sound coverage
- Sound remains consistent even at extreme sides of the system
- Integrated mixer in the power stand provides one two input channels - one for a microphone and one for an instrument - along with one RCA stereo input and one stereo aux input
- Both channels have two-stage clip lights, volume controls and a customised ToneMatch® preset
- Rear panel delivers one balanced line output and one RCA stereo output
- Integrated power amplifier within the power stand delivers clean, precise amplifications for the L1® Compact loudspeaker and bass enclosure
- Proprietary ToneMatch® presets optimise the system for a dynamic hand-held microphone (channel 1) and an acoustic guitar (channel 2)
- Two unique setup positions - extended and collapsed - allow you to tailor the system's sound coverage for each venue
- The included loudspeaker extensions are designed for extending the array for larger audiences
- Durable, lightweight, interlocking components make the system very easy to transport, setup and break down
- The entire system can be setup in a minute or less
- SoundTouch Wireless Link Adapter converts the L1 Compact into a wireless music system with Bluetooth and Wi-Fi streaming
Specifications
Dimensions
- L1® Compact Power Stand: 41.8cm x 33.9cm x 42.6cm (H x W x D)
- L1® Compact Loudspeaker Array: 40.8cm x 7cm x 7cm (H x W x D)
- L1® Compact Extension: 83cm x 7cm x 7cm (H x W x D)
- Collapsed Position (Assembled): 41.8cm x 33.9cm x 42.6cm (H x W x D)
- Extended Position (Assembled): 199.5cm x 33.9cm x 42.6cm (H x W x D)
- SoundTouch Adapter: 2.5cm x 8.8cm x 8.8cm (H x W x D)
Weight
- L1® Compact Power Stand: 11.2kg
- L1® Compact Loudspeaker Array: 1.35kg
- L1® Compact Extension: 1.5kg
- Collapsed Position (Assembled): 11.2kg
- Extended Position (Assembled): 13.3kg
- SoundTouch Adapter: 0.1kg
