Extended 5-year Nord warranty
As an authorised Nord retailer, your new Nord keyboard can be registered for an extended 5-year warranty when you buy from Gear4music. This warranty includes parts and labour through Nord’s official Service Centre, with any servicing carried out by trained specialists. To redeem your extended warranty, simply register your purchase within 30 days. It’s a simple process and only takes a few moments online.
A lighter keybed for faster playing styles
The semi weighted keybed is built for players who prioritise speed, control, and expressive articulation across multiple sound types. It responds quickly to repeated notes, palm glissandos, and synth lines, making it especially comfortable for organ and lead work.
At the same time, it remains supportive enough for piano parts in live sets. We know that switching between sounds during a performance can be demanding, and this lighter action helps reduce fatigue while keeping your playing precise and consistent.

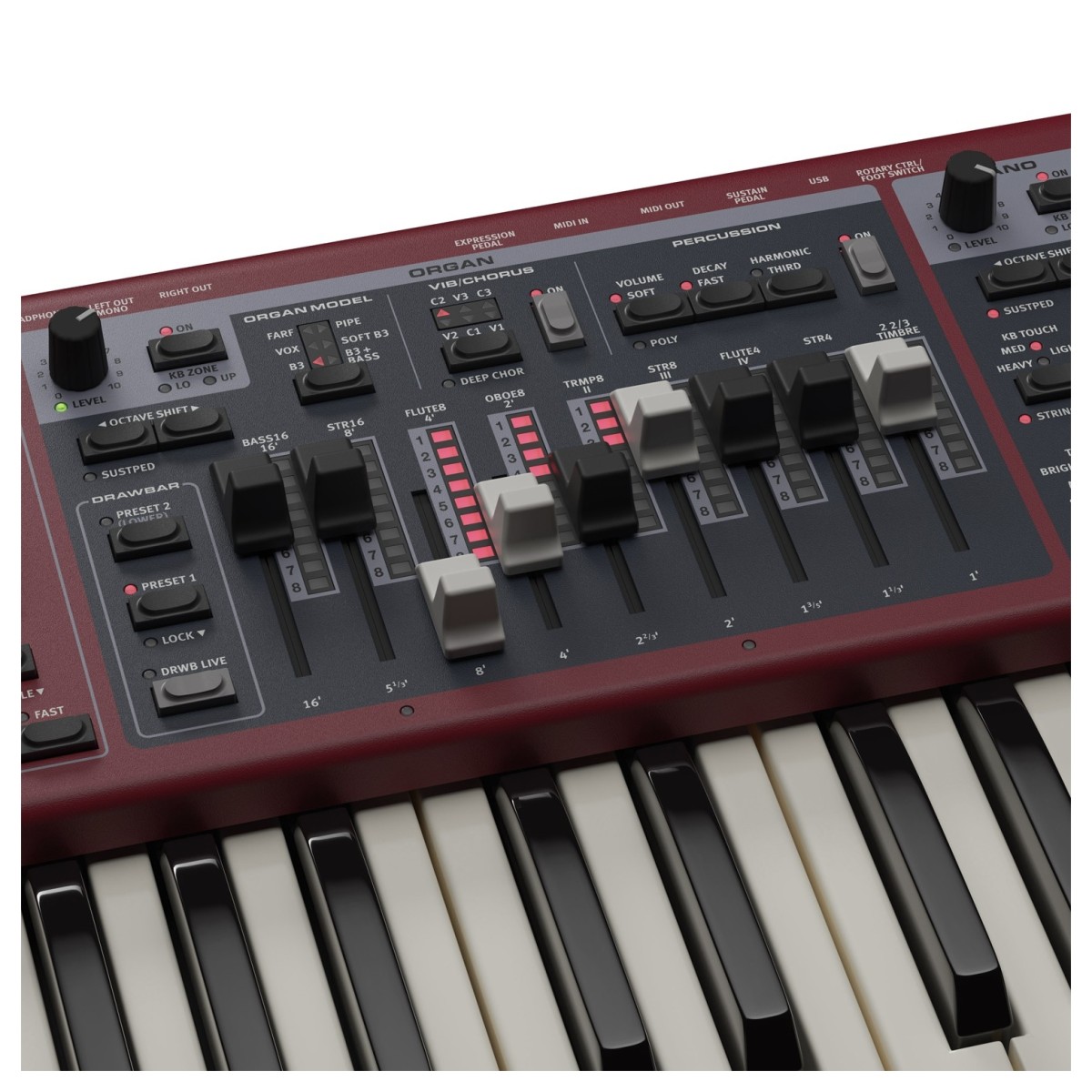

Classic organ control without compromise
The organ section draws directly from the Nord Organ 3, covering B3, B3 Bass, Vox, Farfisa, Soft B3, and Pipe models. Physical drawbars with LED indicators give you immediate, visual control, which is invaluable on stage.
Rotary speaker emulation is also taken from the Organ 3, with three selectable mic positions to fine-tune movement and depth. This setup lets you shape organ tones in real time, making adjustments mid-song feel natural rather than disruptive.

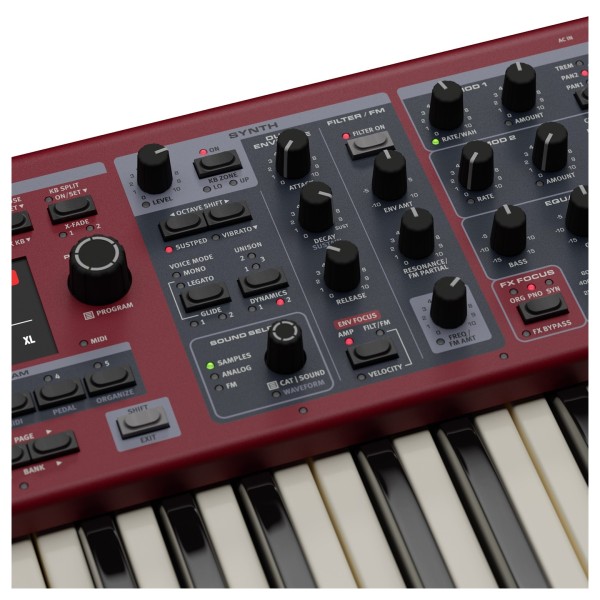

Expanded synth power in a familiar layout
The new synth section adds a broader sound design option to the Electro range, using samples, analog-style waveforms, and FM synthesis. You can select categories and sounds quickly via a push encoder, keeping workflow consistent with the piano section.
Controls for vibrato, unison, mono and legato modes, glide, and a resonant low-pass filter allow practical shaping without overcomplication. Dual envelopes for amp and filter or FM help you dial in playable textures that sit well in live mixes.
Effects routing that keeps things simple
Each sound section has its own dedicated effects, so you can tailor modulation, amp character, and reverb without juggling shared controls. Modulation effects include adjustable rate and amount, while new spring reverb and amp models such as Brit and Suitcase broaden tonal options.
A global reverb with per-layer send ties everything together neatly. Expression pedal assignment adds further control, allowing you to shape synth filters or effect parameters with your foot, which is especially useful during hands-on performances.
5 year warranty for peace of mind
Nord offer a generous five year manufacturer warranty on a wide range of their instruments, giving you extra peace of mind long after your purchase. This extended warranty covers manufacturing faults and hardware defects, helping protect your investment and keeping your instrument performing as it should for years to come.
To qualify, the product must be registered with Nord within 30 days of purchase, which is quick and straightforward to do online.
Features
- Semi weighted keybed provides fast response for organ and synth playing
- Physical drawbars with LED indicators offer direct and intuitive organ control
- Three independent sound engines: Piano, Organ, and Synth
- Piano section includes dynamic compression, unison, and timbre shaping
- Organ section features B3, Vox, Farfisa, Soft B3, Pipe, and B3 Bass models from Nord Organ 3
- Rotary speaker emulation with three selectable mic positions adds depth and movement
- Expanded synth section with FM synthesis, analog-style waveforms, and sample playback
- Dedicated effects per section for clear and focused sound shaping
- New Spring Reverb and amp models including Brit and Suitcase
- Global reverb with per-layer send for smooth layered sound blending

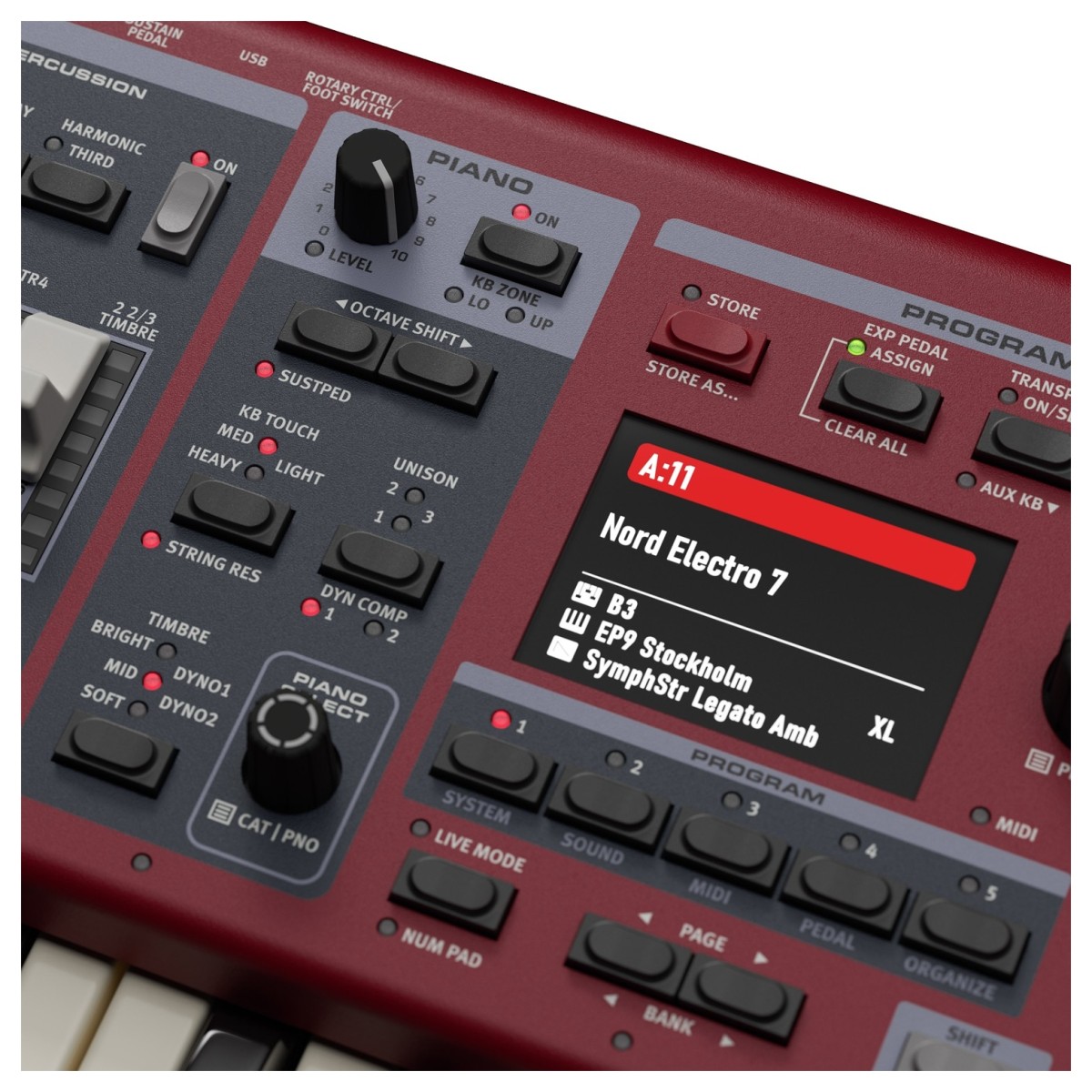

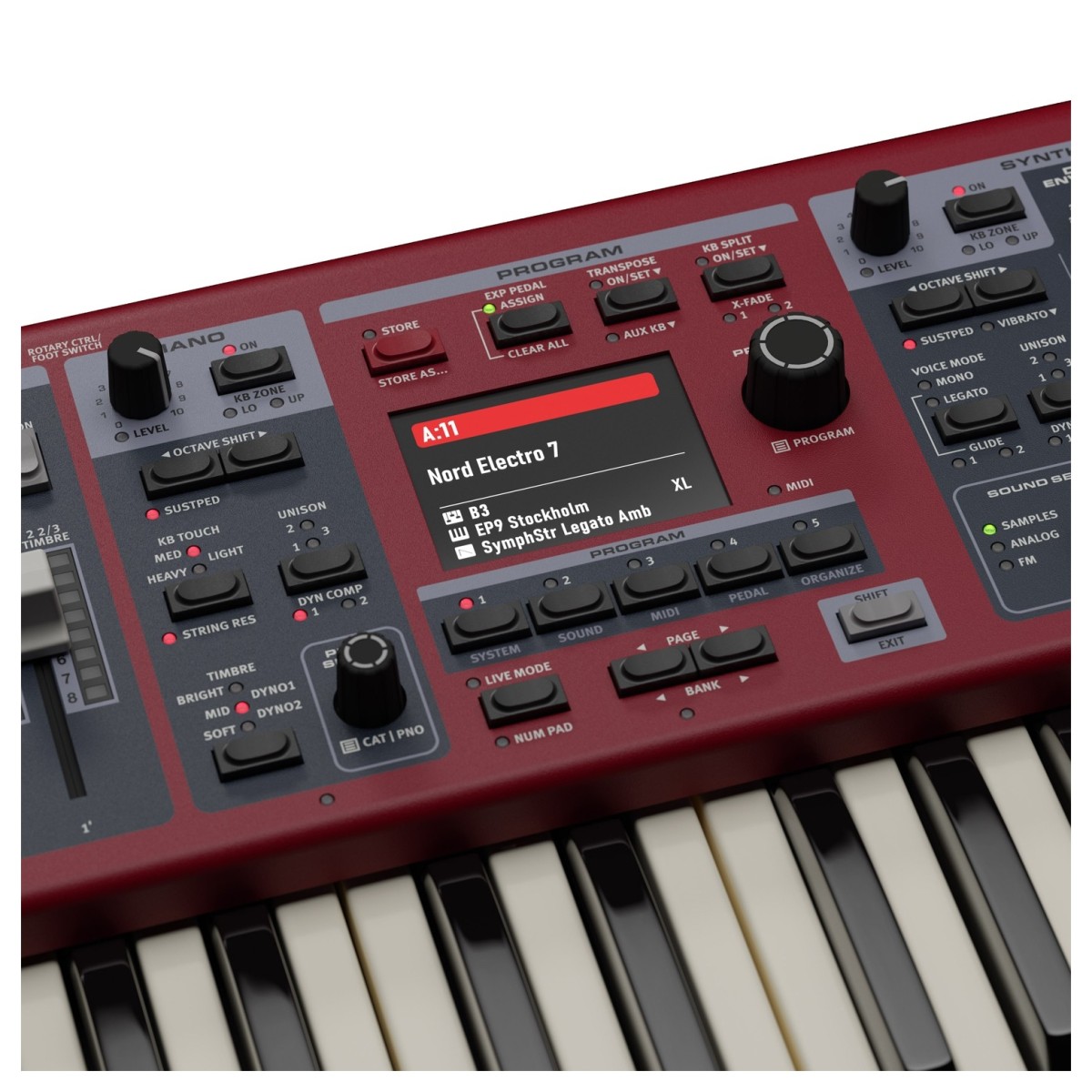

- Large high-resolution color display for easy navigation and quick adjustments
- Push encoders allow fast access to sound categories and parameters
- Low-pass filter with resonance, mono and legato modes, unison, and glide in the synth section
- Expression pedal assignable to synth filter or effects for hands-free control
- Designed for live performance, studio work, and fast sound switching on stage
html
Specifications
General
- Display: Color Display
- Sound Sections: Organ, Piano And Synth Sound Sections
- Seamless Transitions: Yes
- Split Point Crossfades: Yes
- Pitch Stick And Modulation Wheel: Included
- Program Capacity: 20 Banks With 25 Programs – 500 Locations
- Live Mode: 5 Live Programs
- Split Points: Selectable Split Point With Led Indication (9 Locations)
- Program Organization: Organize Function For Programs
- Global Transpose: +/- 6 Semitones
- Global Fine Tune: +/- 50 Cents
- Program Transpose: +/- 6 Semitones
- Midi Over Usb: Yes
- External Keyboard Feature: Aux Keyboard Support
- Expression Pedal Assign: Enables Pedal Control Of Synth Filter And Effect Parameters
Keybed
- Keyboard: 73 Key (6 Octaves, E-E) Semi Weighted Waterfall Keyboard
Organ Section
- Organ Models: B3, B3 + Bass, Soft B3, Vox, Farfisa And Pipe Model With Full Polyphony
- B3 Percussion Controls: With Poly Option
- Vibrato And Chorus: With B3 Deep Mode
- Percussion Controls: Adjustable Percussion Level And Percussion Decay
- Tonewheel Modes: 3 Modes To Select Vintage Character
- Manual Presets: 2 Organ Manual Presets And Live Drawbars
- Drawbars: Physical Drawbars With Led Indicators
- Half Moon Switch Mount: Supported
Piano Section
- Piano Categories: Grand, Upright, Electric, Digital Or Layer, Clav Or Harpsichord And Misc Or Mallet
- Sound Management: Pianos Can Be Added, Replaced And Organized Using Nord Sound Manager
- String Resonance: Yes
- Timbre Settings: Individually Tailored For Acoustic, Electric And Clavinet Sounds
- Keyboard Touch Settings: 3 Options
- Dynamic Compression: Maintains Even Sound Level Without Altering Tonal Character
- Unison: 3 Amount Options
- Polyphony: 120 Voices For Piano Library Sounds
Synth Section
- Synthesis Types: Sample, Analog And Fm Synthesis
- Sample Management: Samples Can Be Added, Replaced And Organized Using Nord Sound Manager
- Preset Library: Analog And Fm Presets Included
- Envelopes: Amp And Filter Or Fm Adr And Asr Envelopes
- Envelope Controls: Velocity And Amount Controls For Filter Or Fm Envelope
- Filter: Low Pass Filter With Cutoff And Resonance Controls
- Fm Controls: Amount And Partial Controls
- Performance Modes: Mono, Legato And Glide Options
- Unison: 3 Amount Options
- Dynamics: 3 Dynamics Or Amp Velocity Options
- Vibrato: Adjustable Rate, Amount And Delay
- Real Time Control: Dedicated Synth Vibrato Button
- Polyphony: 30+ Voice Polyphony
Rotary Speaker
- Rotary Emulation: Rotary Speaker Emulation From Nord Organ 3
- Mic Positions: Close, Wide And Xy Mic Position Options
- Bass Mode: Bass Wide Stereo Option
- Drive Control: Dedicated Tube Drive Control
- Stop Position: Fix Angle Option With User Adjustment

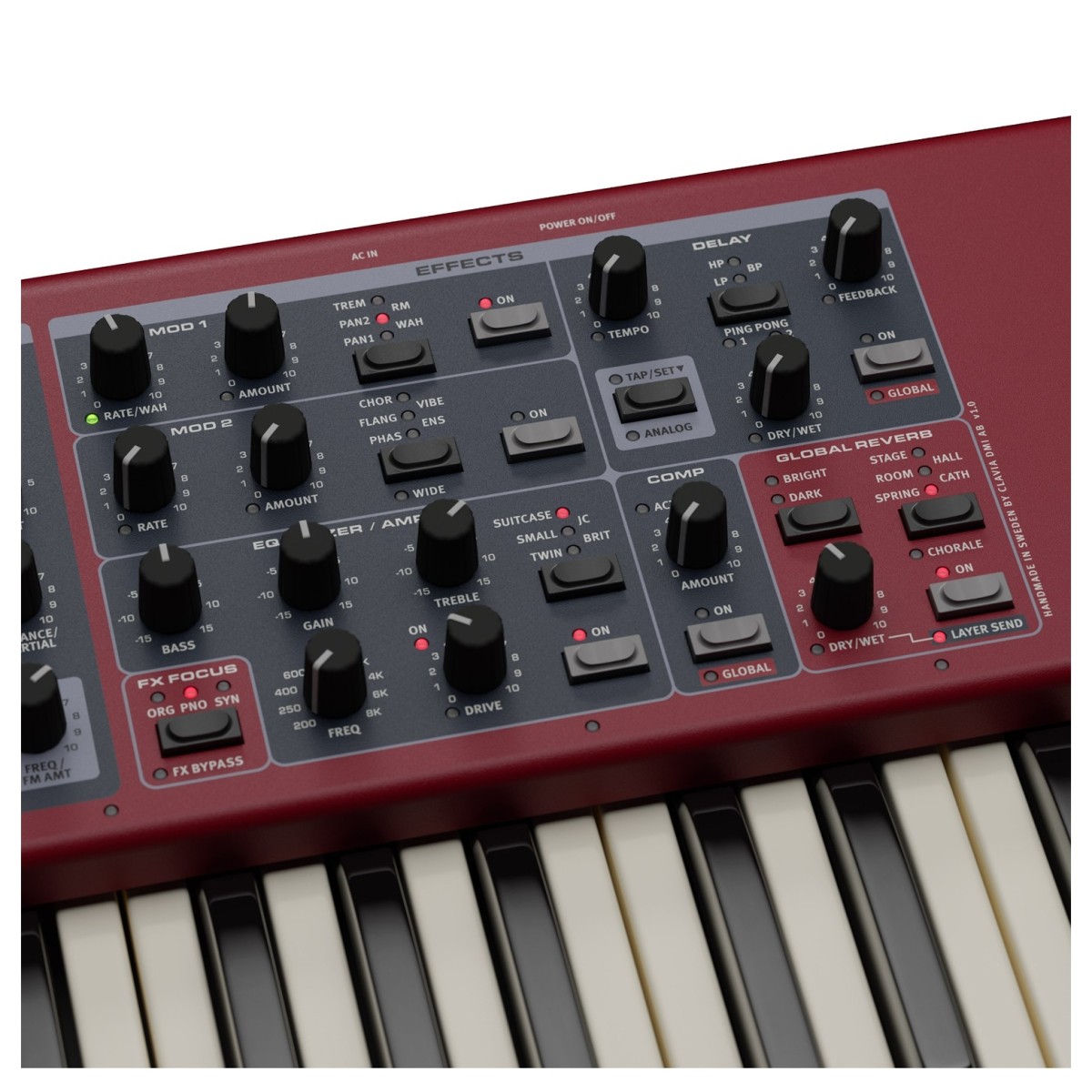

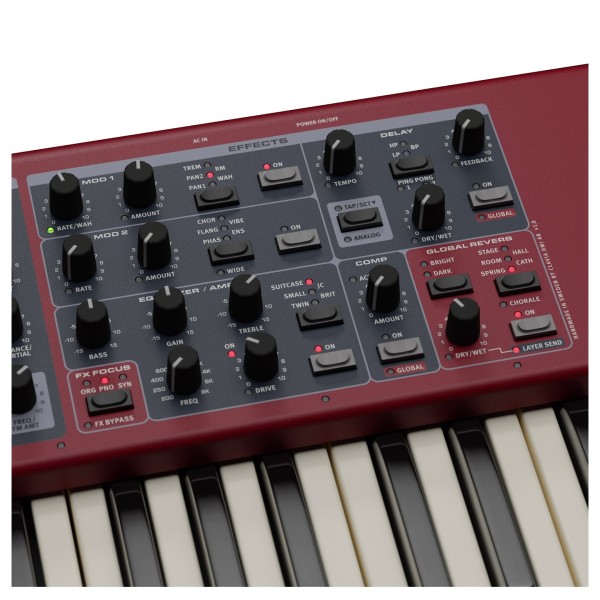

Effects Section
- Dedicated Effects: Separate Effects For Organ, Piano And Synth
- Fx Focus: With Fx Bypass Option
- Expression Pedal Control: Assignable To Most Effect Parameters
- Mod 1 Effects: Pan1 Soft, Pan2 Hard, Tremolo, Wah And Ring Modulator
- Mod 1 Controls: Dedicated Rate And Amount Controls
- Mod 2 Effects: Phaser, Flanger, Chorus, Vibe And Ensemble
- Mod 2 Stereo Option: Wide Option For Stereo Width
- Mod 2 Controls: Dedicated Rate And Amount Controls
- Amp Simulations: Twin, Small, Suitcase, Jc And Brit Models
- Equalizer: Three Band Eq With Sweepable Mid And +/- 15 Db Gain Or Attenuation
- Delay Features: Tempo With Tap Function, Feedback And Dry Or Wet Controls
- Delay Filters: Low Pass, High Pass And Band Pass Feedback Filter Options
- Ping Pong Delay: 3 Amount Options
- Delay Modes: Analog Mode And Global Mode
- Compressor: Amount Control With Global Option
- Reverb Types: Spring, Room, Stage, Hall And Cathedral
- Spring Reverb Position: Placed Before Rotary Speaker
- Reverb Options: Chorale Option For All Types
- Reverb Tone: Bright And Dark Options
- Reverb Control: Dry Or Wet Control With Layer Send Mode

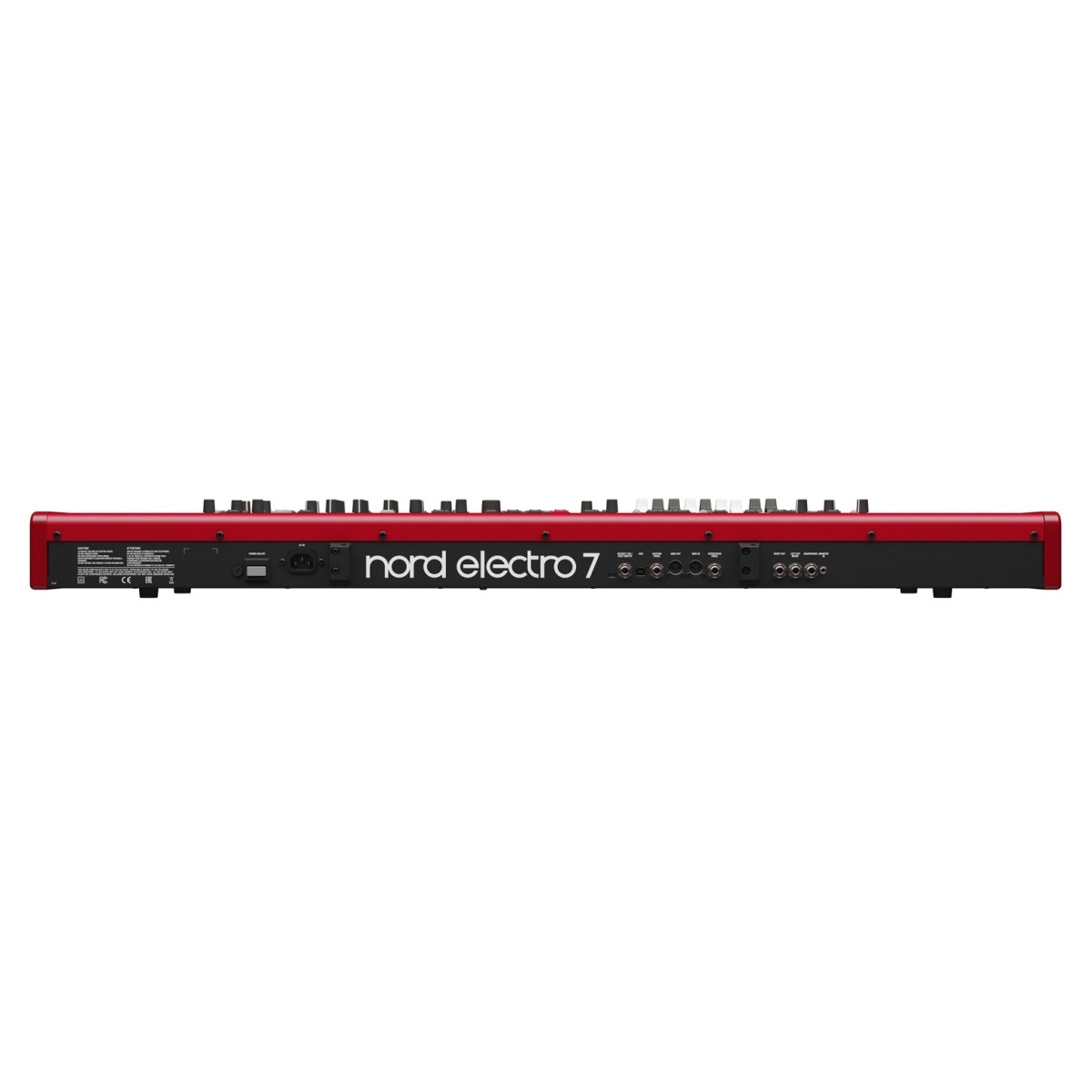

Connections
- Audio Outputs: 2 X 1/4 Inch 6.35 Mm Unbalanced L And R Outputs
- Monitor Input: 1/8 Inch 3.5 Mm Stereo Jack
- Headphone Output: 1/4 Inch 6.35 Mm Stereo Jack
- Expression Pedal Input: 1/4 Inch 6.35 Mm Trs Stereo Jack
- Sustain Pedal Input: 1/4 Inch 6.35 Mm Jack Compatible With Nord Sustain Pedal 2, Nord Triple Pedal 1 And Switch Type Pedals
- Rotary Control Or Foot Switch: 1/4 Inch 6.35 Mm Jack For Momentary Or Switch Type Pedal
- Midi: Midi In And Midi Out 5 Pin Din Connectors
- Usb: Type B Connector For Usb Midi, Software Update And Sound Transfer
- Power Connection: Power Cord With Iec C14 Connector
Included Accessories
- Manual: User Manual
- Power Cable: Power Cord
Physical
- Dimensions: 1066 Mm (42 Inch) X 104 Mm (4.1 Inch) X 294 Mm (11.6 Inch)
- Weight: 9.5 Kg (20.9 Lbs)
- Product Code: Electro773
