Bringing the AC4TV up to date
The VOX AC4 appeared in 1961 as a 4 watt all tube amp, and in spite of its compact body, its true VOX tone earned it a favorable reputation. The AC4TV8 uses the classic combination of a 12AX7 tube in the modified preamp and an EL84 tube in the power amp. The power amp is driven with a Class A circuit to deliver a wide variety of tones ranging from that clean British sound to the distinctive VOX overdrive that everyone loves.
Three level power attenuation
In the past, the only way to achieve meaningful distortion from an amp with a single volume control was to raise the volume.
The AC4TV8 provides three levels of power attenuation; 4W, 1W, and 1/10 W. Even at the minimum setting of 1/10 W, the AC4TV8 can provide that great tube distortion. This means that you can enjoy your favorite tone even when playing or recording in your own room or late at night.
Speaker developed in cooperation with the Celestion corporation
The rich sounding 8inch speaker was developed in cooperation with the Celestion Corporation. A 16ohm speaker output jack is also provided, so you can connect the AC4TV8 to a large speaker cabinet such as the VOX V412BN to perform using an even more powerful sound.
Retro "TV Front" styling
The AC4TV8 features the "TV front" vintage look, as used on the first AC15. This amp, which appeared in 1958 is one of the traditional VOX amp designs, and was most recently used on the AC15H1TV from the 2007 Heritage Collection. It's a stylized retro look that's also an ideal complement to today's modern decor.
Features:
Compact all tube amp provides real vacuum tube amp sound enjoyment
Output Power Attenuator provides full gain distortion even at low listening levels
Robust sounding 8 inch speaker developed in cooperation with the Celestion, the trusted name in speakers
Distinctive "TV front" design based on a motif from the VOX AC15 amplifier from the 1950s
VOX AC4TV8 Specificaitons

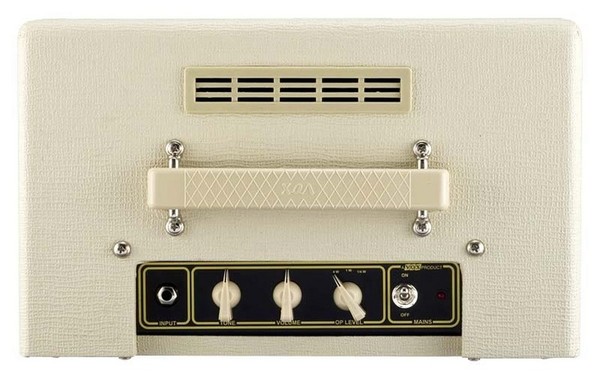

- Controls: TONE, VOLUME, OP LEVEL (4W, 1W, 1/10 W)
- Input/output jacks: INPUT, External Speaker jack
- Output: 4W RMS 16ohm Speaker: 1x 8 inch 16ohm Celestion VX8 custom speaker
- Valve/tube complement: 1 x 12AX7 (pre) / 1 x EL84 (power)
- Dimensions: 11.81"/300mm (W) x 12.68"/322mm (H) x 7.64/194mm" (D) Weight: 15.65 lbs/7.1Kg
*Specifications and features are subject to change without notice.
