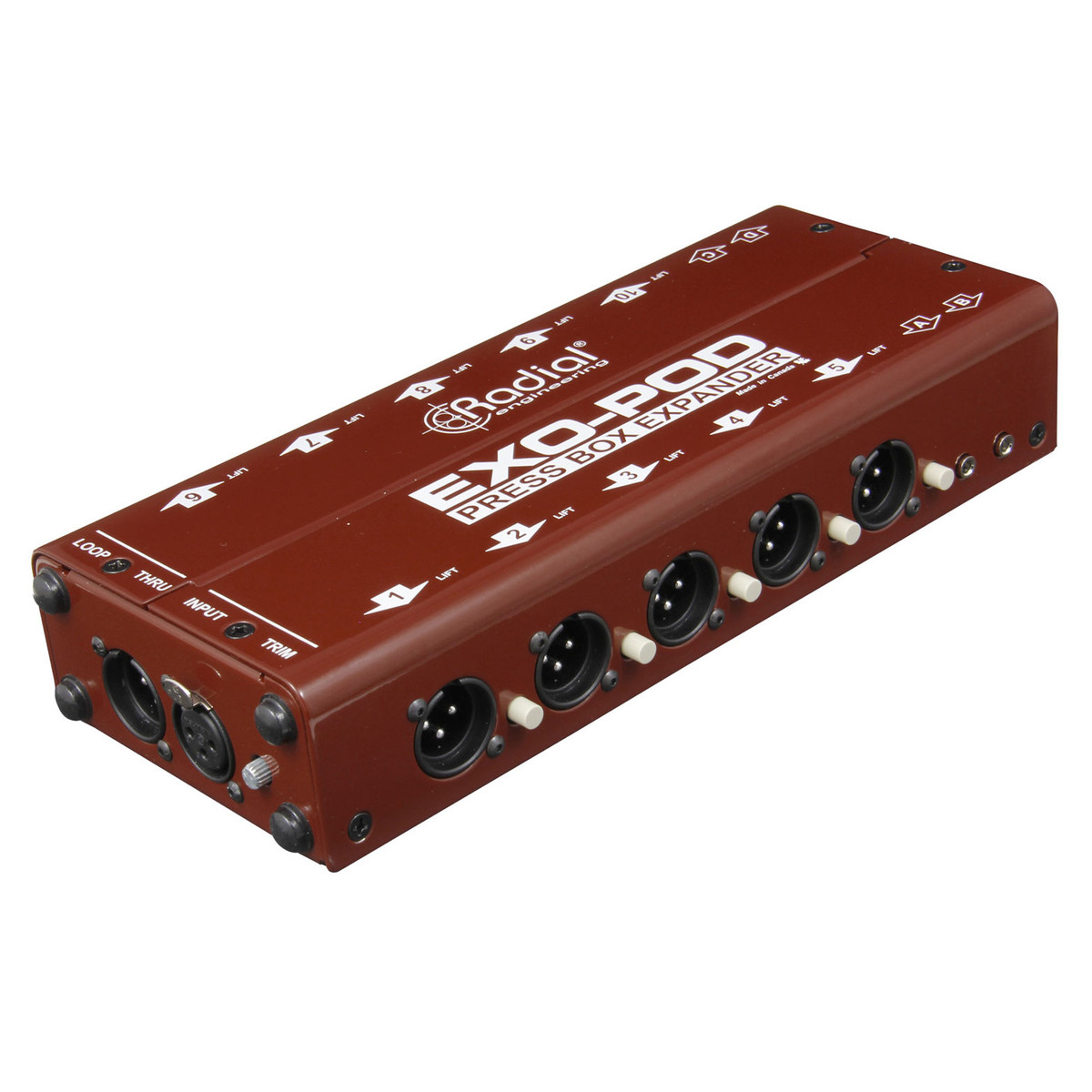

Radial Exo-Pod mPress Box Expander

This product is currently not available for purchase

Key Features

  • Take a single output and distribute to 14 isolated outputs
  • Set and forget trim control to adjust output levels
  • XLR outputs supplemented with individual ground lift switches to further minimize noise
  • Transformer isolated outputs to eliminate hum and buzz

Radial Exo-Pod mPress Box Expander Overview

Multiply your power options. The Radial Exo-Pod Press Box Expander is a passive floor box featuring a single XLR input, 10 XLR mic outputs, 4 3.5mm mini TRS outs and a throughout for expansion options. The box also features local level control for added versatility, allowing you control your inputs and outputs with ease. The Exo-Pod also features a test tone function that can be activated to set local and master levels. As well as functioning as a standalone passive floor box, the Exo-Pod is also the perfect companion for the Radial Tonebone mPress. You can also link together up to eight Exo-Pods allowing you to distribute a signal to as many as 112 users simultaneously.

Product Ref: 71936

Full Description

View Full Description

Features

  • Single XLR input
  • 10 x XLR mic outputs
  • 4 x 3.5mm mini TRS output for mini recorders
  • Throughput expansion output
  • Perfect companion for the Radial Tonebone mPress

Specifications

  • Audio circuit type: Passive
  • Frequency response: 20Hz- 20kHz
  • Total harmonic distortion (THD+N): 0.001%
  • Dynamic range: 136dB/100dB (Balanced/Mini output)
  • Input impedance (balanced): 350 Ohms
  • Common mode rejection ratio: 63dB @ 50Hz
  • Gain-input to XLR output: -3.5dB/-18dB (1ok/600 ohm load)
  • Gain-input to Mini out: -1.3dB/-20dB (100k/600 ohm load)
  • Output impedance- XLR Outs: 1000 Ohms
  • Output impedance- Mini Outs: 4600 Ohms
  • Equivalent input noise: -108dBu/-84dBu (Balanced/Mini output)
  • Noise floor- XLR Out: -111dBu
  • Noise floor- Mini Out: -86dBu
  • Intermodulation distortion: 0.006%
  • Phase deviation: -5/25° (XLR out- 10k load- Mini same)
