Key Features
- Releases a multitude of vibrant light beams thanks to two heads of moving beam power
- Two heads offer a large variety of effects and lighting options for all applications
- Infinite pan and tilt provides the flexibility to postilion the light any way that suits you

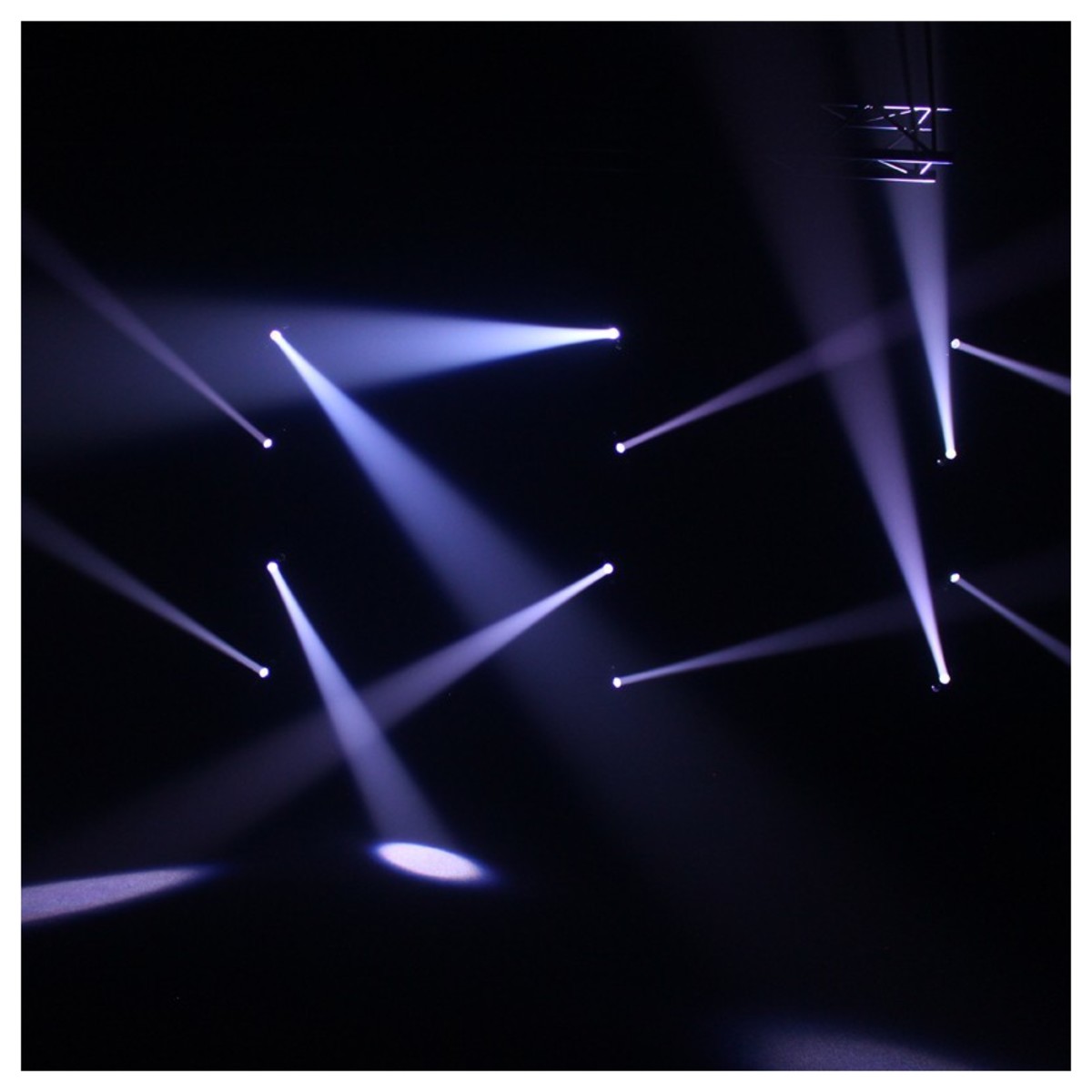

- Lighting quick movements and the razor sharp beam creates powerful aerial effects
Equinox Switchblade 2-in-1 Beam and Wash Moving Head Overview

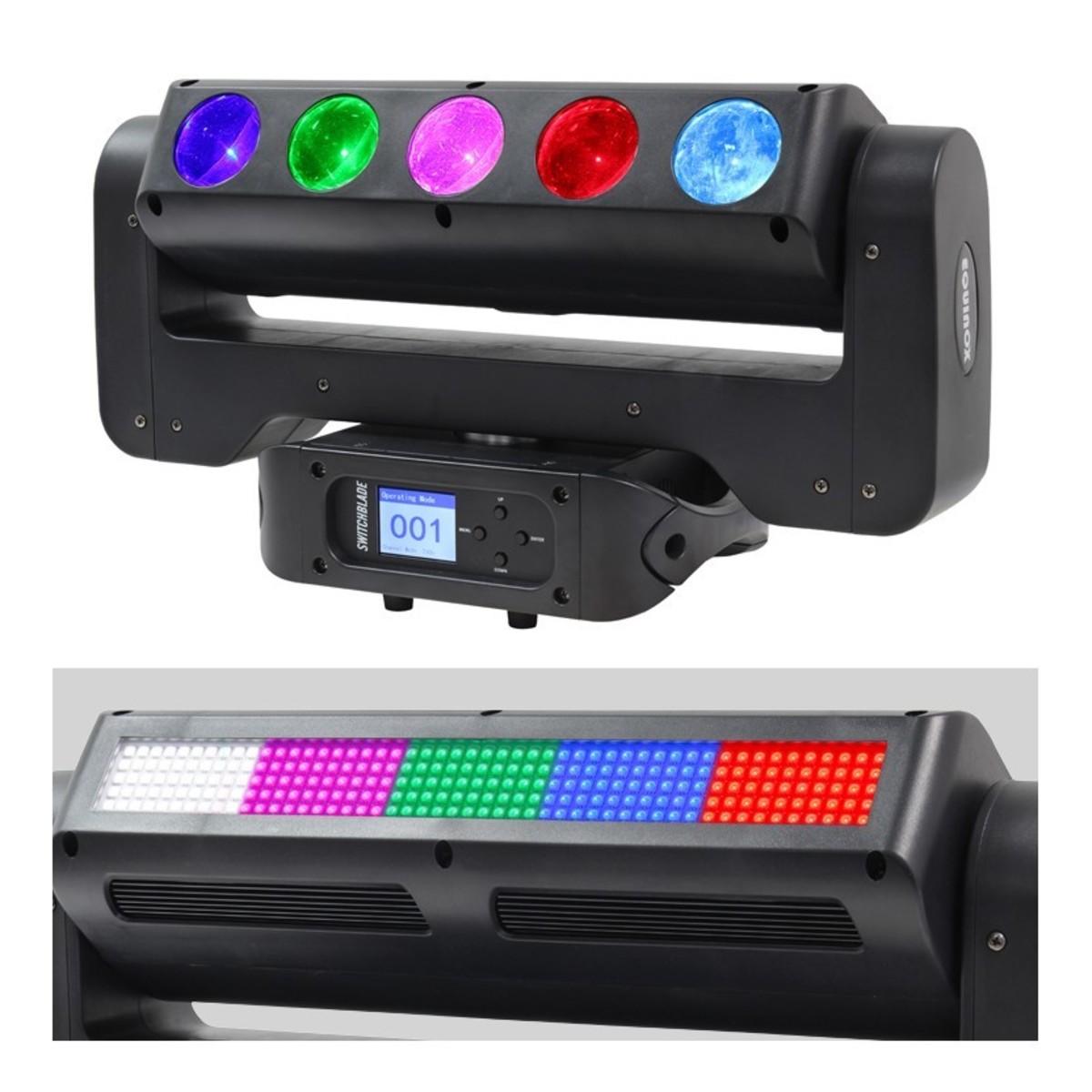

Two in one. Boasting a double sided light source providing both a beam and strobe/wash effect, the Equinox Switchblade can do everything. One side features five 40W RGBW pixel mappable LEDs with an 8° beam angle. Whilst the other side has 250 RGB LEDs which strobe and wash to fill venues with blinding and colourful effects.
Featuring 360° continuous tilt and pan, the Switchblade has ultimate mobility. Light will be bouncing off all the walls. And with 0-100% dimming and variable strobe, it packs that extra energy and excitement for a light show that keeps everyone on the dance floor. Operate it with ease and precision with DMX control, which gives you the opportunity to pre-program and design your own unique light show. Or, utilise the auto, sound active, and master/slave modes for a light show on the fly.
Product Ref: 147620
Full Description
View Full DescriptionHere, there, and everywhere

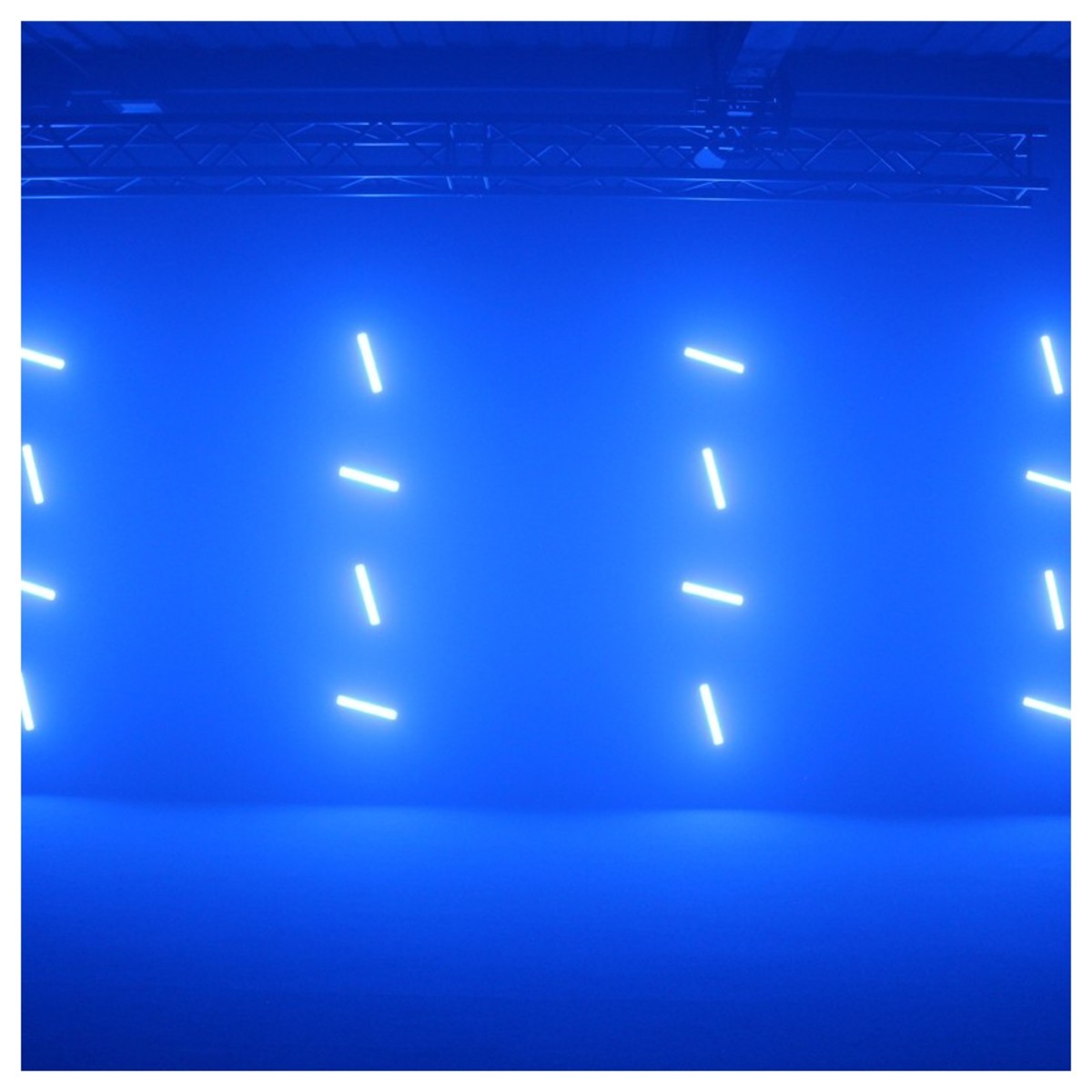

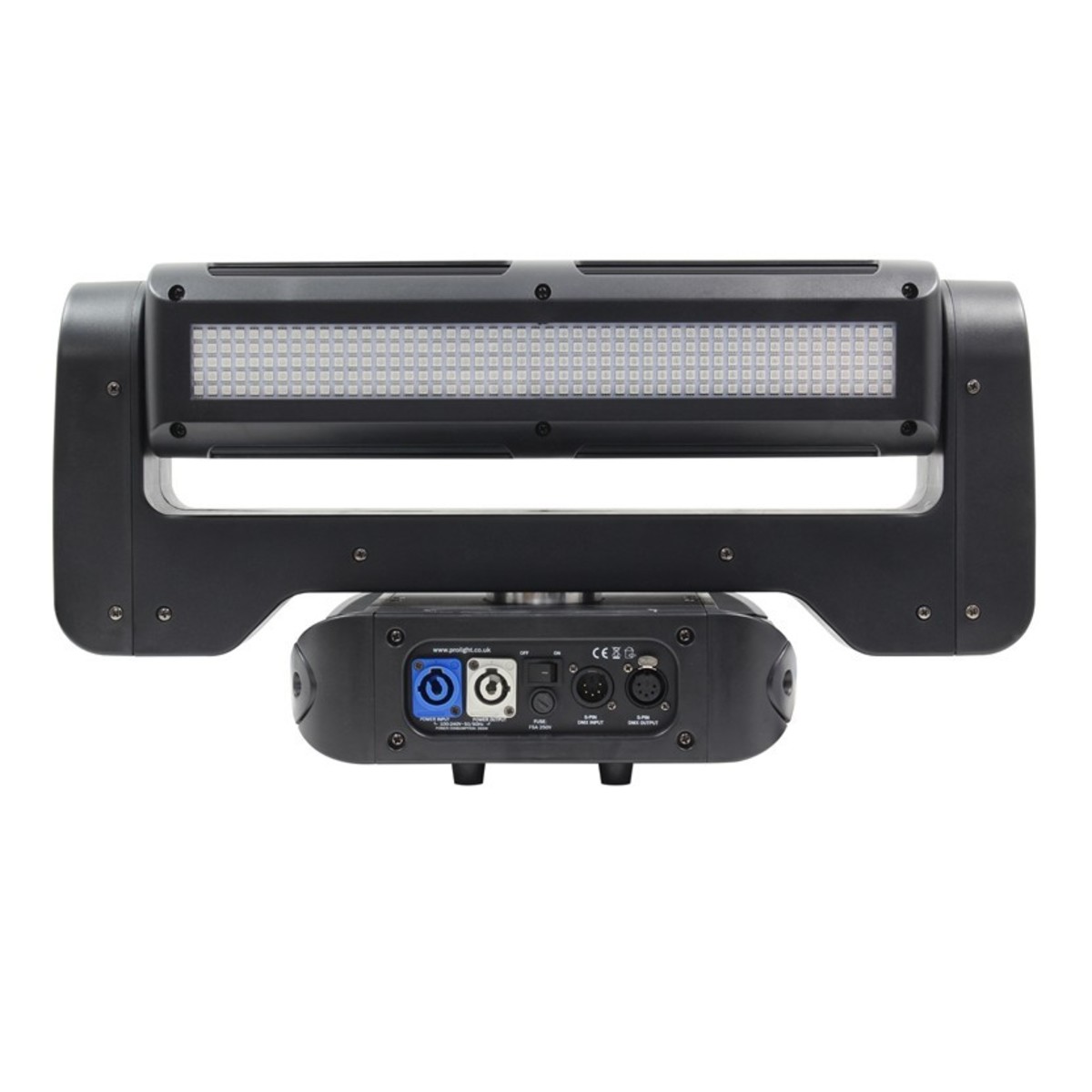

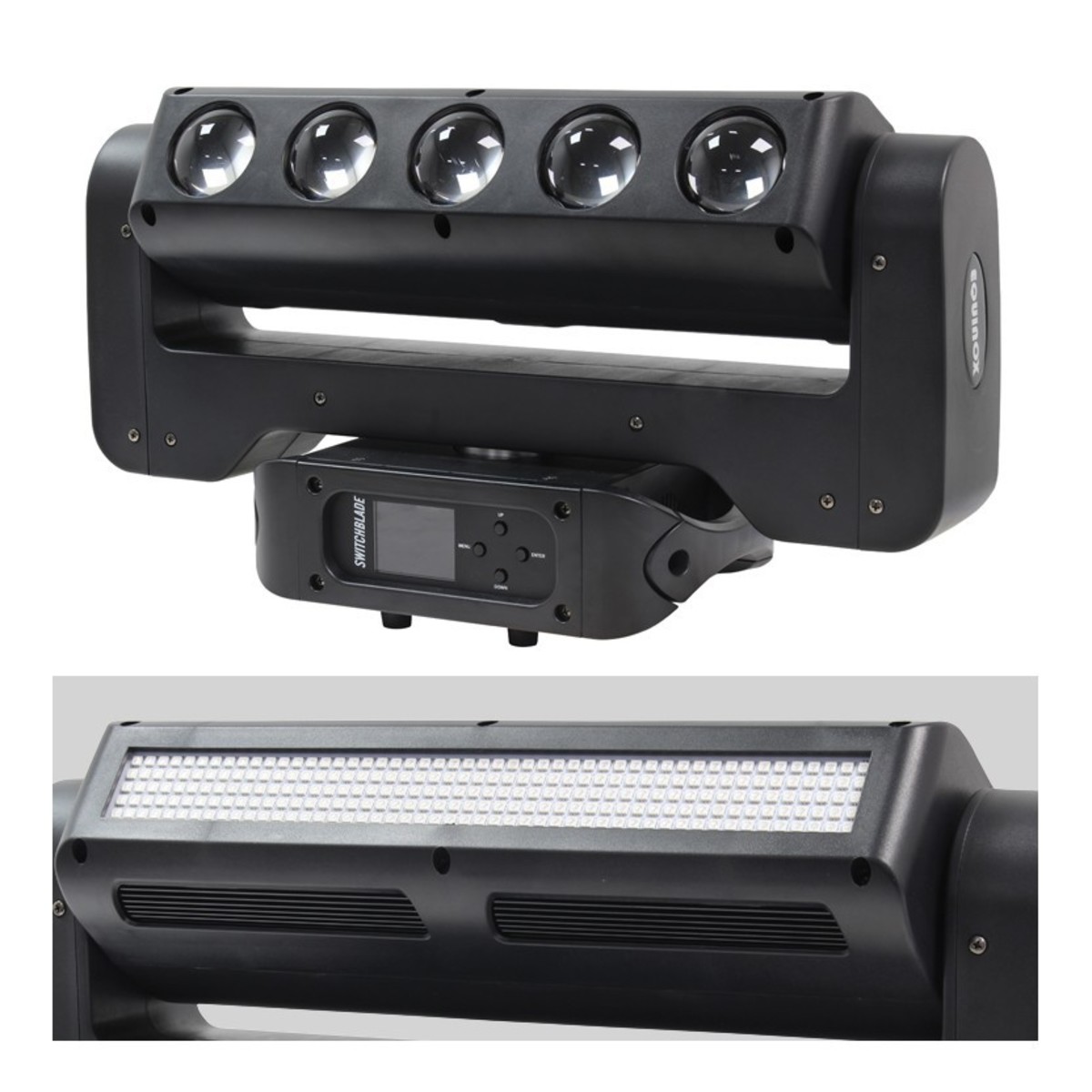

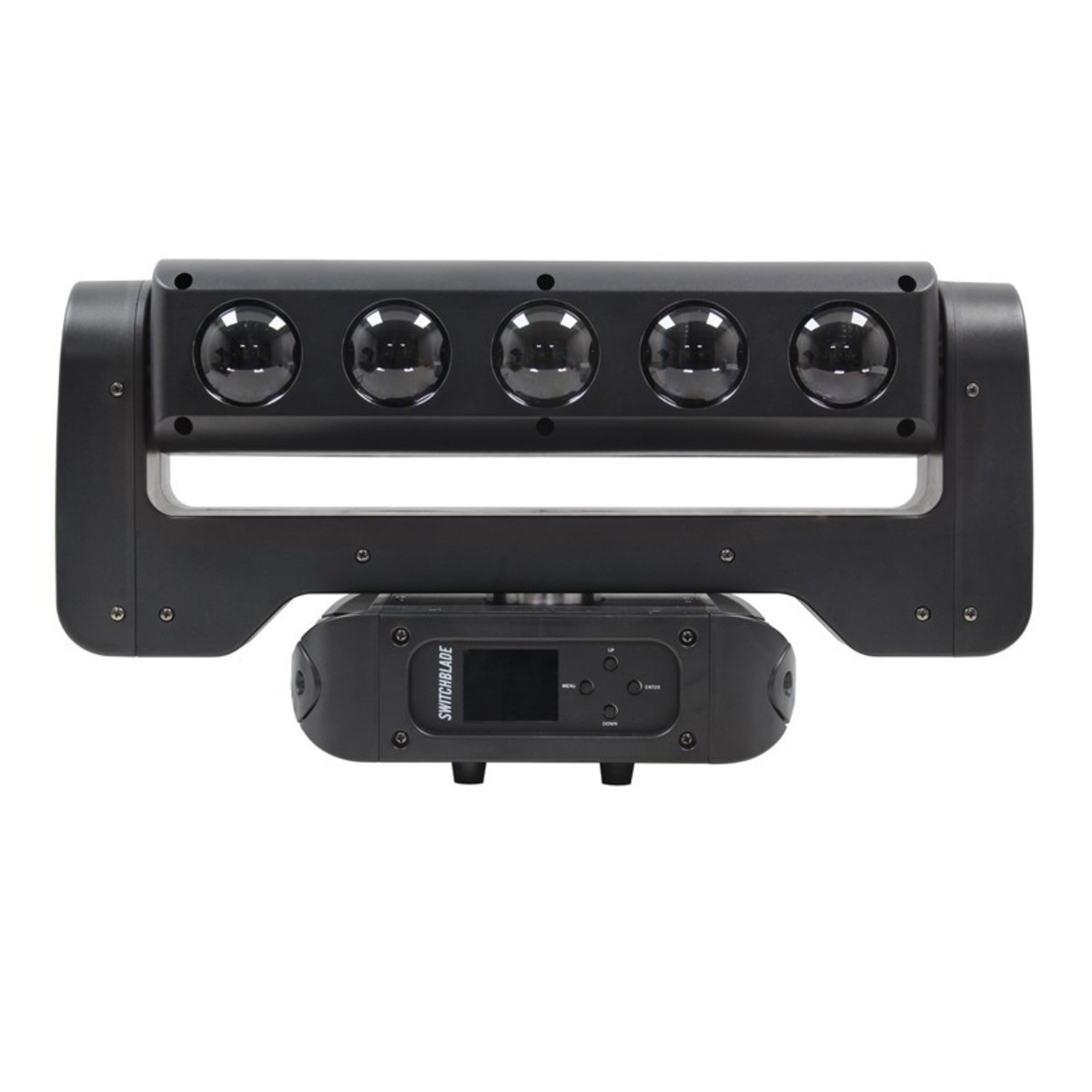

It's a moving head fixture with a twist. Complete with two heads, you're getting two in one with the Switchblade. One side of the sleek bar consists of five RGBW beams with a narrow and focused 8° beam angle so that you can illuminate the room with vibrant colour. The other side, however, features 250 RGB 5050 SMD LEDs with a wide 160° beam angle for a broad dispersion of light that fills the room. You can even individually control these LEDs to mix and match lighting effects. Have a bit of everything.
And with pan/tilt auto correction, 16-Bit position, and even 360° continuous pan and tilt, this moving head has all the moves. Have light dancing in the exact position and pattern you want. Completely customise its movements. Its lighting quick movements and razor sharp beam ensures a highly energetic light show, perfect for night clubs, bars, and parties. Wherever there's an Equinox Switchblade you want to be there.
And it's simple to use...
Thanks to multiple DMX channels and various other control options. Pre-program complex and exciting light shows unique to you and each individual application with the DMX control. Or, for a more efficient and easy setup, utilise the auto, sound active, or master/slave modes. The 4 push button menu with 2.5” LCD display makes navigation easy. And supplied with its own quick release omega clamps you are ready to set up and go straight from the box.
Features
- 5 x 40W quad-colour LEDs (RGBW)
- Beam angle: 8°
- 15,558 Lux @ 2m (per LED, full on)
- 16kHz refresh rate
- Strobe optics: 250 tri-colour 5050 SMD LEDs (RGB)
- Beam angle: 160°
- 183 Lux @ 2m (full on)
- 500Hz refresh rate
- Individually controllable LEDs (beams)/zones (strobe)
- DMX channels: 2/15/23 or 48 selectable
- Auto, sound active and master/slave modes
- Pan/tilt auto correction
- 16 bit pan/tilt positioning
- 360° continuous pan and tilt
- 0-100 dimming and variable strobe
- Supplied with quick release omega clamp
- 4 push button menu with 2.5” LCD display

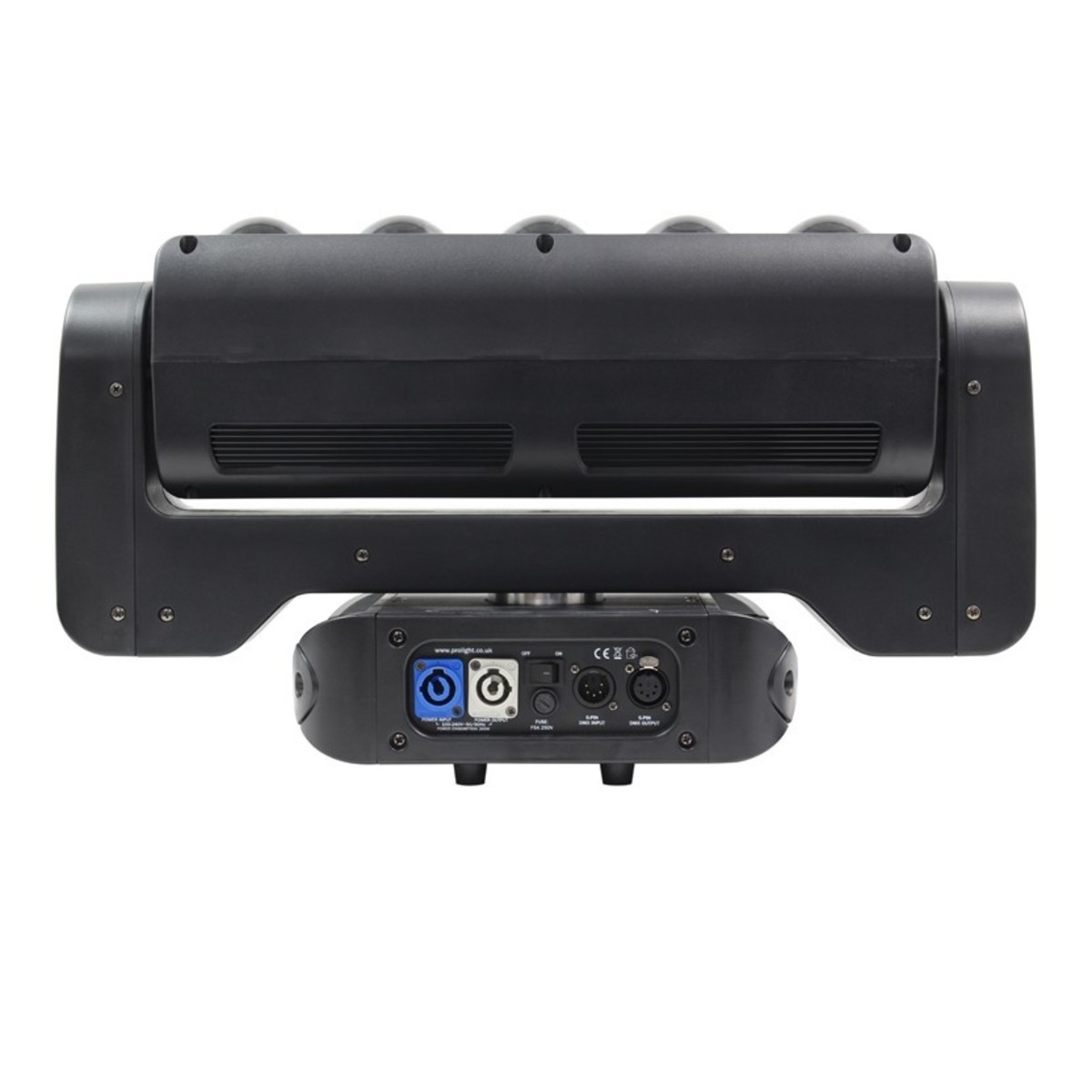

- PowerCON input/output
- 5-Pin XLR input/output
- Fan cooled
Specifications
- Power Consumption: 265W
- Power Supply: 100 240V, 50/60Hz
- Fuse: F5A 250V
- Dimensions: 305 x 532 x 183mm
- Weight: 11.2kg
- EQLED019
