Selling Your Electro-Voice ZXA1-SUB 12'' Active PA Subwoofer
Trade in your Electro-Voice ZXA1-SUB 12'' Active PA Subwoofer with Gear4music. If your setup’s changing or you’re after more low-end power, this compact sub might no longer fit the bill. It’s a handy option for portable rigs and smaller venues, but upgrading could give you more headroom and bass depth to suit bigger gigs or newer speakers.
You could look at moving up to a larger 15" or 18" subwoofer for fuller response, or consider a matched PA system that offers tighter integration and better overall balance.
Product Ref: 337209
Full Description
View Full DescriptionEngineered for portability

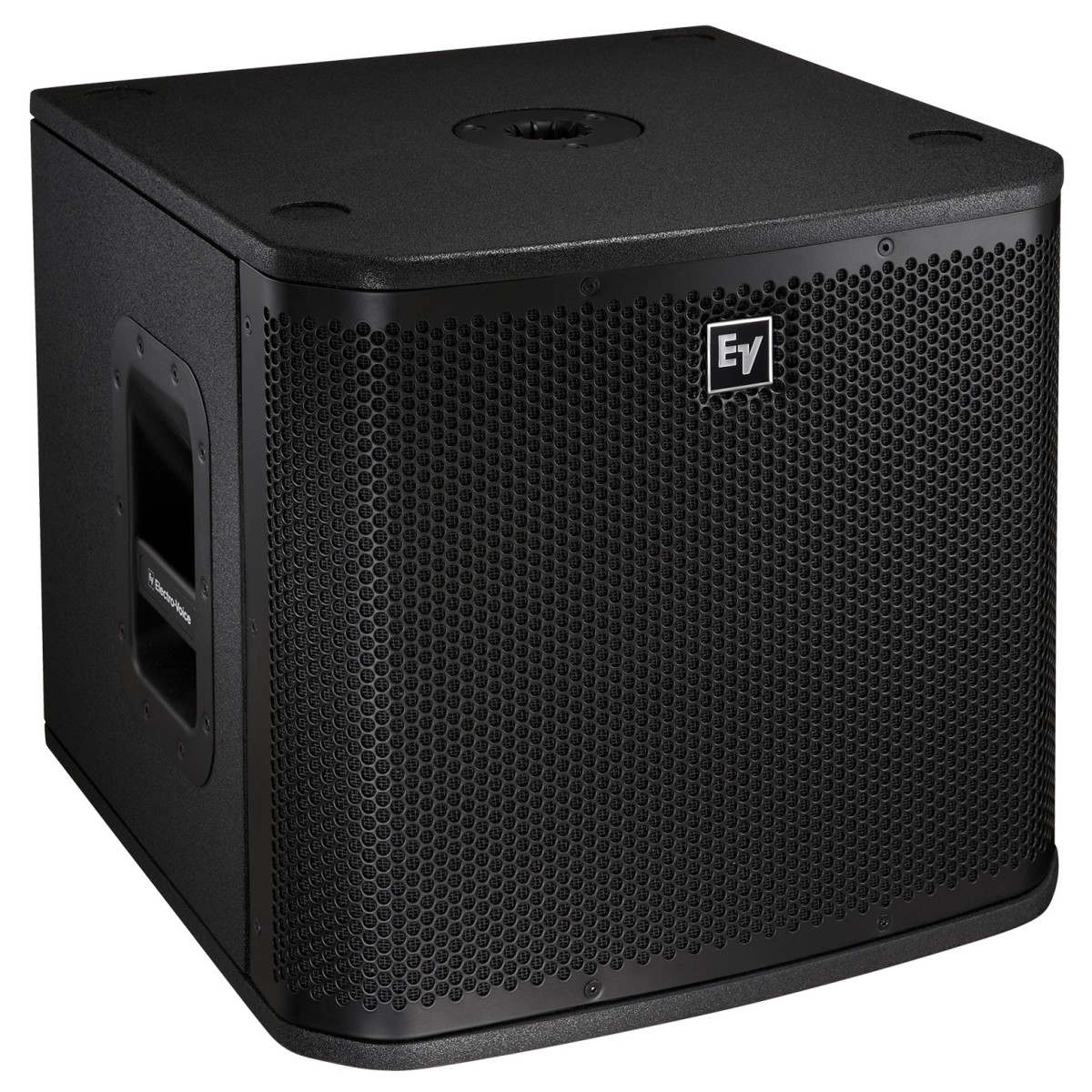

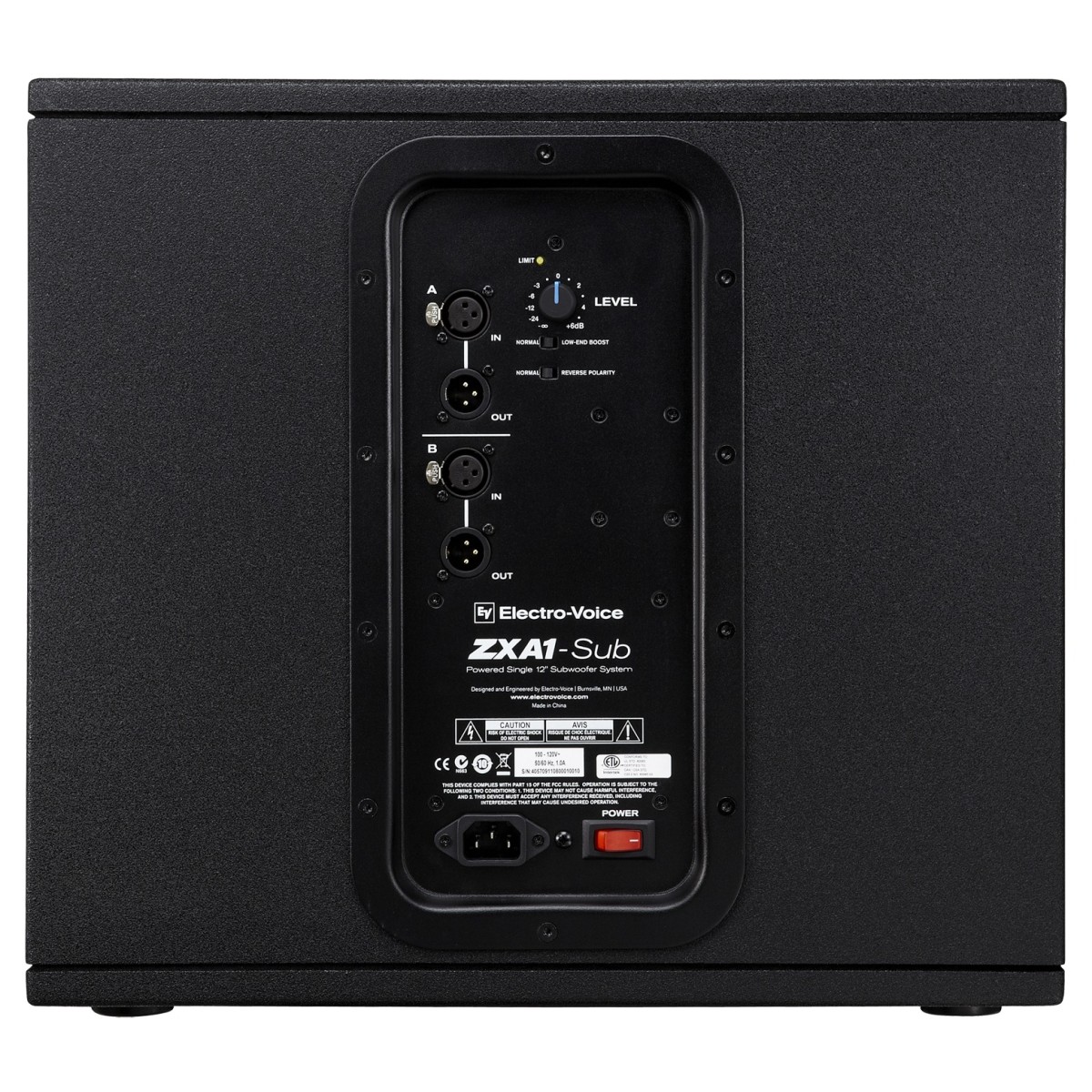

The Electro-Voice ZXA1-Sub's low end boost switch introduces a 60Hz boost. This is excellent should you require more definition and power in your low end. A polarity switch provides more compatibility with other top boxes and includes an IEC jack for power, commonly used on computer and pro audio equipment. The dual inputs and outputs mean easy cable management and mono sub configuration. The wooden enclosure gives better management and enhancement of the low frequencies and increased durability. Pole mounts and solid easy grip handles make the ZXA1-Sub ideal for many portable applications.
Features
- 700-watt Class-D amplifier
- 126 dB maximum sound pressure level
- 12-inch high-output woofer
- Dual XLR stereo inputs & outputs
- DSP with low-end boost & polarity control
- Switchable EQ modes
- LED indicators for power & limit
- Pole mount for full-range systems
- 9-ply, 15mm internally braced wood enclosure with textured paint
- Integrated carry handle
- Lightweight housing
Specifications
- Speaker Type: Powered Subwoofer
- Amplifier Power: 800W RMS
- Colour: Black
- Coverage (Nominal -6 dB): Omnidirectional
- Input Connections: 2 x XLR Stereo Input, 2 x Stereo Output
- Power Requirements
- 120V: 90V - 132V, 1.0 A, 50/60Hz
- 230V: 190V - 264V, 0.6 A, 50/60Hz
- Frequency Response (-3 dB): 53 - 93Hz Half Space
- Frequency Response (-10 dB): 44 - 118Hz Half Space
- Max SPL: 126 dB Half Space
- System Power Handling: 700W
- LF Transducer: 1 x EVS-12S, 12''
- Crossover Frequency: 100Hz
- Enclosure Material: 9-Ply, 15mm Plywood, Internally Braced, Textured Paint
- Outdoor: No
- Grille: 16GA Steel With Black Powdercoat
- Weight: 20.9 kg
- Dimensions
- Height: 400 mm
- Width: 444.5 mm
- Depth: 457.2 mm
- Product Code: ZXA1-SUB
