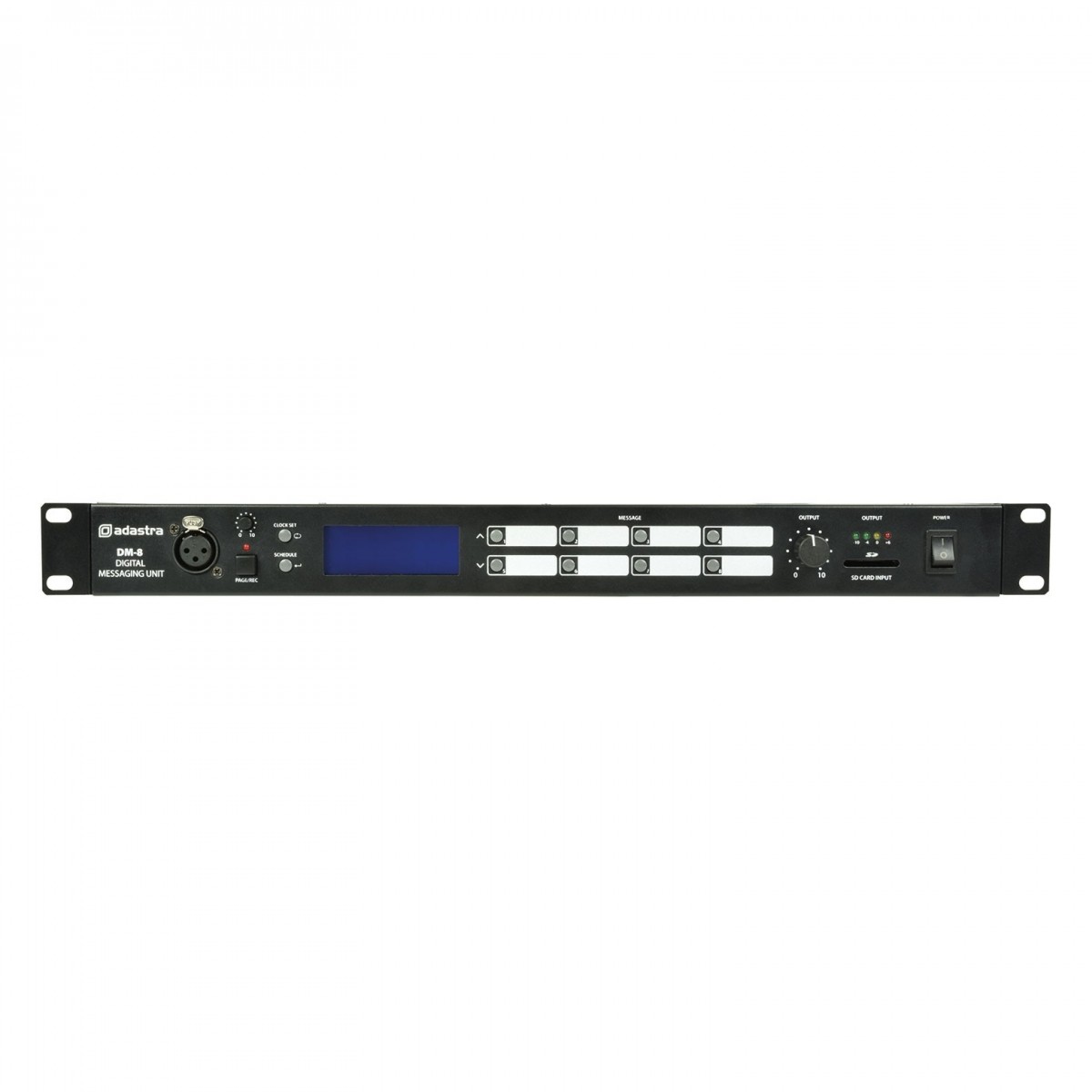

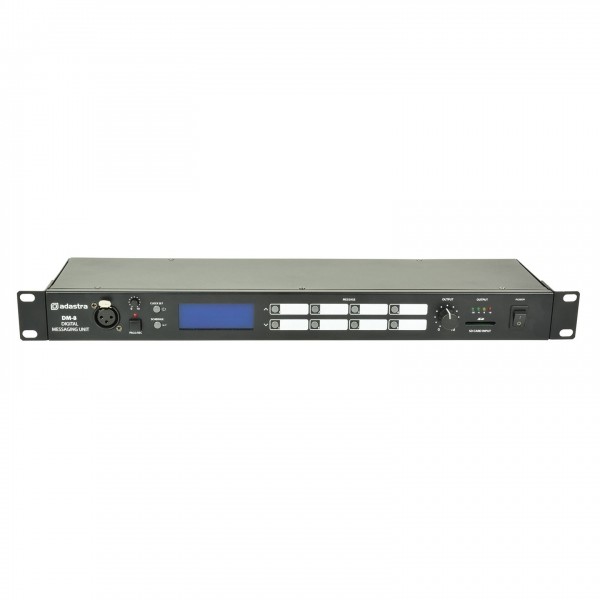

DISC Adastra DM-8 Digital Messaging Unit

This product is currently not available for purchase

Key Features

  • Easily integrate into existing sound systems for automatic announcements
  • BGM line input to provide background music playback
  • Override SD playback for live announcements with the mic/line input
  • Fits into standard 1U racks

DISC Adastra DM-8 Digital Messaging Unit Overview

Make announcements with ease. The Adastra DM-8 Digital Messaging Unit makes scheduled playback remarkably straightforward. Store your pre-recorded audio on an SD card, or directly record into the DM-8. For different routines, simply switch SD cards which can also store edited schedules- it's that easy! There's an integrated auto-duck feature with a Mic/Line-in connected so no tweaking with faders or controls when quick live announcements need to be made. The BGM input also allows background music to be played with its own level control. Store up to 99 schedules with 99 audio tracks; save time and energy making announcements with the DM-8.

Product Ref: 170430

Full Description

View Full Description

Features

  • Up to 99 audio tracks stored on SD card
  • Up to 99 schedule events stored on SD card
  • Schedule file editable via PC/Mac
  • Mic/Line input for recording or live announcements
  • BGM line input for background music

Specifications

  • Power supply: 100-240Vac, 50/60Hz or 24Vdc
  • Fuse: T1AL 250V
  • Battery: CR2016 button cell (internal clock)
  • Inputs: Paging mic/line (XLR or terminals), BGM (RCA)
  • Output: Mono balanced terminal or unbalanced RCA
  • Audio source: Internal SD card player
  • Time setting: 99 programmable schedules - 24 hour + day(s) setting
  • Mic/line channel controls: Mic/Line level, Phantom power on/off
  • Phantom power: +20V
  • Input impedance: 2.2k Ohms (mic/line)
  • Controls:
    • Page/Rec
    • Mic
    • Clock Set
    • Schedule
    • Message 1-8
    • Output
    • Power on/off
  • Trigger: Message 1-8, Stop & Ground contacts
  • SD card requirements: 4-32GB FAT32 (full size or with adaptor)
  • Dimensions: 483 x 150 x 44mm
  • Weight: 1.65kg
