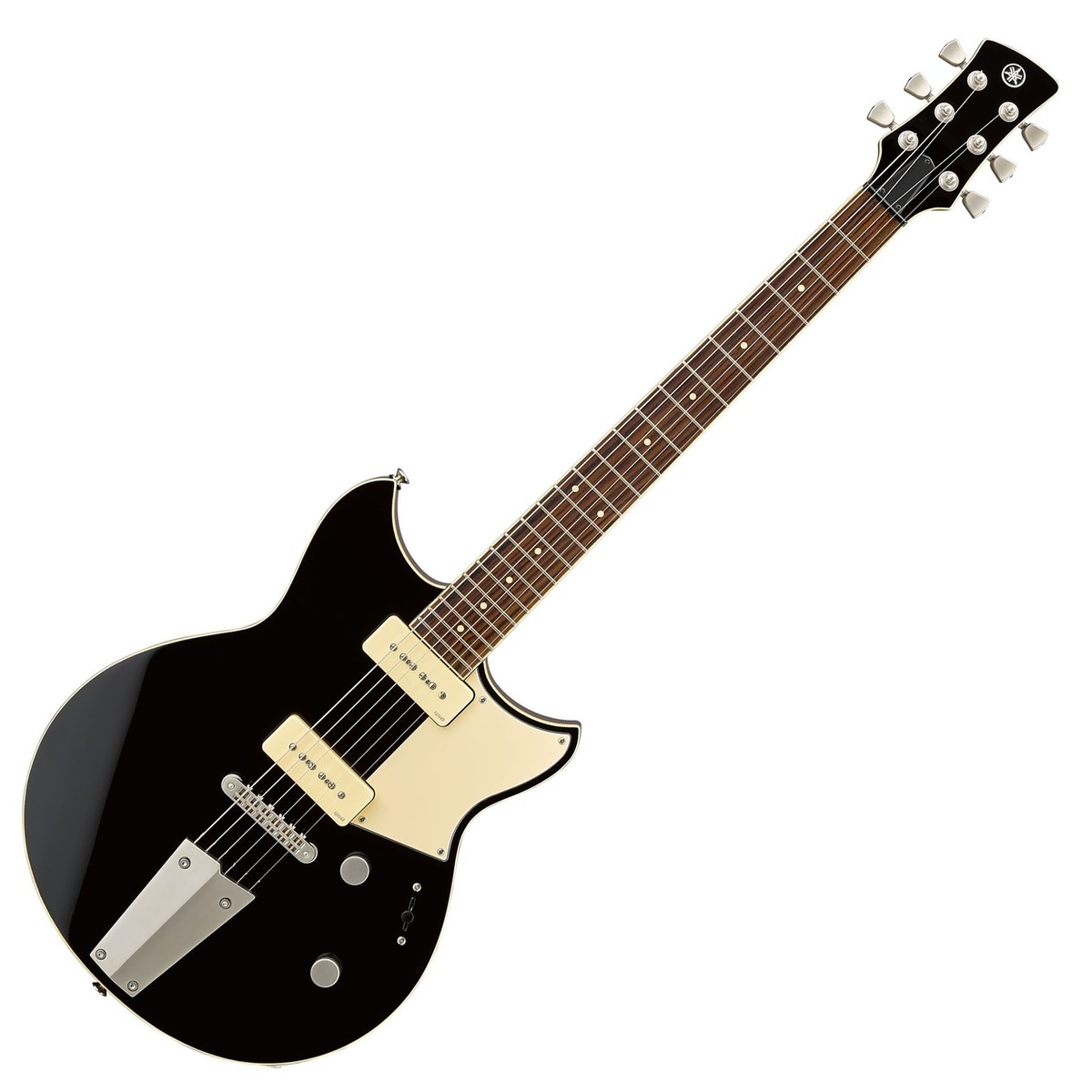

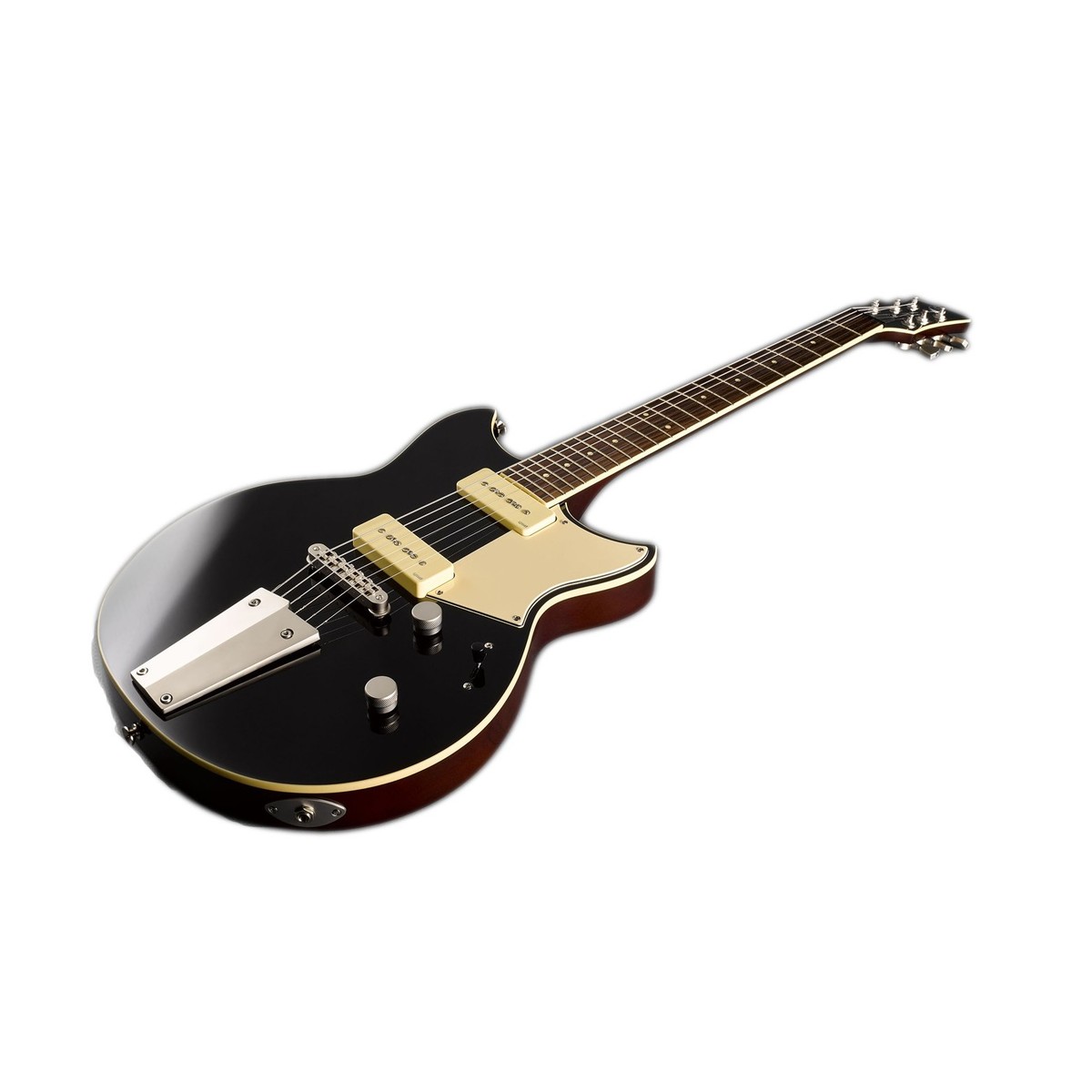

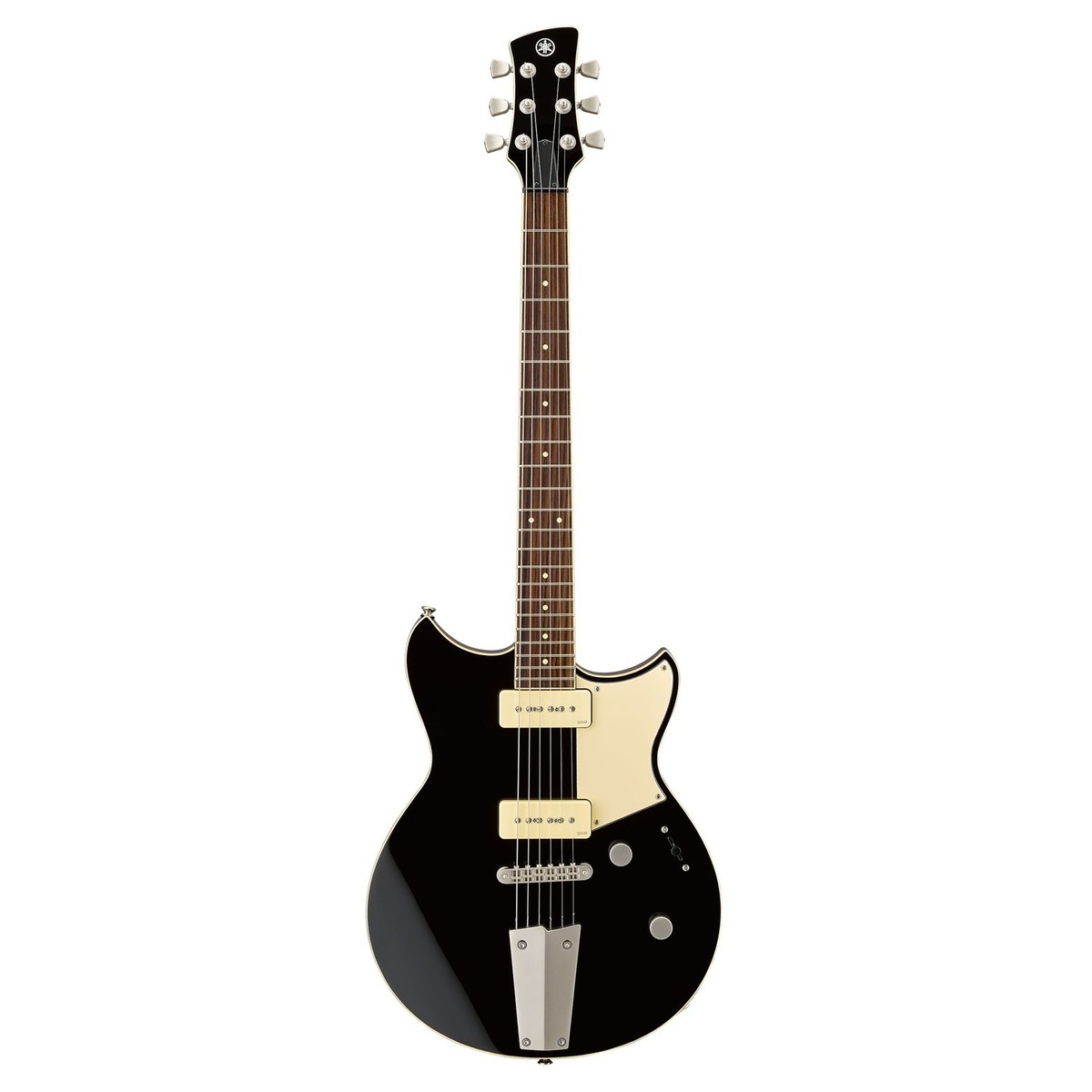

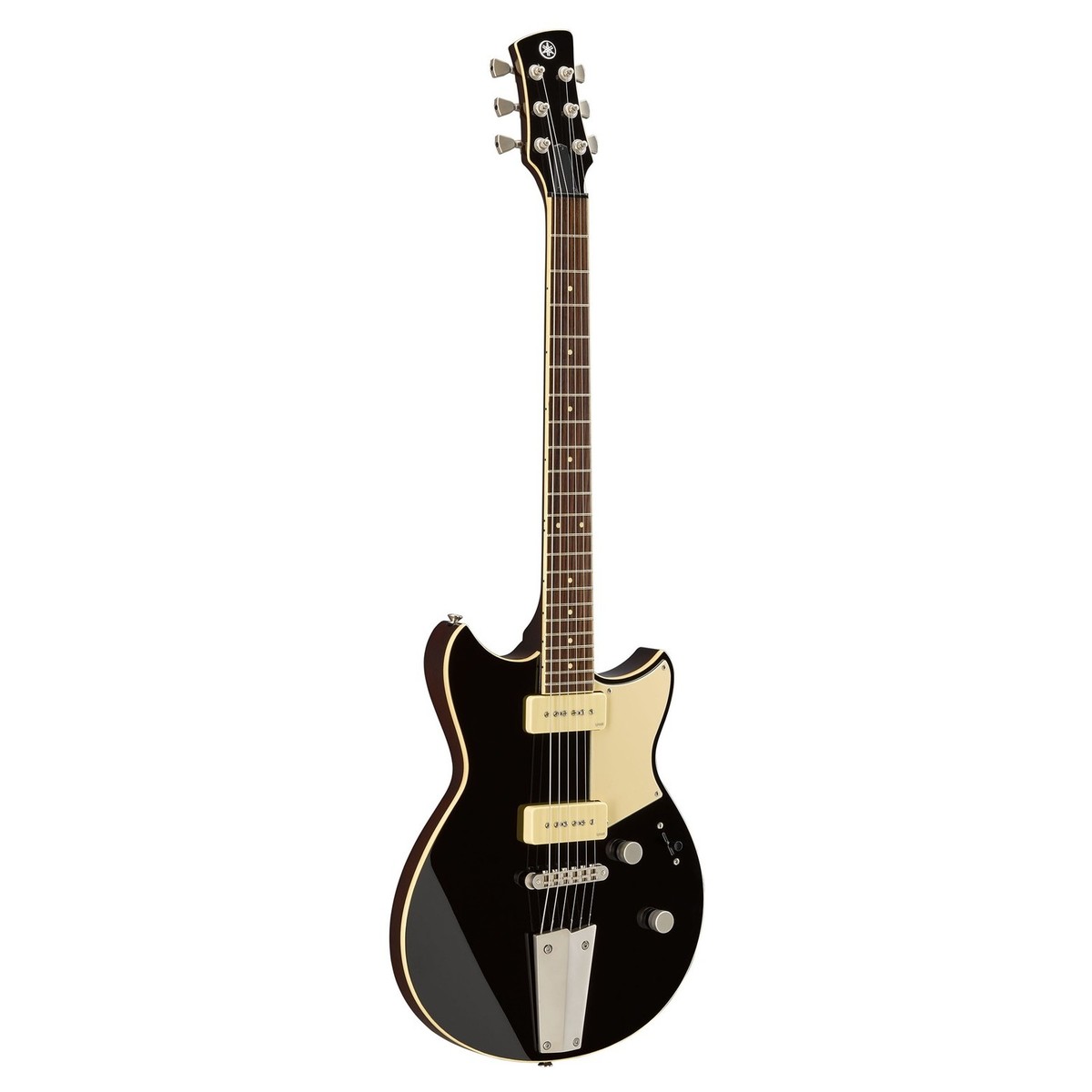

Yamaha Revstar RS502T, Black - Nearly New

Full Description

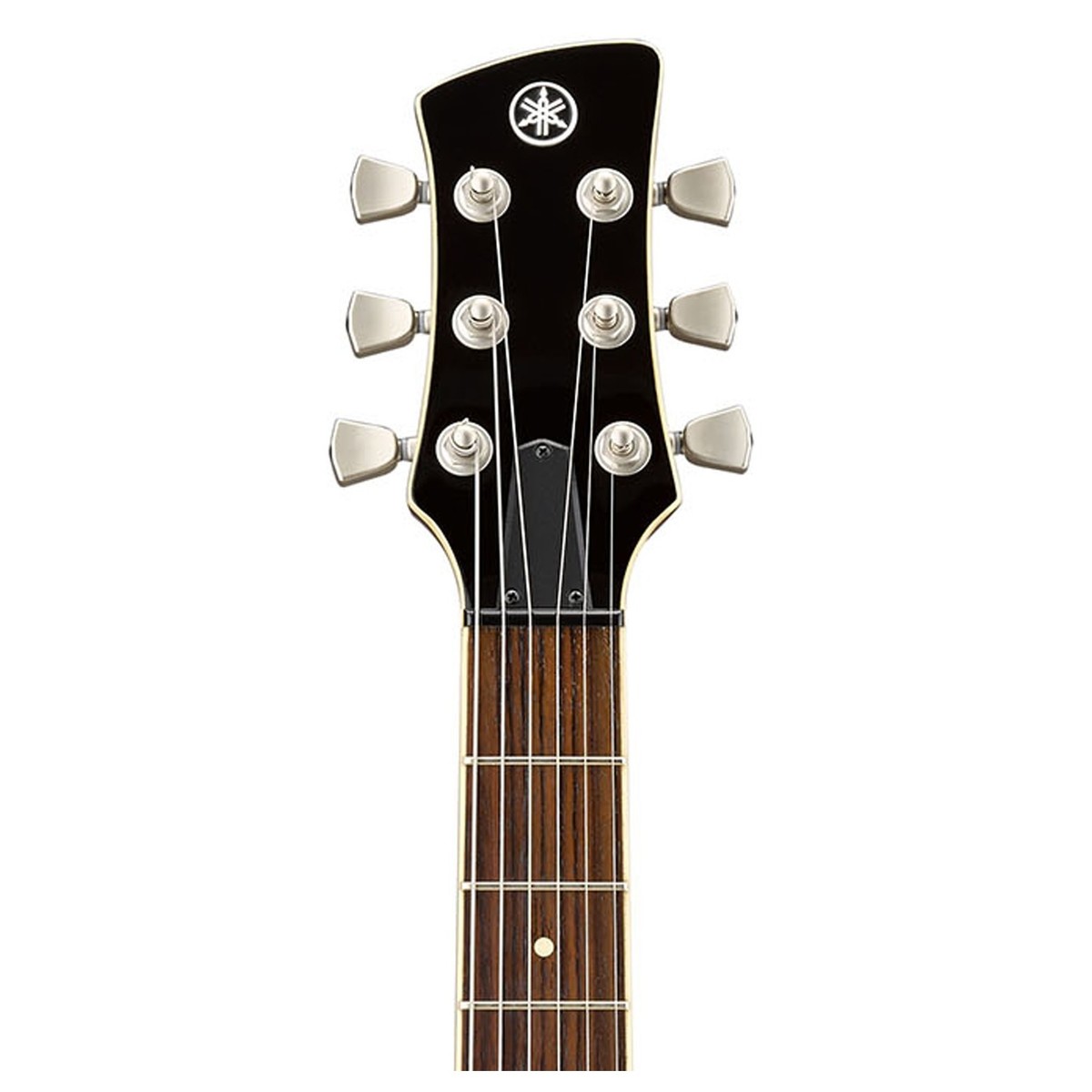

Stand-Out Revstar Design

The Revstar range of guitars takes inspiration from Café-Racer motorcycles of the London scene in the '60s. The stylish outline, specially-chosen colour combinations, and elegantly understated design features create a guitar with the visual appeal of a classic instrument, yet with a modern edge that will really stand out on stage. The double cutaway design, minimalist headstock, aluminium tailpiece, and distinct scratch-plate come together to create a guitar with a quiet-confidence and mature aesthetic that wouldn't look out of place with classic guitars from 50 years ago.

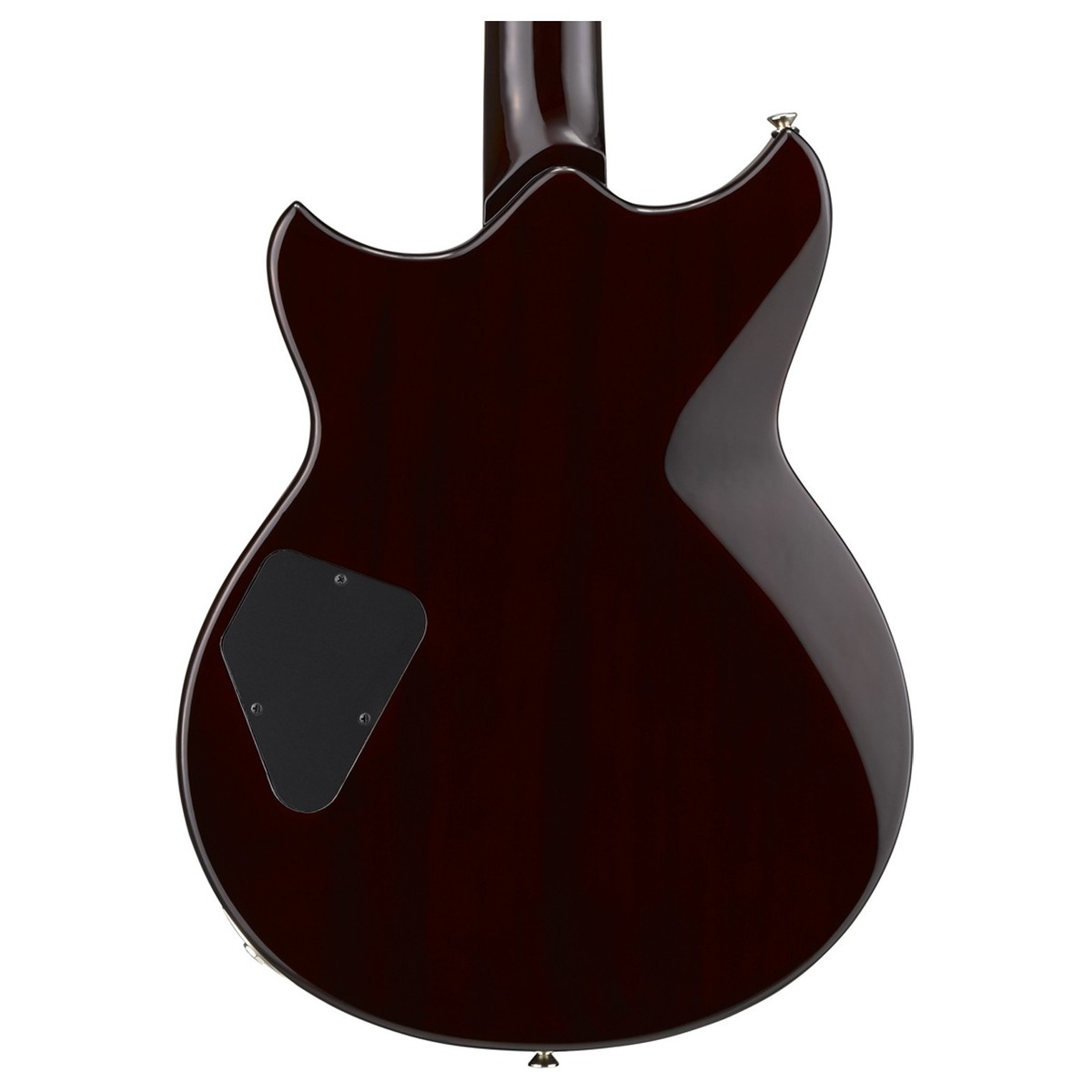

Comfortable Body Contours

Despite the vintage-inspiration, the Revstar RS502T is super-comfortable to play, courtesy of its body contours. A tummy-cut and deep forearm contour means you'll be able to play long into the night without any discomfort, whether stood up or sat down. The set-neck design with uniquely ergonomic neck joint also creates a smooth playing-feel when you're reaching the top frets for those high-range solo moments.

Fast-Playing Neck Specification

The RS502T's neck has a thoroughly modern playing feel to enable easy soloing and rhythm work. The rosewood fingerboard creates a smooth playing surface for the left hand and the 22 jumbo frets provide incredible control over the strings for bending and vibrato techniques. The RS520T's double cutaway body and smooth set-neck joint provide no barriers to the top frets, while the fingerboard has a very modern 13-3/4'' radius which is only slightly rounded to enable easy string bends and excellent balance across the strings.

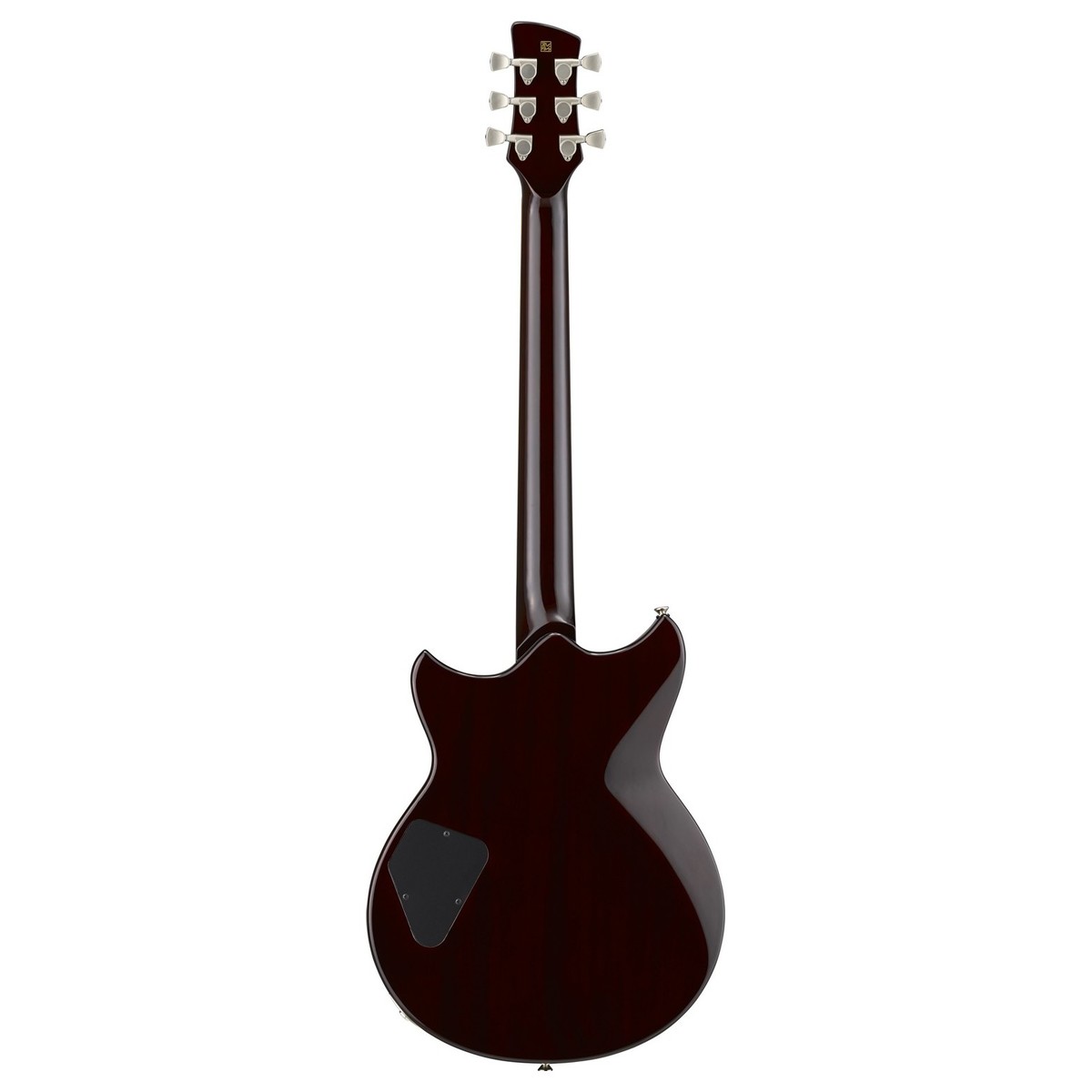

Resonant Mahogany Body and Neck

The body and neck are crafted from mahogany for a warm and resonant sound with great sustain. This tonewood is often chosen for classic rock and blues guitars due to its warmth and mid-focus, yet it performs equally well in blues, country, jazz, and many more styles. A maple top enhances the guitar's bright overtones, bringing out the top-end of your sound and helping harmonics ring with clarity.

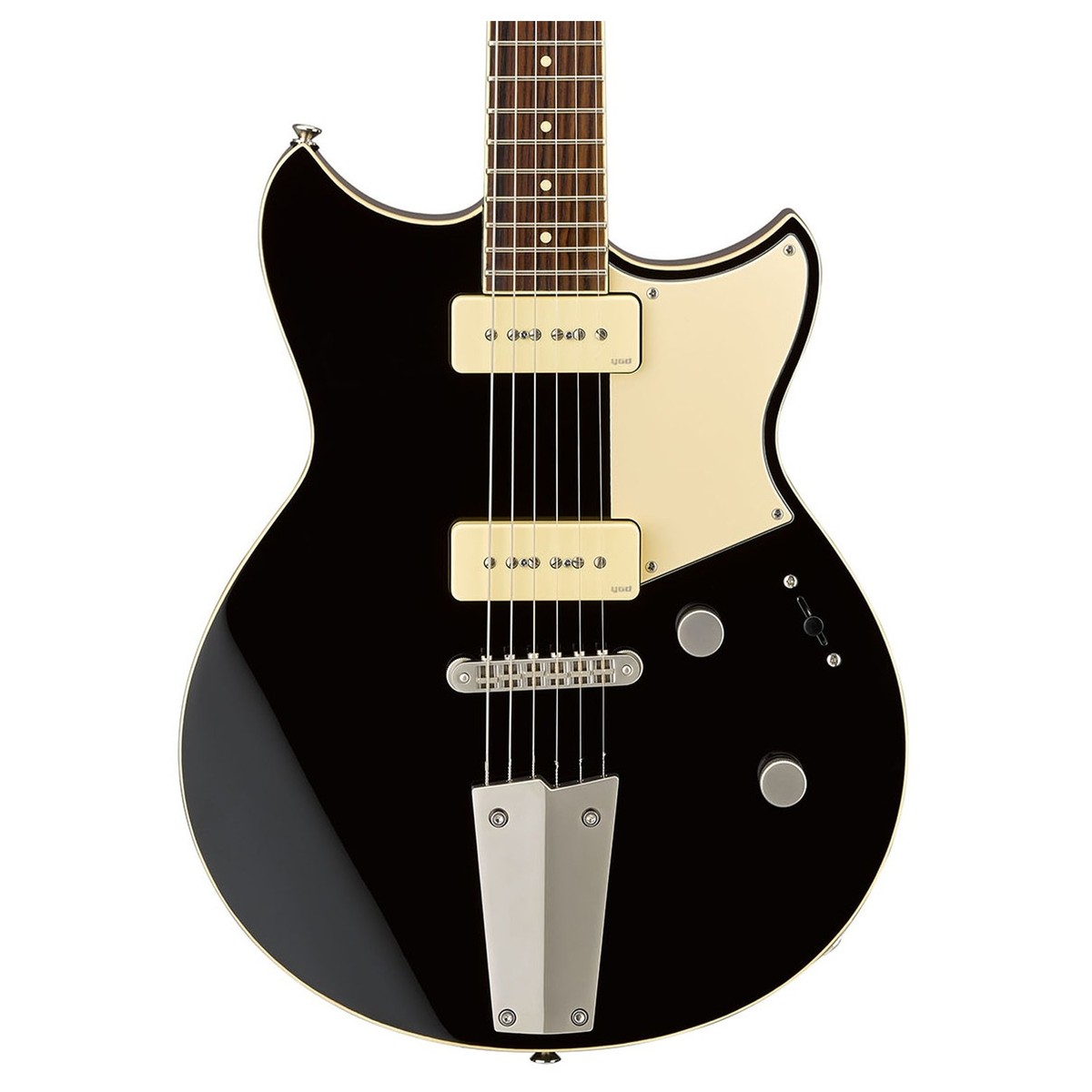

Versatile VP5 Pickups

The Revstar RS502T is mounted with two VP5 pickups. These units recreate the sound of the classic P-90 design, sitting somewhere between humbuckers and single-coils with their tonal response. This gives you the ideal blend between humbucker bite and single coil nuance, so you can get a cutting overdriven sound that will clean up when you roll back the volume. A 3-way switch gives access to powerful bridge-position sounds, mellow neck-position tones, and the bright combined-coil sound. This combination is ideal for multiple genres of music and will let you explore many different sounds.

Dry Switch

An additional Dry Switch is accessed via the Push/Pull tone control and provides the sound of a split-humbucker for a delicate single-coil tone. It achieves this using a passive filter which is designed to give the perfect frequency response. By filtering out the low frequencies, this switch gives the punch and clarity of a single-coil minus the associated hum and often "hollow"-sounding tone from splitting a humbucker. This gives you a far more balanced and usable single coil tone, radically expanding the tonal potential of this guitar.

Reviews

Guitar World Magazine gave this guitar their Gold Award:

" what really knocked me out is how expressive and lively they both sound. The RS502T is ballsy and aggressive, like a good P-90-equipped guitar should be, with complex upper midrange harmonics and tight low-end spank, plus impressive resonance and sustain from the floating tailpiece. Engaging the Dry switch takes the pickups towards fat Strat territory but with more body and midrange punch…"

" Inspired both by timeless vintage guitar designs and the power of classic café racer motorcycles, Yamaha’s new Revstar series guitars offer guitarists familiar tones, comfortable feel, and new versatility to satisfy today’s players."

Read the full review on the Guitar World Magazine Website

Features

• Café-racer motorcycle-inspired aesthetic
• Comfortable double cutaway body with smooth set-in neck joint
• Mahogany body with maple top
• Mahogany neck with rosewood fingerboard
• 22 medium frets on fast-playing 13-3/4'' radius
• Slinky-feeling 24-3/4'' scale length neck
• 2x VP5 pickups for P-90 inspired sound with 3-position level switch
• Dry switch (push/pull) for single-coil tone with a passive filter circuit
• Tune-O-Matic bridge and die-cast tuners

Specifications

Body

• Body Material: Mahogany
• Top Material: Maple
• Body Finish: Black (Gloss Polyurethane)
• Construction: Set Neck

Neck & Fingerboard

• Neck Materials: Mahogany 3-Piece
• Scale Length: 24-3/4'' (628.6mm)
• Neck Finish: Gloss Polyurethane
• Fingerboard Materials: Rosewood
• Fingerboard Radius: 13-3/4'' (350mm)
• Fret Wire: Jumbo
• Number of Frets: 22
• Nut: Urea
• Neck Width @ 0 Fret / 12th Fret: 43 .0 / 52.5 mm
• Thickness @1st Fret / 12th Fret: 20 .0 / 22.6 mm

Electronics & Hardware

• Neck Pickup: VP5n: P-90 Type Single Coil /Alnico V
• Bridge Pickup: VP5b: P-90 Type Single Coil /Alnico V
• Controls: Master Volume, Master Tone (Push-Pull "Dry Switch")
• Pickup Switch: 3-Position Lever Switch
• Bridge: Tune-O-Matic
• String Spacing: 10 .5mm
• Tailpiece: Original Aluminum Tailpiece

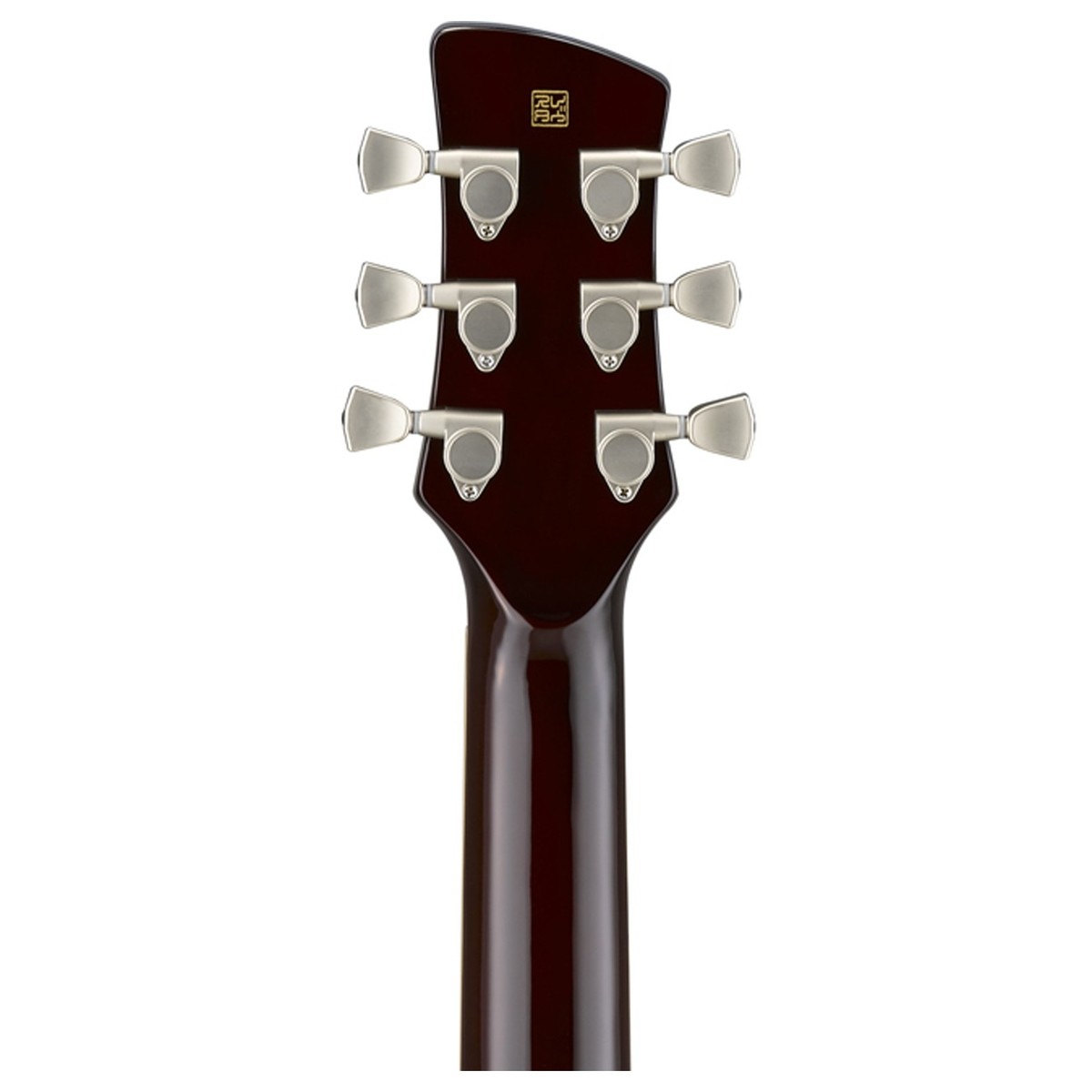

• Tuning Machines: Die-Cast
• Pickguard: 3-Ply Cream

Extras

• Strings: Elixir Electric Nickel-Plated Steel with Nanoweb Coating / 0.010-0.046
• Case: Gig Bag Included
