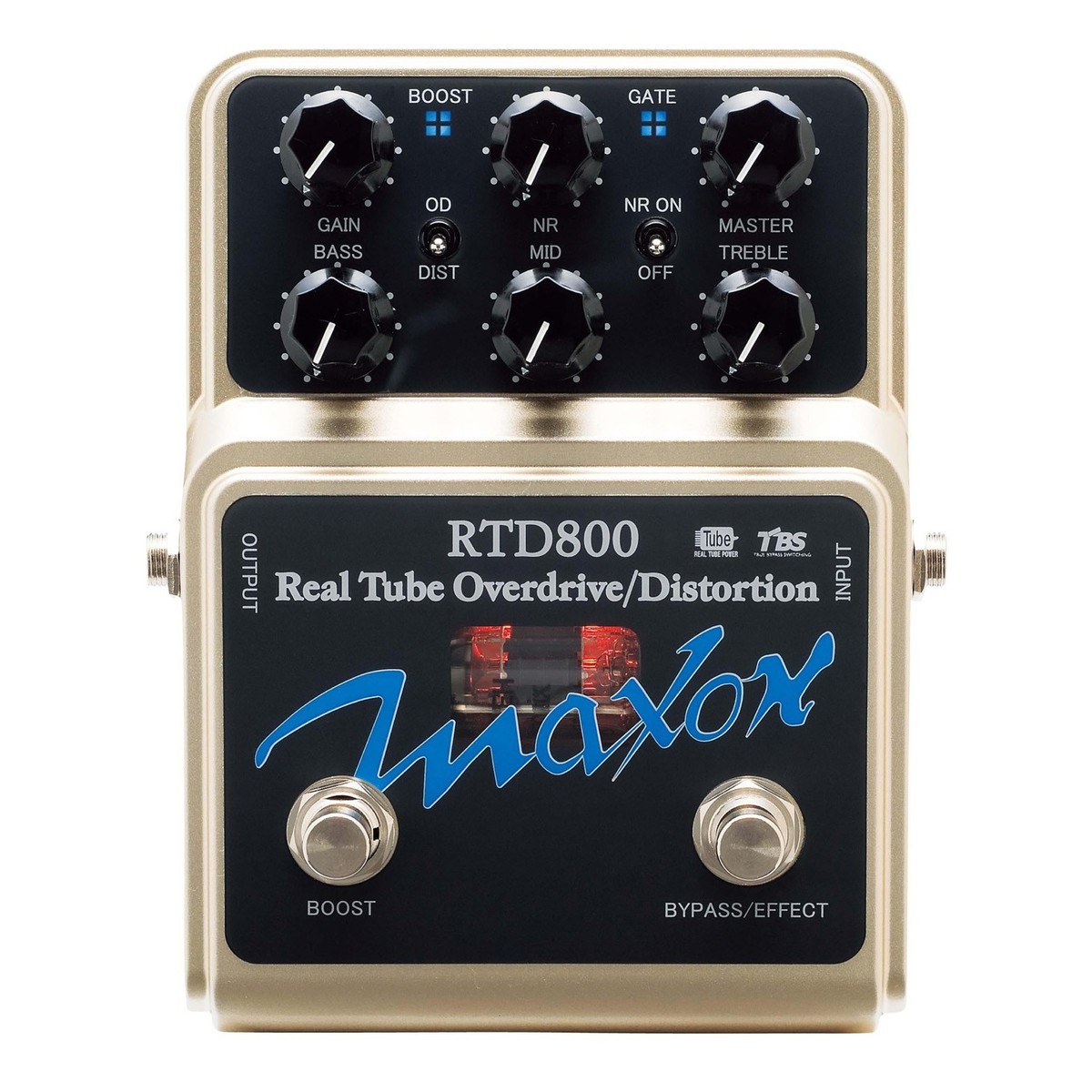

Maxon RTD800 Real Tube Overdrive/Distortion Pedal

Full Description

Versatile

The RTD800 offers the ultimate 'dirt' pedal, with a combination of overdrive, distortion and boost in one location. Players can achieve a full host of saturated guitar tones thanks to the various solid-state clipping stages with a real dual-triode tube. This versatile pedal offers more than a traditional tube overdrive, including extreme metal distortion, and boost.

Overdrive & Distortion

The RTD800 provides a lush overdrive channel with a warm, organic tone that captures every nuance and dynamic, for a true sound. The Distortion channel delivers superb gain and character, perfect for sizzling solos, with sustain and clarity. When used at maximum distortion levels, the RTD800 maintains your guitar's dynamic response for a superb tone.

Boost

As well as an overdrive and distortion, the RTD800 also features a foot switchable Boost function that can be altered between 3-9dB via an internal trim pot. This function is particularly useful for adding impact to solos or riffs.

About Maxon

Maxon started out in Japan in 1965 under the name Nisshin Onpa, manufacturing guitar pickups before producing OEM products for other companies. Nisshin Onpa was responsible for designing and manufacturing many legendary pedals while working in partnership with Ibanez, including the TS-808/TS808 and TS9 tube screamers. Although many of the pedals Maxon created were released under the Ibanez name, Maxon was producing pedals under their own name, and in 2002 when the two companies parted way, Maxon began to push its name as a manufacturer of high-quality effects pedals. Today Maxon produce "hard-to-find" vintage type effects pedals, and are used by many artists such as Pearl Jam, Troy Van Leeuwen, Steve Stevens, Brad Whitford, and many more.

Features

• Overdrive/Distortion with real vacuum tube
• Independent switchable Overdrive and Distortion Circuits
• Foot switchable Boost with 3-9 dB adjustable level
• Three-band tone circuit with Bass, Midrange and Treble
• Switchable noise suppressor with variable threshold
• Heater In-rush current control warms tube upon power-up
• True bypass switching offers a clean sound when not in use
• Roadworthy design is ideal for gigging musicians

Specifications

• Input Impedance: 500K Ohms
• Output Impedance: 10K Ohms
• Max Gain: 72dB (at 1.5 kHz)
• Equivalent Input Noise: -110 dBu or less (Input shorted, IHF-A weighted)
• Control: GAIN, NR, MASTER, BASS, MID, TREBLE
• Switch: BYPASS/EFFECT (Mechanical 3PDT); BOOST ON/OFF, NR ON/OFF, OD/DIST
• Jacks: INPUT JACK, OUTPUT JACK, DC INPUT JACK
• Indicator: BYPASS/EFFECT LED, BOOST LED, GATE LED
• Internal Circuit Voltage: 12.6VDC (DC to DC Converter)
• Power Consumption: 440mA / 9VDC
• Dimensions: 121 (W) × 152 (D) × 60 (H) mm / 4.8” (W) x 6” (D) x 2.4” (H)
• Weight: Approx. 620g / 1.4 Lbs. (without power supply)
• Power Supply: AC adaptor AC2009
• Accessory: AC adaptor AC2009
