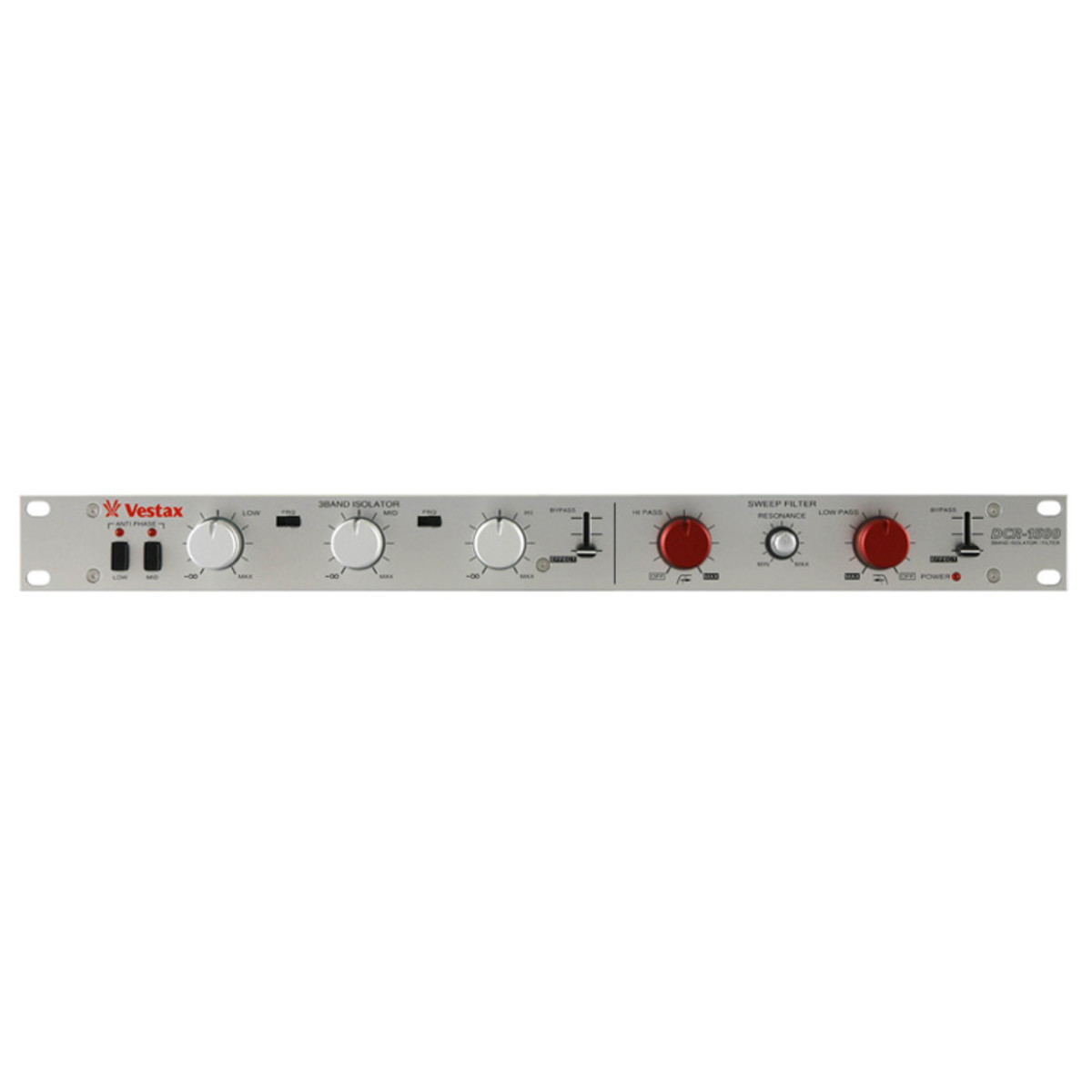

Vestax DCR1500 Pro DJ Filter Isolator

Full Description

It all started from the DCR-1200, then upgraded to the DCR-1200Pro.

And now, with a new filter equipped, the DCR-1500Pro is here.

SPECS

INPUT �INPUT JACK(Unbalanced)

�PHONE JACK

XLR JACK � PHONE JACK

� XLR JACK(Balanced)

*UPGRADED FEATURES

The isolator section comes with a frequency switch that enables DJs to switch the cut-off frequency and a boost level switch located on the rear panel, which can be switched between +6dB and +12dB.

A mini fader applied for switching between the bypass sound and effect sound. This prevents the switching noise, allowing to turn the effect on and off during a crescendo.

Newly designed LOW PASS/HI PASS filter with a separate sweep volume that allows operation of both knobs at the same time. The resonance volume emphasizes the filter point. HI PASS control is located on the left, switches to bypass when it's turned to the left. LOW PASS control is located on the right and switches to bypass when it's turned to the right. Use both knobs with both hands and create your own filter effect.

1/4-inch Headphone jacks and XLR (2 HOT) terminals for INPUT and OUTPUT.

Input and output connections designed specially with carefully selected parts. SILMIC applied for the electrolytic condenser.

*POWERFUL AND RELIABLE POWER SUPPLY

Vestax's �}20V output power adaptor, AC-20 applied to avoid from distorting the DJ's mix when boosting the isolator and loud input sounds.

The internal circuit is powered with �}18V, securing more than 20dB of headroom.

The adaptor comes with a lock, to prevent the cable from snapping and falling out.
