Roland SPD-SX Sampling Pad - Ex Demo

Full Description

The SPD-SX takes many of the proven concepts from its predecessor and raises them to a new level. Whether you're firing off one-shot samples, looped phrases, or complete audio playback tracks, the SPD-SX is loaded with the latest technology and tools to get the job done with speed, precision, and convenience. Enjoy the most advanced triggering and sampling technology in a sleek, easy-to-use percussion instrument.

To view detailed specifications on the Roland SPD-SX Sampling Pad, please download the PDF from the link below.

The Playing Field

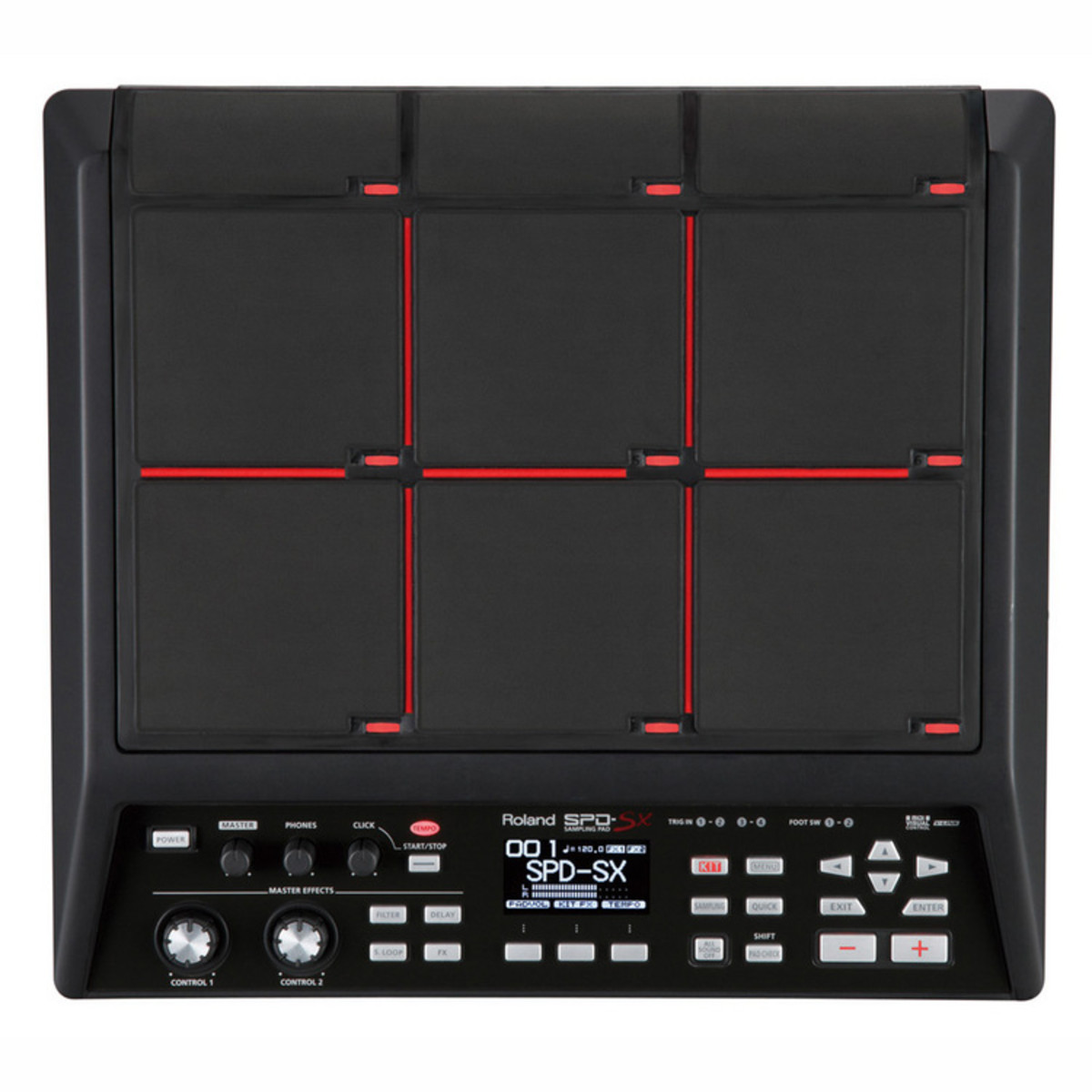

The SPD-SX is equipped with nine highly sensitive rubber pads with two independent real-time control knobs and four dedicated effect buttons. Roland's most advanced triggering technology ensures the ultimate in accuracy and fully dynamic performance, while a large backlit LCD provides easy-to-read data in all varieties of environments. Each pad has a companion LED that illuminates to show the pad's status. When you trigger sample phrases, the LEDs remain lit to show you which pads are in play and which are not. In addition, the LEDs change illumination strength according to audio-level activity (similar to level meters on a mixing board). The high-contrast red divider lines help you see the pad zones clearly onstage.

Improved Playability and Functionality

Today, increasing numbers of drummers and percussionists need to incorporate audio samples into their performance. The SPD-SX will satisfy their increasing requirements with essential features such as individual click output routing, dedicated volume controls, Pad Check function, individual Sub Out, and more.

Onboard Effects

The SPD-SX has three multi-effects units onboard: one master unit and two units that are assignable per kit. The master effects engine lets you perform in real time like a DJ using the dedicated front-panel controls. Get your hands on the filter, delay, short looper, and user-assignable effect - all of which can be creatively adjusted with the four front -panel buttons and two control knobs.

Multi-Pad Sampling

There's much more to the SPD-SX than meets the eye. A powerful-yet-friendly lineup of features has been built into this little powerhouse, such as Multi-Pad Sampling. While audio streams in from an external audio player or computer (via Audio In or USB), simply strike each pad at the appropriate start/end points, and the sample will be automatically truncated and assigned to that pad. It's a fast, friendly way to create multi-sampled phrases and pad maps.

SPD-SX Wave Manager Software Included

The SPD-SX's generous 2 GB of internal memory lets you store and carry your entire sample library inside. With no external memory required, you can house approximately 360 minutes of audio (10,000 files) at 16-bit, 44.1 kHz, mono. The built-in USB ports let you directly import audio files from USB flash memory. The bundled SPD-SX Wave Manager software app lets you import audio files directly from computer via USB, assign the samples to each pad, and organize the thousands of samples efficiently.

Features/Specifications

• Unique sampling-pad concept - the only instrument of its kind in the world
• 2 GB internal memory, enabling approximately 360 minutes of sampling (mono) without requiring external memory
• Nine velocity-sensitive rubber pads, two external dual-trigger inputs
• Easy capturing and assignment of audio data through Multi-Pad Sampling
• Three units of multi-effects onboard, with two real-time control knobs and four dedicated effect buttons
• Individual Pad Dynamics indicators show pad status and audio-level activity during performance
• Expanded USB functionality (USB Mass Storage, USB MIDI/AUDIO, USB Memory)
• Wave Manager software included for easily importing, assigning, and organizing samples
• Large backlit LCD

Further Specs:

• Pads: Built-in Pads: 9 (with LED Indicators)
  • *Two external trigger inputs are provided, allowing you to connect up to four Pads.
• Maximum Polyphony: 20 voices
• * Maximum polyphony becomes 16 voices according as an operating state.
• Recordable Wave Data: 10,000
  • * Including preload wave data.
• Sampling Time (Total time for all wave data): Approx. 180 min. in stereo (360 min. in mono)
* Since the internal memory included with the SPD-SX contains preload data, the available sampling time will be less than the time above.
• Data Format: 16-bit linear PCM (WAV/AIFF)
• Sampling Frequency: 44.1 kHz
• Kits: 100
• Kit Chain: 8 chains (20 steps per chain)
• Effects:
  • Master Effects (21 Types)
  • Equalizer
  • Kit Effect 1 (20 Types)
  • Kit Effect 2 (20 Types)
• Display: Graphic LCD 128 x 64 dots
• Connectors:
• PHONES jack (Stereo 1/4-inch phone type)
• MASTER OUT jacks (L/MONO, R) (1/4-inch phone type)
• SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
• AUDIO IN jacks (L/MONO, R) (1/4-inch phone type) (with LINE-MIC GAIN control)
• TRIG IN jacks (1/2, 3/4) (1/4-inch TRS phone type)
• FOOT SW jack (1/2) (1/4-inch TRS phone type)
• MIDI connectors (IN, OUT)
• DC IN jack
• COMPUTER connector
• MEMORY connector
• Interface: Hi-Speed USB (USB-MIDI, USB-AUDIO, USB Mass Storage Class, USB Flash Drive)
• Power Supply: DC 9 V (AC Adaptor)
• Current Draw: 600 mA

Included Accessories:

• CD-ROM (SPD-SX Wave Manager, USB driver, preload wave data)
• Owner's Manual
• AC Adaptor

Please Note

This item is an ex showroom display model. There are light scuffs and signs of use around the casing. Otherwise, the unit operates as new. Original boxing and manual included.

This is a great opportunity to buy a fully functioning product at a discounted price, supplied with a two year warranty.
