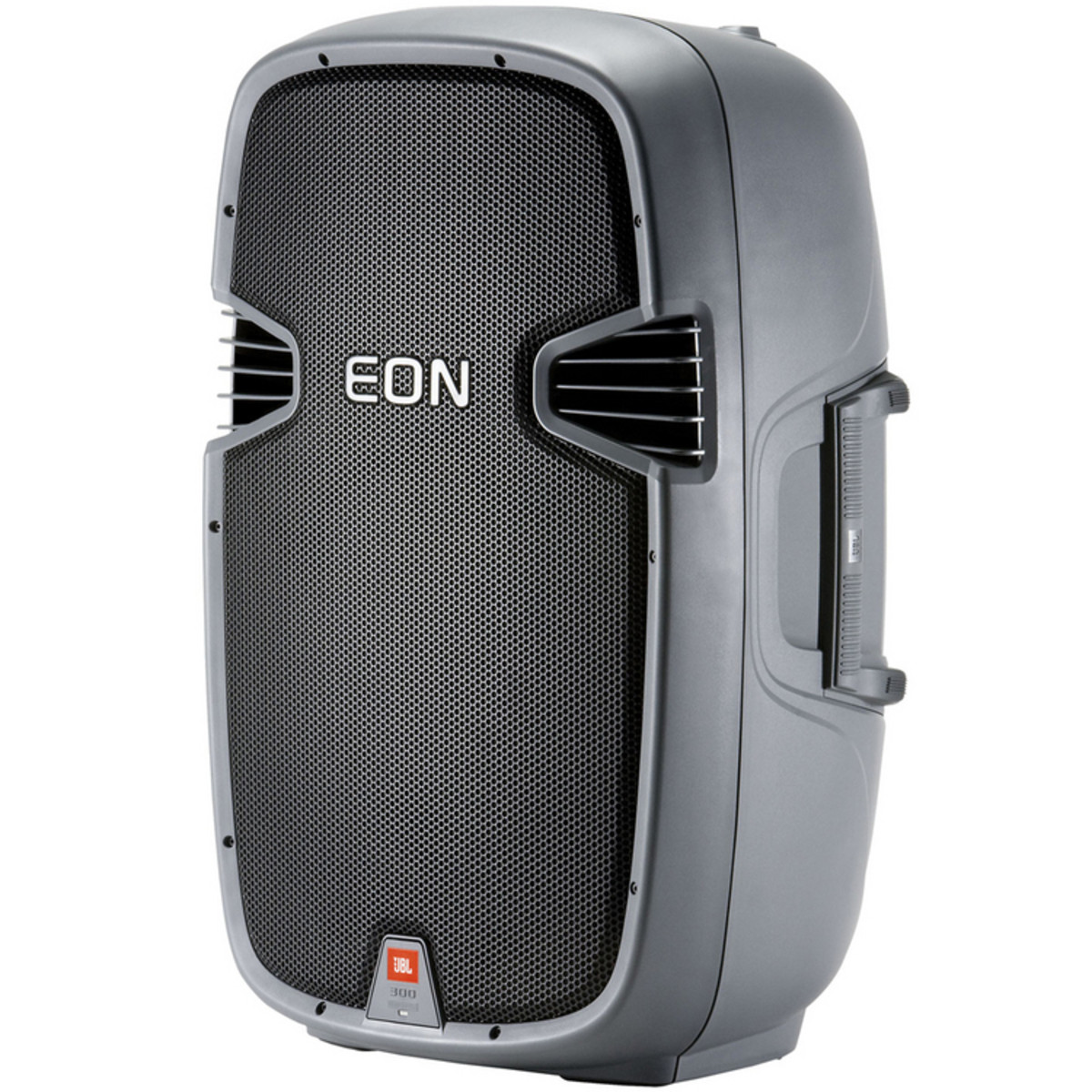

JBL EON 315 Active PA Speaker

Full Description

For total system integration, the EON315 is self-powered with the latest Class-D amplifier technology. Delivering a continuous 280 watts, the amp is incredibly efficient, extremely light-weight and very compact. A combo XLR/1/4" connector provides input flexibility and a selectable ?mic? setting means you can connect a dynamic microphone directly to the system for quick on-the-fly PA applications. Pre-engineered selectable system EQ is provided to assist in optimizing the system to the application and a simple XLR output enables the addition of more EONs for scalable performance.

EON300 series loudspeakers are the result of ground-up design and engineering integration of all the necessary components needed for a portable system. All electro-acoustic components have been specifically designed to work together in a highly optimized manner not only increasing performance levels but also reliability. The efficiencies of design have also reached the construction of the systems making them more robust than ever.

Through cutting edge mechanical design and expertise in materials the EON300 series loudspeakers are not only as compact as they possibly can be but are significantly less weight than competitive models, the fundamental key to high performance portability.

Features/Specifications:

• System Type: Self-powered 15", two-way, bass-reflex design
• Frequency Range: (-10 dB) 38 Hz - 20 kHz (EQ in ?Flat? position)
• Coverage Pattern: 100° H x 60° V nominal
• Crossover Frequency: 1.8 kHz
• System Power Rating: 280 W continuous, 560 W peak
• Maximum SPL: 127 dB
• Boost EQ: LF +3 dB Shelving Filter @ 150 Hz, HF +2.5 dB Shelving Filter @ 4 kHz
• LF Driver: 1 x M115-2 380 mm (15 in)
• HF Driver: 1 x JBL 2414H-1 25.4 mm (1 in) polymer diaphragm, neodymium compression driver
• Input connector: Balanced XLR / 1/4 inch TRS combo jack
• Output connector: Balanced male XLR, +20 dBu (peak) o/p level
• Suspension / Mounting: 36 mm pole socket with stabilizing screw, 4 x M10 suspension points, 1 x M10 pull-back point.
• AC input: 120 ? 240 V, 50/60 Hz
• Dimensions: (H x W x D) 685 mm x 438 mm x 366 mm (27 in x 17.3 in x 14.4 in)
• Net Weight: 15.9 kg (35 lb)
