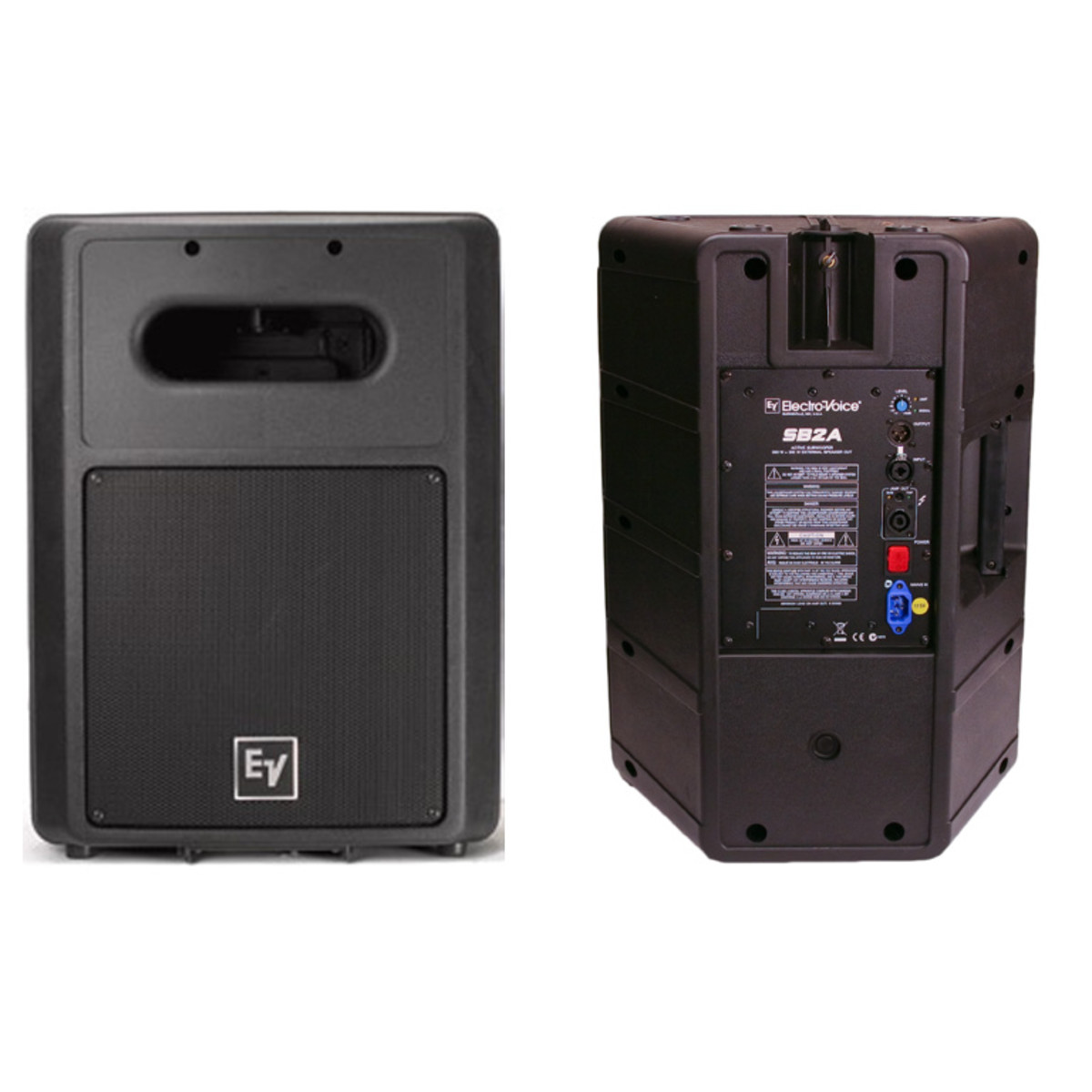

Electrovoice SB2A Powered 12" Subwoofer

Full Description

The new Electro-Voice SB2A powered 12-inch subwoofer eliminates the need for external system processing and amplification, addressing the demand for lightweight high performance portable sound systems.

Featuring dual 350 watt amplifiers, the SB2A`s switch-able powered speaker output can drive either an external 8 ohm passive subwoofer or full range loudspeaker. This makes SB2A a supremely versatile and compact �sub system drive� solution, easily configured with a variety of loudspeakers for a multitude of sound reinforcement applications.

Typical SB2A-powered system setups include: with a ZX1-90, as a standalone PA that fits in the front seat of your car; in clusters with SX100/300; with a passive SB122, for portable lightweight sub extension to replace bulky 15-inch two-way systems (two 16kg packages vs. one 40kg package); with an additional powered top box (such as the SXA100+).

The SB2A shares the same durable injection-molded enclosure as EV`s popular passive SB122 subwoofer. Both utilize the EVS12S woofer, designed from the ground up for optimized performance within this small footprint enclosure.

� Very Compact and Lightweight - Only 35.3 lbs/16.0 kg

� Integral Handle

� Two Digital Power Amplifiers

� 350W Dedicated LF, 350W Switchable

� Neutrik Speakon High Current Output Connector

� Cast Frame EVS12SB 12-inch High-Excursion Subwoofer Driver

� Integral Electronic Crossover/Processor - No Additional Amplifier or Processor Needed

Freq. Response1 (-3 dB): 55 Hz - 165 Hz

Freq. Range1 (-10 dB): 43 Hz - 275 Hz

Hipass Amplifier Range: 66 Hz - 16 kHz

Coverage: Essentially Omnidirectional

Subwoofer Amplifier Power: 350W RMS

Switchable Amplifier Power: 350W RMSLF

Transducer: EVS12SB, 12 in (305mm) Driver

Connectors:

Line Inputs:

Balanced Line Output:

XLR and 1/4� Phone Combination XLR

Switchable Amplifier Output: Neutrik NL4

Power Requirement: 110-130 VAC, 50-60 Hz, or 220-240

VAC, 50-60 Hz,

600 Watts

Enclosure Material: Copolymer

Grille: Powder Coated Steel

Dimensions (H x W x D): 586mm x 429mm x 312mm

(23.1� x 16.9� x 12.3�)

Net Weight: 16.0 kg (35.3 lbs)
