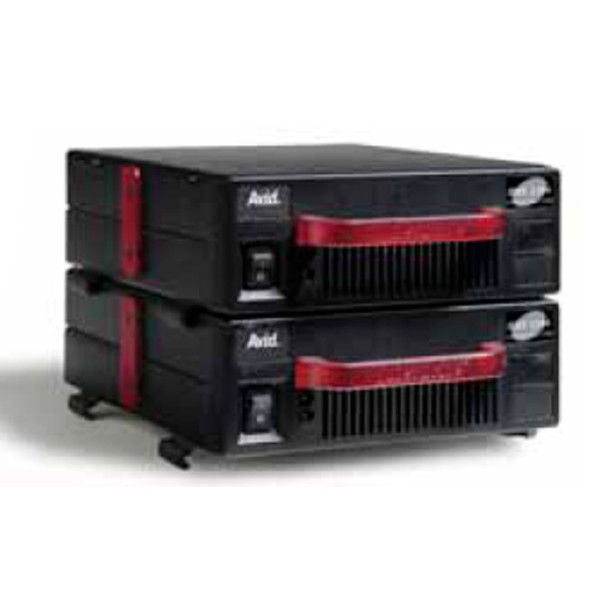

DISC Avid MediaDrive rS 250Gb 7200rpm FW

Full Description

THE PROFESSIONAL CHOICE FOR PERFORMANCE, VERSATILITY AND RELIABILITY

The proven performance and reliability of Avid® storage solutions offer unmatched value especially when you consider the peace of mind they provide. Before they earn the Avid name, all Avid storage systems are rigorously tested and must pass

strict design, inspection, and qualification criteria. No one else offers this level of thorough qualification to guarantee performance in the Avid environment. Add in unique features, a wide range of capacities and form factors, and a best in the

business warranty program, and it`s clear that Avid storage solutions are the optimum choice for Avid editors around the world.

Key Benefits of MediaDrive rS FireWire drives:

Large 250 GB capacity utilising raid0 dual disks

Support for native media digitize and playback of resolutions up to 2:1

Rigorously tested with Avid editing systems

Ideal for remote use - rugged design, carrying handle, and self-contained power supply

Patented stacking and rack-mount features

QuietDrive technology reduces drive noise up to 20 dB

3-year warranty on IDE/ATA drive mechanism; 3-year warranty on enclosure; advanced replacement at no extra cost

Interface

IEEE 1394 6-pin connection

Maximum 50 MB/sec transfer rate on 1394-enabled CPUs

Configuration

MediaDrive rS enclosure, 3.5" self-contained (power, cooling and connections) stackable unit

Up to 4 units chained together per 1394/FireWire channel

Rackmountable with MediaDrive rS rackmount option kit

Supported Resolutions

All resolutions up to 2:1

Compatibility

Some configurations may require special cables or adapters, which are readily available from Avid.

The rS FireWire drive is supported on PCI-based CPUs only.

Compatible with Digidesign Pro Tools software. Contact Digidesign for configuration details.

Agency Certifications

Safety Certifications

UL Listed

CSA Certified

CE Mark

EMI Certifications

FCC Class A

Canadian DOC Class A

CISPR Class A

Complies to Japanese VCCI Class I

C-Tick Class A

CE Mark

BSMI

Hardware

Requires an IEEE 1394/FireWire adapter card (PCI or Cardbus)

Optional MediaDrive rS rackmount kit.

Warranty

Drive mechanisms: 3 years

MediaDrive rS enclosure: 3 years

Cables and terminators: 90 days

Dimensions and Weights

Width 7.5" (190.5mm)

Height 2.69" (68.3mm)

Depth 9.85" (250.2mm)

Weight 7.0 lbs (3.1kg)

Environmental Specifications

Maximum room temperature: 95°F (35°C)

Operating humidity: 5% to 95% non-condensing
