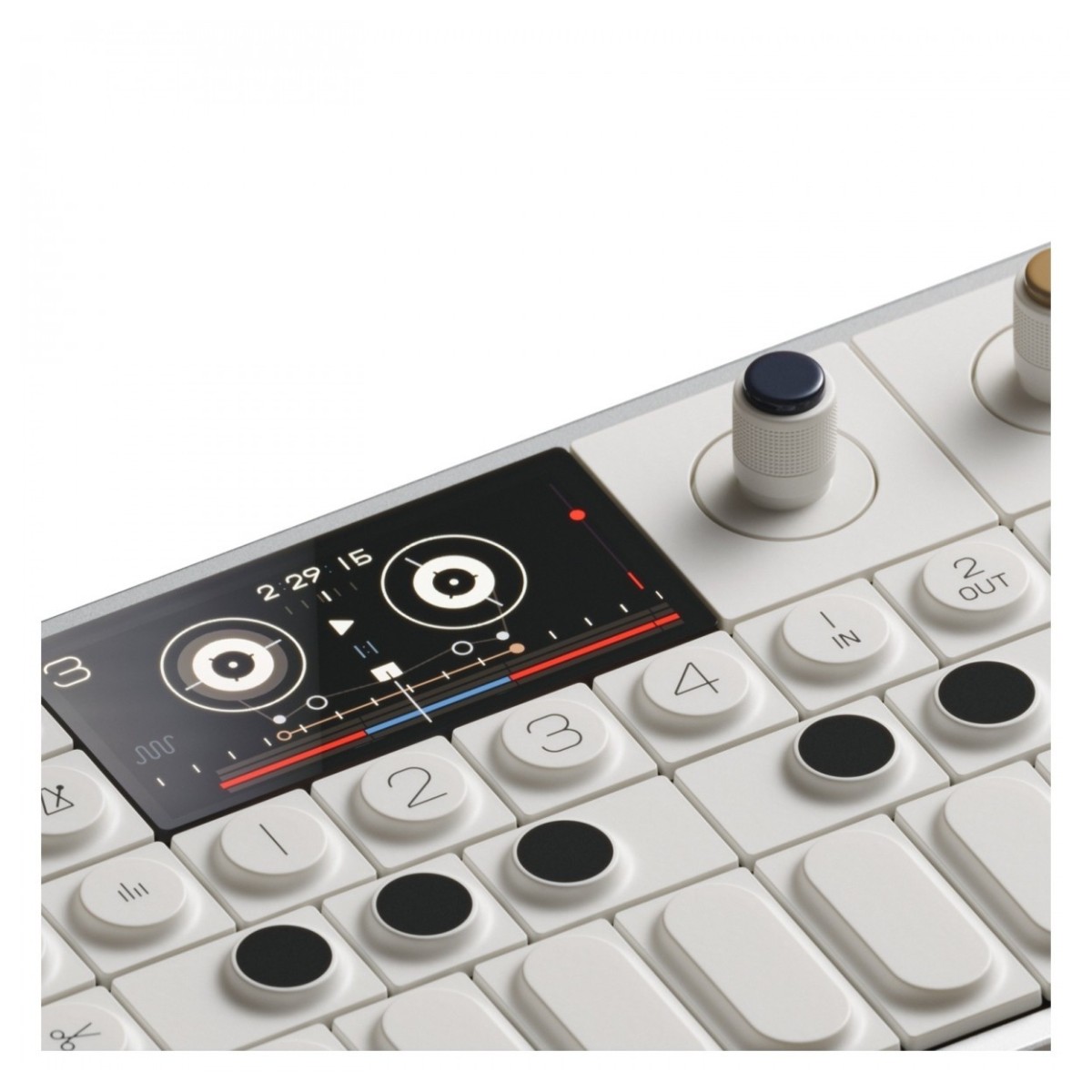

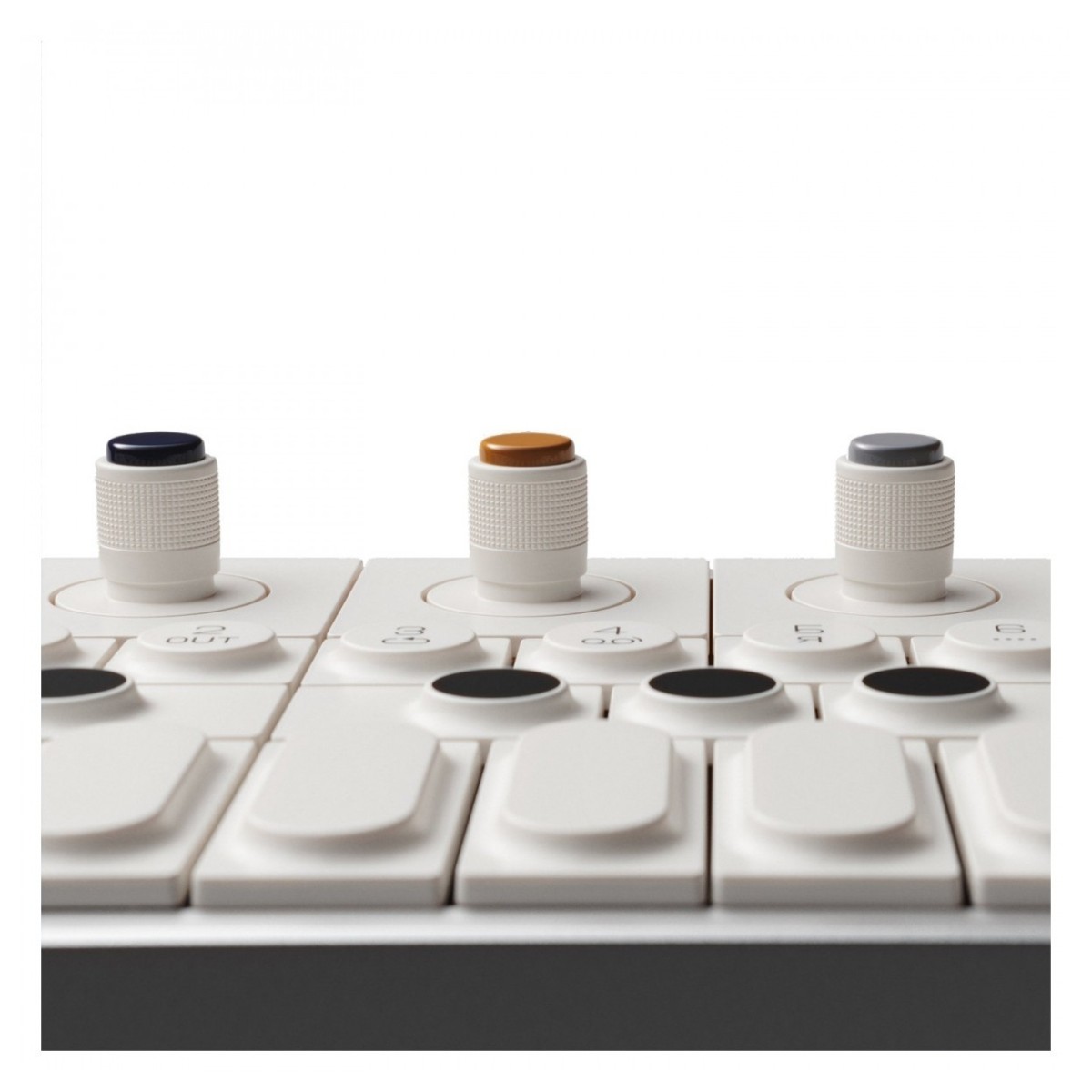

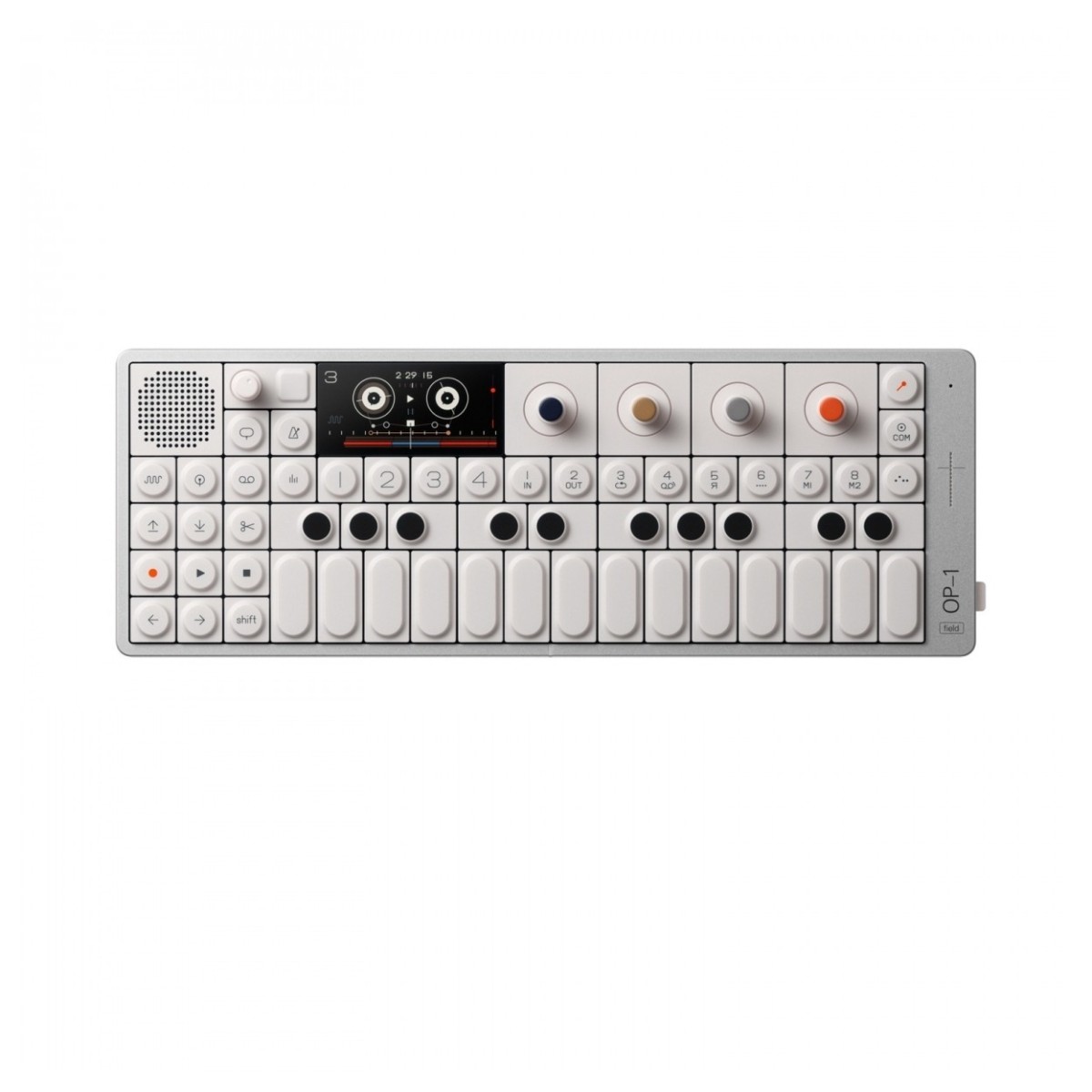

OP-1 Field
The best just got better
Building on the success of the now legendary OP-1, the OP-1 Field has refined every aspect of the original design whilst staying true to its core. Jam-packed with new features and upgrades; the OP-1 Field is the ultimate portable synthesizer for musicians and sound designers. The new and improved speaker system features a new passive loudspeaker on the rear of the synth, which has been optimised to deliver a powerful bass response for a more full-bodied sound.
The battery life has been improved dramatically, providing you with up to a whole day of use (24 hours) from a full charge. The overall design has been revamped too with a new, low-profile aluminium body equipped with a high-res flush display. One of the most innovative features of the OP-1 returns in the form of Tapes. Tape mode provides four stereo tracks with up to six minutes of recording time (at normal speed). There are now four different tape styles to choose from. With the OP-1 Field you can now store up to eight tapes via the onboard memory and switch between them in an instant.
All the iconic graphics have been revamped and overhauled with a brand-new colour scheme. The onboard memory has also been expanded to 256 MB. The overall sound quality has been improved with studio-grade 32-bit audio fidelity. You can now receive and transmit FM signals thanks to the new internal antenna, allowing you to broadcast, as well as sample from the radio. The UI (user interface) has been completely reworked as well as including charge power status LEDs for added convenience. For the full list of the new and improved features see the list towards the bottom of this page.
The vocoder – available with the latest firmware
Teenage Engineering is always updating and enhancing its range of products via firmware updates and the OP-1 Field is no exception. Simply down and install the firmware (available here) and you're ready to go! The vocoder is an effect that was championed by countless artists including Roger Troutman, 2Pac, Daft Punk and many more; synthesizing the human voice to achieve a unique sound. It works by speaking/singing and playing notes at the same time, with the notes dictating the pitch of your voice. The powerful modulation options that the OP-1 Field offers allow you to tap into various styles of vocoding for maximum versatility.
Deep synthesis with new and improved engines
Equipped with multiple original synth engines; the OP-1 Field expands on the original design with the inclusion of stereo synth engines. With 12 engines in total (as well as a synth sample engine) you are presented with a massive sonic palette; allowing you to create everything from aggressive bass sounds to lush pads and even FM-style sounds. The wide variety of engines allows you to easily translate your ideas into sound. There are also a range of stereo effects on offer including a new spring reverb, punch, grid and more.
As well as the synth mode; the OP-1 Field also has a ‘drum mode’. When activated, you’re presented with stereo drum samples and a dual oscillator drum synth as well as a myriad of presets to choose from including a range of new drum kits exclusive to the OP-1 Field. You can now stack multiple drum samples to create powerful layered sounds. The drum envelope has also been improved to provide better transient control. From drum sampling to synthesis; the drum mode has multiple ways to interact with drum sounds or create your own from scratch using dbox.
Advanced sampling with stereo sample engine
From hip-hop to EDM; the art of sampling has long been a staple in popular music and the OP-1 Field gives you everything you need to master this art. The onboard chromatic stereo sampler has been vastly overhauled, now allowing you to zoom in while editing samples. This is a great step-up from the previous version; allowing you to chop and refine samples with maximum precision. The sample storage has also been expanded, now allowing for over 160 minutes of sample storage. You can sample sounds from multiple sources including the built-in microphone or from FM radio.
Wireless Bluetooth connectivity – link together Teenage Engineering gear
The onboard Bluetooth LE connectivity allows for simple wireless MIDI connectivity. Equipped with dual BLE antennas; the OP-1 Field delivers an ultra-stable wireless performance. You can use the wireless MIDI connectivity to connect to outboard MIDI gear or Teenage Engineering units with wireless capabilities such as the OP-Z or the TX-6 mixer. You can also use the OP-1 Field as a MIDI controller or connect to other audio gear via the USB audio/MIDI connectivity.

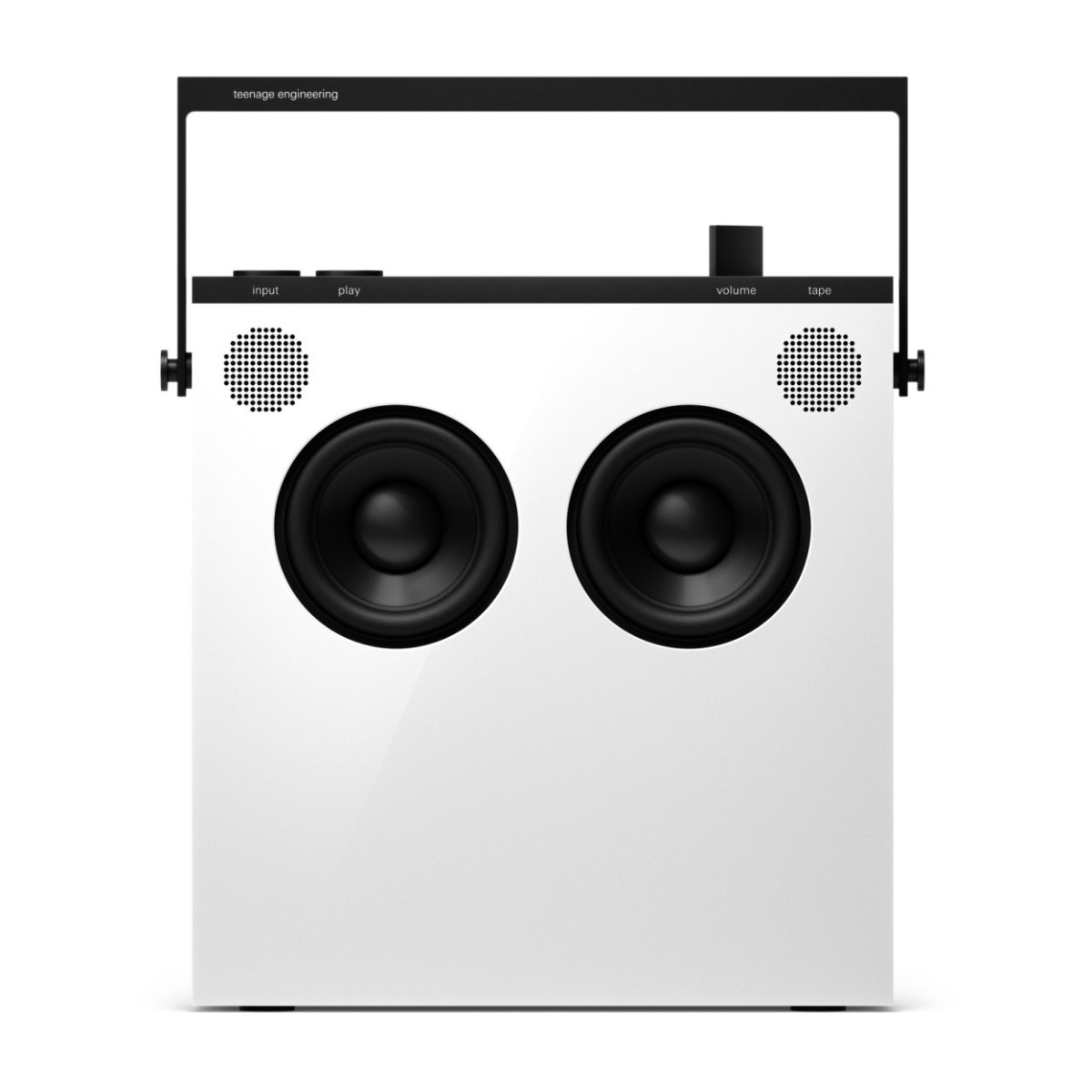

OB-4 Bluetooth Speaker
Endless audio adventures
The OB-4's standout feature is its endless looping tape, enabling you to rewind and remix anything played on the speaker. This isn't just about replaying your favourite moments; it's about rediscovering them in a new light. Whether it's capturing the essence of a live radio show or revisiting a Bluetooth-streamed album, the OB-4 enhances your listening experience by offering a creative twist on traditional playback. It's designed for the curious and creative, transforming passive listening into an interactive journey.
Massive 40-hour battery life
With a 40-hour battery life on Bluetooth and 72 hours when tuning into the radio, the OB-4 ensures your music never stops. This speaker is a testament to Teenage Engineering's commitment to combining performance with portability. The high-capacity Li-ion battery is engineered to support days of continuous play, making the OB-4 an essential companion for any outing. It's the perfect blend of endurance and excellence, ensuring your soundscapes are uninterrupted, no matter where you find yourself.

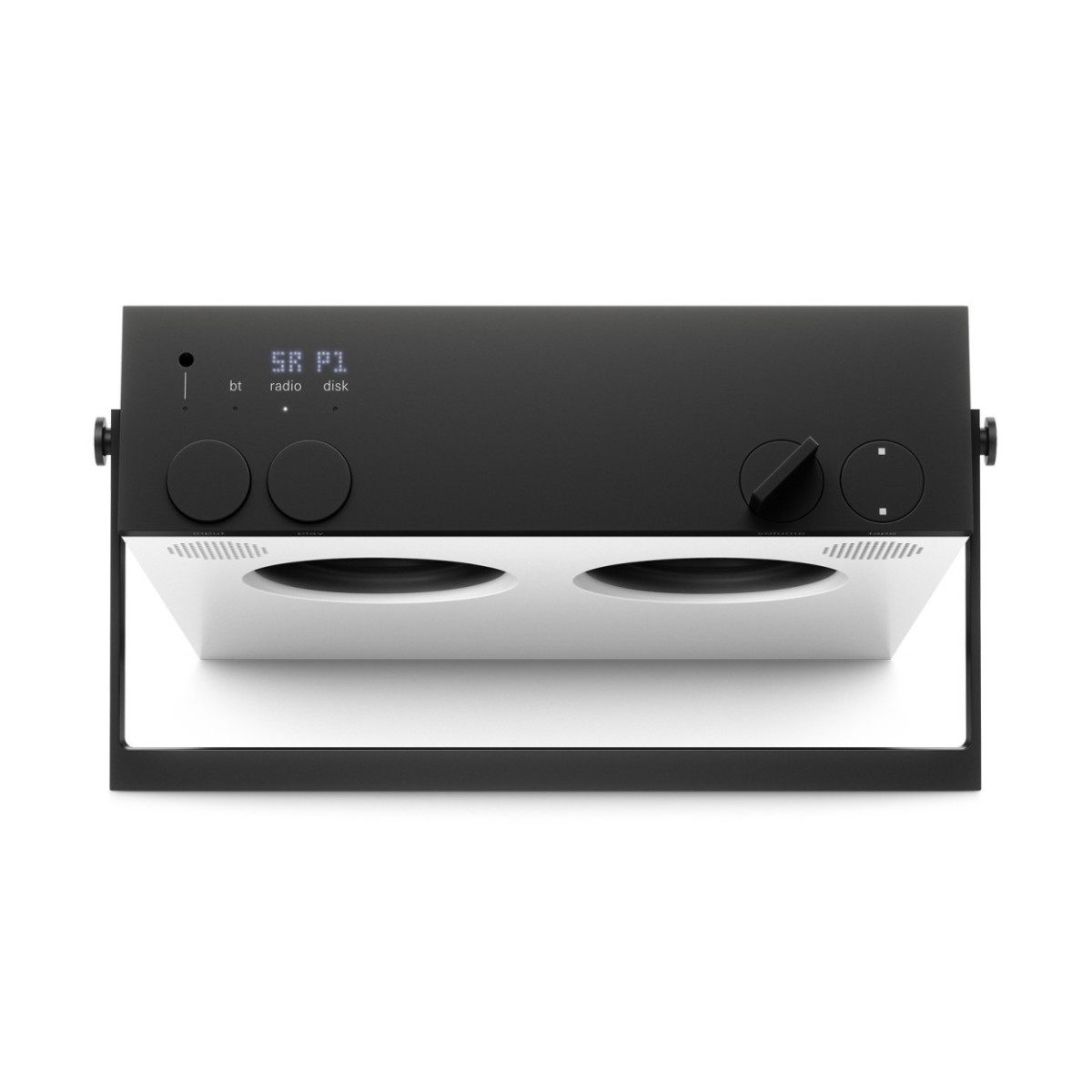

Revolutionary motorised interface
The OB-4's motorised interface is a game-changer. It transforms your interaction with sound through a digital-motion-controlled volume knob and tape reel, inviting you to physically engage with your audio. This innovative feature goes beyond the conventional, offering a new level of user experience. It's about feeling the music at your fingertips, making each adjustment an integral part of the listening process. The OB-4 is not just heard; it's felt, it's seen, and it's manipulated in real-time, redefining the boundaries of what a speaker can be.

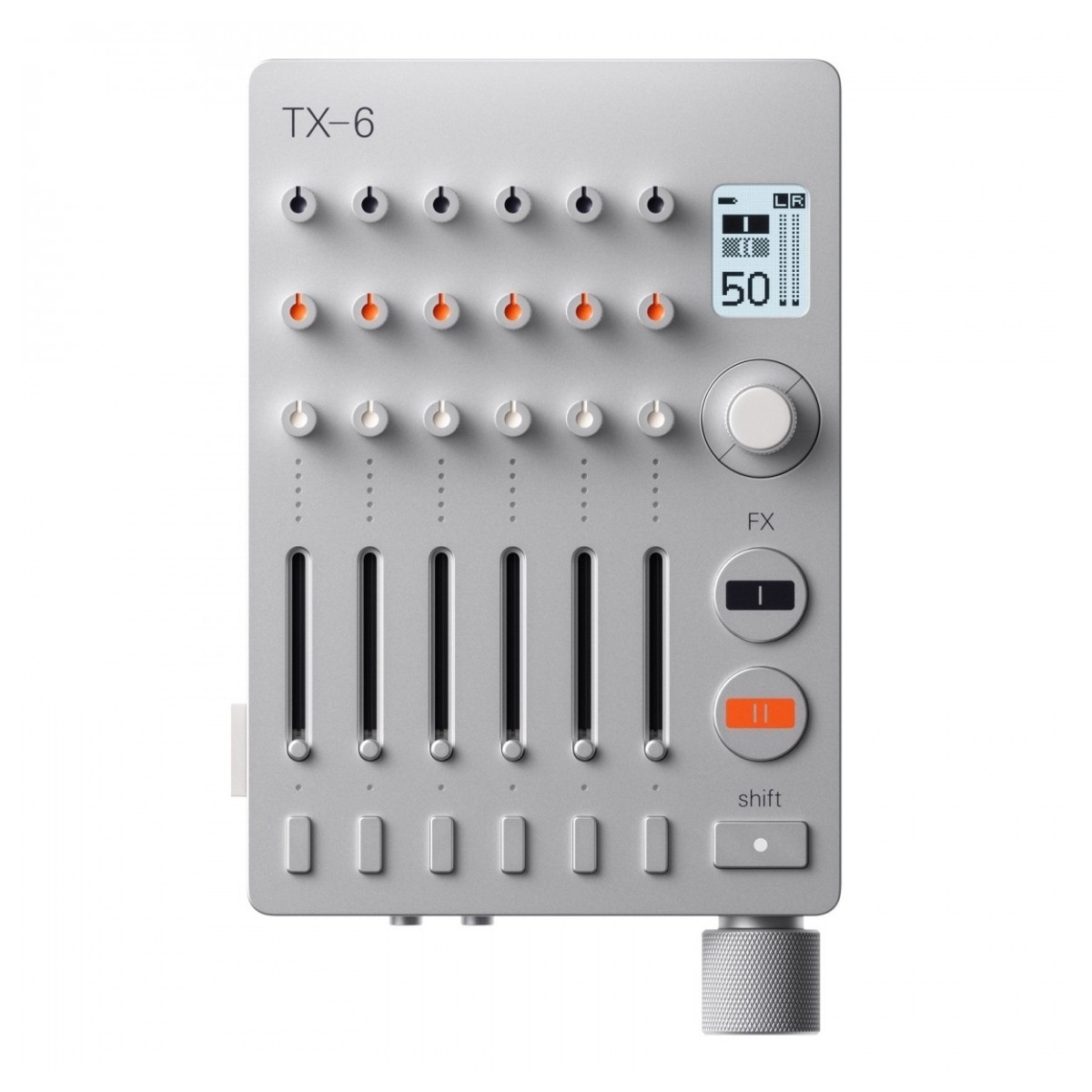

TX-6 Ultra-Portable Mixer
6-channel stereo mixer/multi-channel audio interface
This comprehensive and portable mixer features six stereo channels complete with encoders and mini-sliders you can use to control a range of parameters. Don’t be fooled by its compact design, the TX-6 is packed with useful features including an internal synthesizer and sequencer as well as a built-in tuner. You can even connect the mixer to iOS devices thanks to the MFi compatibility. Its highly versatile design makes it perfect for any musician on the move. Whether you’re a music producer, a DJ or just an avid listener; this portable mixer solution is ideal for everyone.
Whilst primarily operating as a six-channel mixer, the TX-6 can also be used as a 12-channel audio interface for use with music software and apps. The interface boasts 32-bit/48kHz audio fidelity with 12 available channels for multitrack recordings. Six inputs are included in the form of 3.5mm connections which you can use with a variety of gear including mics and instruments thanks to the inclusion of a 6.3mm adapter. There is also a headset mic input as well as an AUX output for added flexibility. You can navigate between settings, modes and parameters using the monochrome display and the various encoders and track buttons.

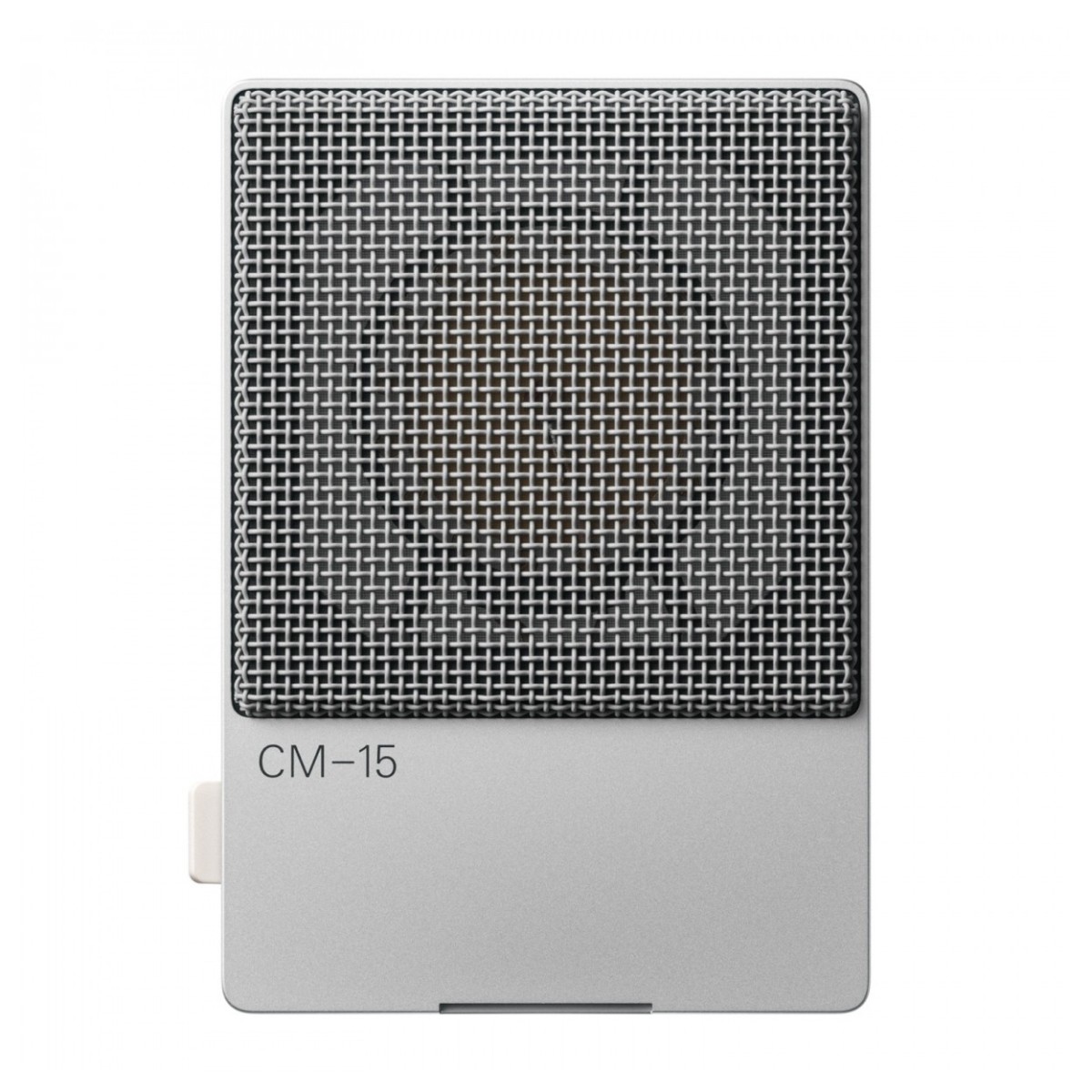

CM-15 Condenser Microphone
ESS Sabre conversion technology for high-end audio fidelity
Avant-Garde design company Teenage Engineering brings you the CM-15. A premium pocket-sized condenser microphone, suitable for high quality audio recording. This mic features a large diaphragm gold condenser capsule with a super-cardioid polar pattern, which accurately picks up every nuance of the sound you're recording.
The CM-15 also features a powerful ESS Sabre analog to digital converter that preserves the purity of analog signals in a digital audio configuration, resulting in a clear, bold and natural sound. A USB-C port connects the mic to any digital device you want to record with and acts a charging port for the internal battery that holds up to 10 hours of charge.
Rugged and versatile
Constructed from robust metal components and featuring intricately designed circuitry that efficiently connects a network of high-powered chips and processors, the CM-15 minimises sonic interference and handling noise excellently. On the back of the device is a three-setting gain control that allows you to utilise the microphone for a vast range of recording applications.

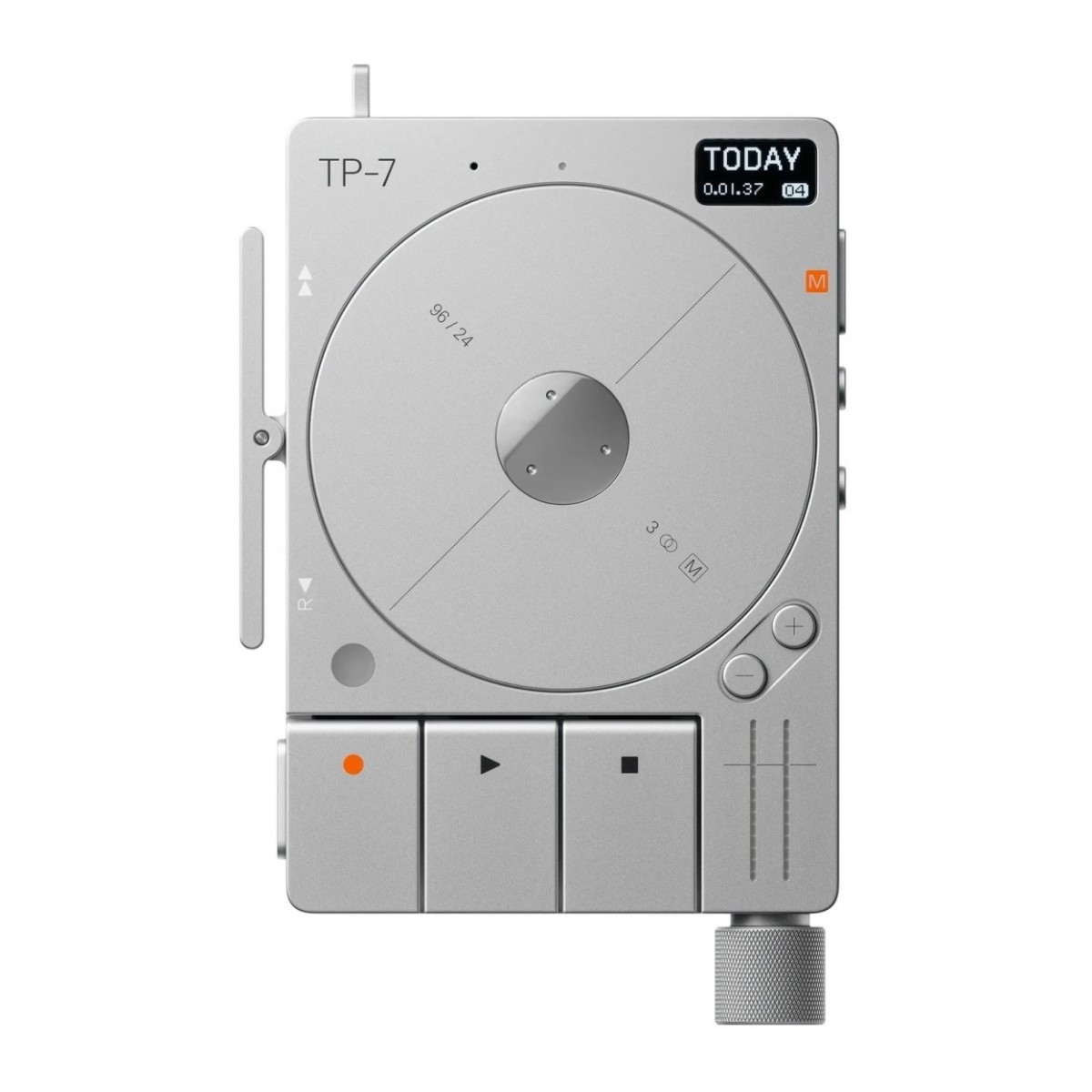

TP-7 Field Recorder
The ultimate portable recorder – with motorised tape reel
Discover an innovative and portable recording device that truly fits in the palm of your hand. The TP-7 provides a natural man-machine experience through its intuitive controls. The tape reel, with its brushed motor and ball bearings, is the core of the device's design. With a hi-fi hall sensor, you can easily grip the reel and adjust your recording with precision. This user-friendly tool offers menu navigation, scrubbing and visual feedback provided by the mini display. The TP-7 provides an intuitive recording experience that you'll love.
Effortless scrubbing and navigation
The TP-7 features an edge-mounted rocker that allows you to scrub your audio recordings effortlessly. With simple but effective controls, you can quickly fast-forward and rewind through your tracks, allowing you to hear them in hyperspeed. With its innate user-friendliness, the TP-7 streamlines the process of turning your audio files into text with the TP-7 app. With just one tap, you can transcribe speech to text more easily than before.
Features
OP-1 Field
- Highly portable synthesizer, sampler and drum synth
- Integrated USB-C audio interface
- Four-track, 32-bit stereo tape recorder
- Deep stereo sampling engine with zoom-in function
- Unique ‘tape’ recording – up to eight tapes in total
- Stereo drum machine with dbox drum synth for creating sounds from scratch
- Seven sequencer including arpeggio
- Eight stereo effects (can also be applied to master output)
- Built-in speaker with improved bass performance
- FM radio receiver and transmitter – sample sounds from the radio
- Accelrometer and gyroscope
- MIDI over Bluetooth LE
- 24-hour rechargeable battery
OB-4 Bluetooth Speaker
- Two 4-inch bass drivers and a pair of neodymium tweeters, delivering crystal clear, natural sound
- 38 watts per channel — approximately 100 decibels of stereo sound
- Multimodal listening options including line input, Bluetooth, FM radio, and disk mode for versatile audio sources
- Minimalist interface design focusing on essential controls, with advanced features hidden beneath the surface
- Engineered with four speaker elements for pure sound quality and a room-filling stereo field, complemented by a flow-optimized bass reflex duct for deep, natural bass
- Up to 72 hours of listening time with a high-capacity LiPo battery, offering 8 hours at maximum volume or an average of 40 hours on a single charge
- Supports high-definition Bluetooth Classic and Bluetooth Low Energy standards, compatible with Ortho remote for wireless volume control
- Fine-tuned smart spiral antenna integrated into the handle for enhanced reception in challenging environments
- Motorised user interface featuring a digital-motion controlled volume knob and tape reel for an interactive sound experience
- Unique disk mode offering experimental features like ambient, karma, and metronome, serving as a public research space for future development
- Designed for outdoor use, with a dual-function handle that makes it easy to carry and can also serve as a stand for flexible listening positions
TX-6 Ultra-Portable Mixer
- Six-channel stereo mixer/12-channel audio interface
- Onboard synthesizer and sequencer with four waves/four drum sounds
- 48x63 pixel monochrome display with adjustable brightness
- BLE wireless connectivity for use with other BLE MIDI devices
- Can be used with iPhone thanks to the MFi compatibility
- Built-in rechargeable battery with up to eight hours battery life
- Eight built-in effects including send/insert effects
- Record mics/instruments and other analog signals using 6.35mm adapter (included)
- Can be used as a DJ mixer with adjustable crossfader
- 32-bit/48kHz USB interface
- Headset mic input and Aux output
- Robust housing with aluminium casing and customisable controls
- Six stereo input connectors
- Two stereo output connectors
CM-15 Condenser Microphone
- Premium Teenage Engineering portable and compact microphone
- Large gold diaphragm condenser capsule captures every nuance of recording
- Super-cardioid polar pattern allows accurate and detailed pickup
- Powerful ESS Sabre analog to digital converter retains natural purity of audio
- Low noise circuitry minimises sonic interference and handling noise
- USB-C connectivity transmits sounds to your recording device and charges battery
- Internal battery life of up to 10 hours gives you ultimate usage time
- Three-pin mini XLR output with 48v Phantom power for full analog recording
- 3.5mm TRS jack for connecting portable media devices such as smartphones and recorders
- Three mode gain switch on the back for tailoring gian to specific recording requirements
- Discrete stand for ease of positioning and optional stand attachment available
TP-7 Field Recorder
- Perfect for dictation, recording podcasts and interviews and even live performances
- 24-bit/96kHz audio fidelity ensures you capture every detail with extreme clarity
- Tactile control with motorised tape reel inspired by classic Dictaphone design
- Side-mounted 'rocker' allows you to rewind/fast forward and scrub tracks at high speeds
- Onboard internal storage – 128GB
- Transcribe your dictation by connecting the TP-7 to your smartphone and using the Teenage Engineering app
- Premium-grade internal microphone and speaker for playback
- Built-in lithium-ion battery provides up to 7 hours battery life
- BLE (Bluetooth Low Energy) wireless connectivity
- Stereo headphones connector (complete with jack adapter for most headphone styles)

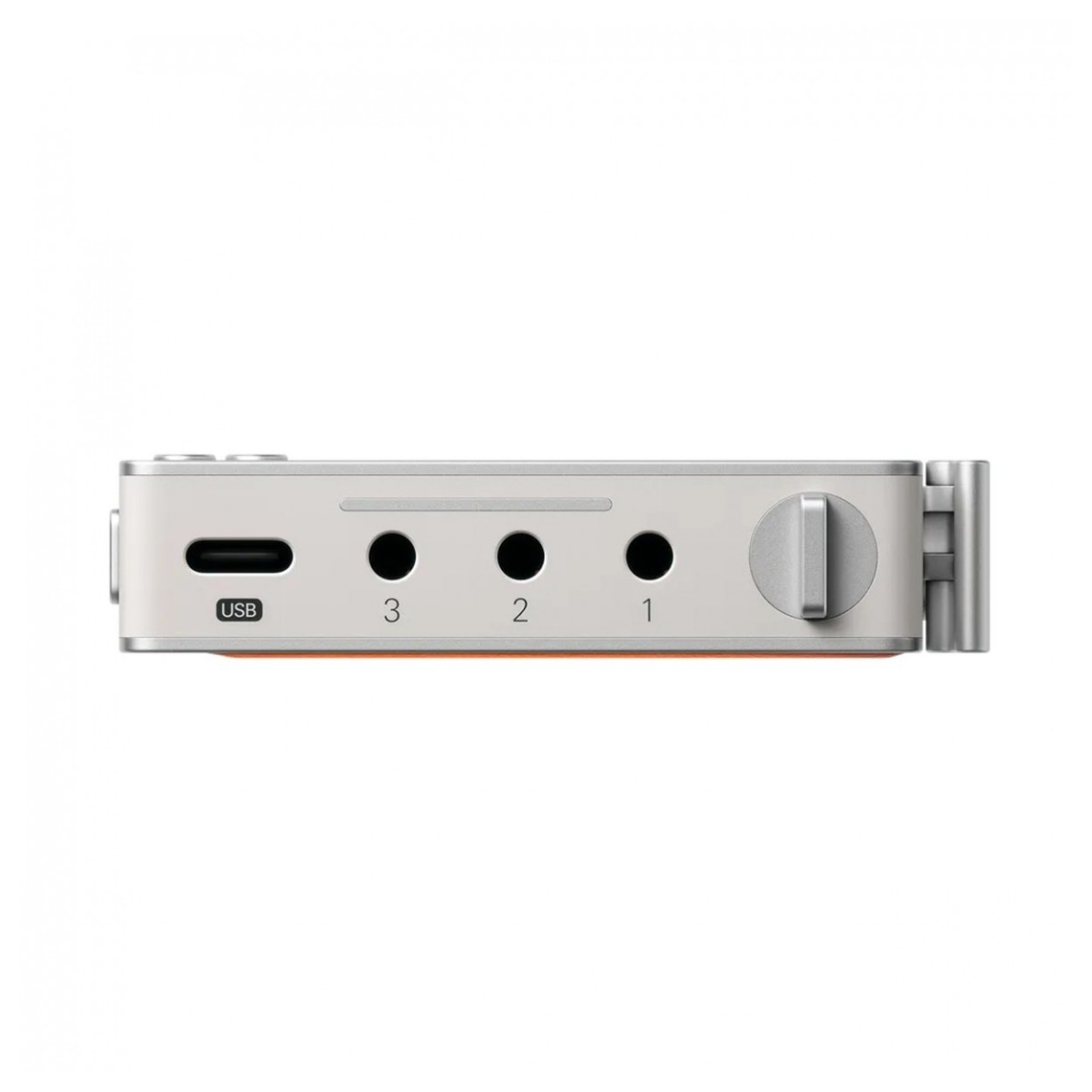

- Three stereo two-way jack input/output/headset connectors
Specifications
- Analog Connectivity:
- 3.5mm stereo input jack
- 3.5mm stereo output jack with headset microphone support
- USB audio/MIDI host and device
- Audio Input:
- Impedance: 13kOhm
- Analog Gain: 0 – 31 dB
- Max Level: 8 dBu, 2 Vrms
- SNR: 98dBA (typical)
- Audio Output:
- Max Level: 8 dBu, 2 Vrms
- SNR: 124 dBA (typical)
- Bluetooth Connectivity:
- Bluetooth MIDI
- Bluetooth low energy radio
- Battery Life: 24 hours
- Display: High-resolution flush colour screen
- Product Code: OP-1-FIELD
OB-4 Bluetooth Speaker
- Speaker Principle: Flow Optimized Bass Reflex Duct And Semi Unified Chamber.
- Frequency Range: 52 – 25000 Hz
- Active Crossover Frequency: 3.5 kHz
- Configuration: Stereo 2 + 2
- Tweeter: High Efficiency Ferrofluid Cooled Neodymium Driver.
- Woofer: Long Throw High Power Capacity Neodymium Driver.
- Amplifier: 2 x 38 W, Ultra High Efficiency Class D
- Wireless: Bluetooth® Classic (AAC), Bluetooth® 5 LE, FM Radio
- Inputs: 3.5 mm Stereo In (2.8 Vpp For 0 dBFS)
- Battery Life: Normal Volume FM: 72 Hours, Bluetooth High Volume: 8 Hours
- Max SPL @ 1 M Stereo Configuration: 92 dB Unsupported Wideband
- Bass Capability @ 1 M: 104 dB SPL Supported
- Dimensions: 232.5 x 284 x 57.5 mm
- Weight: 1.7 kg
- Product Code: TEE0140
TX-6 Ultra-Portable Mixer
Audio Inputs
- Impedance: 10 kOhm
- Analog Gain: 0 - 42 dB
- Max Level: 8 dBu, 2 Vrms
- Converter: TLV320ADC3140 burr-brown™
- SNR: 102 dBA (approx.)
Audio Output (main and aux)
- Max Level: 8 dBu, 2 Vrms
- Converter: Cirrus logic masterhifi CS43131
- SNR: > 120 dBA
Audio Output (cue)
- Max Level:2 dBu, 1 Vrms
- Converter: Cirrus logic CS47L35
- SNR: > 110 dBA
Physical
- Dimensions (WxDxH): 62 x 23 x 90mm
- Weight: 145 grams
- Display: 64 x 48 pixel OLED display
- Ambient Working Temperature: 0-50°C (32-122°F)
- Ambient Storage Temperature: 0-30°C (32-86°F)
- Product Code: TEE0099
CM-15 Condenser Microphone
- Capsule type: Large diaphragm condenser
- Polar pattern: Super-cardioid
- Self-noise: 14 dBA
- max SPL for 0.5 THD: 138 dB
- USB SNR dBA FS: 120 dB
- Outputs
- USB-C
- 3.5mm TRS
- 3-pin mini XLR
- Phantom power: 48v
- Gain switch modes: 3
- Max additional gain: +18dB
- Charging USB-C
- Battery life 10 hours
- Dimensions: 90 x 65 x 22 mm
- Weight: 132 g / 4.6 oz
- Product code: TEE0118
TP-7 Field Recorder
- Two-way jacks (3.5mm TRRS) – stereo input:
- Input Impedance: 9.5 kOhm
- Analog Gain: 0 – 42 dB
- Max Level: 8 dBu (2 Vrms)
- SNR: 105 dBA
- Headset:
- Max Level Outputs: 2 dBu (1 Vrms)
- SNR: 110 dBA
- Microphone SNR: 98 dBA
- Headphone Outputs (6.35mm TRS):
- Max Level: 8 dBu (2 Vrms)
- SNR: 120 dBA
- Dimensions: 96 mm x 68 mm x 16 mm
- Weight: 170 grams
- Product Code: TEE0117
