A tactile keyboard that invites new techniques

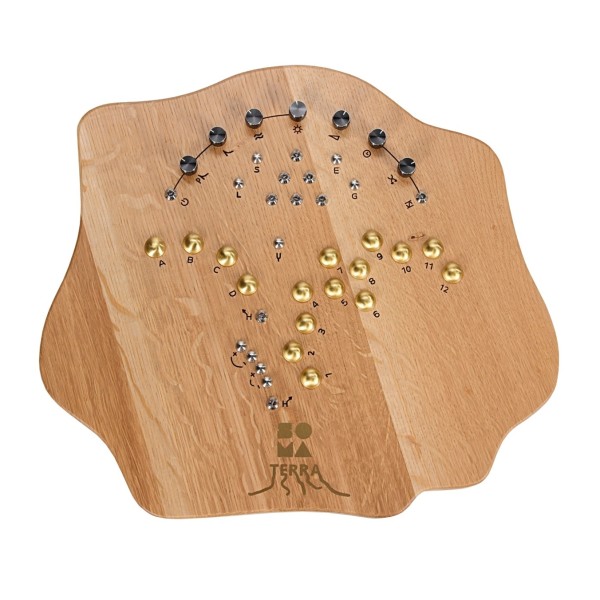

Terra Organic’s keyboard is built around twelve semi-spheric metal sensors, each sensitive to velocity and pressure. This design gives you direct physical control over parameters that are often hidden or automated on traditional synths.
You can create slow evolving attacks, sharp plucks, or smooth vibrato using nothing more than finger pressure and movement. The layout encourages playing techniques that differ from standard keyboards, which can lead to fresh musical ideas. Over time, the instrument responds more like a physical object than a programmed device, rewarding subtle gestures and careful control.
Microtonal control without complexity
Four dedicated pitch shifting sensors allow the keyboard to access sixteen transposition states, extending the total range to 120 semitones. Each note and pitch shift position can be tuned individually, down to extremely fine steps. This makes it possible to design custom microtonal scales, alternative tuning systems, and expressive pitch layouts that can be saved to memory.
Transposing the entire keyboard by octaves or semitones is immediate, supporting fast changes during performance. Despite the depth on offer, the system stays intuitive and avoids interrupting the flow of playing.
Focused synthesis designed for performance
Terra Organic contains 32 digital synthesis algorithms, each created as a complete instrument rather than a blank sound engine. These algorithms combine elements of FM, additive, subtractive synthesis, and physical modelling, all processed at high resolution.
Instead of long parameter lists, each algorithm uses fixed control mappings across the sensors, knobs, and central LED triangle. This approach removes the need for detailed programming and keeps attention on sound shaping in real time. The result is a performance-focused experience that encourages learning each algorithm through playing.
An immersive instrument for stage and studio
A built-in effects processor with echo and reverb prepares Terra Organic’s stereo output for immediate use, making it suitable as a self-contained performance instrument. While sound generation is digital, the signal passes through a high quality analogue output stage built with discrete components and class A operation. This contributes to a warm, detailed sound that works confidently in a mix.
Features
- Conceptual design blends nature-inspired aesthetics with advanced digital synthesis
- 12 velocity- and pressure-sensitive metal sensors offer expressive control over pitch and dynamics
- Four pitch-shifting sensors provide instant access to 16 transposition intervals across a 10-octave range
- Microtonal tuning supports 125 steps per semitone, with up to 96 scales and 24 pitch-shifting sets savable
- Onboard ARM-powered DSP delivers latency-free processing across four mic-touch inputs
- 32 custom synthesis algorithms combine FM, additive, subtractive, physical modeling, and more
- Four dynamic sensors and two hold sensors enable real-time control over timbre and modulation
- Built-in gyroscope translates physical motion into modulation parameters
- Triangular LED-sensor interface replaces traditional displays for intuitive visual feedback and control
- Dedicated ECS channel strip with 4-band EQ, compression, and saturation for hands-on sound shaping
- Built-in FX processor with reverb and delay modes adds depth and dimension
- 6 banks of 16 presets each allow fast switching between 96 total performance-ready setups

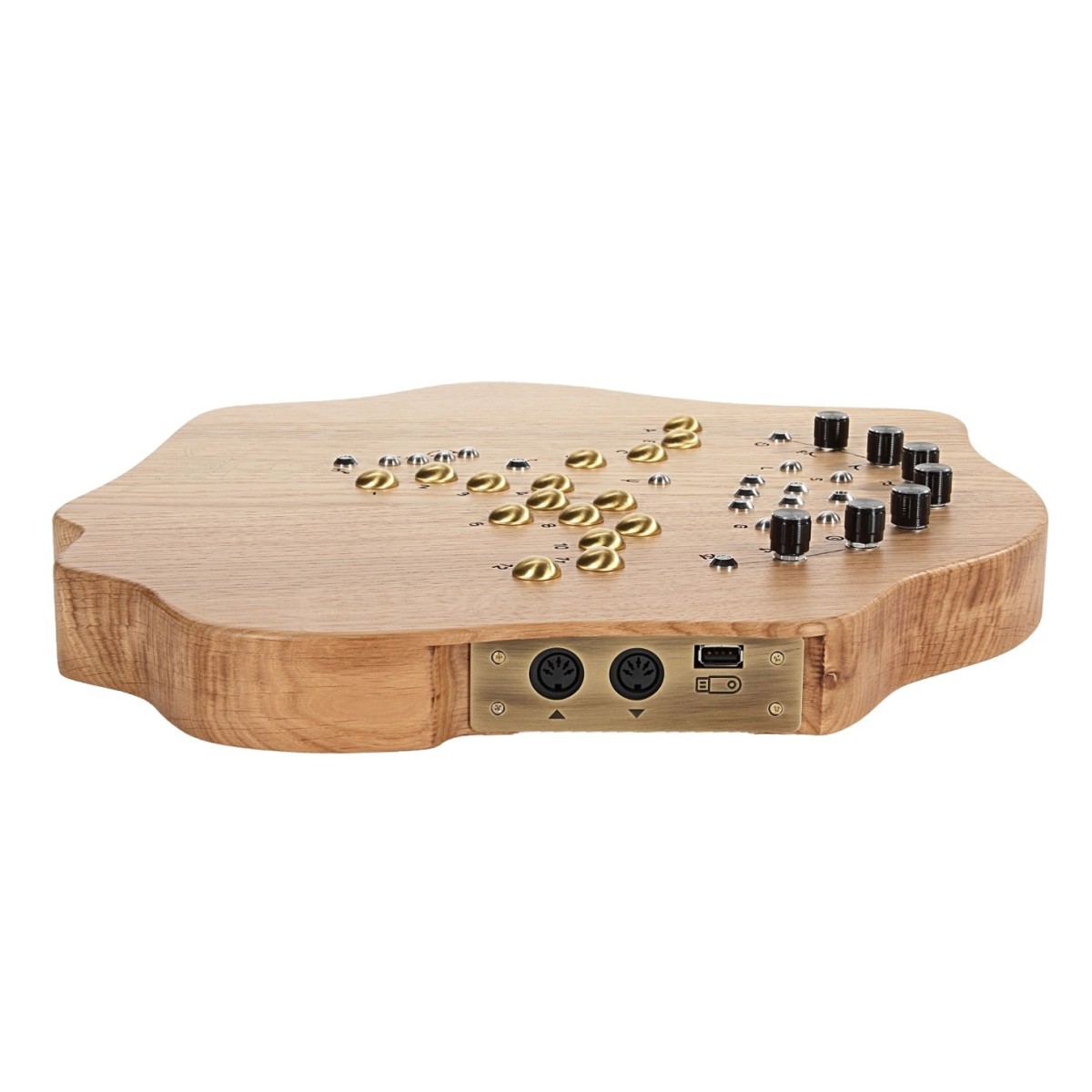

- MIDI output supports three modes, including full MPE with microtonal data transmission
- Syncs to external MIDI clock for tempo-based effects and arpeggiation
- Arpeggiator offers 13 patterns modulated by LFOs with 8 waveform options for 104 combinations
- USB flash support enables firmware updates and preset management
- Custom analog output section features Burr-Brown D/A conversion and NOS germanium transistor circuit
- Premium wooden housing with hand-finished brass accents and metal sensors for a unique tactile experience
- Designed for immersive performance without menu diving or external screens
- Functions as a stand-alone instrument or MIDI controller for studio and live environments
Specifications
- Synthesis Algorithms: 32
- Polyphony: 1–12 Voices (Depending On The Algorithm)
- Presets: 96
- Pitch Shifter Presets: 24

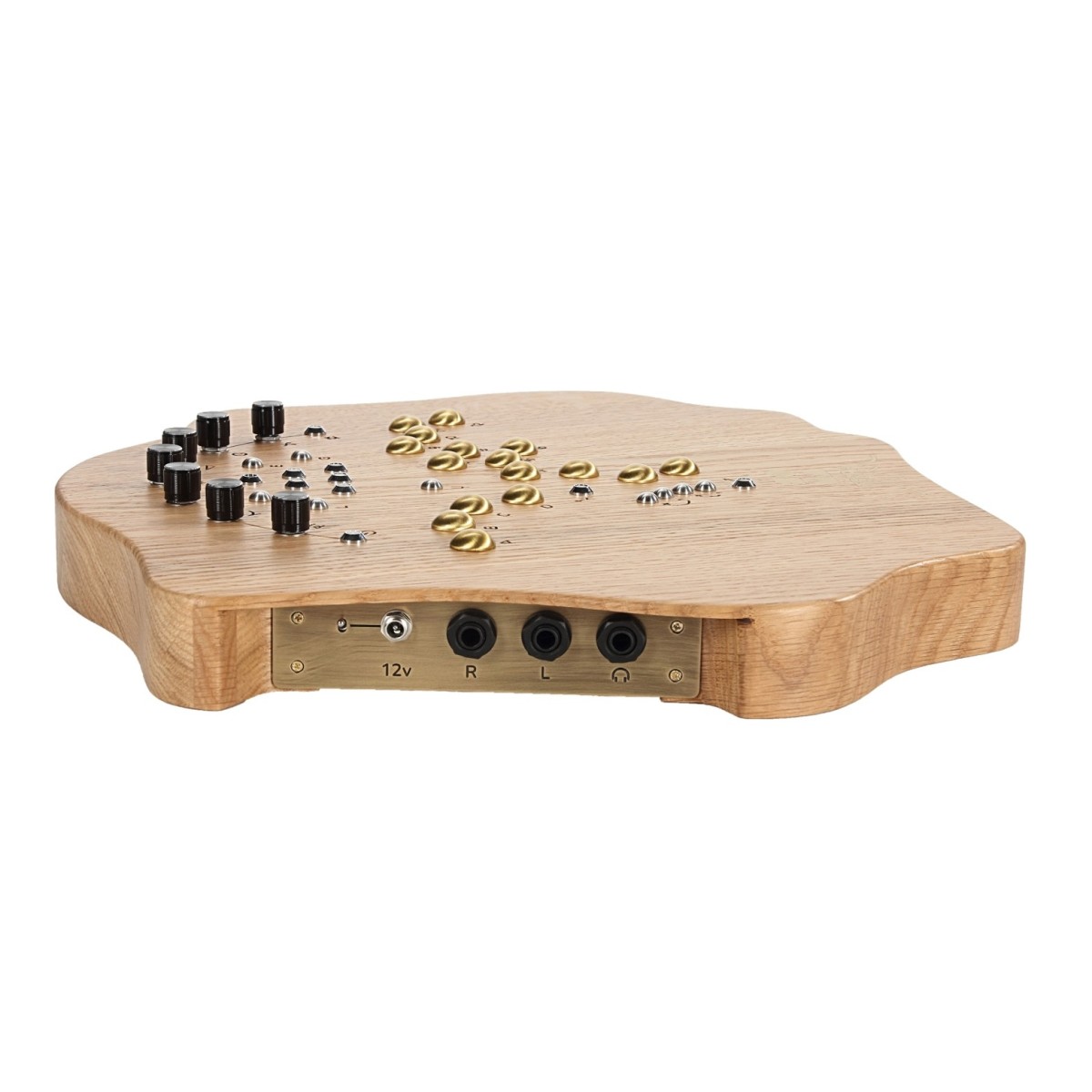

- Line Out: L, R TS/TRS 1/4-Inch Jacks / 6.35 mm Jacks
- Maximum Line Output Signal: 13 V Peak-To-Peak
- Nominal Line Output Signal: ~1.5 V (Volume 100%)
- Headphone Output: TRS 1/4-Inch Jack / 6.35 mm Jack
- Headphones Impedance: 6–64 Ohm
- CV-Clock Input Voltage: 3–15 V
- Power Supply Voltage: DC 12 V *
- Consumption Current: 0.2 A
- DC Jack: 5.5 x 2.1 mm, “+” In Center
- Dimensions: 405 x 365 x 57 mm
- Weight: ~2.2 kg
- Product Code: TERRA-ORGANIC-LIGHT
