Capture every detail with 32-bit float and dual converters
The Tascam FR-AV4 uses dual A/D converters and 32-bit float resolution to deliver an extended dynamic range of over 133 dB. This eliminates the need to worry about gain staging or input levels. Even in fast-changing sound environments, recordings remain clean and undistorted.
The four XLR/TRS combo inputs are backed by Tascam’s Ultra HDDA mic preamps with an EIN of –127 dBu, making them suitable for both quiet dialogue and loud action. This setup gives creators peace of mind during live shoots, interviews or field recordings, where audio peaks and lows often come without warning.
Reliable sync with built-in timecode and HDMI
Synchronising audio with video is effortless using the FR-AV4. A built-in timecode generator ensures accuracy across cameras and recorders, even without external sync hardware. It supports HDMI input and output, dedicated Timecode In and Out, and wireless sync with Atomos devices using an optional Bluetooth adapter.
You can also trigger recording directly from compatible cameras, making the FR-AV4 a tight fit within your video workflow. This reduces setup time and keeps production moving smoothly, especially in multi-camera shoots or complex recording environments.
Designed for real-world production challenges

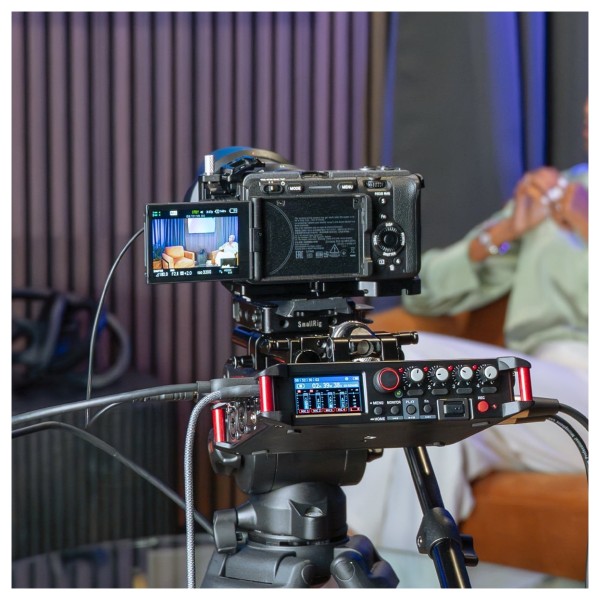

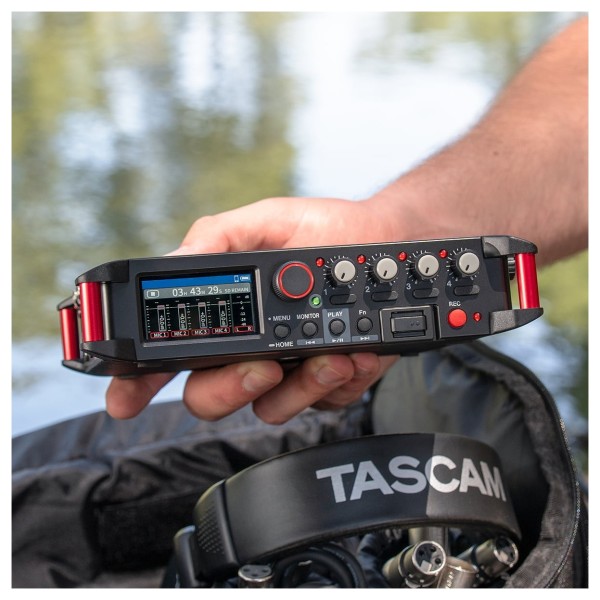

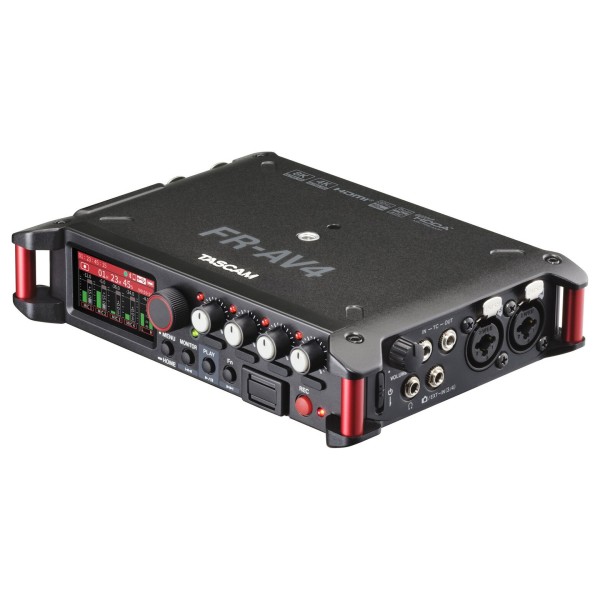

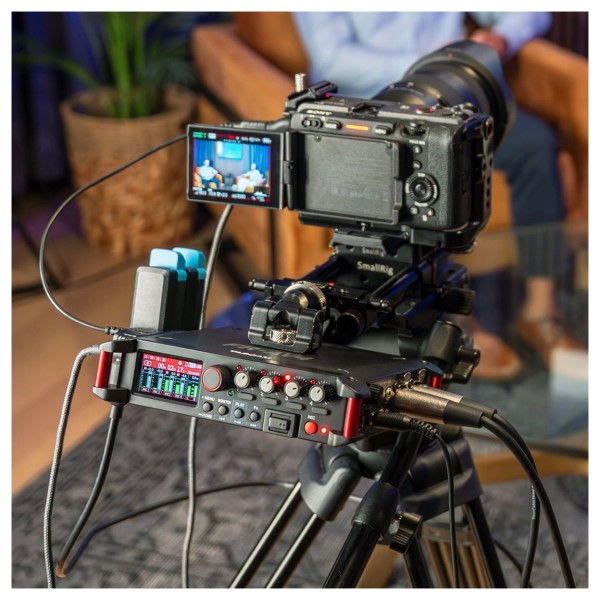

The FR-AV4 is built for portability without compromising durability. Its lightweight aluminium chassis is compact enough to mount on camera rigs or carry on location, but tough enough to handle day-to-day production use. It records up to six tracks (four isolated channels and a stereo mix) onto SDXC cards up to 512 GB in size.
You can also cascade multiple units via HDMI to expand your track count and maintain synced recording across devices. For monitoring, both wired and wireless headphone outputs are available, each with independent volume control, which is useful when working in teams or checking sources remotely.
Flexible control, monitoring and USB audio interface
A built-in touchscreen and jog wheel make the FR-AV4 easy to operate, even in gloves or tight spaces. It also connects via USB-C to function as a 6-in/2-out audio interface for Mac, Windows, iOS and Android. You get the same ultra-clean signal path and 32-bit float recording, whether you’re tracking in a DAW or capturing on location.
Advanced features such as input EQ, limiter, noise gate and low-cut filter help shape the sound before recording, while the Tascam Recorder Connect app adds remote control options for up to five compatible devices. Combined with HDMI pass-through and camera audio embedding, the FR-AV4 becomes a complete field solution for professional content production.
Features
- Four XLR/TRS combo inputs with Tascam Ultra HDDA low-noise preamps delivering pristine sound quality
- Dual A/D converters with 32-bit float resolution capturing over 133 dB of dynamic range without clipping
- Six-track recording to SDXC card including four discrete channels plus stereo mix
- Built-in mixer for flexible routing of multiple microphones and sources
- Integrated timecode generator with HDMI sync, dedicated timecode I/O, and wireless sync with Atomos via Bluetooth
- HDMI connectivity supports 4K/8K pass-through, embedded audio, and record trigger from compatible cameras
- Cascade multiple units via HDMI for expanded track counts with synchronized clocking
- 6-in/2-out USB-C audio interface for Mac, Windows, iOS, and Android with 32-bit float support
- Optional wireless monitoring via Bluetooth adapter with independent volume for multiple listeners
- Touchscreen and jog wheel for precise control, plus mobile app for remote operation of up to five devices
- Advanced input processing with EQ, limiter, low-cut filter, and noise gate
- Supports recording formats up to 192 kHz in 24-bit or 32-bit float
- Selectable phantom power (24 V or 48 V) for each input individually
- Ambisonics audio recording support in A or B format (AmbiX and FuMa)
- High-capacity SD card support up to 512 GB with auto file close protection against data loss
- Assignable function button and quick monitor selection for fast workflow adjustments

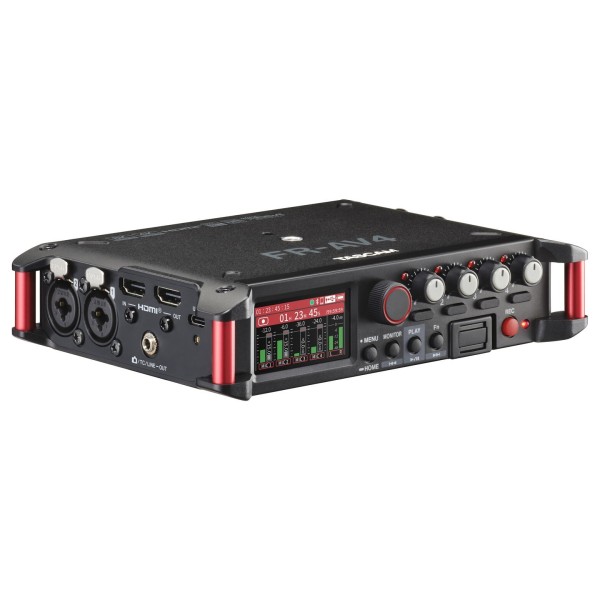

- 1.9 inch color touchscreen with intuitive navigation and rugged jog wheel

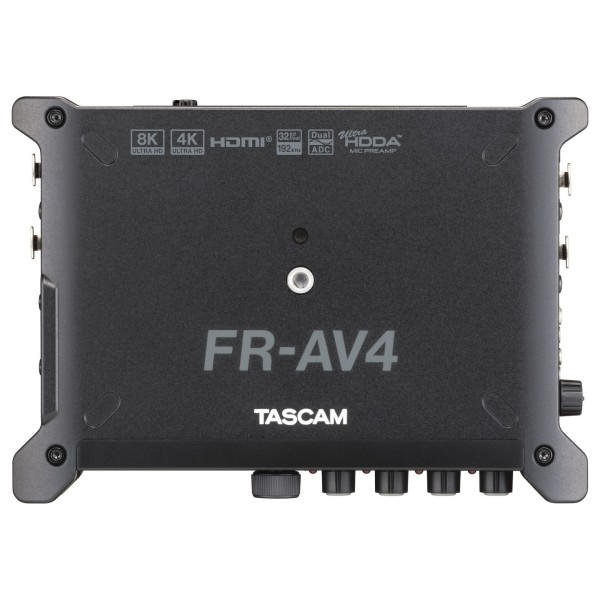

- Lightweight aluminium chassis with camera screw mount for rigs or tripods
- Multiple I/O options including 3.5 mm stereo camera input, line output, and headphone monitoring
- Built-in tone generator for quick level calibration across devices
Specifications
General
- Recording Media: SD/SDHC/SDXC Cards (512 GB Maximum)
- Recording/Playback Formats:
- Product Code: FR-AV4
WAV (BWF)
- Sampling Frequency: 48 kHz, 96 kHz, 192 kHz
- Quantization Bit Depth: 24-Bit / 32-Bit Float
- Metadata Support: BEXT, IXML
MP3
- Sampling Frequency: 48 kHz
- Bit Rate: 128 / 192 / 256 / 320 Kbps
- Maximum Number Of Input Channels: 4
- Maximum Number Of Recordable Tracks: 6 (4 Inputs + 2 Ch Master Mix)
Timecode
- Mode: OFF / Free Run (Custom, Time Of Day), File TC Offset
- Sync Master: Internal / TC In / HDMI® / ATOMOS* (Jam Sync Supported)
- Note: *AK-BT2 Bluetooth Adapter Is Required
- Output: TC OUT, Camera/TC/LINE OUT, HDMI®, USB-C
- Frame Rate: 23.98, 24, 25(50), 29.97(59.94), 29.97DF(59.94DF), 30(60) FPS*
- Note: *For Video With Frame Rates Of 50 FPS And Higher, Timecode Of Half The Frame Rate Is Used
Analog Audio Input Ratings

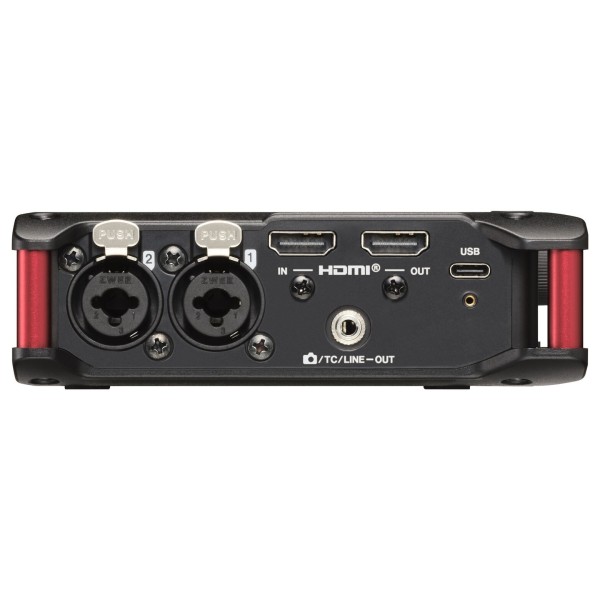

- Mic/Line Inputs Jacks 1–4 (Balanced):
- Connectors: XLR/TRS Combo Jacks
- XLR: XLR3-31 Equivalent (1: GND, 2: HOT, 3: COLD)
- TRS: 6.3 mm Standard TRS Jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
- Note: Phantom Power Only Supported When MIC Input Selected; TRS Jacks Do Not Support Phantom Power
- [MIC] Input Selected:
- Maximum Input Level: +4 dBu
- Minimum Input Level: -76 dBu
- Input Impedance: 2.0 kΩ Or More
- Phantom Power: +24V / +48V (Selectable)
- [LINE] Input Selected:
- Maximum Input Level: +24 dBu
- Nominal Input Level: +4 dBu (GAIN Setting At Minimum)
- Input Impedance: 8 kΩ Or More
- Line Input (Unbalanced): Camera/EXT/TC IN Jack (Can Provide Plug-In Power)
- Connector: 3.5 mm (1/8") Stereo Mini Jack
- Input Impedance: 6.0 kΩ Or More (Plug-In Power Off), 1.6 kΩ Or More (Plug-In Power On)
- Nominal Input Level: -19 dBV (GAIN Setting At Minimum)
- Maximum Input Level: +1 dBV
- Minimum Input Level: -79 dBV
- Plug-In Power: +2.5 V / +5.0 V
Analog Audio Output Ratings
- Line Output (Unbalanced): Camera/LINE/TC OUT Jack
- Connector: 3.5 mm (1/8") Stereo Mini Jack
- Output Impedance: 210 Ω
- [LINE] Selected:
- Nominal Output Level: -14 dBV
- Maximum Output Level: +6 dBV
- [CAMERA] Selected:
- Nominal Output Level: -34 dBV
- Maximum Output Level: -14 dBV
- TC OUT: (Tip: Timecode OUT, Ring: Audio Output, Sleeve: GND)
- Output Level: 10 mVpp
- Output Impedance: 150 Ω
- Format: LTC (SMPTE ST 12-1 Compliant)
Headphone Output
- Connector: 3.5 mm (1/8") Stereo Mini Jack
- Maximum Output: 50 mW + 50 mW (THD + N Less Than 0.1 Into 32 Ω Load)
- Recommended Headphone Impedance: 16–600 Ω (Sufficient Volume Might Not Be Achieved From Low-Sensitivity Headphones)

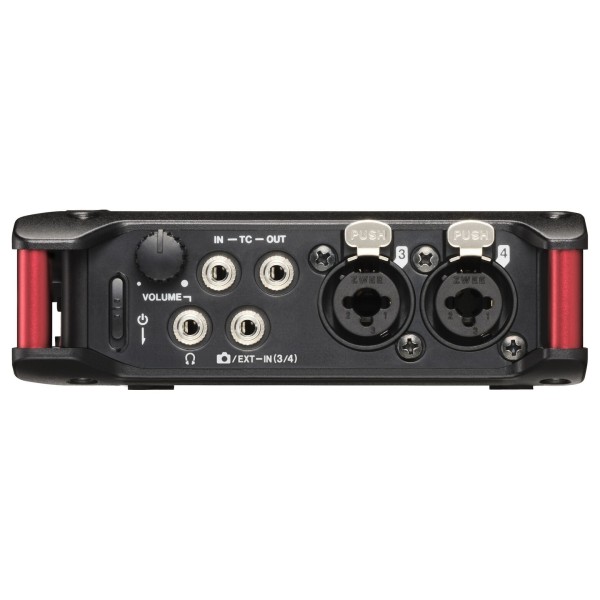

TC IN/OUT Jacks
- Connector: 3.5 mm (1/8") Stereo Mini Jack
- TC IN: (Tip: Timecode IN, Ring: -, Sleeve: GND)
- Input Impedance: 10 kΩ Or More
- Signal Level Range: 0.5–5.0 Vpp
- TC OUT: (Tip: Timecode OUT, Ring: -, Sleeve: GND)
- Output Impedance: 1.0 kΩ
- Output Level: 1.8 Vpp
- Format: According To SMPTE ST 12-1 (LTC)
HDMI® IN/OUT Ports
- Port: Type-A
- Accessory: An ATEN LockPro 2X-EA12 Can Be Used
- Version: 2.1, Supports 4K/60Hz And 8K/30Hz
USB
- Port: USB Type-C (Compatible With Single Screw Lock Connectors)
- Transfer Format: USB2.0 High Speed
- Device Class: Mass Storage, USB Audio Class 2.0 (USB Class Compliant)
USB Audio
- Sampling Frequency: 48 / 96 kHz
- Quantization Bit Depth: 24-Bit / 32-Bit Float
- Number Of Input Channels: 6 (Output From Unit)
- Number Of Output Channels: 2 (Input To Unit)
Bluetooth®
- Device Connector: Designed For AK-BT2 Bluetooth® Adapter
Power
- Power Sources: 4 AA Batteries (Alkaline, NiMH Or Lithium-Ion), USB Bus Power From A Computer, AC Adapter (TASCAM PS-P520U, Sold Separately)
- Power Consumption: 5.4 W (Maximum)
Dimensions
- Size: 184 x 42 x 130 mm / 7.25 x 1.66 x 5.12 Inch (W x H x D, Including Protrusions)
Weight
- With Batteries: 756 g / 1.67 lb
- Without Batteries: 660 g / 1.46 lb
Operating Temperature Range
- Temperature: 0–40°C / 32–104°F
Mic Amp EIN (Equivalent Input Noise)
- Noise Level: -127 dB Or Lower
Frequency Response (Input Jacks 1–4 To PCM Data)
- 20–20 kHz At 48 kHz: +0 dB / -0.5 dB
- 20–40 kHz At 96 kHz: +0.5 dB / -1.0 dB
- 20–60 kHz At 192 kHz: +0.5 dB / -3.0 dB
Dynamic Range (Input Jacks 1–4 To PCM Data)
- Specification: 133 dB Or Higher (20 kHz LPF, A-Weighting, JEITA)
Total Harmonic Distortion Ratio (THD+N)
- From Input Jacks 1–4 (LINE/MIC IN) To PCM Data: 0.01 Or Less (1 kHz Sine Wave, -2 dBFS Input, Minimum Recording Level Setting, 20 kHz LPF, JEITA)
