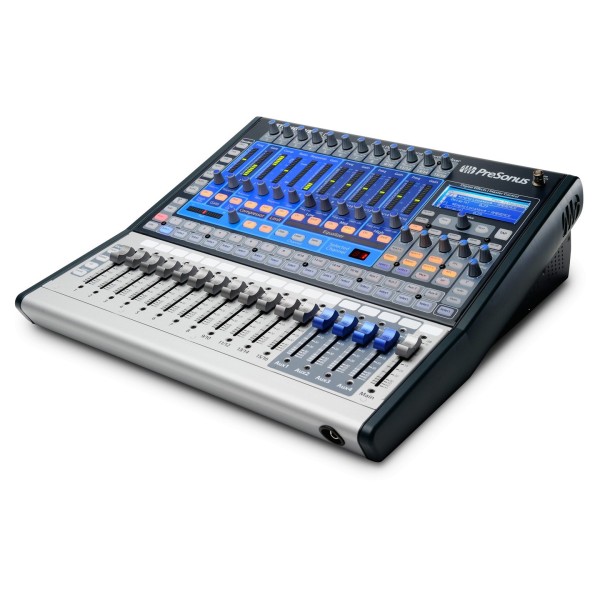

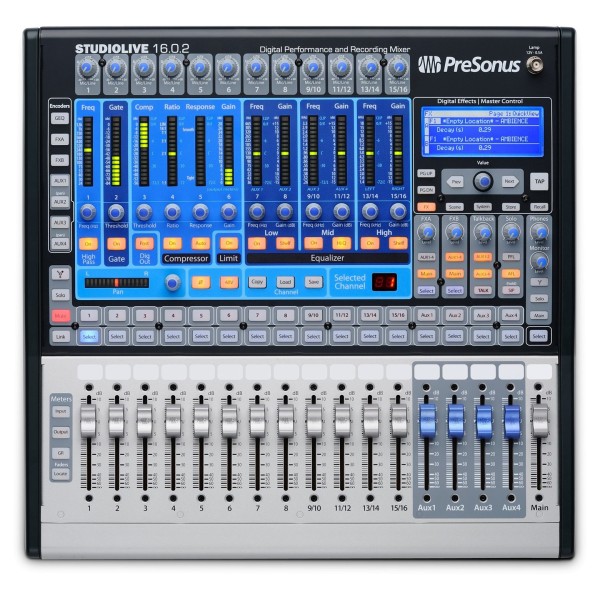

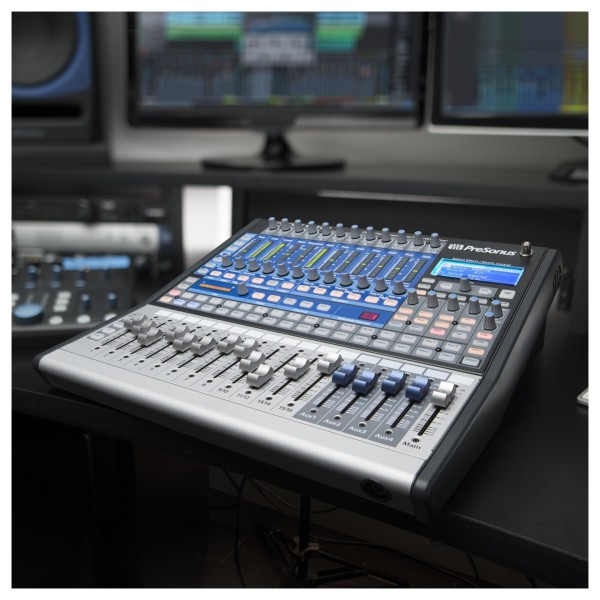

PreSonus StudioLive 16.0.2 USB Digital Mixer - Nearly New

Full Description

Innovative and intuitive design

The PreSonus StudioLive 16.0.2 USB provides the perfect balance between analog performance and modern digital innovations, delivering a highly versatile mixing console that is suitable for a range of applications. The StudioLive 16.0.2 features an ergonomic design with large rotary control knobs, 60mm precision faders and push buttons, providing you with complete control at your fingertips.

All of the microphone inputs utilise solid-state class-A XMAX preamplifiers which deliver high headroom and a natural sound, while the Burr-Brown converters ensure a best-in class dynamic range of 118dB. Complete with a 31-band graphic EQ for the main bus, the PreSonus StudioLive mixer ensures every nuance remains true to the original source with no audible distortion and an exceptional overall sound.

Integrated multitrack recording

The StudoLive 16.0.2 digital mixing console is equipped with a 16x16 recorder which provides you with the ability to record directly from the mixer. Each of the 16 input channels can be accessed independently from your computer, along with the dedicated digital return channel. The PreSonus StudioLive allows you to capture live performances and studio sessions alike, simply launch the included Capture™ software and begin recording. Additionally, you can record the input channels and main mix via the supplied Fender Studio Pro or any recording software that supports ASIO/Core Audio.

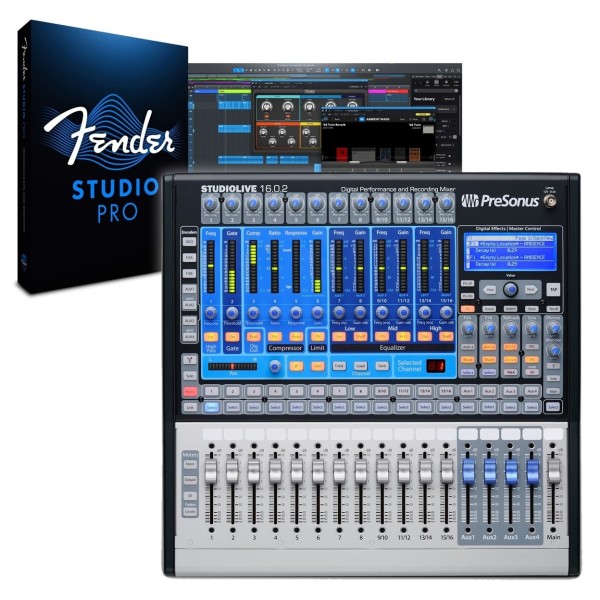

Complete with Fender Studio Pro - perpetual licence

Fender Studio Pro is a full-featured digital audio workstation (DAW) designed to help musicians, producers, and creators write, record, edit, mix and master music in a single, professional environment.

The software brings together Fender’s celebrated amp and effects modelling, including Mustang and Rumble plugins, with advanced DAW features such as drag-and-drop workflows, Channel and Arrangement Overviews for clearer session navigation, and AI-assisted tools like chord suggestion and audio-to-MIDI conversion to streamline creativity. Its updated design makes it easier for guitarists at all levels to lay down ideas quickly while still offering the depth needed for full productions.

Features

• 8 mono mic/line channels and 4 stereo line channels
• High-headroom Class-A XMAX preamplifiers
• XLR and balanced 1/4'' input connectors

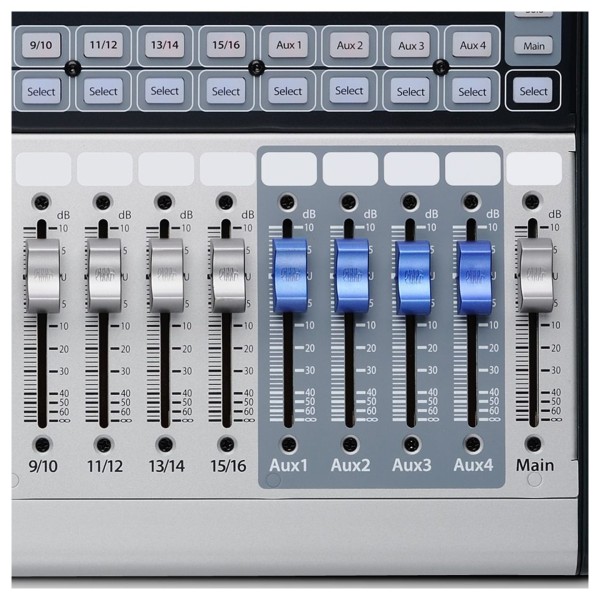

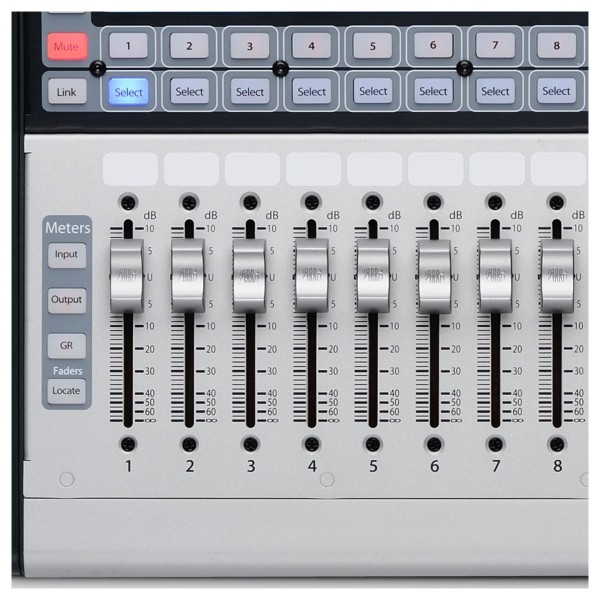

• 60mm precision faders

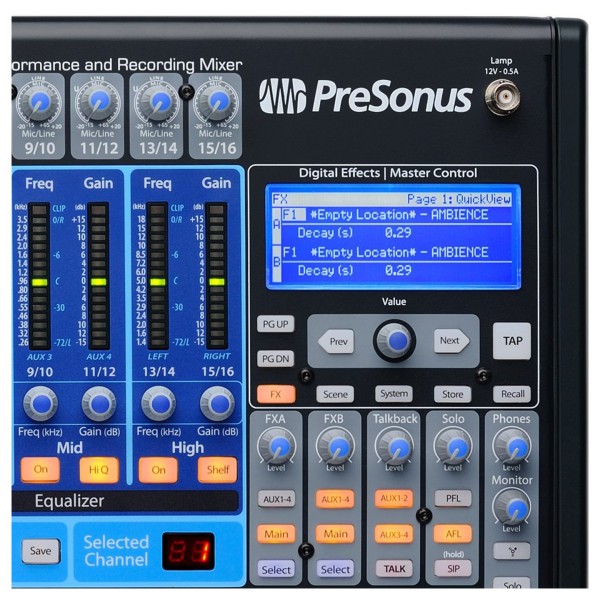

• 2 internal FX buses
• 2 stereo 32-bit digital effects processors

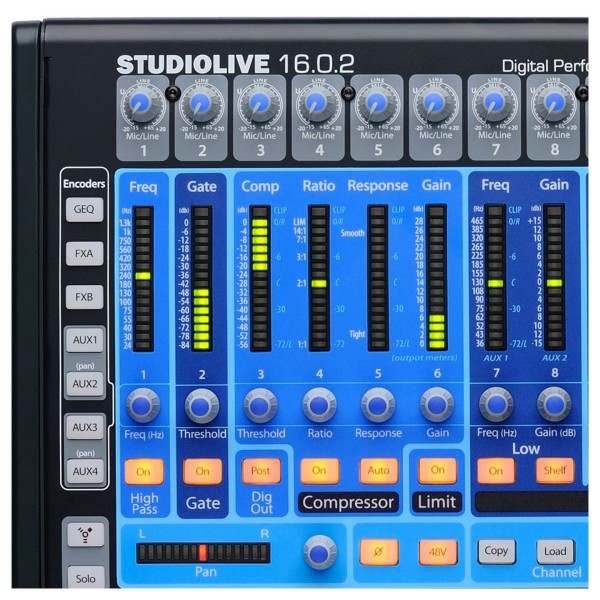

• Fat Channel signal processing on all channels
• 3-band semi-parametric EQ (individual band on/off)
• Full-featured compressor
• Standard downward expanders
• Pan with dedicated 15-LED display
• One 31-band stereo graphic EQ (on main outputs only)
• 16-in/16-out USB recording interface (24-bit/44.1 kHz and 48 kHz)
• Compatible with most audio software via ASIO, Windows Audio, Core Audio
• Scene store and recall
• Settings can be copied among channels and buses and saved as user presets
• Includes a software bundle for Mac® and Windows®
  • Complete with Fender Studio Pro DAW music software (perpetual licence)
  • PreSonus Universal Control with Virtual StudioLive® bidirectional mixer-control software
• Free downloadable software from the Apple App Store provides wireless remote control
  • PreSonus StudioLive Remote for iPad®
  • PreSonus QMix® for iPhone® and iPod touch®

Specifications

• Frequency Response: 20Hz - 20kHz
• System Crosstalk: -90dBu
• ADC Dynamic Range: 118dB, 48kHz
• DAC Dynamic Range: 118dB, 48kHz
• EQ: 2nd-Order Shelving Filter (Q = 0.55)
  • Low: 36Hz - 465Hz, ±15dB (Low-Pass or Bandpass)
  • Mid: 260Hz - 3.5kHz, ±15dB
  • High: 1.4kHz - 18kHz, ±15dB (High-Pass or Bandpass)
• Internal Processing: 32-Bit Floating Point
• Sampling Rate: 44.1kHz / 48kHz
• A/D/A Bit Depth: 24-Bits
• Clock Jitter: < 20 ps rms (20 Hz - 20 kHz)
• Clock Jitter Attenuation: >60dB
• Power Supply: 100V - 240V
• Dimensions: 397mm x 406mm x 140mm / 15.56'' x 16'' x 5.5'' (L x W x H)
• Weight: 9.07kg / 20lbs

Noise Gate (Expander)

• Threshold Range: -84dB to 0dB
• Attack Time: 0.2ms - 2.5ms, Adaptive
• Release Time: 70ms
• Expander Attenuation Range: 2:1

Compressor

• Threshold Range: -56dB to 0dB
• Ratio: 1:1 to 14:1
• Attack and Release Response Time:
  • ''Tight'': 0.2ms / 1.0s
  • ''Smooth'': 180ms / 1.0s
• Auto Attack: 10ms
• Auto Release: 150ms
• Curve Types: Hard and Soft Knee

Microphone Inputs

• Type: XLR, Female, Balanced
• Frequency Response: 20Hz - 20kHz, ±0.5dBu
• Input Impedance: 1 kOhms
• Gain Range: -16dB to +67dB
• EIN to Direct Output: +125dB Unweighted / +130dB A-Weighted
• Maximum Input Level: +16dBu
• Phantom Power: +48VDC

Line Inputs

• Type:
  • Balanced: 1/4'' TRS, Female, Mono
  • Unbalanced: RCA, Female, Stereo Pair
• Frequency Response: 20Hz - 20kHz, 0dBu/-0.5dBu
• Input Impedance: 10 kOhms
• Gain Range: -20dB to +20dB
• Maximum Input Level: +22dBu

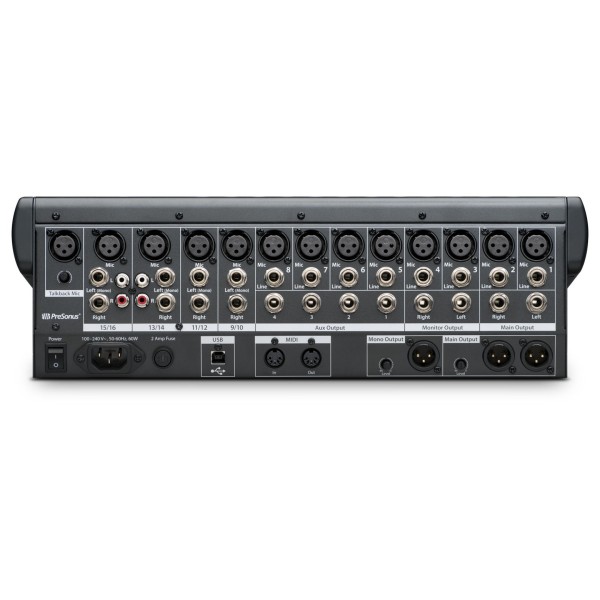

Main Outputs

• Type:
  • XLR Male, Balanced, Stereo Pair
  • 1/4'' TRS Female, Balanced, Stereo Pair
• Rated Output Level: +24dBu
• Output Impedance: 100 Ohms

Aux Outputs

• Type: 1/4'' TRS, Female, Balanced Mono
• Rated Output Level: +18dBu
• Output Impedance: 100 Ohms

Monitor Outputs

• Type: 1/4'' TRS, Female, Balanced Stereo Pair
• Rated Output Level: +18dBu
• Output Impedance: 100 Ohms

System Requirements

• PreSonus® Universal Control 1.5.3 or Later
• USB 2.0 port
• Internet connection recommended
• DVD-ROM drive
• Internal or external 7200 RPM storage drive highly recommended
• Monitor with 1024x768 resolution

Windows

• Operating System:
  • Windows® 7 x64/x86 SP1
  • Windows® 8/8.1 x64/x86
  • Windows® 10 x64/x86
• Processor: Intel® Core™ 2
  • Intel® Core™ i3 or Better Recommended
• RAM: 4GB
  • 8GB or More Recommended

Mac

• Operating System: Mac® OS X 10.6.8 or Later
• Processor: Intel® Core™ Duo
  • Intel® Core™ i3 or Better Recommended
• RAM: 2GB
  • 4GB or More Recommended
