Key Features
- Flexible and comprehensive signal processing
- High-performance, noise-free Midas Preamp
- Audiophile quality with up to 192kHz sample rate
- Compressor, De-Esser and on-board high and low-frequency filters for tone sculpting

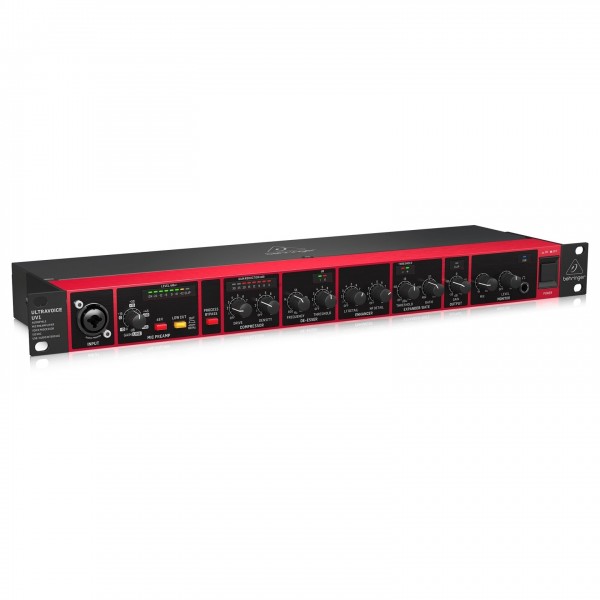

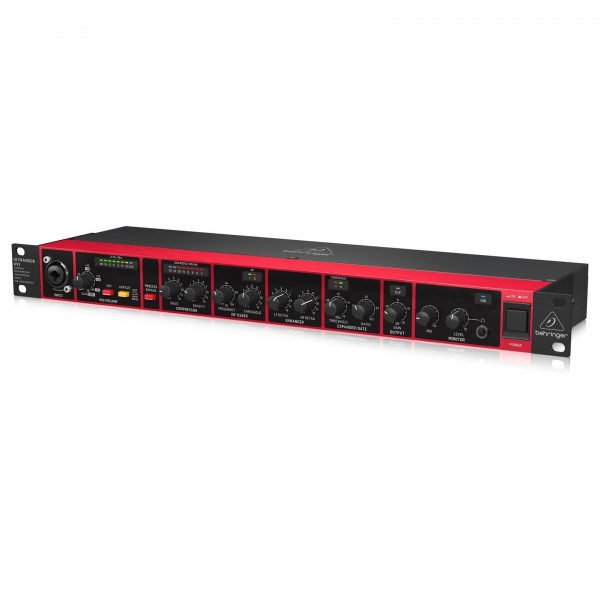

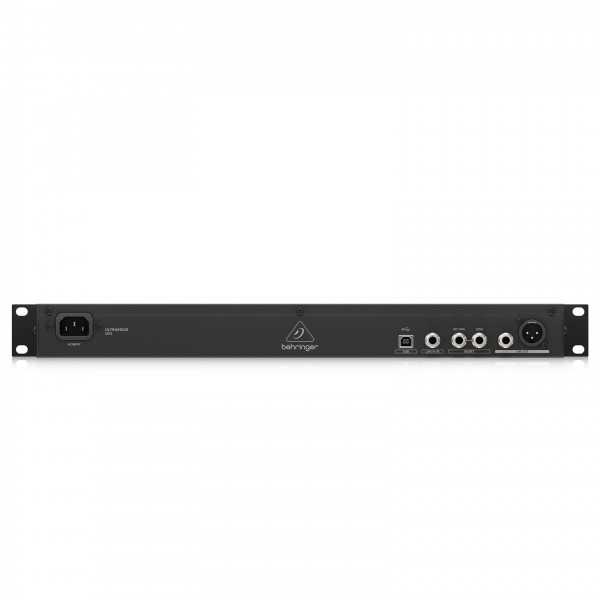

Behringer UV1 Microphone Preamplifier and USB Audio Interface Overview
The Behringer UV1 is a comprehensive preamp and USB audio interface that's ideal for tracking and recording in home and professional studios, or comfortably fitting in a live effects rack. Channel strips have become an extremely popular solution for audio professionals in recent times, due to their extreme flexibility, sound fidelity, and full processing capacity. The UV1 blends this flexible and comprehensive design of channel strips with a high-quality USB audio interface, making this processing accessible to any setup, without the need for a complex signal flow.
The UV1 consists of a high-performance Midas preamp, for subtle colouration and noiseless tracking, a smooth, flexible compressor for level control, a de-esser for easy sibilance or resonance control, low-frequency and high-frequency enhancers, and a noise gate/expander for smooth noise reduction. Send and return inputs and outputs allow you to integrate external effects into your chain. The UV1's USB audio interface can operate at up to 192 kHz for the highest possible sound quality, and conveniently sends your signal directly to your computer. For versatile, professional signal processing on-stage and in the studio, the UV1 is a one-stop shop.
Product Ref: 195353
Full Description
View Full DescriptionVersatile Processing
A perfect solution for tracking, processing and shaping any mono signal, the UV1 absolutely shines on vocals, but is also well-suited for bass and guitar. Utilising Midas' renowned preamp design, every stage of this signal processor is built to give you studio-grade quality for any source.
Channel Strip and Interface Hybrid
With a maximum sample rate of 192 kHz, the UV1 provides pristine, detailed sound over USB to connect to any computer in an instant with absolutely no noise or loss of quality. Blending the full-featured processing offered by a channel strip with the versatility and simplicity of a USB audio interface means you can achieve fantastic quality any place, any time.
Features
- Versatile channel strip and USB audio interface in a single package
- High-quality Midas preamp for pristine sound from any source
- Smooth, flexible compression for easy signal sculpting and levelling
- De-esser perfect for removing resonances and sibilance from any signal
- Low and high-frequency enhancer for subtle but powerful sweetening of your source
- Expander/gate for noise elimination
- Effects send/return connections for compatibility with other external processors
- Switchable input and playback monitoring
- LED metering for checking levels instantly
- TRS and XLR combo jack inputs for easy use with any source
- Illuminated switches for easy operation in low-light stage or studio environments
- Switch mode power supply provides use anywhere in the world, and noise-free operation
- High-quality USB audio interface output for instantly connecting to computers immediately, with a sample rate up to 192 kHz for extreme detail
Specifications
Microphone Input:- Input Type: 1/4" TRS/XLR combo jack, balanced
- Impedance: 4kΩ
- Maximum Input Level: + 17 dBu
- Equivalent Input Noise (EIN): -126 dBu, 20 Hz - 20 kHz, 150Ω
- Input Type: 1/4" TRS, balanced
- Impedance: 10kΩ unbalanced, 20kΩ unbalanced
- Maximum Input Level: 30 dBu
- Input Type: 1/4" TRS, balanced
- Impedance: 5 kΩ
- Maximum Input Level: + 21 dBu
- Output Type: 1/4" TRS/XLR combo jack, balanced
- Impedance: 100 Ω unbalanced, 200 Ω balanced
- Maximum Output Level: + 20 dBu
- Output Type: 1/4" TRS, balanced
- Impedance: 100Ω unbalanced
- Maximum Output Level: + 20 dBu
- Gain: 0 to + 60 dB, line: - 15 to +45 dB
- Phantom Power: +48 V
- Low Cut: -18 dB/octave @ 80 Hz
- Drive: Threshold, -40 dB to +20 dB
- Density: 1 to 75 dB per second
- Frequency: 800 Hz to 10 kHz
- Threshold: Program-dependent
- Release Time: Program-dependent, approx. 1 ms/dB
- LF/HF Detail: Min to max boost (0 dB to +12 dB)
- Threshold: Off to +15 dB
- Ratio: 1:1 to 10:1
- Output Gain: -30 to +10 dB
- Mix: Blend direct signal and playback
- Level: -∞ to +6 dB
- Frequency Response: <10 Hz to 80 kHz (0/-3 dB)
- Dynamic Range: 110 dB, A-weighted
- Type: USB 2.0, Type B
- I/O: 2-in, 2-out
- Converter: 24-bit
- Sample Rates: 44.1/48/88.2/96/176.4/192 kHz
- Supported Operating Systems: Windows 10/Mac OSX 10.4 or higher
- Drivers: Windows drivers available at behringer.com, no drivers required for Mac
- Power Supply: 100 - 240 V, ~50/60 Hz
- Power Consumption: 15 W
- Mains Connection: Standard IEC Connector
- Standard Operating Temperature: 5°C - 45°C (41°F - 113°F)
- Dimensions: 483 x 150 x 44 mm (19 x 5.9 x 1.7")
- Weight: 1.5 kg (3.3 lbs)
