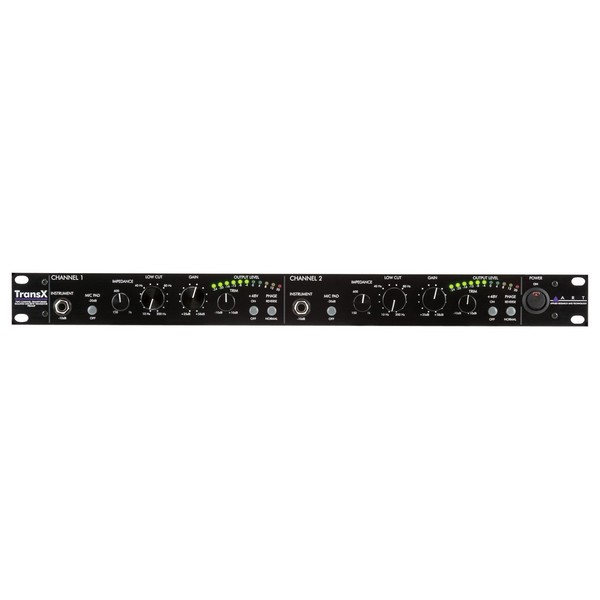

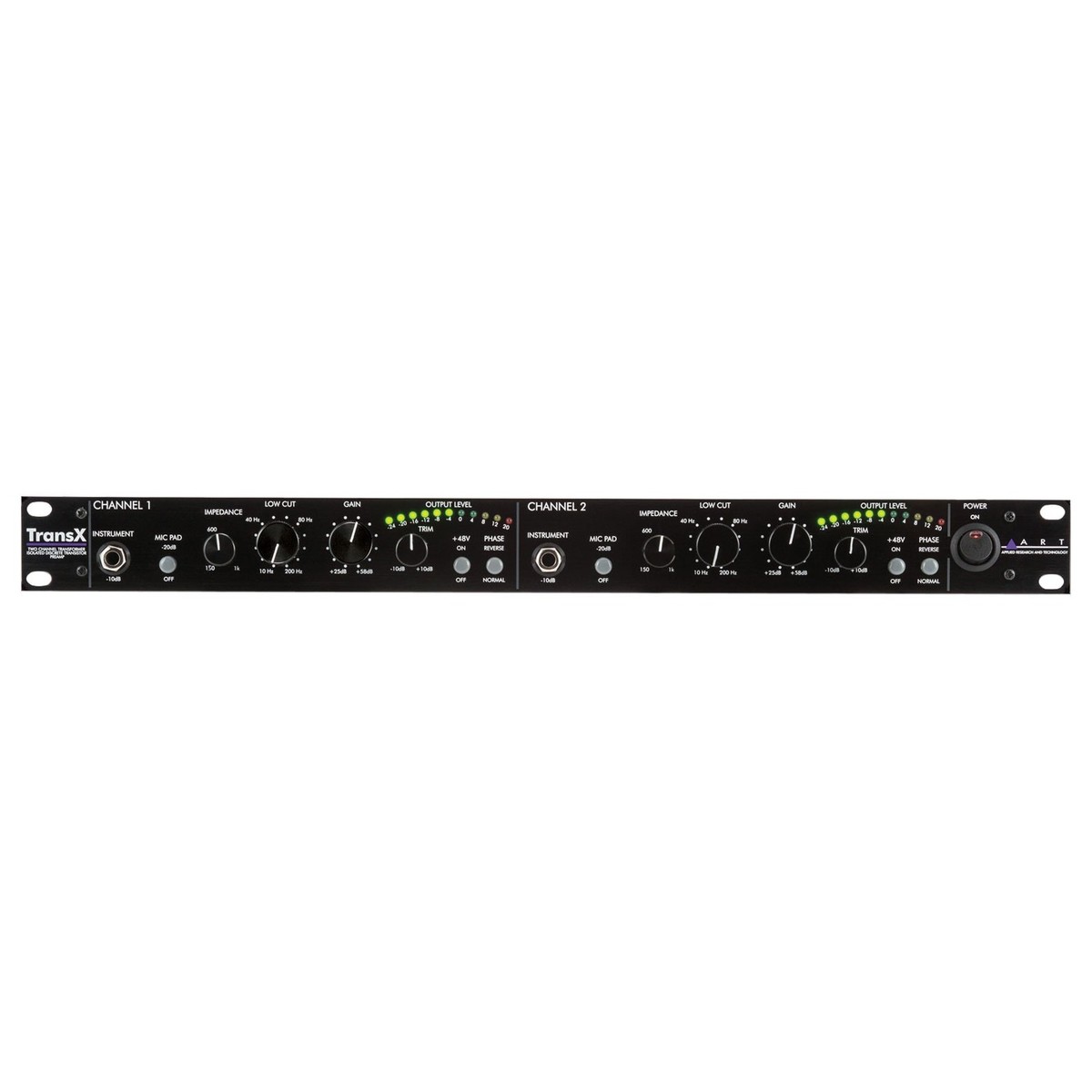

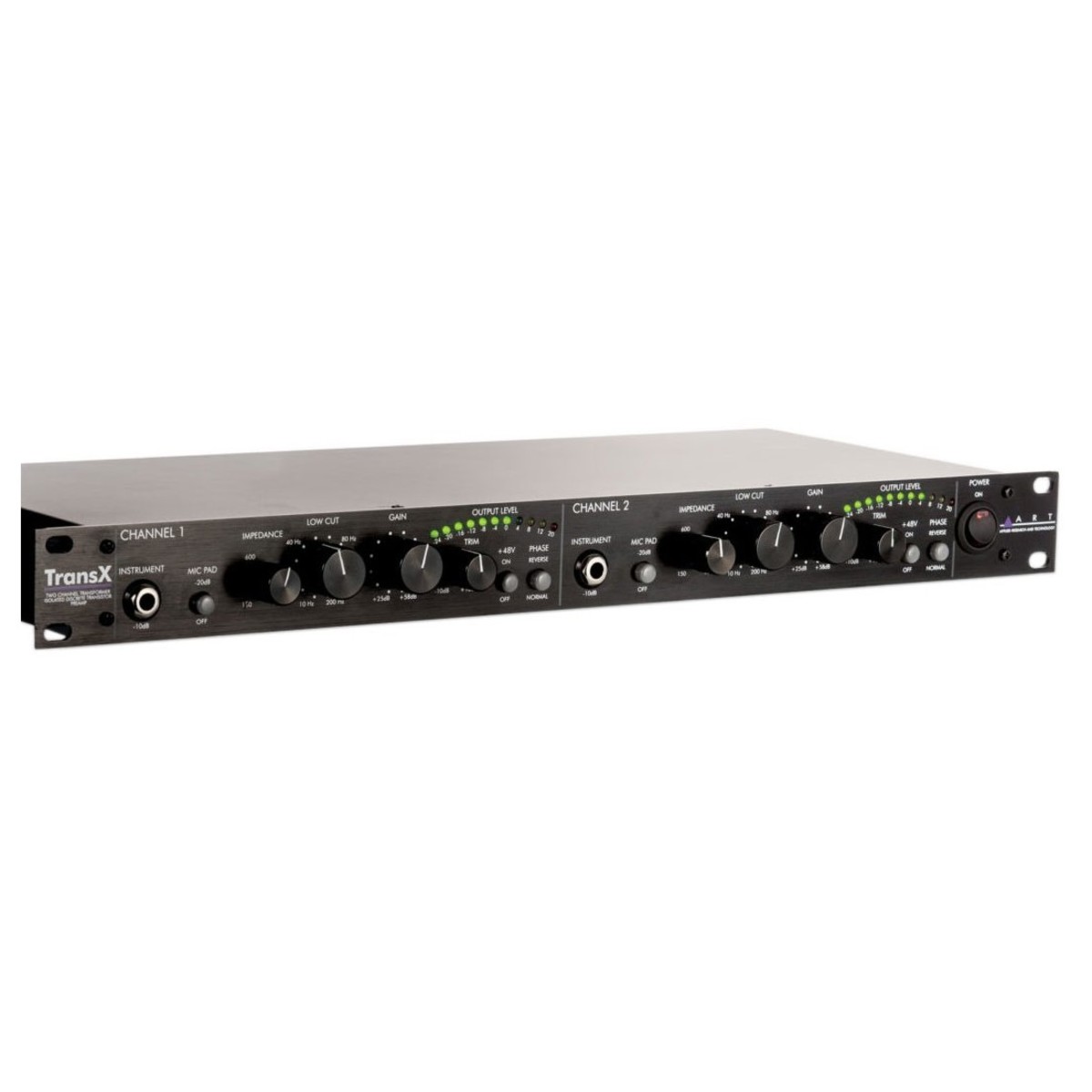

ART TransX, 2-Channel Transformer Isolated Discrete Preamp

Full Description

Professional quality for any budget

Obtain that crisp preamp sound - no matter your budget. The attractively priced ART TransX offers professional preamplification regardless of how big your studio is. The engineers over at ART have worked tirelessly to create a preamp that produces a full and vibrant sound that even the most discerning audio engineers will cherish. This is a new standard for home studio preamplification.

Huge range of features

There are loads of great features that set the ART TransX. Whether it's the Jensen input transformers that help prevent RF interference or the low noise, low THD discrete audio path that helps set the sound quality apart. There are many technical tricks inside the TransX. If you want to own a preamp that can seemingly do it all - from the phase reversal switch to the ground lift function on each channel's outputs.

Features

• Input Transformer blocks R.F. and other noise
• Custom Output Transformer reduces ground noise and maintains level for Balance/Unbalanced connections
• Low noise, low THD discrete audio path
• High impedance direct coupled low noise Instrument input
• Variable input impedance on the XLR input
• Rotary switches allow for reliable, repeatable results
• Gain trim function for precise adjustment of gain 20dB pad allows high-level XLR input signals
• Wide range peak sensitive LED meter
• Phase reverse switch
• Auto muting on outputs

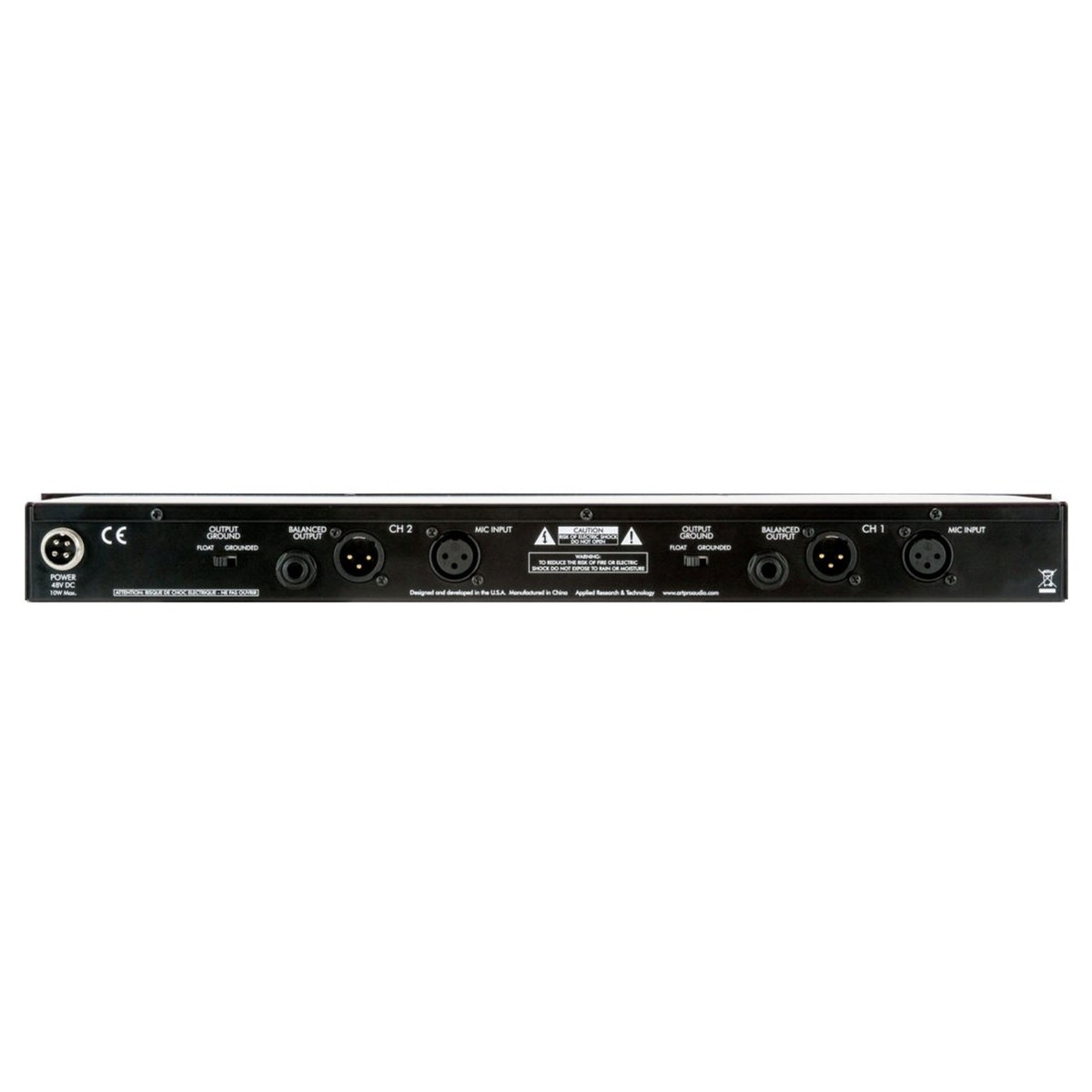

• Ground lift function on each channel’s outputs
• Universal External supply reduces noise and lowers power consumption
• Rugged, reliable steel chassis shields the preamp from external noise

Specifications

• Frequency Response: 10-50kHz + 1dB
• Total Harmonic Distortion:
• CMRR: 90dB @60Hz
• Equivalent Input Noise:
• Mic (@max gain) -128dBu “C” wtd.
• Inst. (@ max gain) -125dBu “C” wtd.
• Input Impedance:
• Mic 150 to 1k Ohm variable
• Instrument 1M Ohm
• Maximum Gain:
• Mic in to output (bal.) +68dB
• Inst. IN to Main output (bal.) +59dB
• Maximum Input Level:
• XLR +24dBu
• Instrument +15dBu
• Maximum Output Level: +24dBu
• Output Impedance: 100 Ohms
• Low Cut Filter:
• Slope 6dB/Oct.
• Range 10Hz to 200 Hz
• Step size 1/3 Oct.
• Phantom Power: Switch selectable, +48V DC, filtered, current limited
• Chassis Type: Chassis Steel, Painted finish
• Dimensions: 1.75″H x 19″W x 9.5″D (44m x 483mm x 241mm)
• Weight: 13.2 lbs. (6.0 kg)
