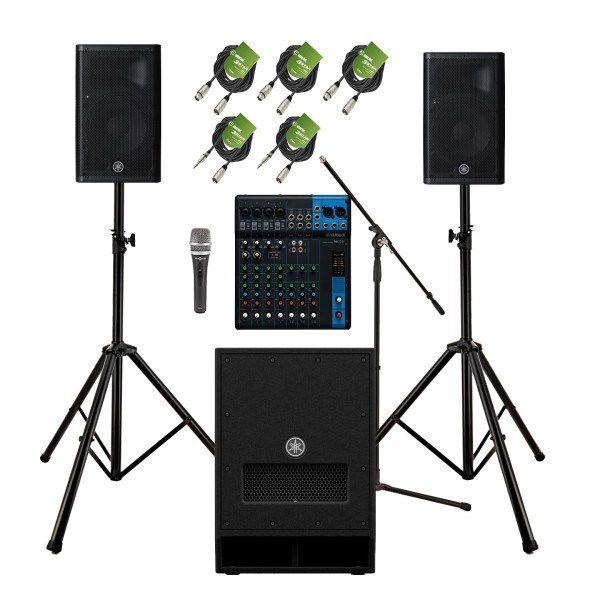

Yamaha DXR8mkII Complete PA System Bundle

Full Description

Effortless power and clarity

Yamaha’s DXR8mkII active speakers deliver astonishing volume and precision from a compact cabinet. Their Class-D bi-amp design produces clean highs and full mids with exceptional headroom. FIR-X tuning ensures phase-accurate sound and smooth crossover response, while D-CONTOUR processing maintains consistent tone at any level. Whether used as mains or monitors, the DXR8mkII offers reliable clarity and control for every performance.

Professional control and connectivity

The MG10 analog mixer combines professional sound shaping with user-friendly operation. Its studio-grade D-PRE mic preamps capture every nuance, while intuitive EQ and aux controls allow fine tuning on the fly. Ideal for small bands, DJs, and events, the MG10 makes it easy to connect microphones, instruments, and playback devices for polished live sound every time.

Deep, defined bass performance

The DXS12mkII powered subwoofer adds serious depth and punch to your mix. Its 12-inch woofer and 1020W dynamic amplifier deliver tight, controlled low frequencies that enhance any style of music. With Yamaha’s D-XSUB processing, you can switch between Normal, Boost, and Xtended LF modes to match different venues or genres—ensuring your audience feels every beat with clarity and impact.

Portable and adaptable design

Every element of this system is built for flexibility. Lightweight enclosures, secure pole mounts, and sturdy stands make setup fast and reliable. High-quality XLR and jack cables ensure noise-free signal flow, while the included dynamic microphone and boom stand complete the stage-ready package. Perfect for rehearsals, events, and performances, it’s a system that travels easily and performs flawlessly wherever you go.

Features

• High-efficiency Class-D amplification for clean, powerful output
• Advanced FIR-X DSP ensures smooth crossover and accurate sound
• D-CONTOUR modes optimise tone for main or monitor use
• D-XSUB processing delivers selectable bass enhancement modes
• Durable plywood subwoofer cabinet for tight, controlled lows
• Analog MG mixer provides intuitive live control and flexible routing
• Lightweight, portable speakers with rugged ABS construction
• Comprehensive protection circuitry for long-term reliability
• Complete bundle includes cables, stands, and microphone

Specifications

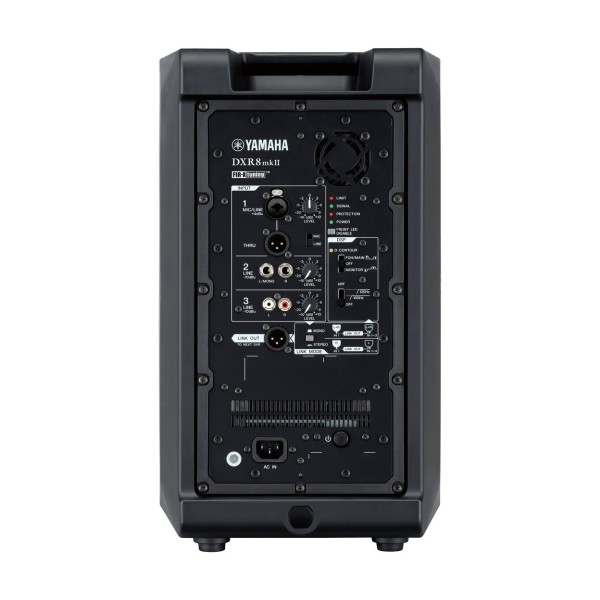

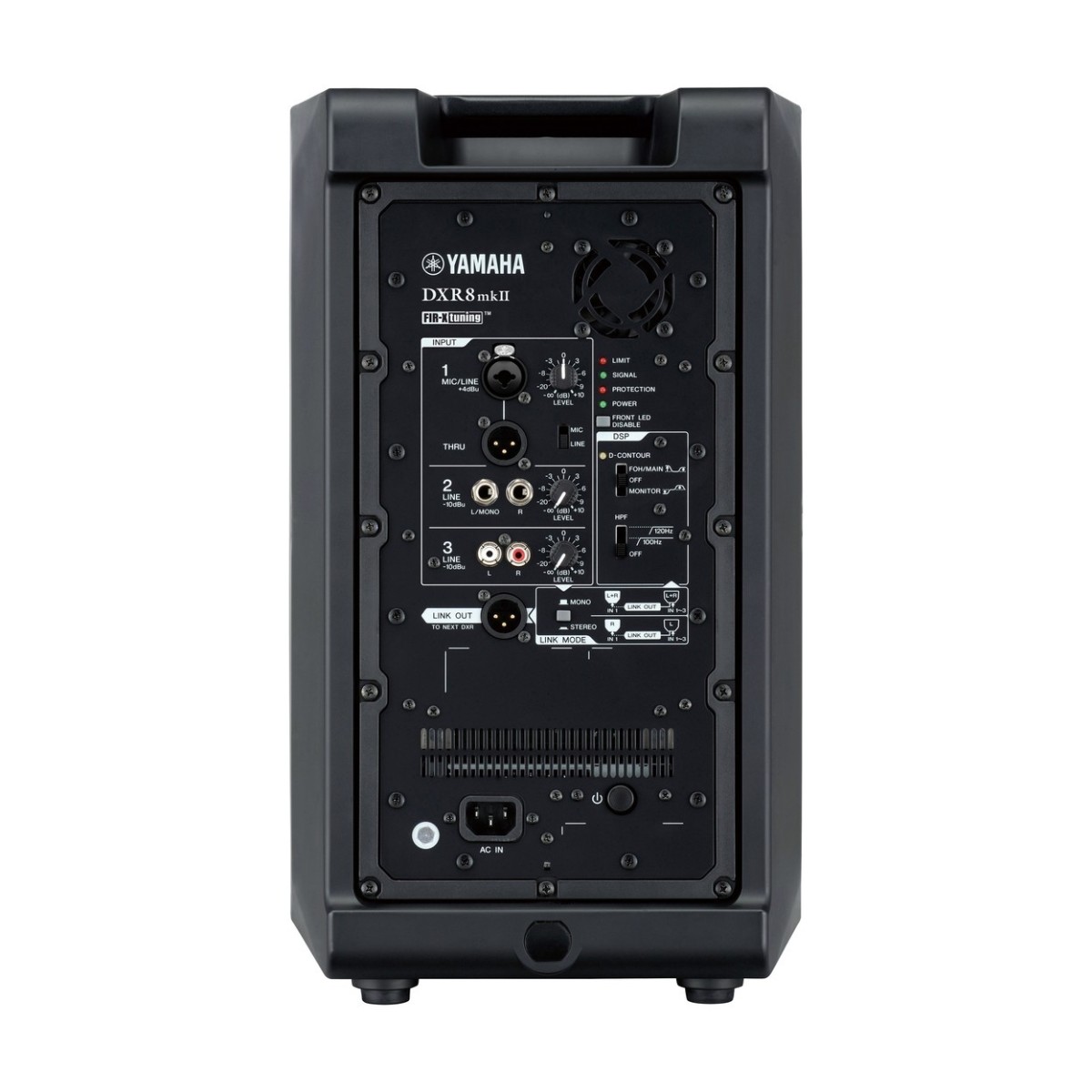

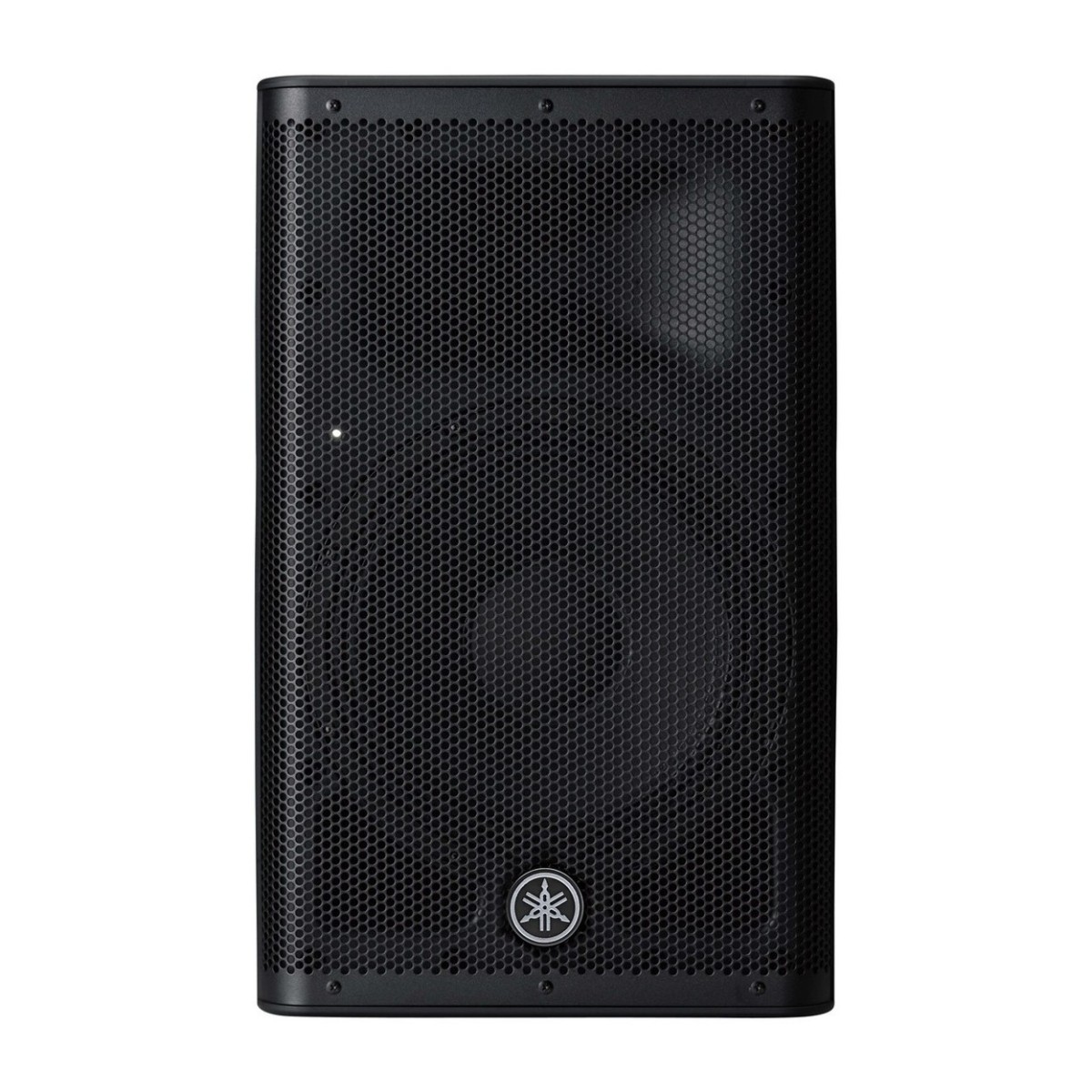

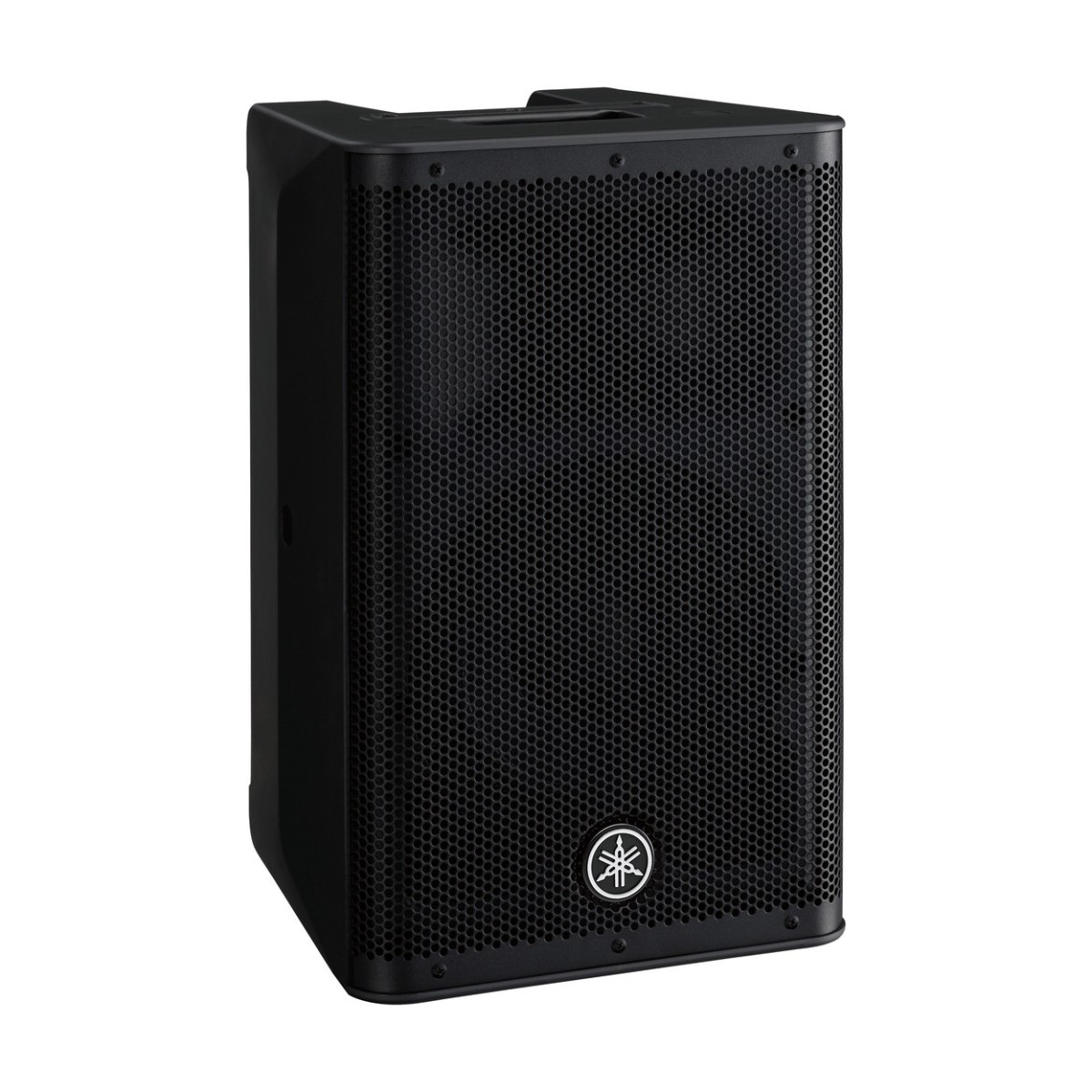

Yamaha DXR8mkII 8'' Active PA Speaker

• System type: 2-way, bi-amp powered, bass-reflex
• Frequency range: 57Hz – 20kHz (-10dB)
• Maximum SPL: 129dB
• Amplifier power: 1100W (Dynamic)
• LF driver: 8'' cone, 2'' voice coil
• HF driver: 1'' compression driver
• Coverage: 90° × 60° (H × V)
• Inputs: XLR, 2 × 1/4'' jack, RCA (L/R)
• Outputs: XLR Thru, XLR Link Out
• Floor monitor angle: 50°
• Dimensions: 280 × 458 × 280mm
• Weight: 13.5kg

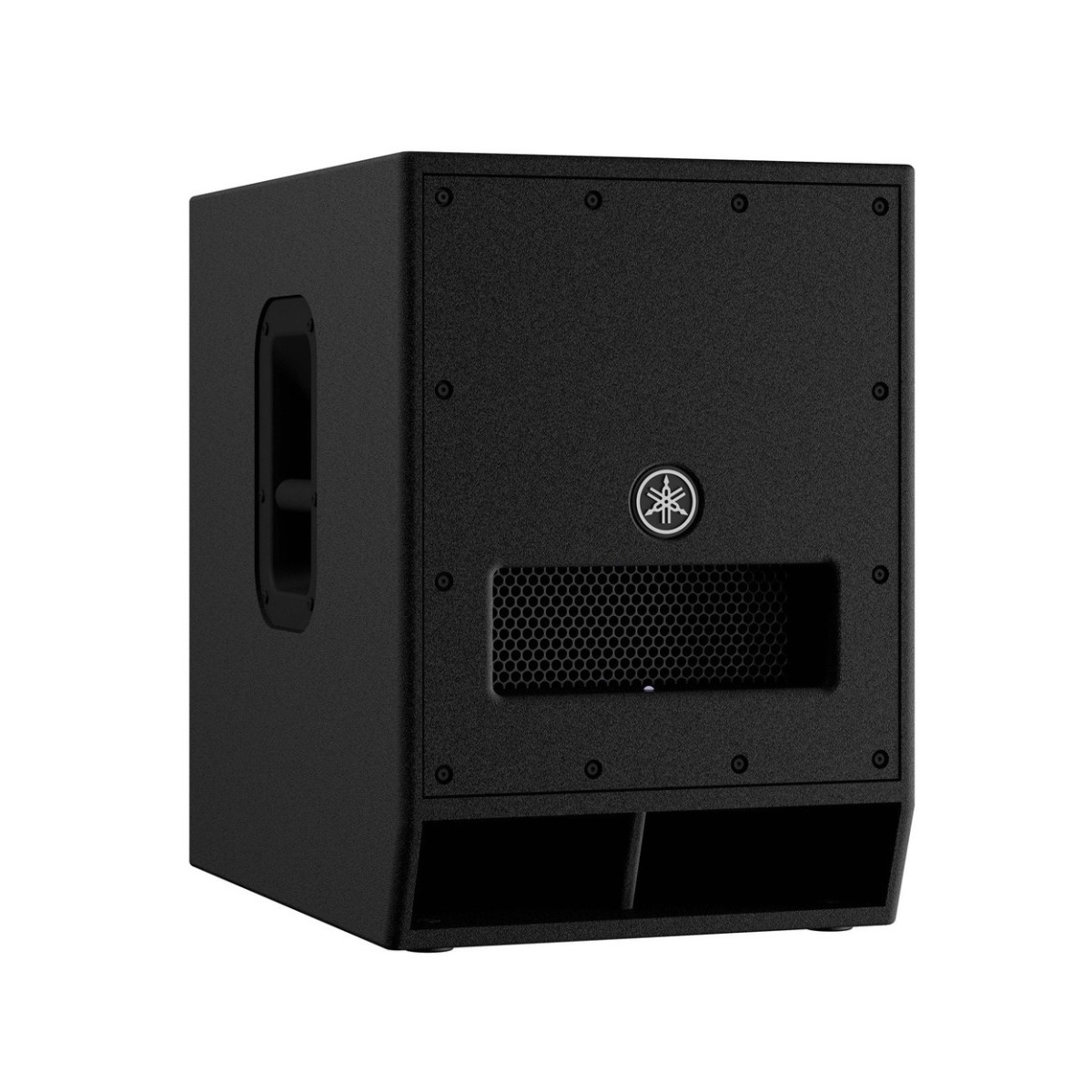

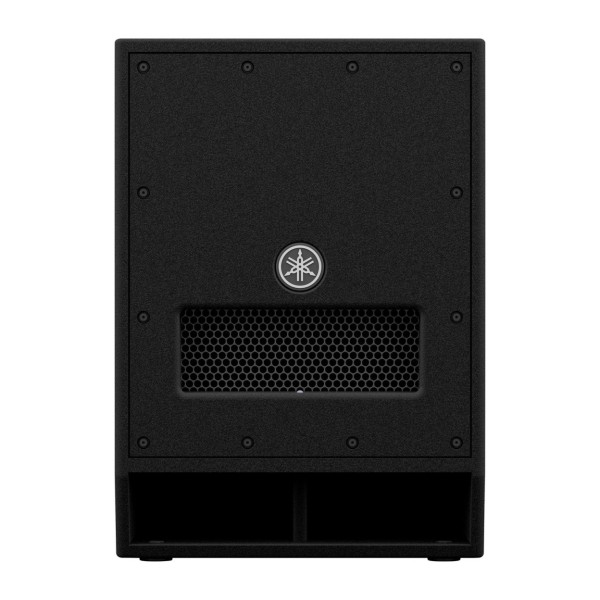

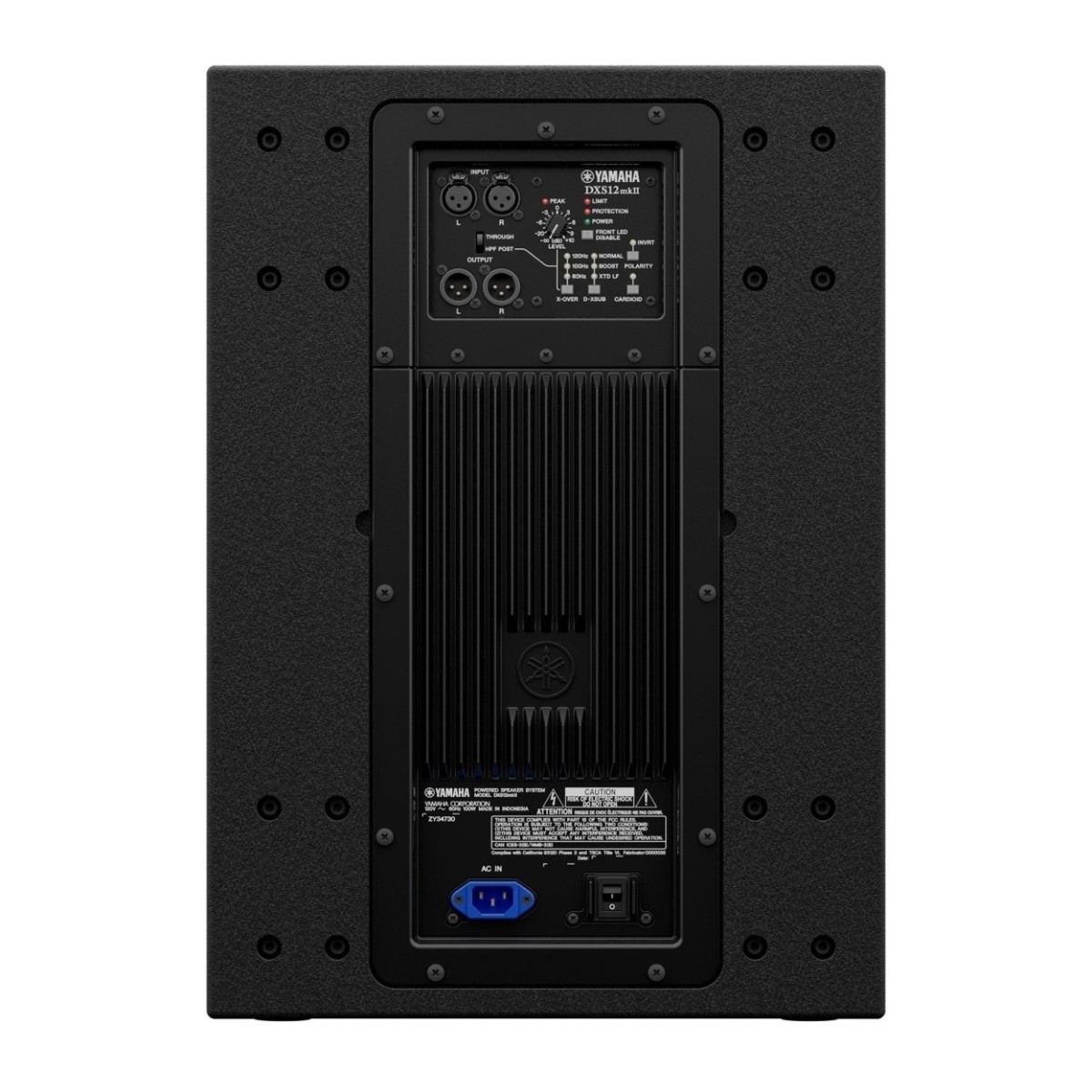

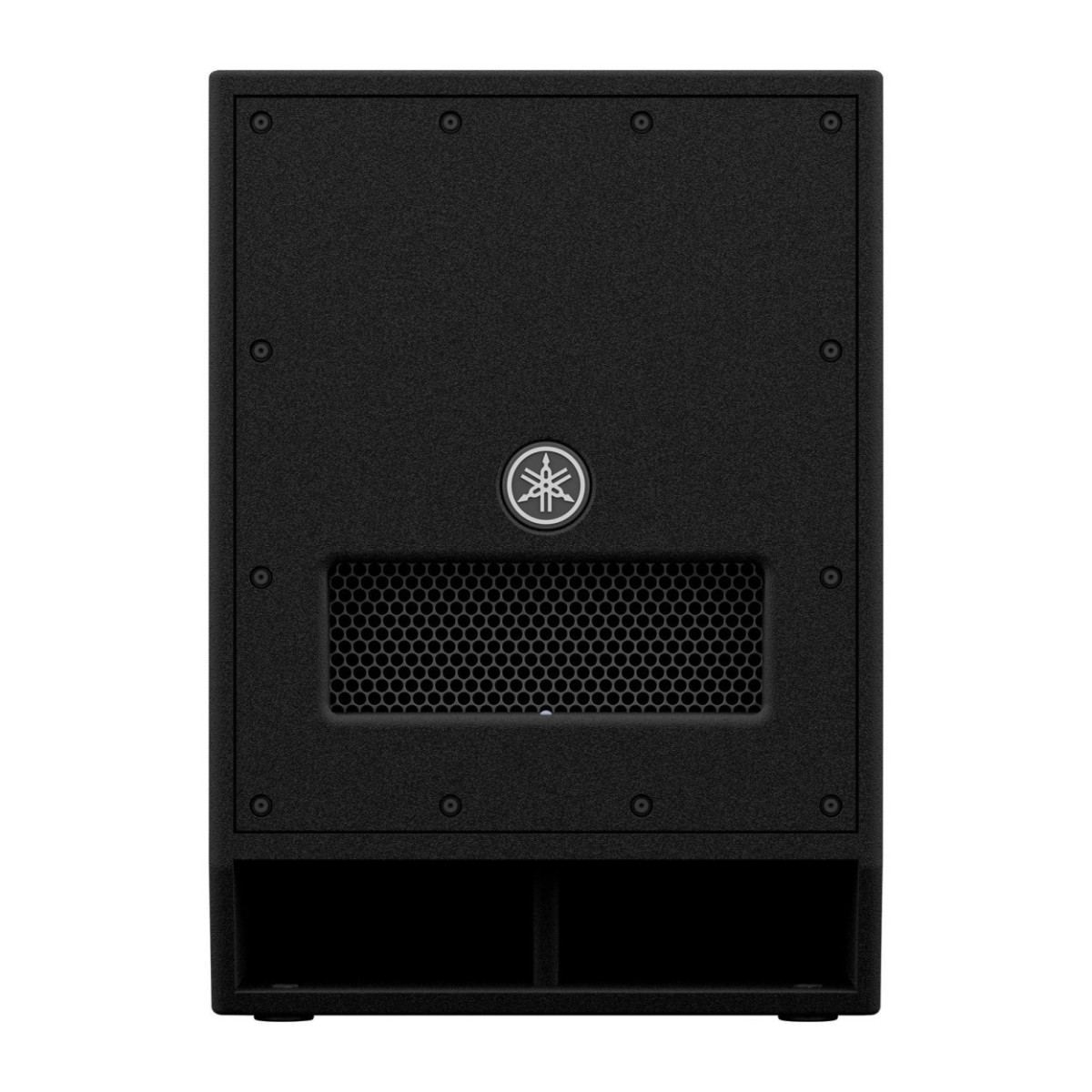

Yamaha DXS12mkII 12'' Active Subwoofer

• Type: Band-pass, powered subwoofer
• Woofer: 12'' with 2.5'' voice coil
• Frequency response: 47Hz – 160Hz
• Amplifier power: 1020W (Dynamic)
• Maximum SPL: 134dB
• DSP modes: Normal, Boost, Xtended LF
• Pole sockets: 1 × M20, 1 × 35mm
• Enclosure: Plywood
• Weight: 30kg

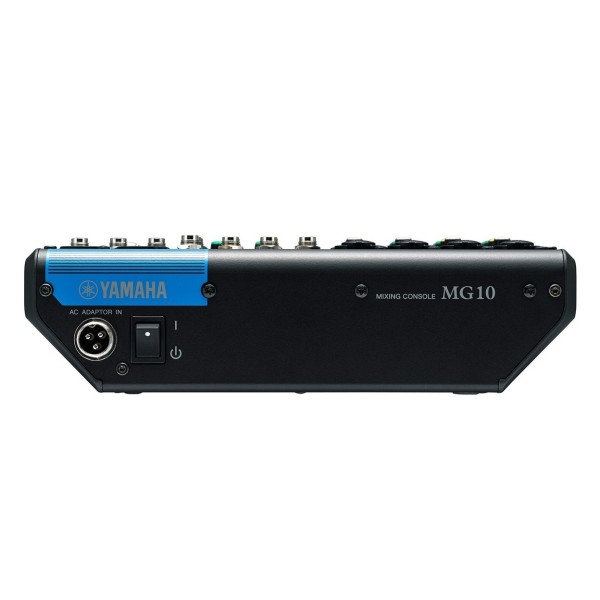

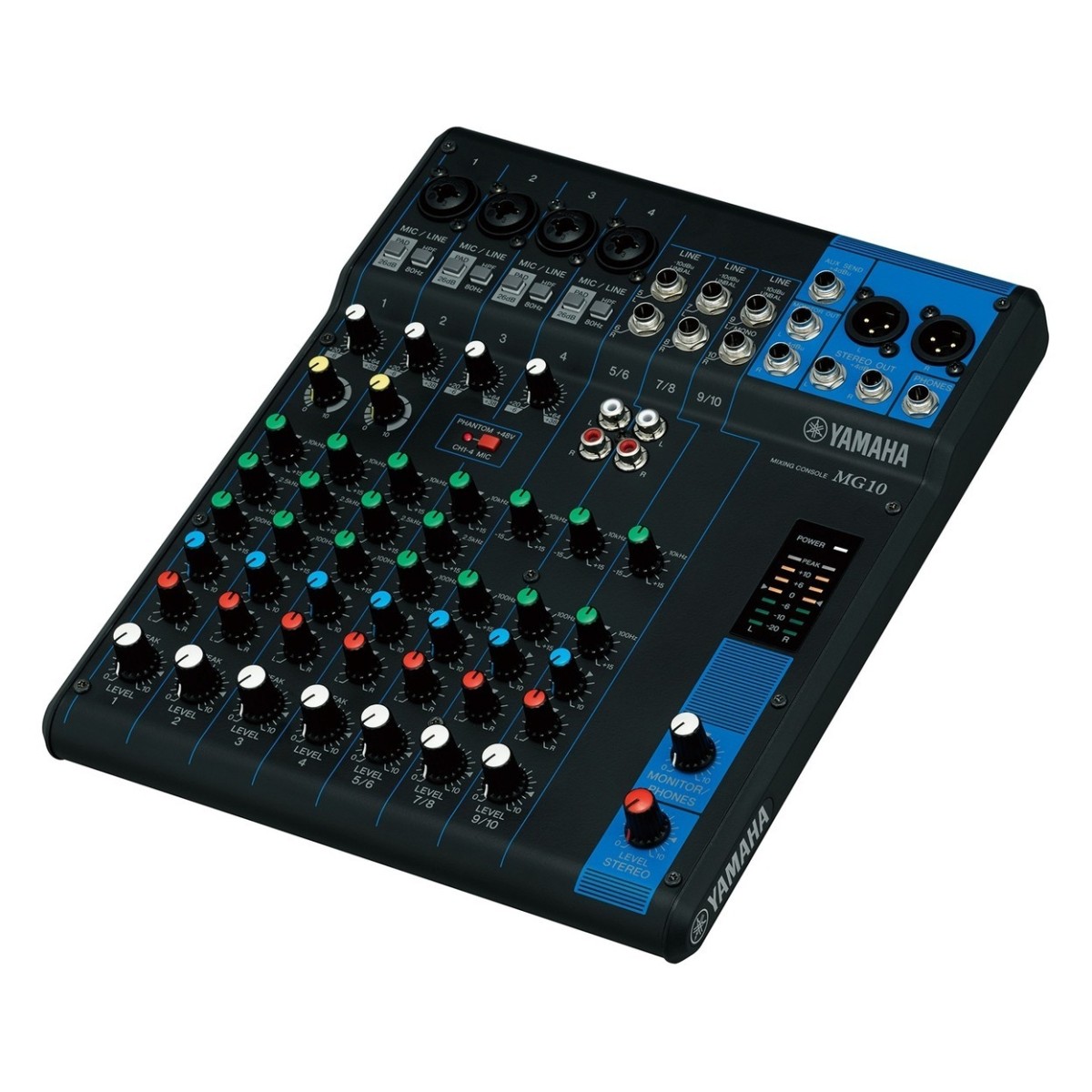

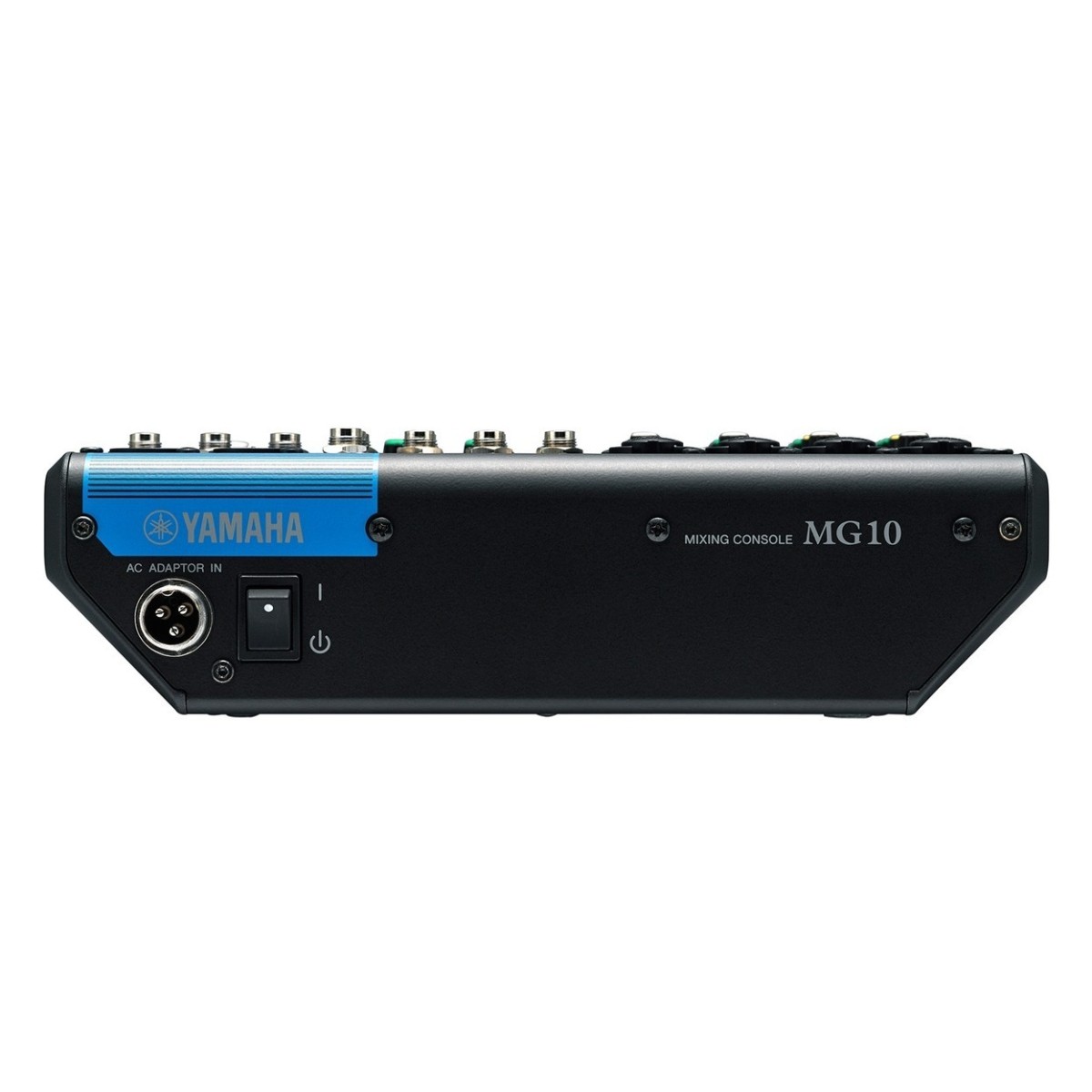

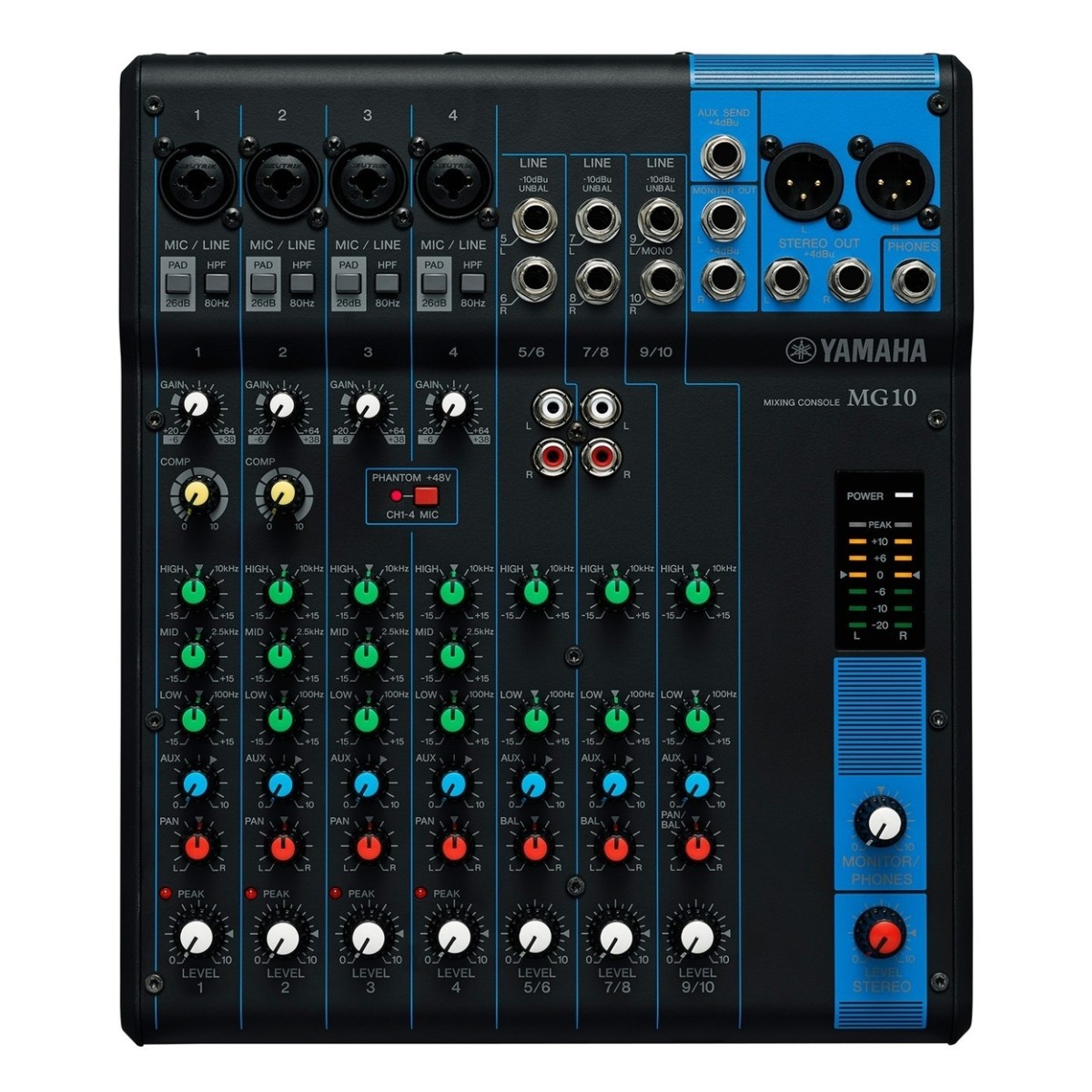

Yamaha MG10 Analog Mixer

• Channels: 10 (4 mono mic/line, 3 stereo line)
• Inputs: XLR/TRS combo, TRS stereo, RCA
• Preamps: D-PRE mic preamps with inverted Darlington circuit
• EQ: 3-band EQ (on mono channels)
• Outputs: Stereo XLR, TRS, headphone
• Dimensions: 244 × 71 × 294mm
• Weight: 2.1kg

Default Accessories

• Microphones: Dynamic Vocal Microphone by Gear4music (x1)
• Speaker stands: Height-adjustable PA Speaker Stands with Carry Bag (x2)
• Cables: Adam Hall 3 STAR XLR (F)–XLR (M) 10m (x3)
• Cables: Adam Hall 3 STAR XLR (M)–TRS 1/4" Jack 6m (x2)
• Mic stand: Boom Microphone Stand by Gear4music (x1)
