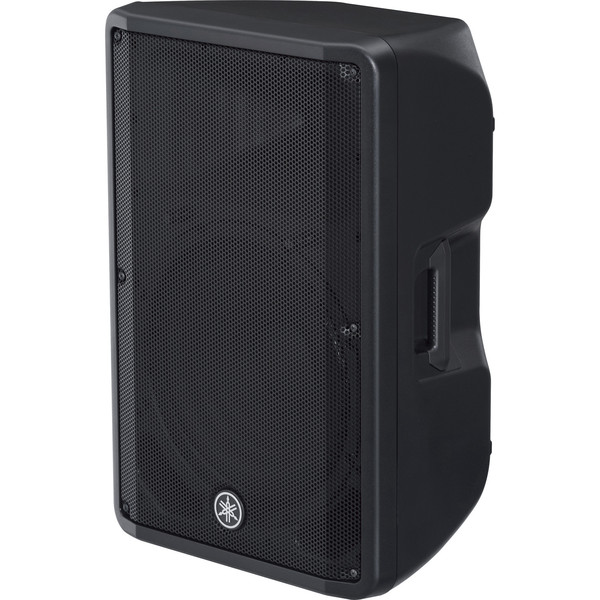

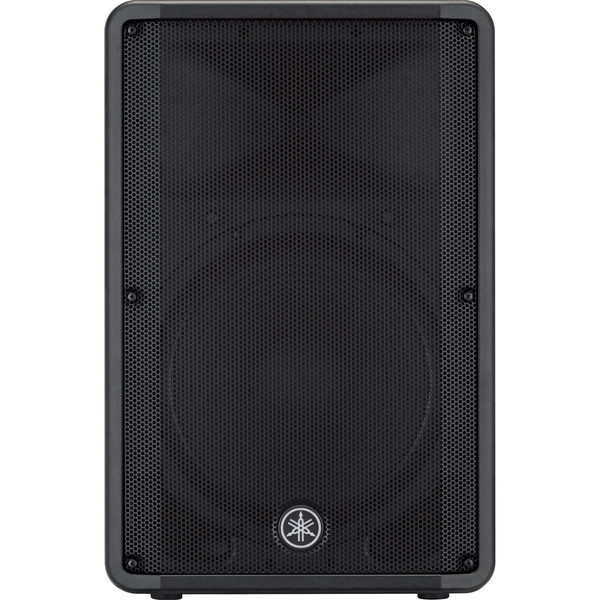

Yamaha CBR15 15'' Passive PA Speaker

  • Video 1

This product is currently unavailable for delivery to your country

  • 250W RMS / 1000W Peak Output
  • Passive Speaker With Impressive Peak 126dB SPL
  • 15" Woofer Delivers Clarity At High Output Levels
  • Custom Designed Transducers Provide High Definition Sound
  • Robust & Portable Enclosure For Easy Setup Or Transport

Yamaha CBR15 15'' Passive PA Speaker

Details
The Yamaha CBR15 Passive PA Speaker provides users with high quality sound reproduction at an affordable price. The CBR15 features a woofer capable of up to a huge 1000W peak output and a reliable 96dB SPL. The 15-inch custom designed driver operates with a wide dispersion horn to emit a balanced sound across the frequency range. With a 1/4" jack and speakOn input, the CBR15 is simple to setup and is ideal for a multitude of applications such as front-of-house sound reinforcement.

Product Ref: 51344

View Full Description

Full Description

View Full Description

Custom Designed Transducers

The CBR15 is equipped with a 15 inch custom designed driver and a 1.4 inch compression driver capable of delivering up to 1000W of peak power, allowing it to achieve an impressive maximum sound pressure level of up to 126dB whilst consistently retaining high audio quality, professional performance and reliability. The CBR15 also features Yamaha's extremely accurate wide dispersion constant-directivity horn that evenly projects clear midrange and accurate high frequencies to the outer-most edges of a very wide coverage area.

HF Protection & Responsive LF Unit

The CBR15 cleverly utilizes a unique circuitry system which acts as a protective step to automatically limit the level of output in the high frequency driver to reduce the chance of blowing a speaker due to over powering the output. Whilst the incorporation of the extremely responsive low frequency unit allows the Yamaha passive speaker to sound sensationally crisp, clear and full at any volume.

Rugged, Portable and Mountable

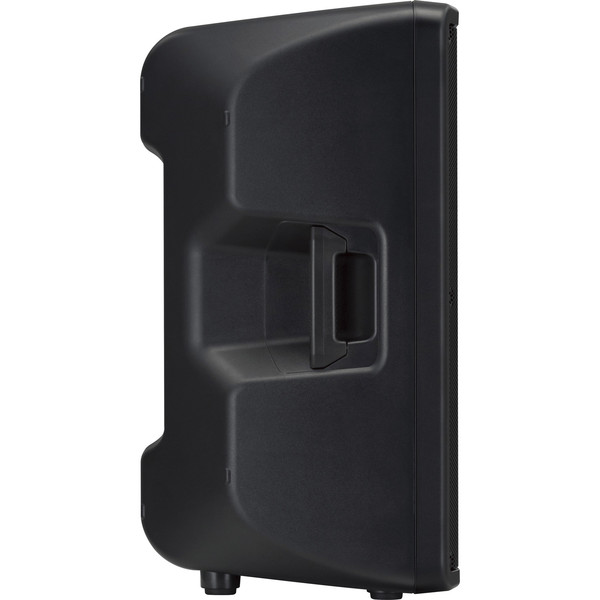

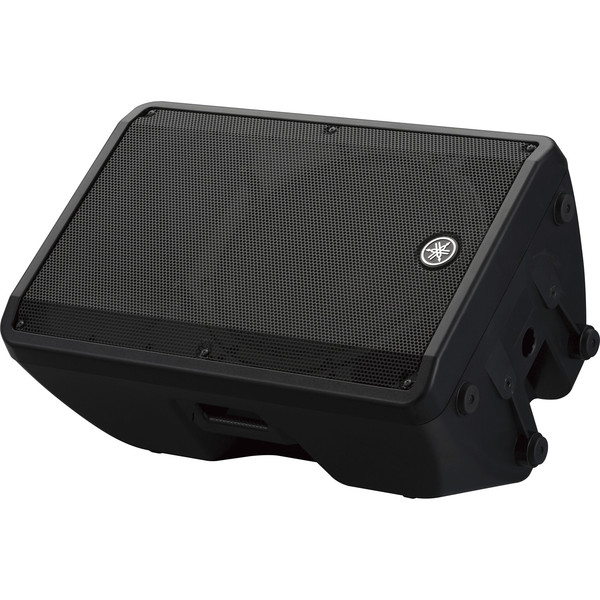

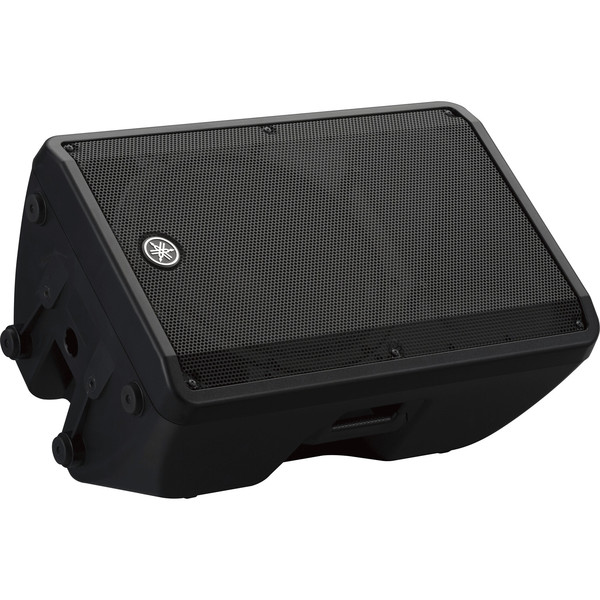

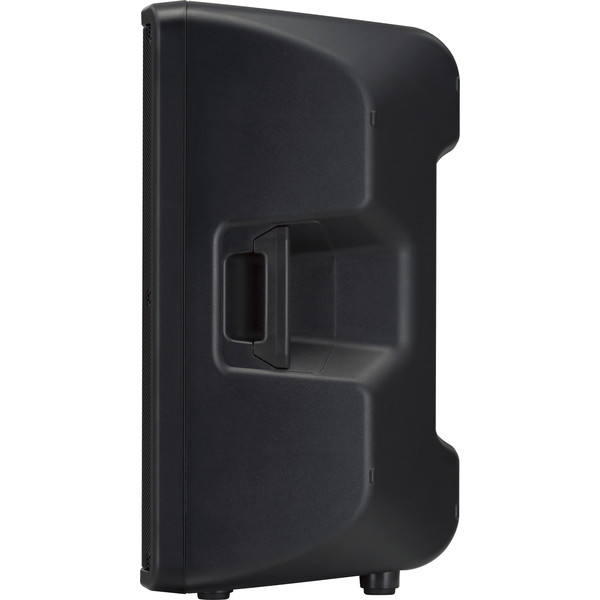

Portability and versatility factored heavily into the design, with a rugged, compact and light-weight plastic enclosure. A sleek steel grille and ergonomic carry handles allowing for fast, safe and easy transportation. The CBR speaker features an optimized 50 degree wedge angle for floor monitoring use, while the symmetrical cabinet shape allows them to be placed in a "mirror-mode" configuration to avoid high frequency 'hot-spots' and is equipped with rigging points compatible with optional speaker brackets and eyebolts for installed applications.

Features

  • Custom designed transducers & wide-dispersion constant directivity horn
  • High frequency protection & highly responsive low frequency unit
  • Rugged, compact & portable enclosure design
  • Simple connectivity
  • Floor monitoring design
  • Rigging points for installation applications
  • Ideal for front-of-house sound, floor monitoring or installations

Specifications

  • Speaker Type: 2-Way Speaker, Bass-Reflex Type
  • Frequency Range (-10dB): 46Hz - 20kHz
  • Nominal coverage (H): 90º
  • Nominal coverage (V): 60º
  • Components
    • LF: 15" Cone, 2.5" Voice Coil (Ferrite Magnet)
    • HF: 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
  • Crossover Frequency: 2.0 kHz
  • Power Rating
    • Noise: 250W
    • PGM: 500W
    • Peak: 1000W
  • Nominal Impedance:
  • SPL Sensitivity (1W; 1m on axis): 96dB SPL
  • SPL Peak (Calculated): 126dB SPL

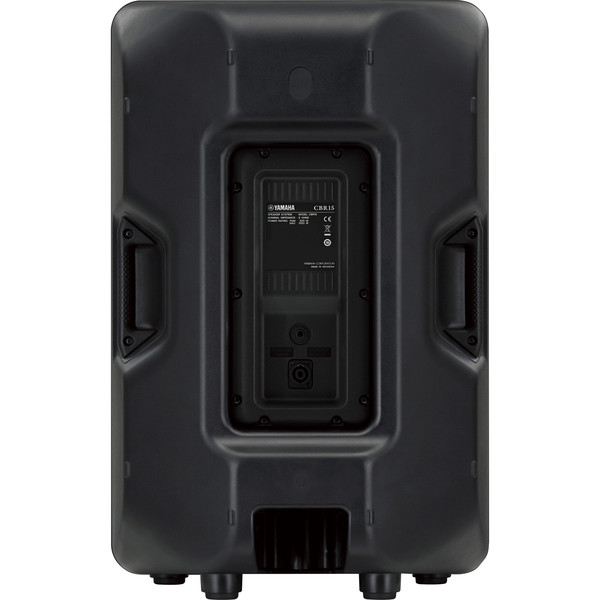

  • I/O Connectors: 1 x 1/4" Jack, 1 x SpeakON
  • Cabinet Material: Plastic
  • Finish: Black
  • Handle: 2 x Side

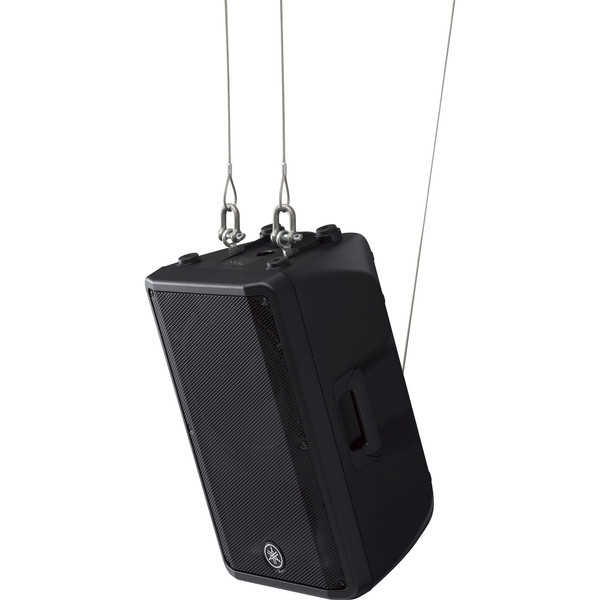

  • Flying and Mounting Hardware: 2 x Bottom, 1 x Rear (Fit for M8 x 15mm Eyebolts)
  • Pole Socket: 1 x 35mm
  • Dimensions
    • Height: 700 mm
    • Width: 455 mm
    • Depth: 378 mm
  • Weight: 17.7 kg
