Key Features
- Combined 1500 watts of continuous power
- 90° x 45° dispersion gives great coverage
- Multiple rigging points and rubber feet
- Solid build from birch plywood and Rhino Rock paint
- Includes sturdy speaker stands and handy carrying bag

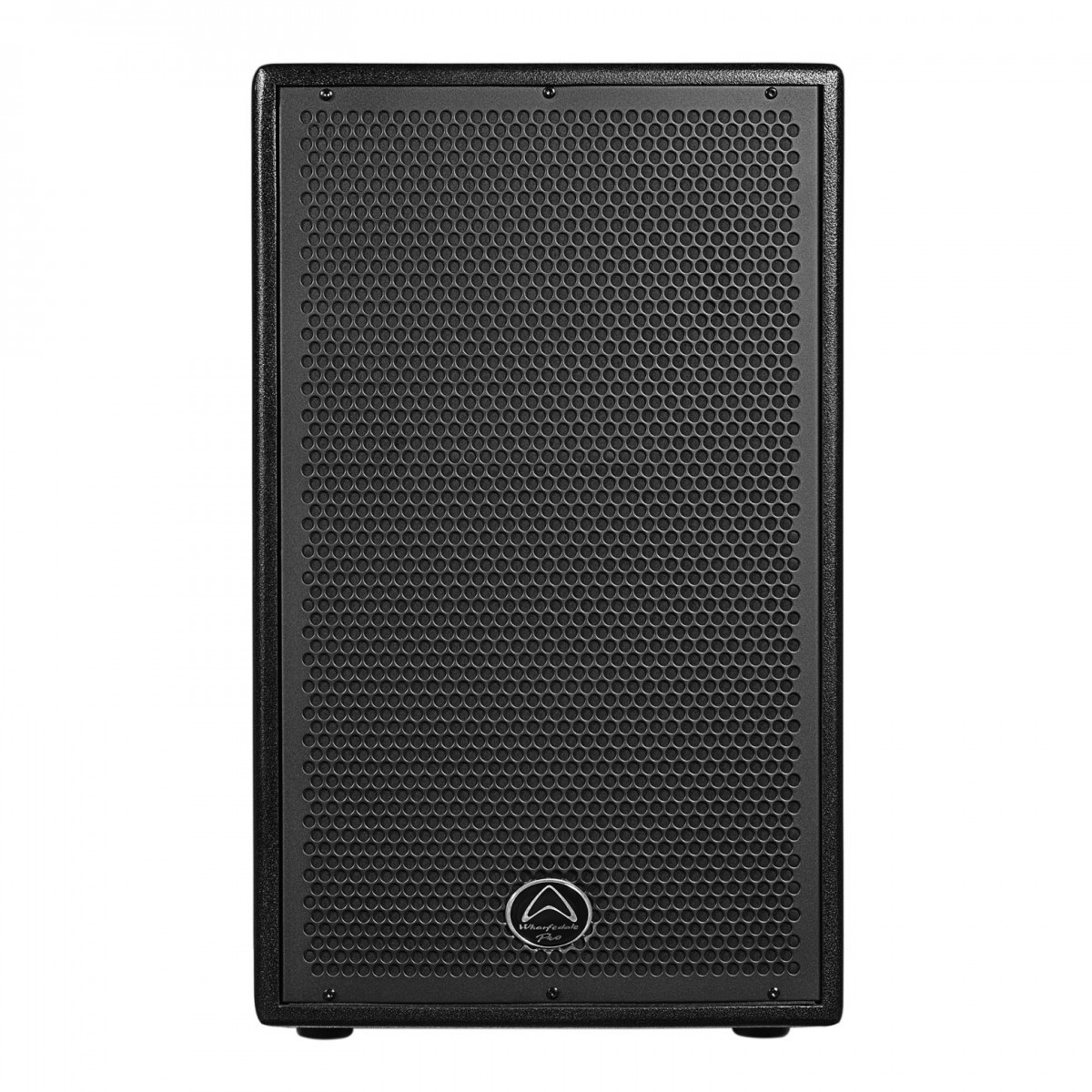

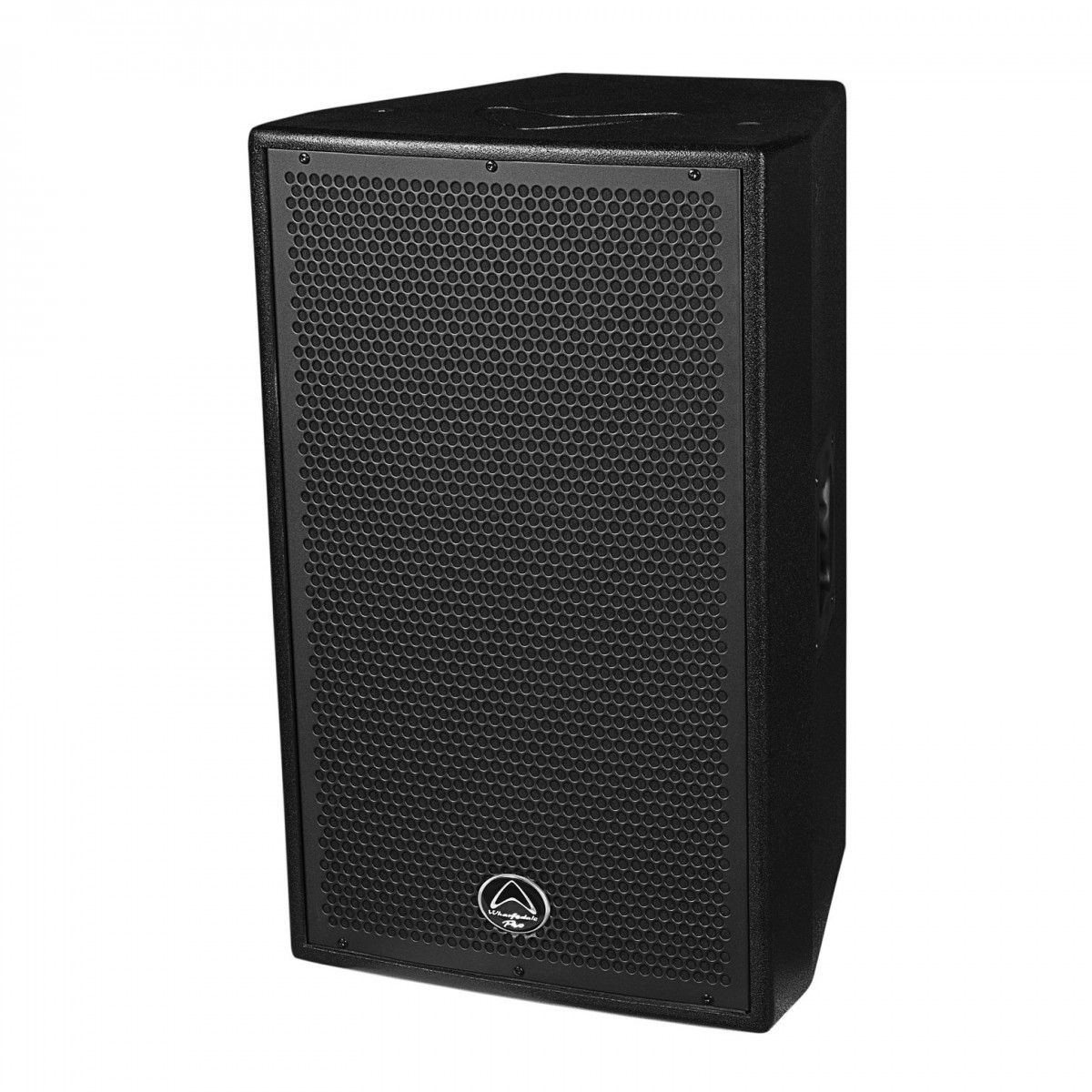

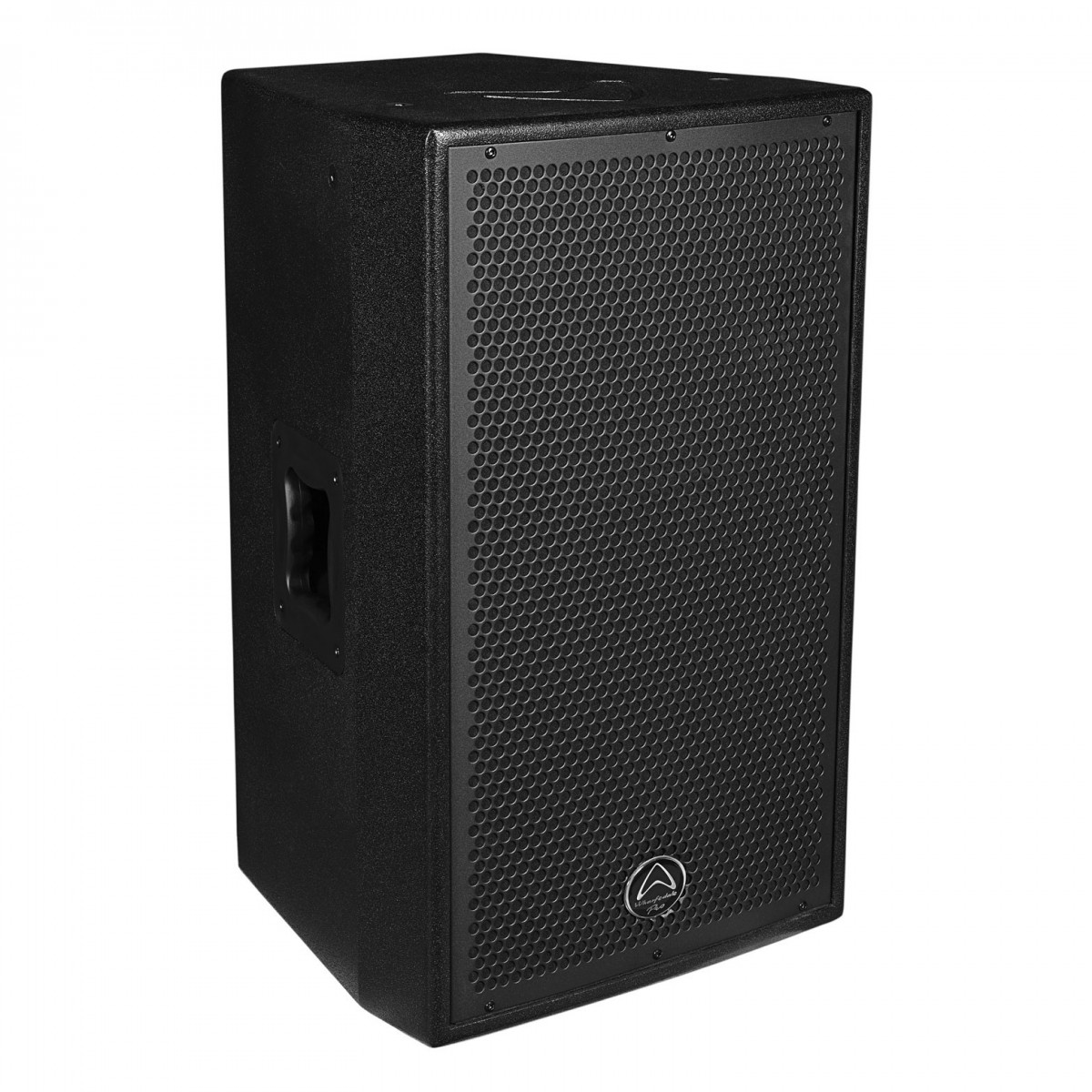

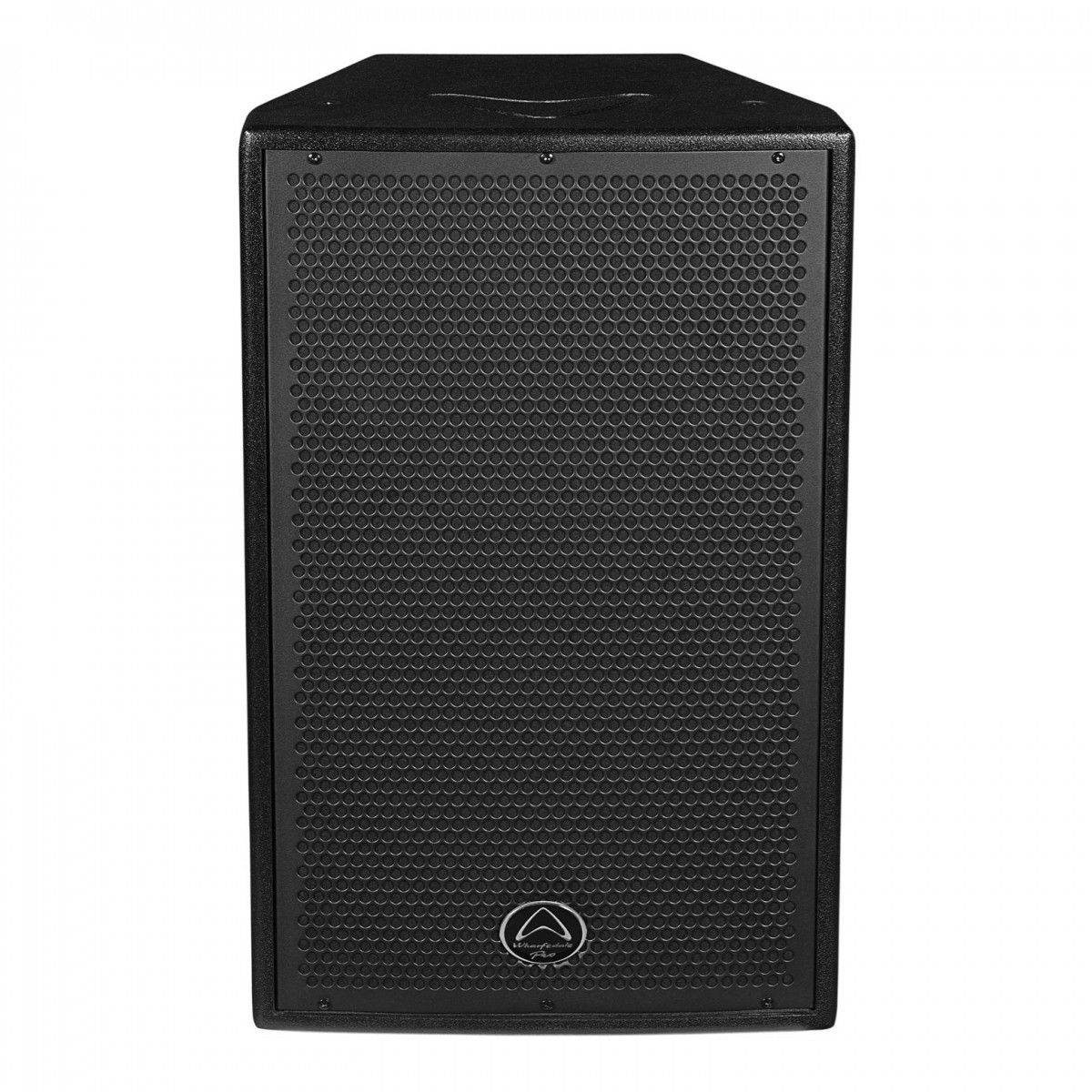

Wharfedale Pro Delta-AX12 12" Active PA Speaker, Pair with Stands Overview
The Wharfedale Pro Delta-AX12 is an active speaker with the sound for any situation. With the two included you can produce 1500W of continuous power - up to a peak of 3000W - with their 12" LF driver and 2" compression HF driver. This produces an immense sound, guaranteed to be great at any volume by in-built premium QuBit DSP.

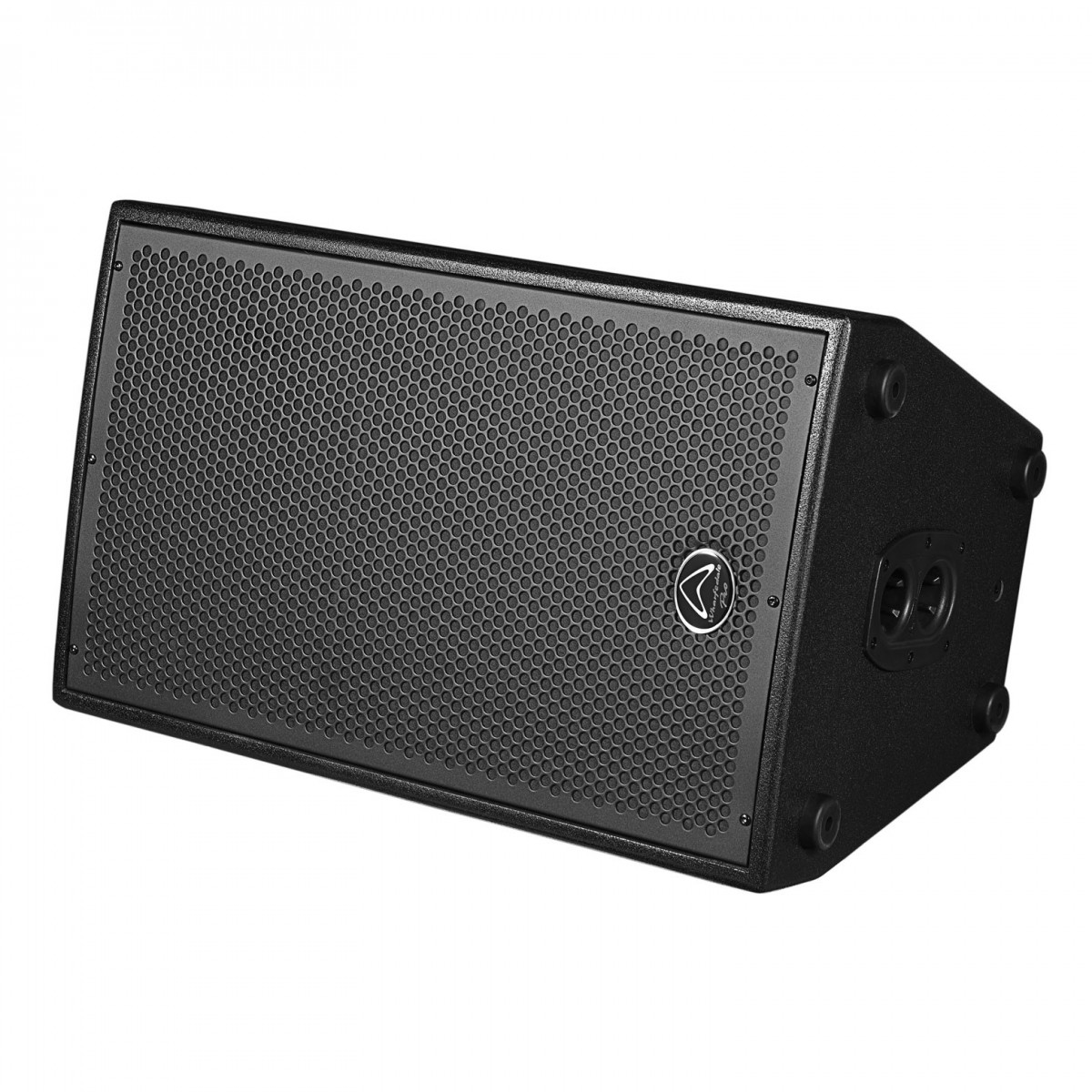

You can set the Delta-AX12 up in any way you need. Mount on the included speaker stands, rig aerially or lie it sideways on the floor. Wherever it's placed you'll have brilliant coverage, having dispersion of 90° horizontally, and 45° vertically.
The Delta-AX12 is built to last. Made from 15mm plywood coated in Black Rhino paint, it will be safe from even the clumsiest roadies. And with a range of input types, whatever sound you give it, it'll make sure it's heard.
Product Ref: 193144
Full Description

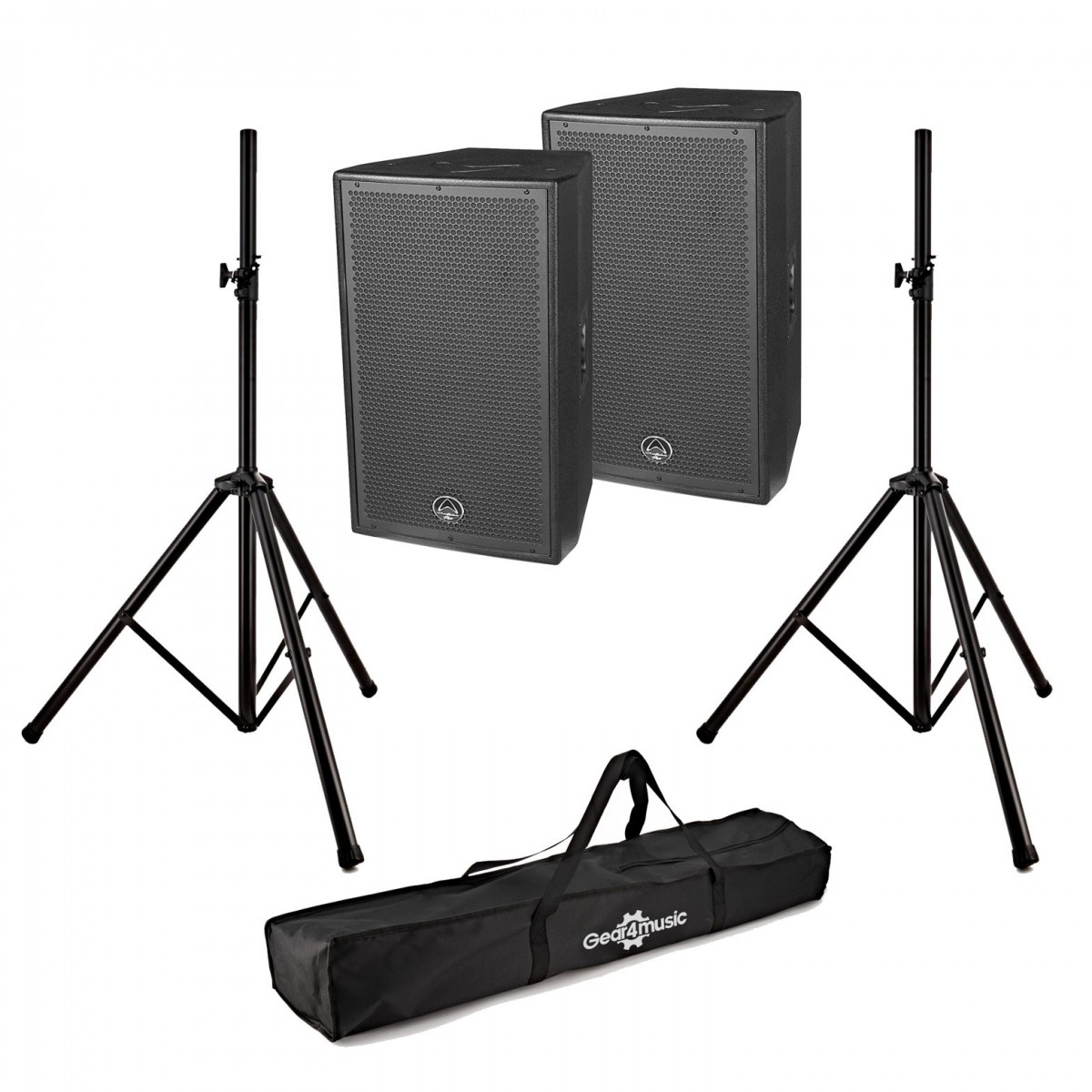

View Full DescriptionWhat's included
- 2 x Wharfedale Pro Delta-AX12 12" Active PA Speaker
- 2 x PA Speaker Stands

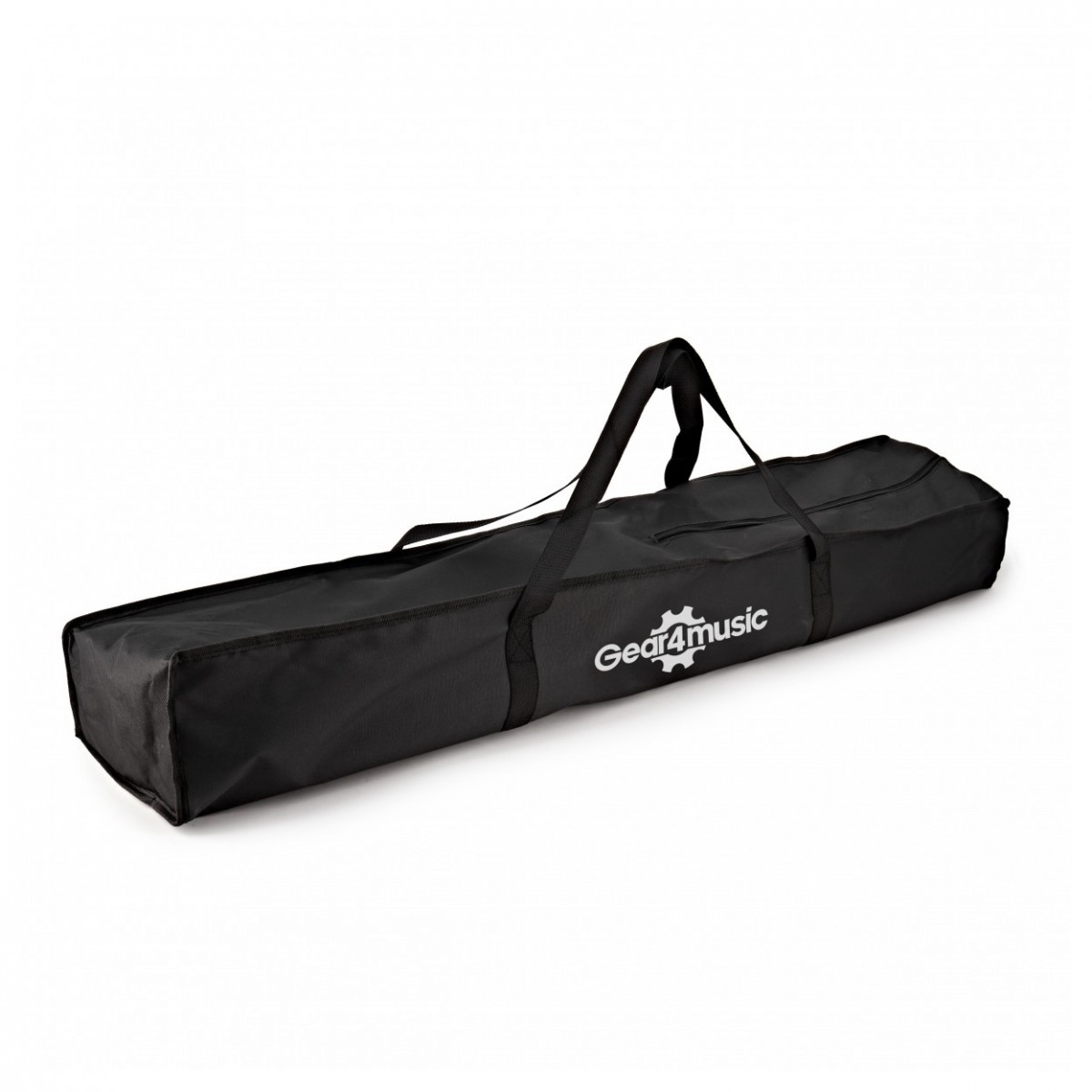

- 1 x Stand Carry Bag
Features
Wharfedale Pro Delta-AX12 12" Active PA Speaker
- 750 watts of continuous power, 1500 watts peak
- Dispersion of 90° by 40°
- 12" low frequency driver and a 2" HF compression driver
- QuBit DSP for great sound at any level
- Max SPL of 130dB at 1 meters distance
- Built out of solid birch plywood and coated in Rhino Rock paint
- Two class D amplifiers drive amazing sound
- Carry easily using the rubberised handles
- Change gain remotely and control the amount of treble and bass
- Variety of analog inputs for any use
- Balanced combi jack out
- Multiple rigging points and a set of rubber feet

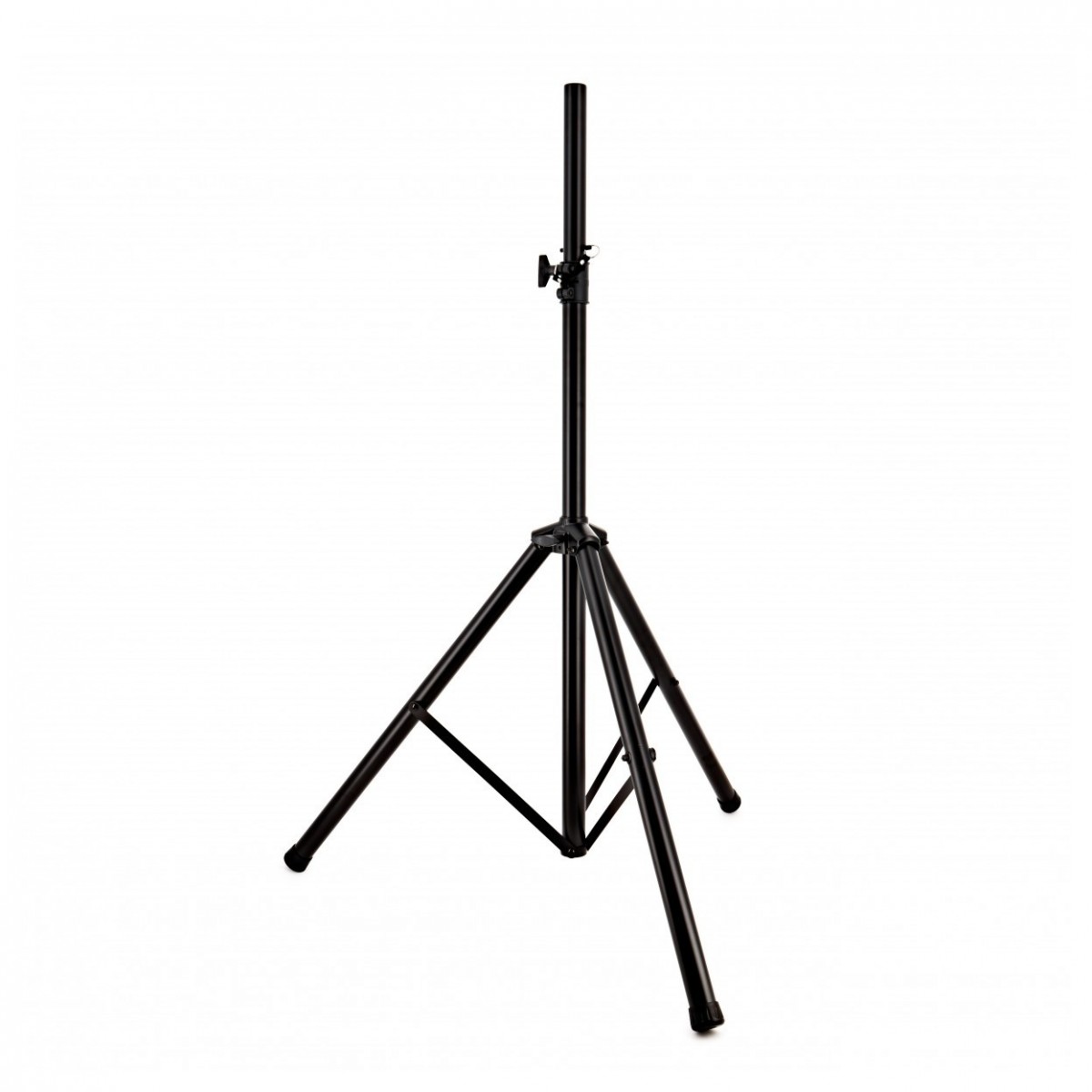

PA Speaker Stand
- Air cushioned design prevents damages during breakdown
- Easy to transport and store thanks to a fully collapsible design
- Flexible speaker positioning with an adjustable 35mm pole
- Ultra-solid construction with safety screw connections
- Easy to transport with the weather-resistant carry bag
Specifications
Wharfedale Pro Delta-AX12 12" Active PA Speaker
- System Type: Active 12” 2-way Bi-Amplified
- Frequency Response (±3dB): 60Hz – 20kHz
- Frequency Range: 55Hz – 20kHz
- Calculated Maximum SPL @ 1m: 130 dB
- Low Frequency Transducer:
- Size: 12″
- Voice Coil Size: 3"
- Impedance: 4Ω
- High Frequency Transducer:
- HF Driver Type: compression driver
- Coil Size: 2"
- Exit Size: 1.4"
- Diaphragm Material: titanium
- Impedance: 8Ω
- Nominal Coverage (HxV): 90° x 45°
- Low-Frequency Power Amplifier RMS: 600W (Class D)
- Protection: amplifier, power on, thermal, driver, low line voltage shut down, DC and short, clip limiter

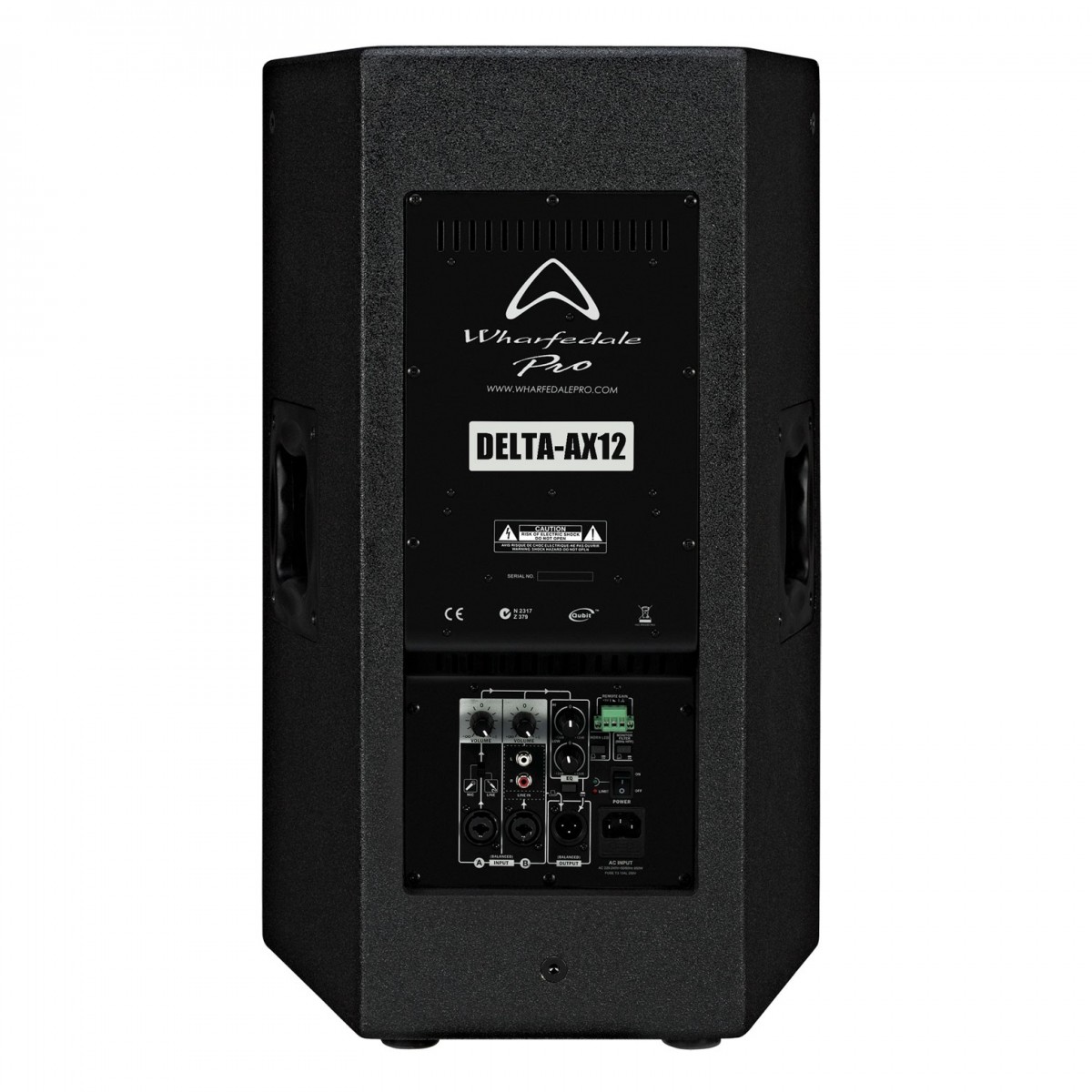

- Connectors:
- Input A - Type: switchable balanced mic or line level input
- Input Sensitivity: mic - -40dBu, line - 0dBu
- Maximum Input Level: 22dBu
- Input: XLR 1/4” Combo jack / 2 x RCA
- Input Impedance: balanced - 20KΩ, unbalanced 10KΩ
- Live Output Connector: Switchable LOOP/MIX Balanced, Male XLR Connector
- Impedance Balanced: balanced 200Ω, unbalanced 100Ω
- Loop Gain: 0dB
- Power:
- Power Supply: high efficiency SMPS
- AC Power Options: 100-120V/220-240V, 50/60Hz
- Rigging Hardware: M10 x 6
- Enclosure:
- Material: 15mm plywood
- Colour: black
- Dimensions:
- Height: 640mm
- Width (Front): 390mm
- Width (Back): 241.2mm
- Depth: 373mm
- Weight: 27.9kg
PA Speaker Stands
- Colour: Black
- Material: Aluminium
- Dimensions: W: 1000mm D: 1000mm
- Height Adjustment: 1200mm - 2000mm
- Max Load: 50kg
- Top Hat: 35mm
