Key Features
- Two channels with Class H amp technology
- 2 x 1300W at 4 ohms / 2 x 870W at 8 ohms power output
- Two XLR inputs and XLR link and SpeakON outputs
- Perfect for powering larger passive speakers

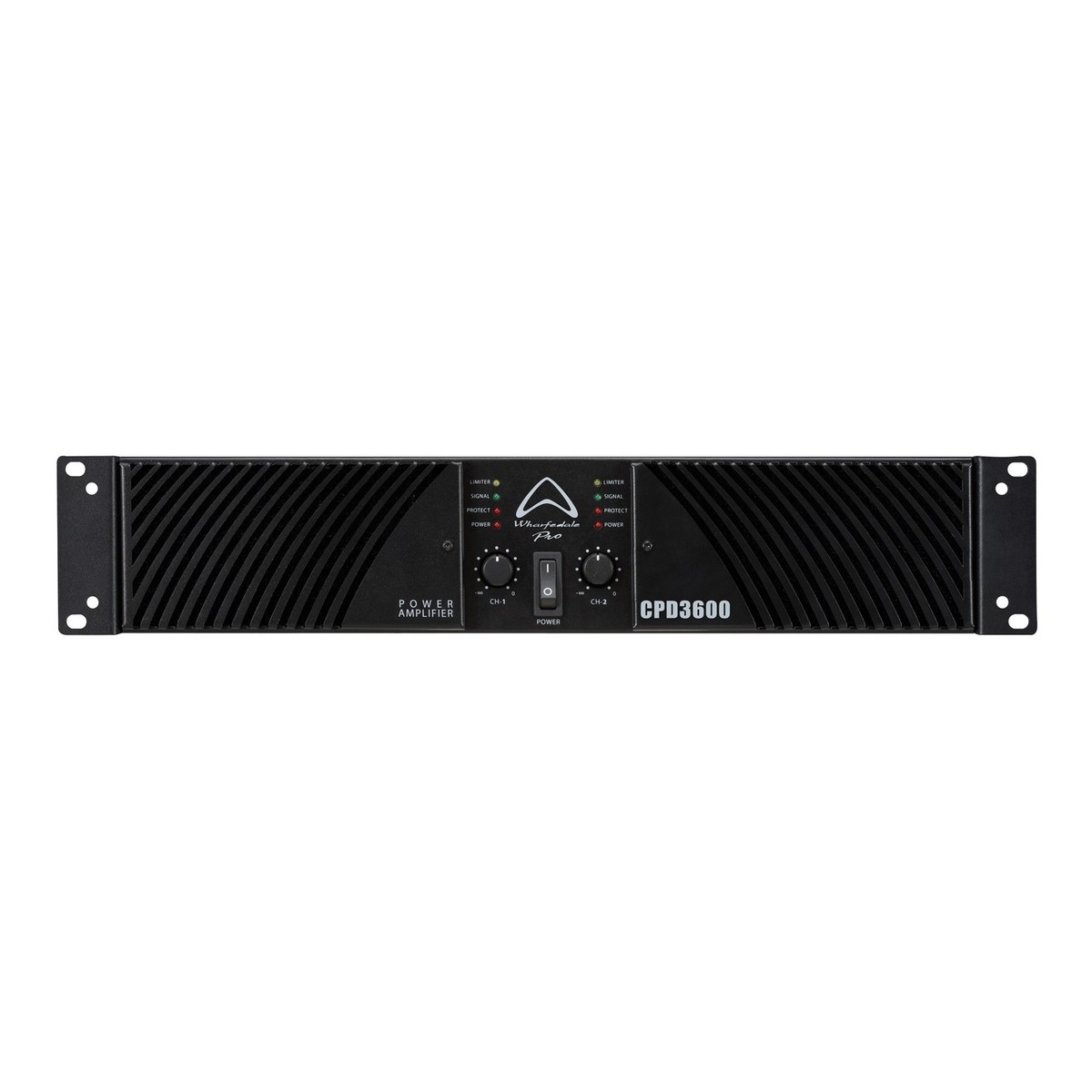

Wharfedale CPD3600 Power Amplifier Overview
Looking to amplifier your passive loudspeakers? The Wharfedale CPD3600 power amplifier is the perfect choice for small to medium-sized venues.
The CPD3600 power amp provides two channels with 1300 watts of power at 4 ohms or 870 watts of power at 8 ohms. In bridged mode, the CPD3600 is also capable of producing up to 3600 watts of power at 4 ohms or 2590 watts at 8 ohms.
Class H amplifier topology ensures consistent power delivery and high headroom. Multiple built-in protection circuits prevent both the amplifier and your speakers from being damaged during operation. Power your performance all-night long with the CPD3600 and utilise the complete sonic range of your speakers.
Product Ref: 122298
Full Description
View Full DescriptionPrecise and convenient control
Gone are the days of multiple small toggle switches and hard-to-see level indicators. Accurately adjust the gain levels for each of the channels using the large rotary controls. Monitoring the status of power, level, limit and protection circuits can be done at-a-glance thanks to the 4-segment LED arrangement. The intuitive and simplistic design of the front panel ensures that you're able to focus on other critical elements of the live performance, whether that be mixing sound or performing on stage.
Built for performance environments
Never worry about overloading your speakers. The CPD3600 offers an extensive range of built-in protection circuitry. From thermal and overcurrent to DC and output short protection. Additionally, a switchable limiter allows over 8Vrms signal through without distortion.
Rack-mountable, the CPD3600 has a 2U steel chassis that can be installed within any standard 19'' rack unit. Performance venues are known to be incredibly hot, which can result in equipment overheating and potentially being damaged. To counteract this, Wharfedale incorporated a variable speed fan that keeps the amplifier cool and ensures you're able to perform all night long.
Features
- Suitable for small to medium-sized venues
- Class H amplifier technology
- Stereo and bridged mono output channels
- Two XLR inputs
- SpeakON and XLR output connectors
- Peak and protect LED indicators
- Built-in switchable limiter
- Integrated protection circuitry
- Continuously variable fan
Specifications
- Amplifier Type: Class H
- Stereo Power Output: (Stereo)
- 2 x 870W RMS at 8 Ohms
- 2 x 1300W RMS at 4 Ohms
- Bridged Mono Power Output:
- 2590W RMS at 8 Ohms
- 3600W RMS at 4 Ohms
- Input Connectors: 2 x XLR
- Output Connectors:
- 2 x XLR
- 2 x SpeakON
- Frequency Response: 20Hz - 30kHz
- Input Impedance: 20k Ohms
- Maximum Input Level: 22dBu (9.7Vrms)
- Slew Rate: >40V/us
- Crosstalk: <-70dB
- Signal-to-Noise: >100dB
- Protection Circuitry:
- Switchable Limiter
- Thermal
- Over-Current
- Output DC
- Output Short
- Power On/Off Mute
- Display: 4 Segment LED
- Cooling: Variable Speed Fan
- Dimensions: 88mm x 483mm x 451mm
- Weight: 24kg / 52.91lbs
Your order may contain items that use a 240V UK plug or a 220V EU plug
Any electrical items in your order may have been designed to work with a 240V circuit, using a United Kingdom G type plug connection or a 220V circuit, using an EU plug connection. An adapter or transformer may be required for these items to work properly and safely in your country. Some items work with a range of voltages, or have a switchable voltage control built in. Please refer to the specific product details for further information.
