Key Features
- UHF receiver operating on 606–630 MHz B band
- Automatic frequency scan for quick setup
- Antenna switching diversity improves signal stability
- Balanced XLR and 6.3 mm audio outputs
- LED indicators show RF, audio, and battery status
Sennheiser EM-XSW 1 Wireless Receiver, GB Band Overview
The Sennheiser EM-XSW 1 Wireless Receiver is a compact stationary receiver designed for XS Wireless 1 systems operating in the B band frequency range of 606–630 MHz. Built for straightforward setup and dependable wireless performance, it provides reliable RF reception for live performances, presentations, and installed audio environments.
The receiver uses automatic frequency scanning to locate available channels within the 606–630 MHz band, helping you quickly establish a stable wireless connection. Antenna switching diversity technology helps maintain consistent signal strength by automatically selecting the stronger antenna signal, reducing the chance of dropouts.
Balanced XLR and unbalanced 6.3 mm outputs allow the receiver to connect easily to mixers, PA systems, and recording equipment. Clear LED indicators provide visual feedback for RF signal, audio level, and transmitter battery status, making it simple to monitor system performance during setup and operation.
Product Ref: 370090
Full Description
View Full DescriptionStable wireless operation in the B band
The EM-XSW 1 operates within the 606–630 MHz UHF B band, offering dependable wireless signal performance for XS Wireless 1 microphone systems. This frequency range supports reliable audio transmission across performance venues, rehearsal spaces, and presentation environments where consistent wireless connectivity is essential.
Automatic frequency management
Automatic channel scanning searches the available frequencies within the 606–630 MHz band and selects a suitable channel for operation. Multiple frequency banks and preset channels allow several wireless systems to operate together while helping minimise interference between systems.
Flexible audio connections

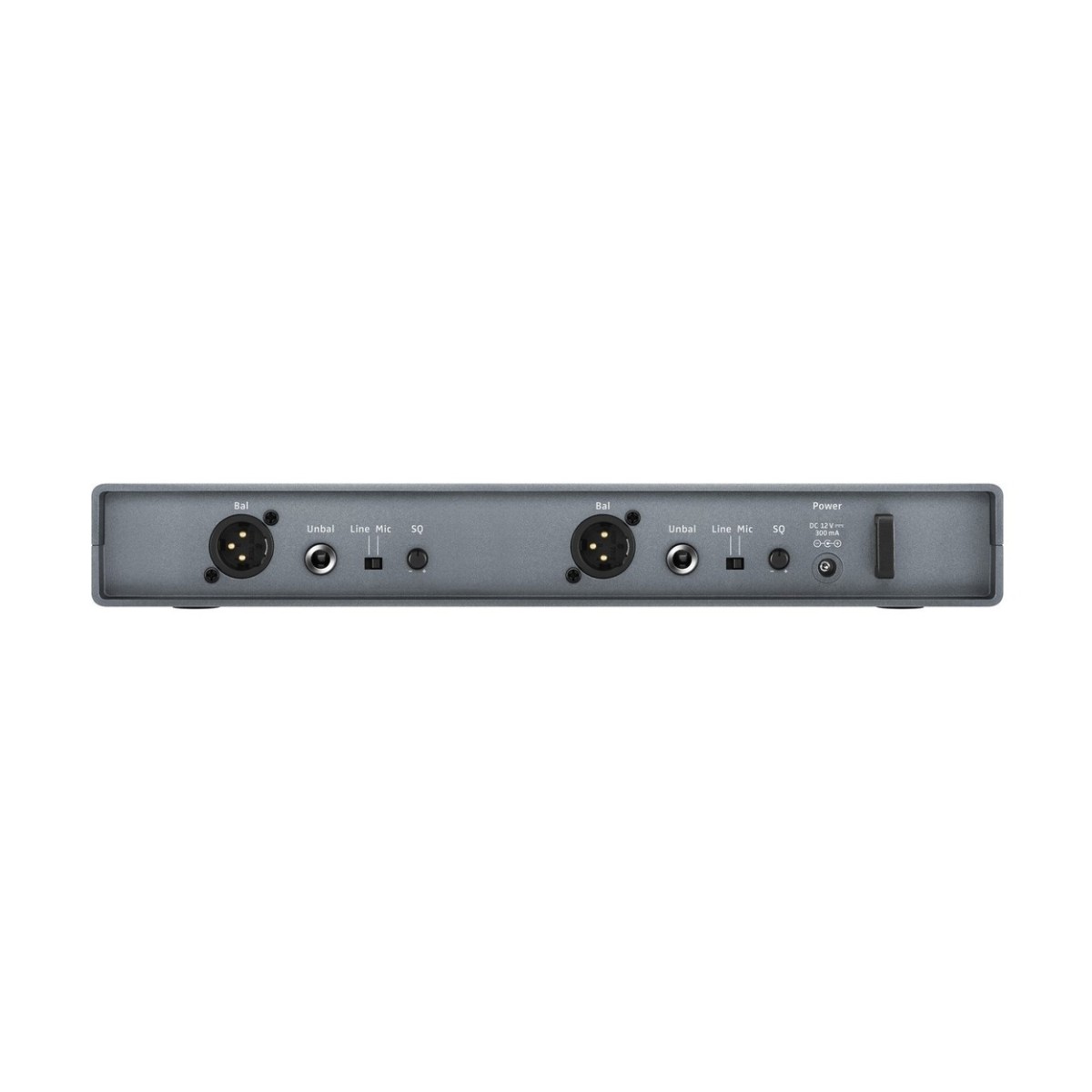

The receiver provides both balanced XLR and unbalanced 6.3 mm outputs for easy integration with professional audio equipment. This flexibility allows direct connection to mixing consoles, PA systems, and recording interfaces, while adjustable output levels help match different input requirements.
Clear system monitoring
Front-panel LED indicators display RF signal strength, audio levels, and transmitter battery status. These indicators allow performers and technicians to quickly confirm that the wireless system is functioning correctly during setup and performance.
Features
- Stationary receiver for XS Wireless 1 systems
- Operates in B band: 606–630 MHz
- Automatic frequency scan for quick setup
- Antenna switching diversity for stable RF reception
- Balanced XLR audio output
- Unbalanced 6.3 mm jack output
- LED indicators for RF, audio, and battery status
- Supports multiple frequency banks and channels
Specifications
- Product Type: Wireless Receiver
- System Series: XS Wireless 1
- Frequency Range: 606 – 630 MHz
- Receiver Principle: Antenna Switching Diversity
- Frequency Banks: 8
- Channels Per Bank: Up to 10
- Audio Frequency Response: 50 – 16,000 Hz
- Signal-to-Noise Ratio: ≥ 103 dBA
- Total Harmonic Distortion: ≤ 0.9%
- RF Sensitivity: < 3 µV at 52 dB(A) S/N
- Switching Bandwidth: Up to 24 MHz
- Audio Output: XLR balanced, 6.3 mm jack unbalanced
- Connection Type: Wireless
- Power Supply: 12 V DC
- Dimensions: 200 x 127 x 42 mm
- Weight: 0.34 kg
