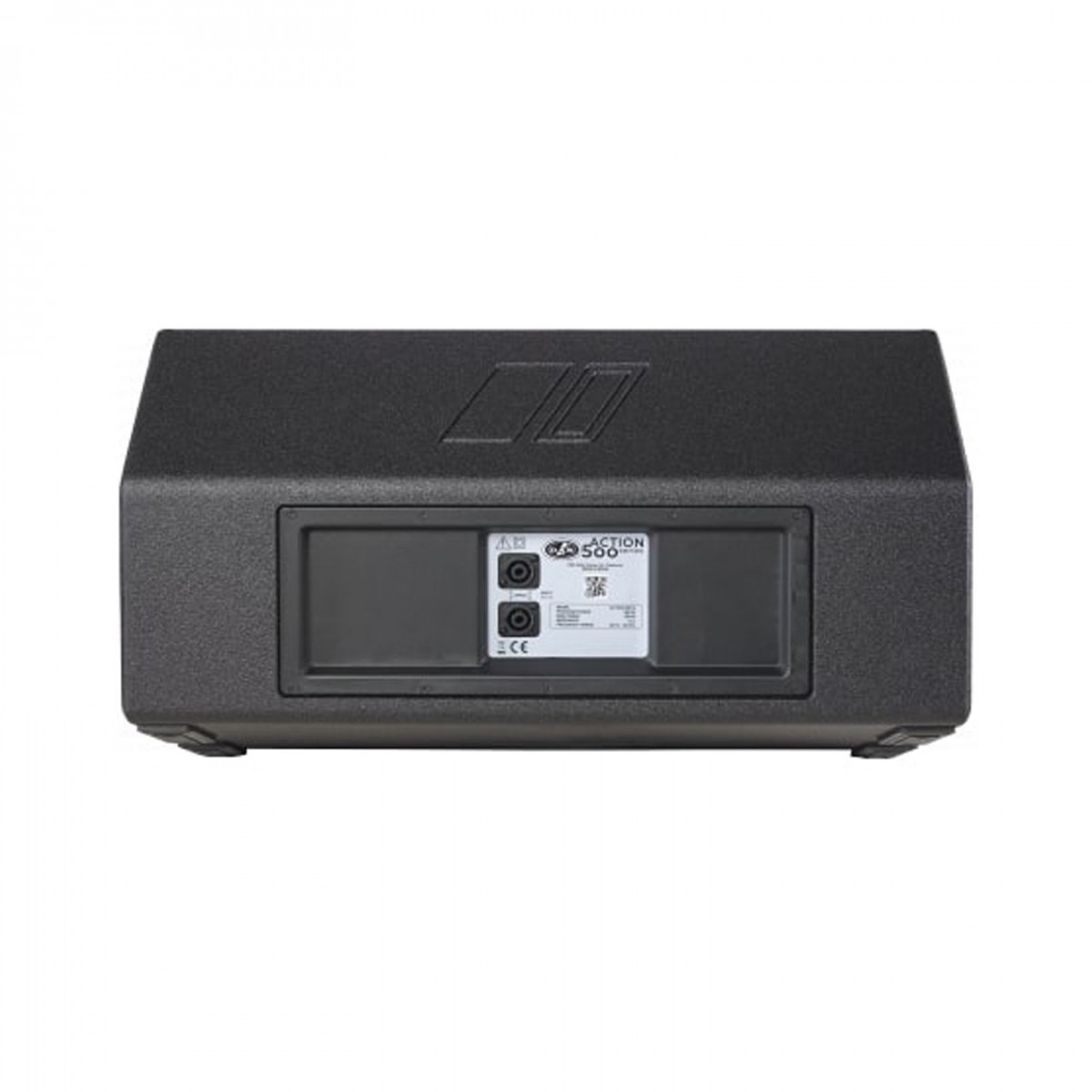

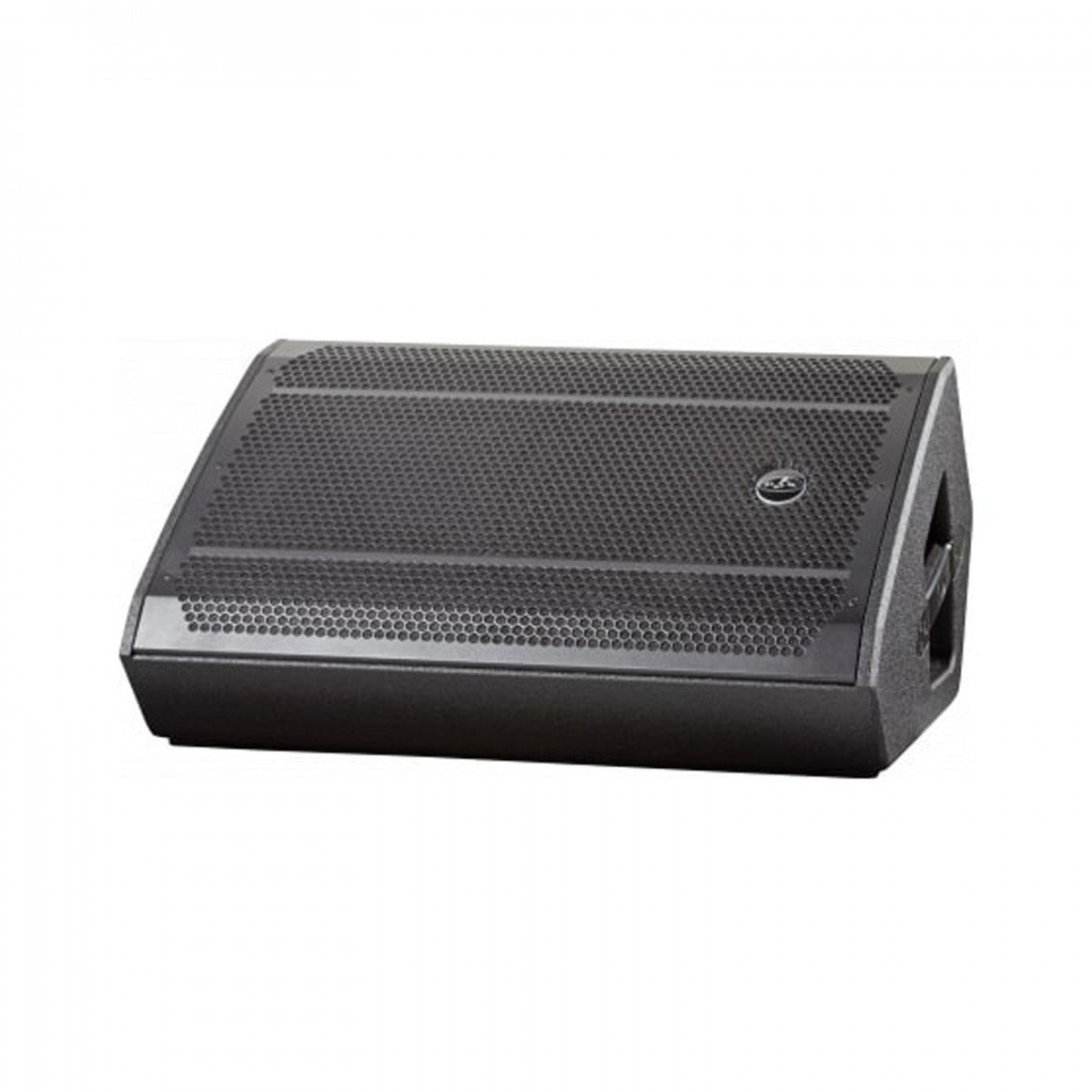

Das Audio Action M512 12" Passive Stage Monitor

This product is currently not available for purchase

Key Features

  • Passive two-way stage monitor
  • Rotatable horn allows for placement vertically or horizontally
  • Durable birch plywood enclosure can hold up on any stage
  • ISO-flex paint surface for a tough, splash-proof finish

Das Audio Action M512 12" Passive Stage Monitor Overview

The Das Audio Action M512 is a passive stage monitor with a 12-inch woofer perfect for live performances. Whether you need a floor monitor for installation in a venue, or a monitoring solution for touring acts, the M512 is an ideal option.


The M512's consistent dispersion pattern of 80-degrees by 50-degrees makes it suitable for use as a front-of-house PA speaker in smaller venues too. Its rotatable horn allows it to be placed vertically or horizontally. This stage monitor also features a durable birch plywood enclosure, with an ISO-flex finish for a rugged and reliable speaker that can hold up do bumps, scratches, and splashes.

Product Ref: 242746

Full Description

View Full Description

Features

  • Passive two-way monitor for live performances
  • Ideal for installation in venues or travelling on tour
  • Lightweight construction due to passive design
  • Rotatable horn allows for use vertically as front-of-house PA
  • Carrying handle for convenient transport
  • Durable birch plywood enclosure with rugged ISO-flex paint can withstand

Specifications

  • Frequency Range (-10 dB): 63 Hz - 20 kHz
  • Horizontal Coverage (-6 dB): 80°
  • Vertical Coverage: 50°
  • Nominal Impedance: 8Ω
  • RMS Power Handling: 300 W
  • Peak Power Handling: 1200 W
  • On-axis Sensitivity (1W/1m): 95 dB SPL
  • Maximum Peak SPL at 1 m: 130 dB
  • Audio Input Connector: 1 x speakON NL4
  • Audio Output Connector: 1 x speakON NL4
  • Enclosure Construction: Birch plywood
  • Enclosure Geometry: Trapezoidal
  • Finish: ISO-flex paint
  • Colour: Black
  • Depth: 450 mm (17.7")
  • Dimensions (H x W x D): 335 mm x 650 mm x 450 mm (13.2" x 25.6" x 17.7")
  • Net Weight: 17.5 kg (38.5 lbs)
  • LF Driver: 12MI
  • HF Driver: M-34
  • Horn/Waveguide: BC-85
