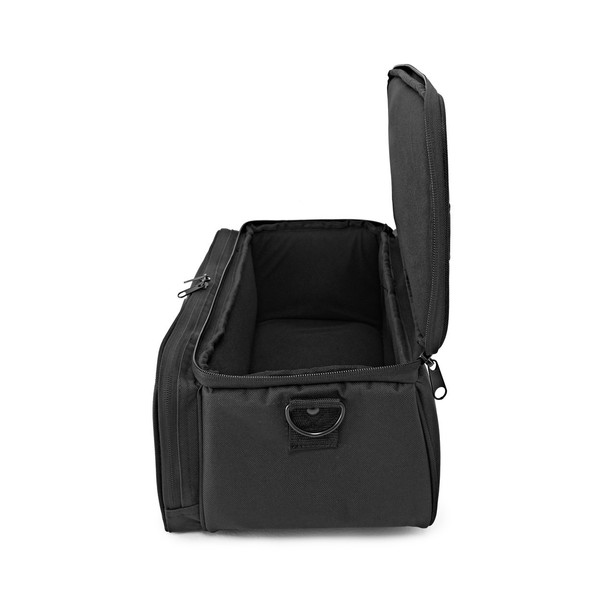

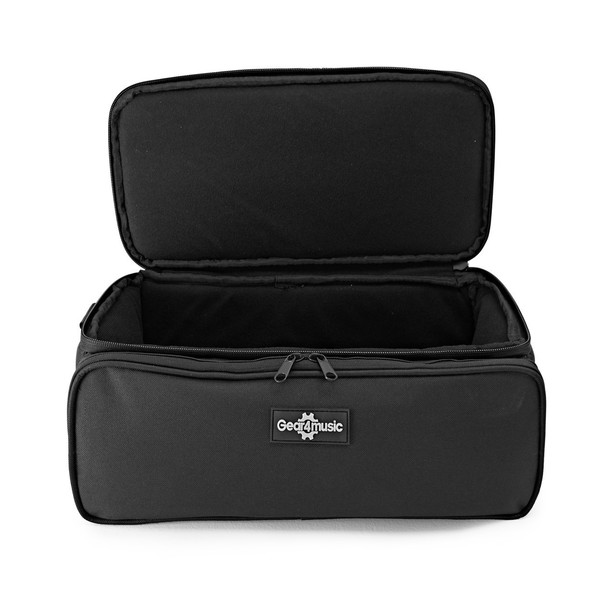

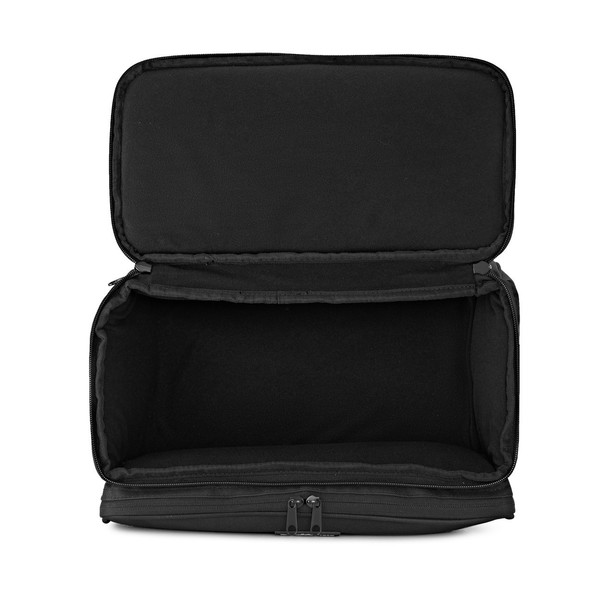

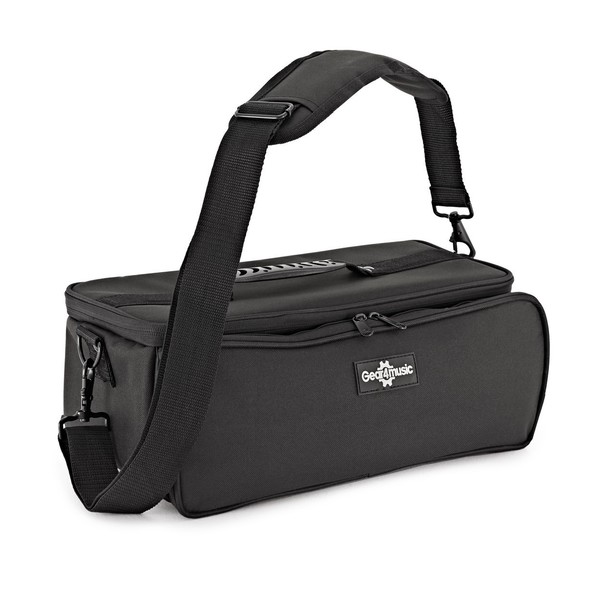

Behringer SD16 Digital Stage Box with Padded Bag

Full Description

MIDAS - The Legend in Sound Quality

Ever since its formation in the 1970s, MIDAS has had a long history of innovation and leadership in the world of audio mixing consoles. MIDAS has earned their impeccable reputation due to their no-compromise approach to both audio and build-quality, and in particular for their Award-winning Mic Preamps. Behringer is proud to incorporate MIDAS designed preamps to ensure the ultimate in high-quality audio reproduction in both live and studio environments.

Convenient Connectivity

When used as part of a complete X32 system, up to three SD16 Stage Boxes can be combined via the built-in AES50 ports to create up to 48 bidirectional channels and 24 balanced XLR outputs. The built-in Ultranet distribution hub has the ability to provide power and 16 channels of audio to 4 Behringer POWERPLAY P16-M personal monitoring mixers per SD16, all via CAT5e cabling - and without the need for any additional hardware. The SD16 also features two programmable inputs that are compatible with Hi-Z sources, allowing you to connect keyboards, acoustic guitars and more - no DI box required.

Remotely Controllable Preamps

Setting up the SD16 is extremely easy, with virtually all parameter control taking place at the console - including the award-winning MIDAS-designed mic preamps, +48V phantom power, destination routing and more. All you have to do is place the SD16 in your desired position, run several CAT5e cables along with mic and instrument cables - and do the rest from the FOH console.

Klark Teknik SuperMac

Klark Teknik SuperMac - AES50-Compliant - technology delivers the high-capacity, ultra-low latency digital connectivity. Klark Teknik engineers worked hand-in-hand with Behringer to ensure the SD16 meets, and exceeds, the requirements demanded by today's discerning musicians and professional audio engineers.

Features

Behringer SD16 Stage Box

• 16 MIDAS-designed, fully programmable mic preamps deliver audiophile sound quality
• 8 analog, servo-balanced XLR outputs
• AES50 network ports featuring Klark Teknik's SuperMac networking capability for ultra-low jitter and latency
• 4-port Ultranet distribution hub for powered connection of 4 Behringer P-16M personal monitoring mixers
• Digital audio and control connectivity for Turbosound speaker systems with Ultranet networking
• Rack ears and protective bumpers included for installed and mobile applications

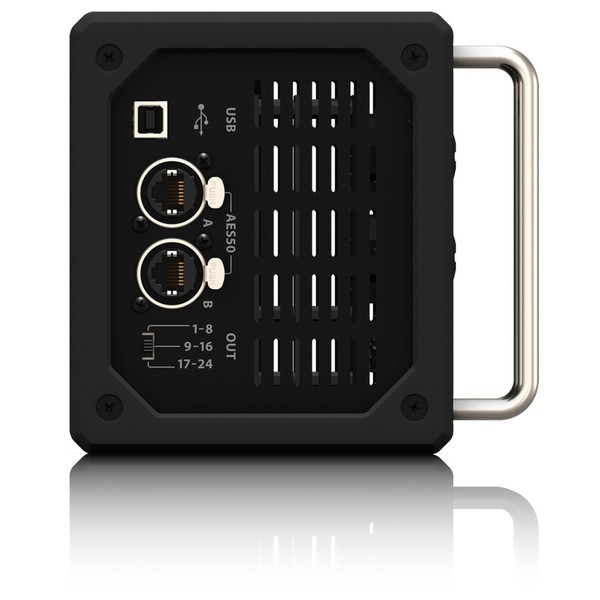

• Dual AES50 ports for cascading multiple units - no merger or router required
• Remote operation via shielded CAT5e cable up to 330ft / 100m length
• USB connector for system updates via PC
• Ultra-compact and roadworthy, all-steel chassis
• Designed and engineered by Behringer Germany

Specifications

Behringer SD16 Stage Box

• Input Connectors: 16 x Balanced XLR/TRS Combo
• Microphone Preamps: 16 x MIDAS-Designed
• Output Connectors: 8 x Balanced XLR (Line)
• Ultranet Outputs: 4 x RJ45
• Frequency Range: 10Hz - 22kHz
• Dynamic Range: 105dB
• Output Level: +4dBu / +21dBu
• AES50 SuperMac Networking: 2 x 48 Channels, Bidirecitonal
• AES50 SuperMac Cable Length: Up to 100m (CAT5 Shielded)
• ULTRANET Networking: 1 x 16 Channels, Unidirectional
• ULTRANET Cable Length: Up to 75m (CAT5 Shielded)
• A/D-D/A Conversion Type: Cirrus Logic A/D CS5368 & D/A CS4385
• A/D-D/A Conversion: 24-Bit @ 44.1kHz/48kHz, 114dB Dynamic Range
• Network I/O Latency: 1.1ms
• Power Supply: 100V - 240V
• Power Consumption: 45W
• Dimensions: 33.3cm x 14.9cm x 14cm / 13.1'' x 5.9'' x 5.5''
• Weight: 3.2kg / 7.1lbs
