Key Features
- Modular 55-style discrete circuitry
- Four channel CV signal routing
- External input with inverting attenuator control
- Drive multiple CV controlled modules simultaneously
- Three switched and summed CV inputs

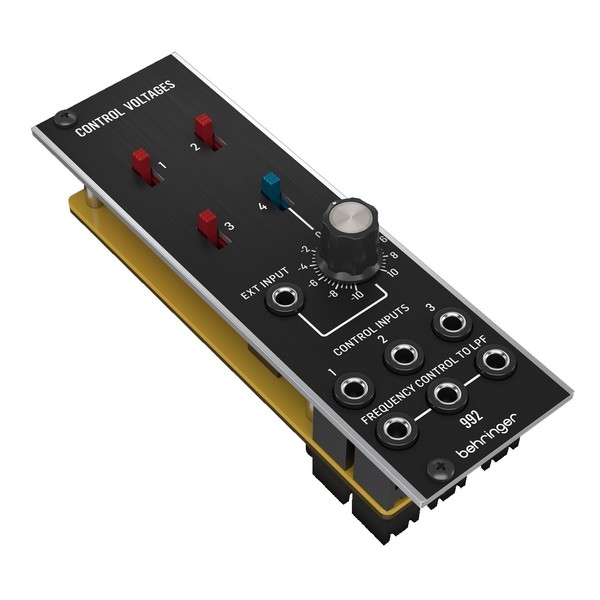

Behringer System 55 992 Control Voltages Overview
Take control of your modular system. The Behringer System 55 992 Control Voltages provides you with four channels of CV routing,designed for use with voltage-controlled modules including the System 55 904A. The System 55 992 also allows for an external input with a user defined inverting attenuator control.The 992 Control Voltages have three switched and summed CV inputs for frequency control of up to three of your VCF modules. The three CV outputs can drive multiple low pass and high pass filter modules simultaneously.
Product Ref: 154636
Full Description
View Full DescriptionVersatile interface
The 992 Control Voltages provides four channels for CV signals, routing to the 904A LPF module. Thanks to this, your sound can be freely connected and disconnected at the flip of a switch. When placing the switch in its up position you enable signals to connect to other modules.
Behringer have everything covered. Connecting the 992 to an additional input has never been easier. Simply patch in via the external input and you're good to go. The module allows you to send out the combined voltage from all four inputs via three parallel CV outputs. These can drive multiple 904A LPF and 9048 HPF modules for an infinite number of sonic possibilities.
Compact design
Installing the 992 is as intuitive as its interface. Simply connect the power cables to the power supply and screw in the module. This allows you to mix the controls voltage with absolutely any other modules in your rig.
A legend reborn - 55-style circuitry
The System 55 series from Behringer allows you to own a piece of history and recapture the sound and tonality of legendary 55 series modules. The original modules were utilised by legendary artists such as Stevie Wonder, Keith Emerson and Tangerine Dream. The unique sound generated by the modules was the product of the discrete transistor designs, which became a ground-breaking landmark in the modular world.
Features
- Authentic reproduction of the circuitry from the "Modular 55" Series
- Artist roster includes world's most famous pop, rock and jazz musicians
- 4-channel CV signal routing to 904A LPF module
- Single external input with inverting attenuator control
- 3 switched and summed CV inputs for frequency control of VCF modules
- 3-Year Behringer Warranty Program
- Designed and engineered in the U.K. 3 parallel CV outputs can drive multiple 904A LPF and 904B HPF modules
Specifications
- Control Inputs: 3x3.5mm jacks, summed
- Impedance: 100 kohms unbalanced
- CV range:1 V / octave, +/-10 V maximum
- External Input: 1x3.5mm jack, summed with CV inputs
- Impedance: 100 Kohms unbalanced
- Attenuation: Infinity to unity gain, inverting and non inverting
- Control Outputs: 3 x3.5mm parallel jacks
- Impedance: 10 ohms unbalanced
- Maximum Output Level: +/-10 V
- Control Selectors: 4 x slide routing switches
- Attenuator: Rotary Knob, selectable
- Power Supply: Eurorack
- Current Draw: 10mA (+12V), 10mA (-12v)
- Dimensions: 35x40x129mm
- Rack Units: 8HP
- Weight: 0.3kg
- Product code: SYSTEM 55 992
