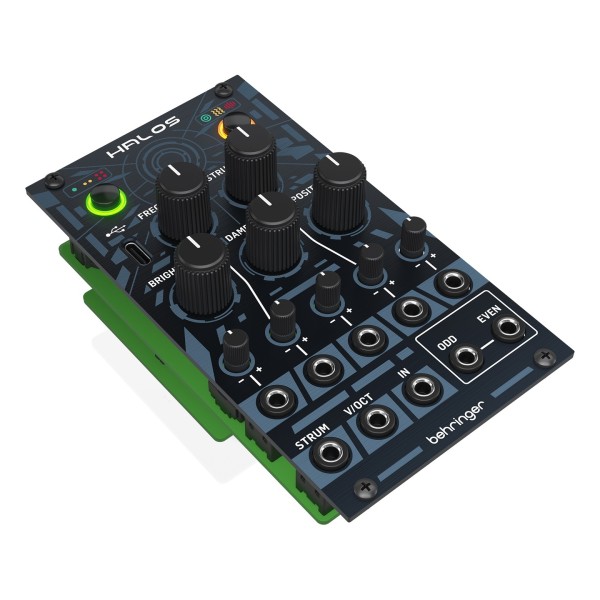

Behringer HALOS Physical Modeling Synthesizer for Eurorack

Full Description

Versatile resonator for unique tonal textures

The HALOS module is built around a powerful resonator engine designed to respond dynamically to any audio source including envelopes, triggers or noise inputs. This flexibility allows users to craft a broad palette of resonant tones, making it an excellent tool for adding organic textures or simulating acoustic instrument behaviour within modular patches.

Advanced physical modelling synthesis

Using modal synthesis algorithms HALOS accurately models the behaviour of vibrating structures such as strings, membranes and tubes. This technology gives sound designers the ability to create timbres with realistic physical qualities, expanding creative options well beyond traditional subtractive or wavetable synthesis.

Three distinct resonator modes

HALOS includes three resonator types, Modal Resonator, Sympathetic Strings and Non Linear/Dispersion Strings. Each offers unique sound shaping potential from harmonically rich sympathetic resonances to complex non linear behaviours, helping users design distinctive tones tailored to their musical style.

Pseudo polyphony and precise control

With pseudo polyphony of up to four notes HALOS produces rich layered sounds ideal for complex compositions. Its 16 bit high resolution CV control ensures smooth and precise modulation across all parameters, enabling intricate automation and expressive performance control within Eurorack setups.

Features

• Compact 14 HP module fits easily into Eurorack systems
• Models strings, membranes and tubes using physical modelling
• Three resonator modes for versatile sound creation
• Pseudo polyphony up to four notes for rich textures
• High resolution CV control for precise modulation
• Responds to envelopes, triggers and noise inputs
• Full CV control over key sound parameters
• Low power consumption for efficient integration

Specifications

• Usb Type: C Socket
• Brightness Cv Input: 3.5 Mm Ts Jack, -8 V To +8 V Range, Impedance 50 KΩ
• Frequency Cv Input: 3.5 Mm Ts Jack, -8 V To +8 V Range, Impedance 50 KΩ
• Damping Cv Input: 3.5 Mm Ts Jack, -8 V To +8 V Range, Impedance 50 KΩ
• Structure Cv Input: 3.5 Mm Ts Jack, -8 V To +8 V Range, Impedance 50 KΩ
• Position Cv Input: 3.5 Mm Ts Jack, -8 V To +8 V Range, Impedance 50 KΩ
• Strum Input: 3.5 Mm Ts Jack, 0 V To +8 V Range, Impedance 50 KΩ
• V/Oct Input: 3.5 Mm Ts Jack, -1.5 V To +5.5 V Range, Impedance 50 KΩ
• In Input: 3.5 Mm Ts Jack, 0 V To +6 V Rms Range, Impedance 50 KΩ
• Audio Outputs Left & Right: 2 X 3.5 Mm Ts Jack, Ac Coupled, Impedance 1 KΩ
• Brightness Control: Brightness Attenuverter
• Frequency Control: Frequency Attenuverter
• Damping Control: Damping Attenuverter
• Structure Control: Structure Attenuverter
• Position Control: Position Attenuverter
• Buttons: Polyphony, Resonator
• Power Consumption: 120 Ma (+12 V) / 5 Ma (-12 V)
• Standard Operating Temperature: 5° C To 45° C (41° F To 113° F)
• Dimensions: 71.10 X 128.40 X 55.70 Mm (2.80 X 5.05 X 2.19")
• Eurorack Width: 14 Hp
• Weight: 157 G (5.54 Oz)
