DISC Laney 50th Anniversary IRT Studio SE Amplifier - Nearly New

Full Description

Celebrating Laney’s 50th Anniversary

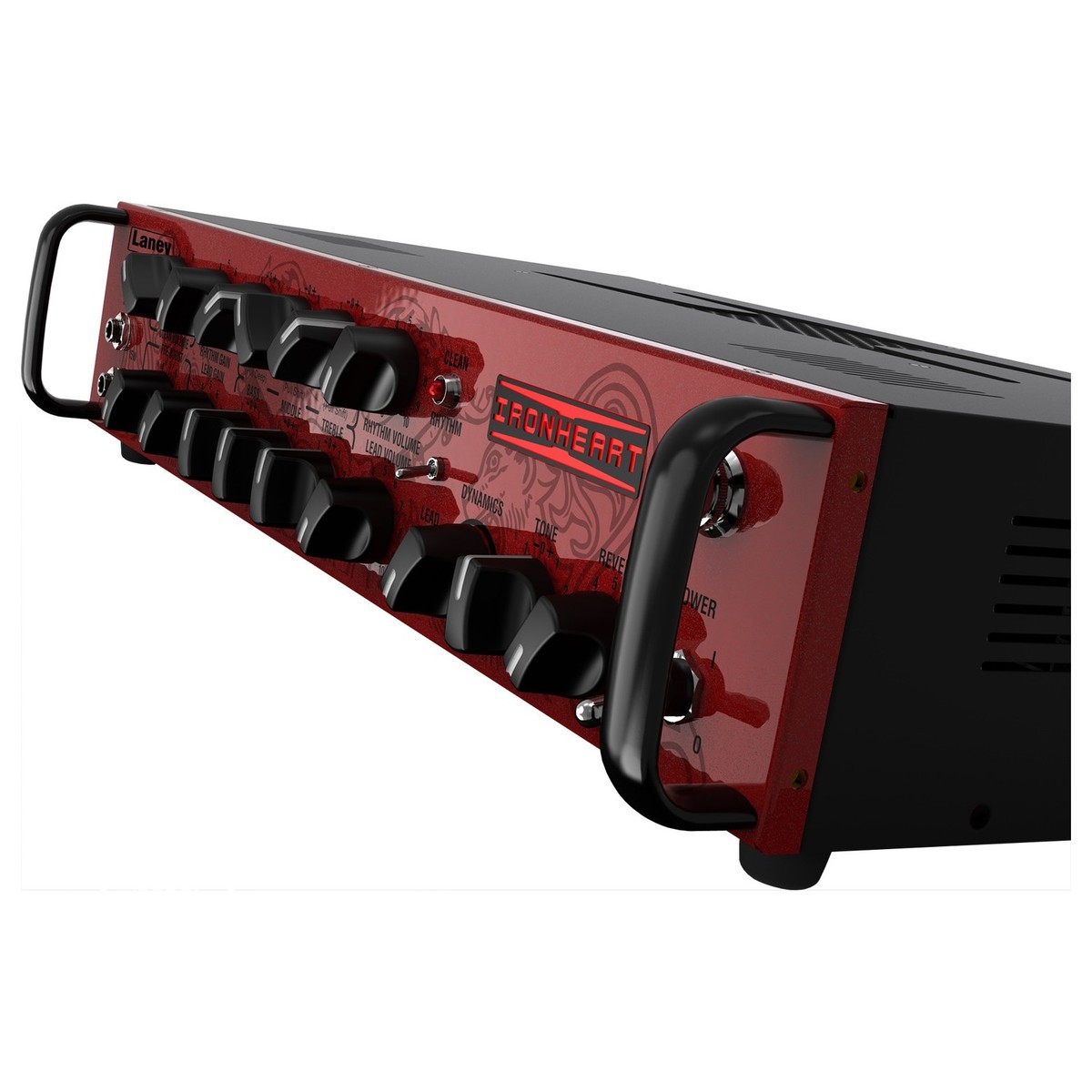

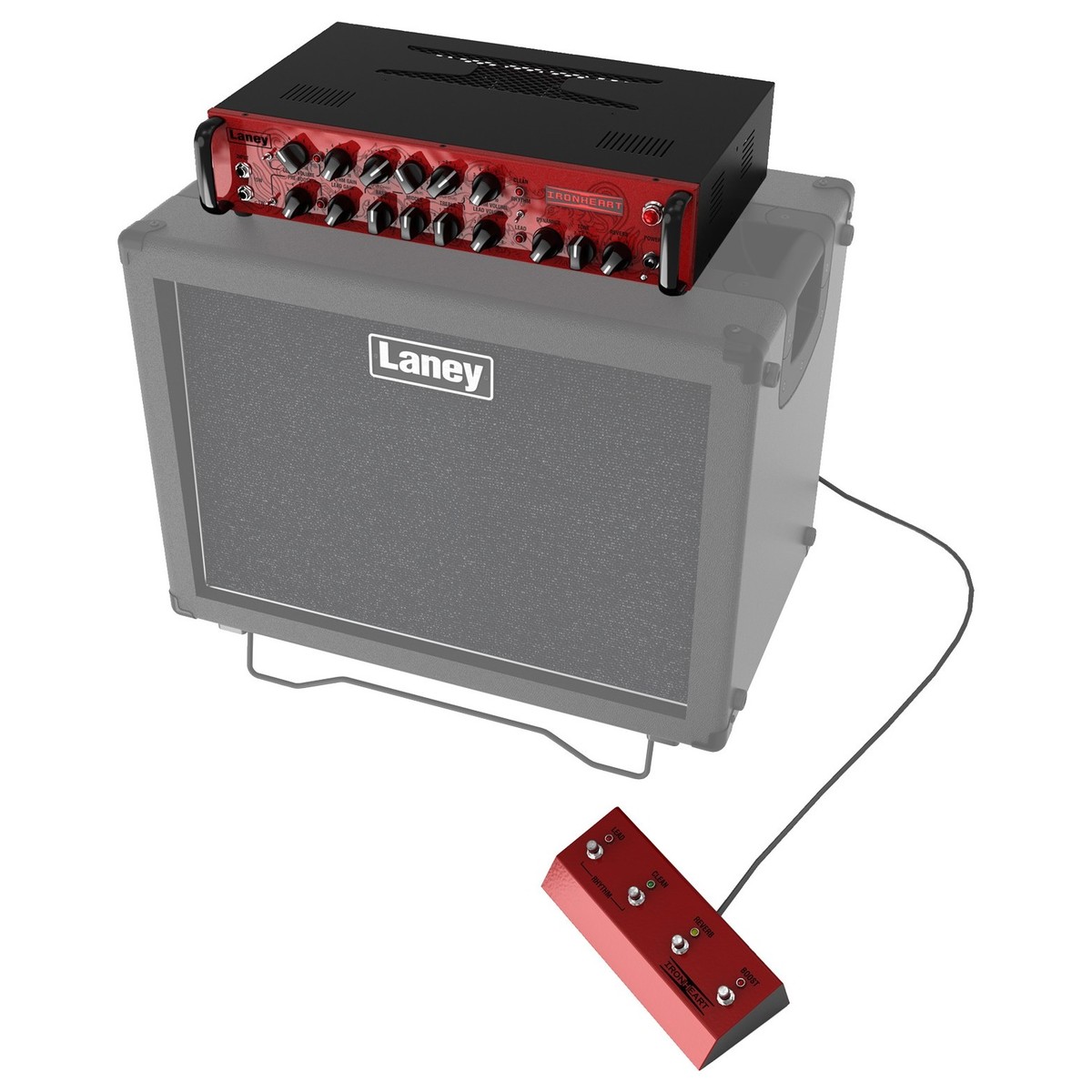

To celebrate their 50th anniversary of amp innovation, Laney have released a limited-edition version of their most successful tube amp ever. The special Ironheart IRT-Studio amp head features a limited edition red finish and stylish graphic, with a new light up Ironheart logo completing the look. The D.I. Out and speaker emulator have also been upgraded to ensure players receive the best performance in any situation. The dedicated FS4 Footswitch is also included in a matching red finish.

Powerful & Portable Tube Amp Head

The IRT-Studio-SE offers the same classic tones as the big Ironheart amps, but in a low-power, compact, and lightweight design. Equipped with ECC83 Preamp valves and EL84 output valves, the IRT-Studio amp delivers 15W of pure tonal power, with the option to switch to less than 1W via the second input for times when loud volumes aren’t permitted. Even with is compact design, the amp head still offers 3 channels and a wide range of control to dial in the perfect tone for any situation. Its 3 band EQ features push/pull EQ shift functions, extended the frequency ranges for further tone shaping, while the dynamics, tone, and reverb controls allow players to give their sound a personal touch.

Excellent Connectivity

Along with its incredible tonal capabilities, the Ironheart Studio features a variety of ins/outs to seamlessly integrate into existing rigs. Its D.I. output is perfect for directly connecting the amp head to DAWs, PAs, and mixing consoles, and features a high-quality speaker emulator to deliver all valve tones to your DAW or PA, or even both at the same time. The amp is also equipped with an internal dummy load, removing the need to connect an external speaker and deliver a truly silent recording. The FX loop is idea for connecting your favourite stompboxes, and the Aux in is perfect for playing along to backing tracks and songs.

USB I/O & Re-Amp Enabled

The Laney amp also features a USB audio I/O and re-amp send jack, expanding the amp head’s versatility. The USB supplies both a dry signal and the processed signal, split left and right to your DAW, straight into either your PC, Mac or iPad. This useful addition means you can alter the tone of your original recording, without having to re-track anything.

Specifications

General

• Power: 15 W
• Channels: Clean, Rhythm, Lead
• Preamp Valves: 3 x ECC83
• Output Valves: 2 x EL84
• Finish: Limited Edition Red
• Includes: Laney FS4-IRT Footswitch, 5-Pin Footswitch Cable, Rack Wings & Screws

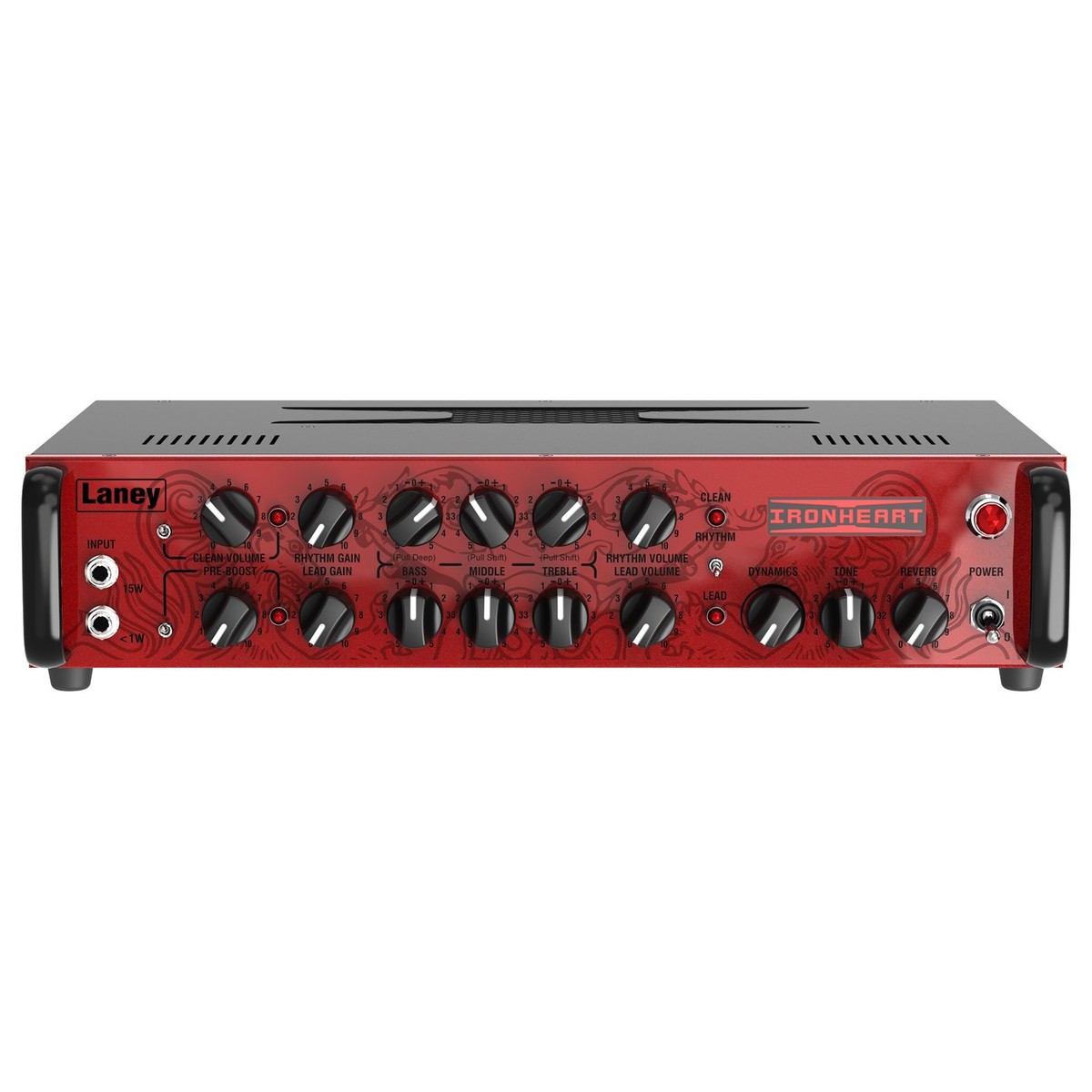

Controls

• Lead Channel: Lead Gain, 3-Band EQ (Pull Function), Lead Volume
• Clean/Rhythm Channel: Clean/Rhythm Switch, Clean Volume, Rhythm Gain, 3-Band EQ (Pull Function), Rhythm Volume
• Master: Pre-Boost Switch, Pre-Boost, Channel Select Switch, Dynamics, Tone, Reverb
• D.I.: Emulation Switch, 2 x Dip Switch (Ground Lift)
• USB: Dry Record Gain
• Headphones: Source (USB/AMP), Level
• FX Loop: FX Loop Switch (-10dBu/0dBu/Bypass)
• Loudspeaker: Impedance (8Ohms/16Ohms)

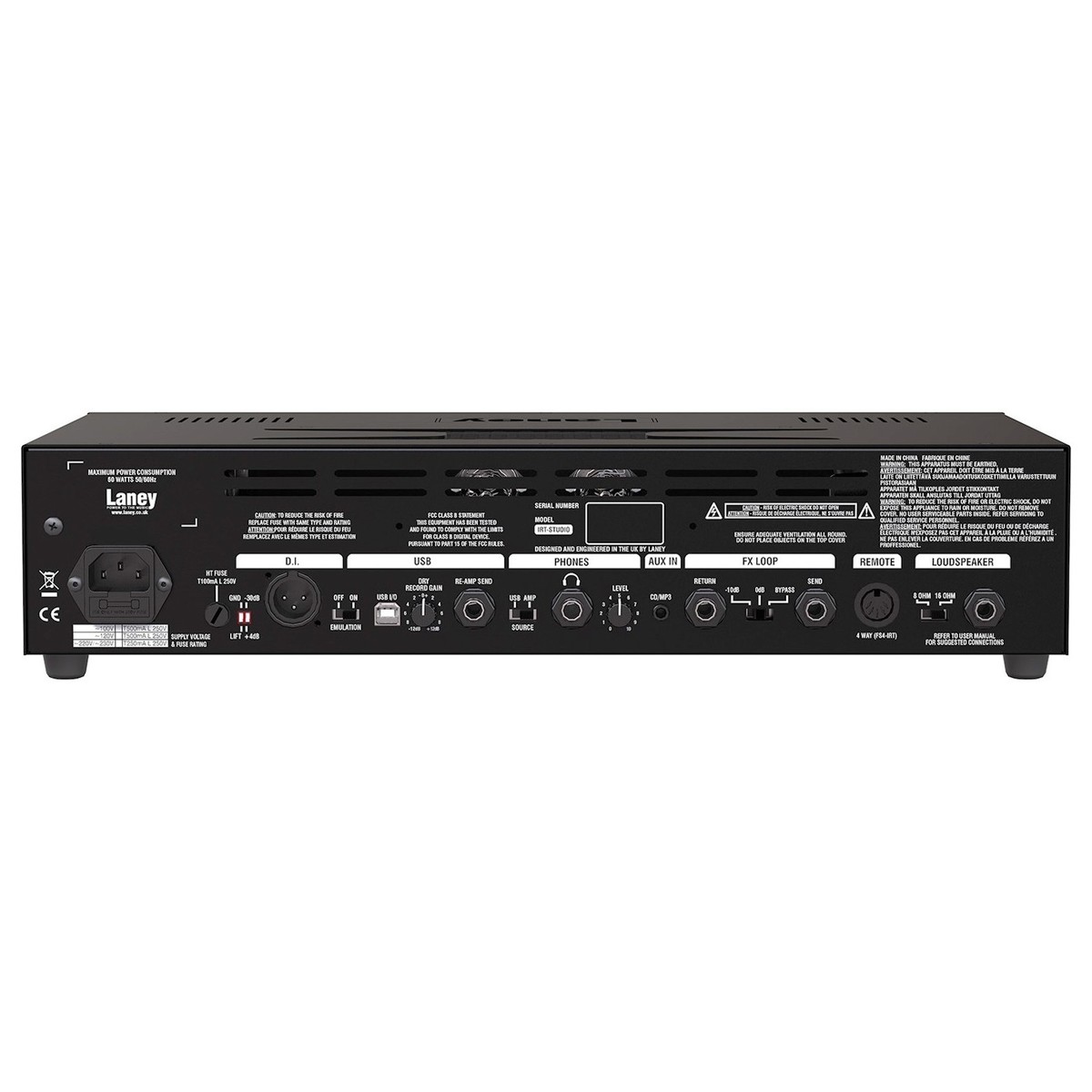

Connectors

• Inputs: 1/4'’ Jack @15W, 1/4'’ @ Less Than 1W
• Input Impedance: 1M Ohm/47pF
• D.I.: XLR
• USB: 2.0, 1/4'’ Jack (Re-Amp Send)
• Headphones: 1/4'’ Jack
• Aux In: 3.5mm Stereo Jack (CD/MP3)
• FX Loop: 2 x 1/4'’ Jack (Send/Return)
• Remote: 5-Pin MIDI
• Loudspeaker: 1/4'’ Jack

Power Requirements

• Power Consumption: 60 W
• Supply Voltage: 220V/230V
• Mains Fuse: T250mA L
• HT Fuse: T100mA L

Dimensions

• Height: 88 mm
• Width: 428 mm
• Depth: 285 mm
• Weight: 5.5kg
