DISC Yamaha DG60-112 Amplifier

prev next

This product is currently unavailable for delivery to your country

DISC Yamaha DG60-112 Amplifier Overview

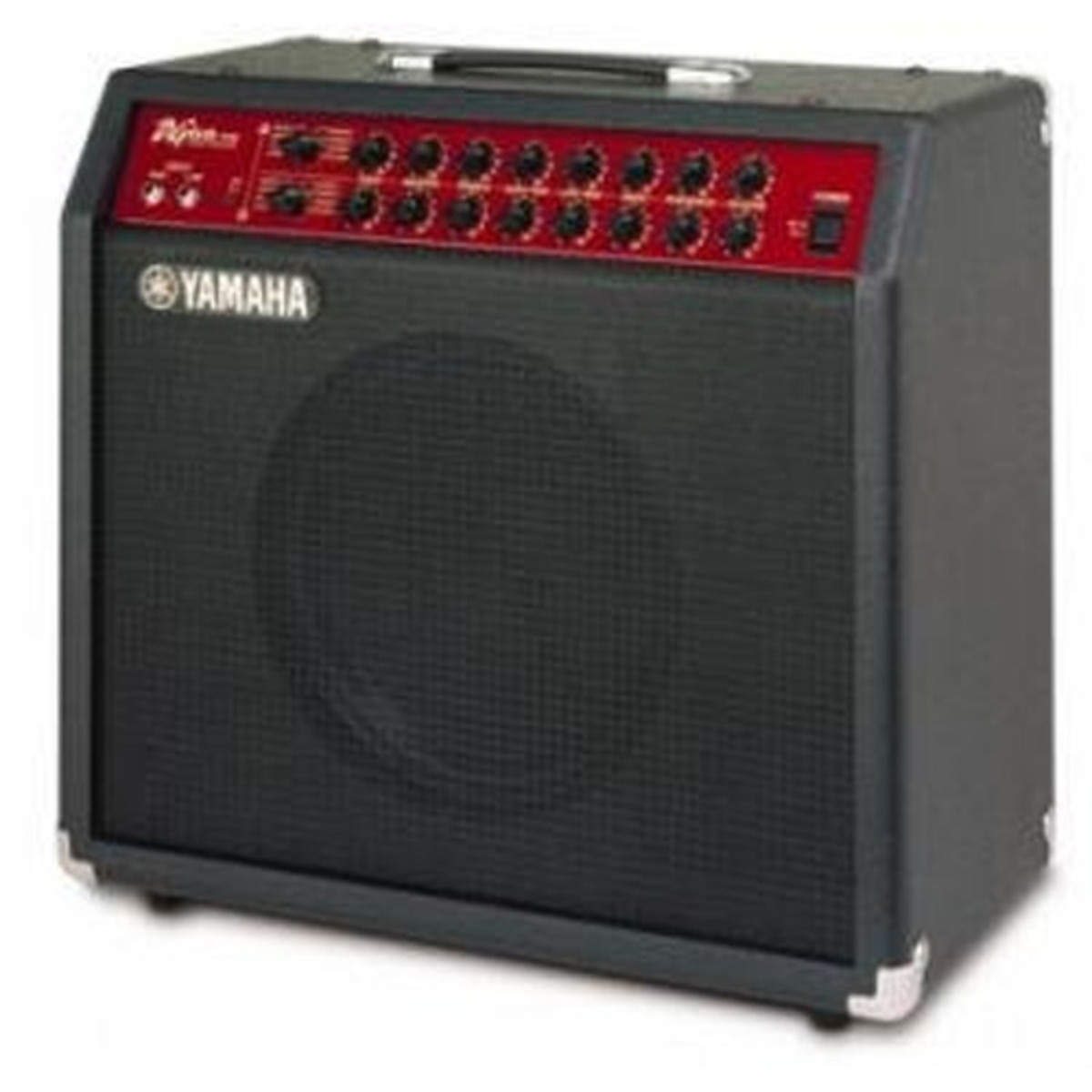

The most affordable amp in the Yamaha DG Series is the DG60 � a compact, powerful 60-Watt, 1x12 combo. You can dial up 8 incredible sounding amp presets in a dual channel set up. Just switch to the sound you want for each channel and you're ready to rock! You can also switch channels with an optional footswitch, for smooth onstage performance. The DG60 also includes a an Eminence 12" Speaker, a newly designed Digital Spring Reverb, an Effects Loop, a Speaker Simulator for Direct Recording, and a Headphone Output, perfect for practicing late at night, without waking the neighbors!

Product Ref: 3001

Full Description

View Full Description

Digital Section: Complete Digital Signal Processing, Internal 8-Channel Preset, Digital Reverb (SPRING), Speaker Simulator (LINE OUT)

Analog Section 60W Solid State Power Amp, 30 cm Speaker (12" EMINENCE) X1

Amp Types: 8 Preset Amp Types

Front Panel Controllers: GAIN, MASTER, TREBLE, HI MID, LOWMID, BASS, PRESENCE, REVERB

Rear Panel Controllers: EFFECTS Loop with Wet/Dry Blend Knob, Rear Panel Switch: AMP select switch, for each channel (A/B), Channel select switch (A/B), Headphone Output with Speaker Mute switch, EFFECT SEND/RETURN level switch

Indicator: Peak Level Display LED (Red)

Connection Jacks:

INPUT HIGH/LOW: Standard Phone Mono Jack; EFFECT SEND/RETURN: Standard Phone Mono Jack; LINE OUT: Standard Phone Mono Jack; FOOTSWITCH (CH SELECT, REVERB): Standard Phone Mono Jack

A/D Converter: 20-bit 3-bit floating

D/A Converter: 20-bit

Sampling Frequency: 48 kHz

Input Level/Impedance:

INPUT HIGH: -20dBm (THRU)/1M ohm; INPUT LOW: -10dBm (THRU)/1M ohm

Output Level/Impedance:

SPEAKER: 60W RMS/8 ohm, LINE OUT: 2dBm/47 ohm; EFFECT SEND: -28dBm/1k ohm

Power Requirements:

U.S. and Canada: 120V, 60Hz; General model: 230V, 50Hz

Power Consumption: 70W

Dimensions (W x H x D): 542 x 504 x 276mm (21.3 x 19.8 x 10.9 in.)

Weight: 18.0 kg (39 lbs. 11oz)
