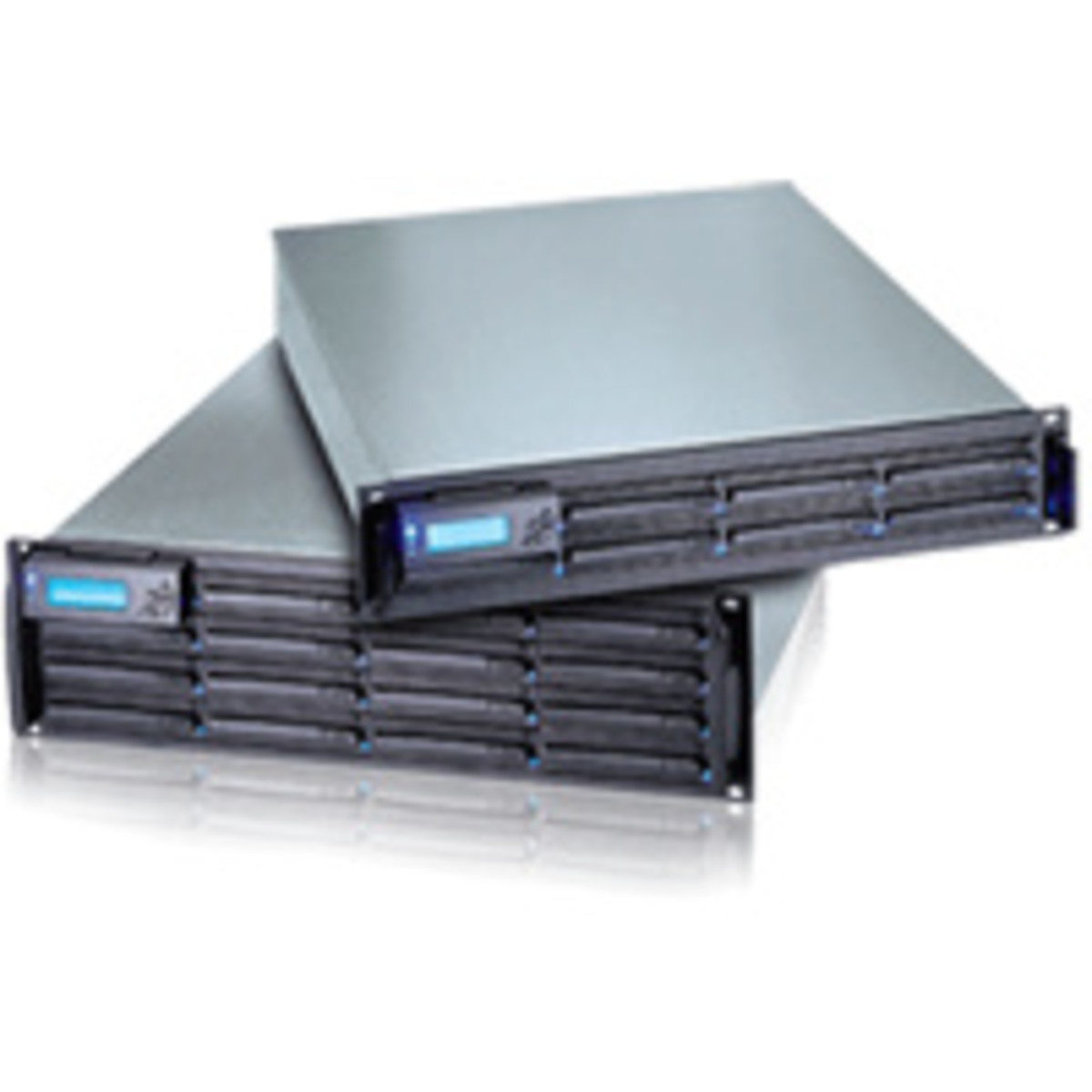

DISC Axus Demon 16-Drive 2Gb FC 4TB

Full Description

Perfect for multi seat SD and DV systems, Axus RAID units provide huge bandwidth at a great price. With Fibre Channel communication capable of large size, high speed file transfers, and available in a range of capacities there are options to suit every budget.

Demon RAID SATA Features- 30% to 40% increase in data transferring performance

As system demands rapidly increase, greater I/O throughput becomes a necessity. The new Intel XScale CPU introduces a powerful combination of technical advancements. The Intel i80321 I/O processor with Intel XScale microarchitecture provides a highly integrated, cost-effective I/O system on a chip that greatly improves I/O performance on current and new server platforms based. With the CPU speed up to 600MHz, 64 bit and also the 133MHz PCI-X interface achieves up to 1GB per second throughput. The system data transferring rate now can perform at a outstanding speed of 130 MB/S. - Three Power inlet

AXUS new design mechanical RAID system, equipped with three AC power inlet. As with ever-increasing information density and data signaling rates, electronic systems become more and more sensitive to its power infrastructure. AXUS with the latest design with the three AC power inlet provide a total security to the system users. Even with one power inlet off, the system can still perform at a full capability to provide absolute security to the data. To be more user friendly, the system also come along with a standard set of 3 to 1 power code, so the users do not have to worry about having to many power codes plug-in to the power socket. - Superior Led light indication

With the increasing importance of the data storage, the system access and warning message sending functions are a critical element to the users. One of the sensual advantage that AXUS Raid have are our systems are equip with a shiny blue and red led light indication, providing complete system accessing and warning information to the users to create a more friendly using environment. - Multiple RAID sets

With also the other important break through of the RAID technology, AXUS Demon Raid

FC-SATA series now can support up to 16 RAID sets, 128 LUNs.

Specifications

RAID Engine - Intel i80321 64bit RISC CPU

RAID Levels - 0, 1, 3, 5, 0+1, R30, R50, NonRAID, JBOD

System Type - Rack mountable

Host Interface - Dual loops 2Gb Fibre Channels, Standard SFP connectors

Host Transfer Rate - 2Gb/ Sec per loop

Disk Interface - SATA 1.5Gbps

Disk Channel - Sixteen SATA 1.5Gb Disk Channels

LCD Display - 2 Lines by 16 Characters

Hot Swap and redundant Yes (Power Supply, Drive and Fan).

Hot Spare - Yes (Drive)

UART ¡V LAN - Window-Based GUI RAID manager designed for SCSI/FC host based RAID solutions. The OS-independent, cross-platform RAID management allows configuration and status monitoring via standard web browsers or host computers either directly connected to a LAN or WAN.

Array Management Support - Yes.

Automatic Bad-Sector & Error Recovery - Yes.

Automatic Drive Rebuilds - Yes. Automatic Data rebuilds.

Audible Alarm, Pager and Fax Notification - Yes. The Pager and Fax Notification have to connect a external modem.

Remote Terminal Configuration - Yes. Through RS-232 emulation terminal.

Operating Systems - O/S Independent and Transparent

Power Supply - 700 watts Redundancy high quality power system, two 350 watts module with PFC function. Load sharing type and cable-less design

Operating Temperature - 5 to 35 degree C.

Non Operating Temperature - -40 to 60 degree C.

Relative Humidity - 20% to 80% non-condensing

Dimensions - 445.4(W)546(D)3U(H)

Weight - 28KG
