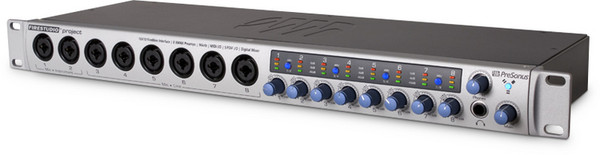

Presonus FireStudio Project Interface

More details:

Great for professional studio recording, live sound recording, performance, podcasting and more, the FireStudio Project is designed for flexibility and ultra-high sonic performance. Whether you need to record a live drum set, mic a guitar amp, or a complete band, the FireStudio Project is ready and more than able. With the new FireControl Mixer/Router you can send up to five individual mixes to different musicians during recording so that every band member can have a custom headphone mix.

Click the link below to watch a video introduction to the Firestudio Project

Video Watch review

Based on the award-winning FP10(FirePod) the FireStudio Project starts with eight PreSonus Class A XMAX microphone preamplifiers found in the FP10(FirePod) and adds the folllowing improvements

• Improved analog to digital converters (114dB dynamic range)
• Improved syncronization with JetPLL (jitter elimination technology)
• FireControl Mixer/Router to send up to five separate zero-latency stereo mixes to musicians during recording
• Three-segment LED input metering on all analog channels
• Internal IEC-based power supply
• ProPak v3 software suite with Cubase LE 4, BFD Lite, Wave Arts Plug-ins, Cubase LE 4 Demysitified Tutorial DVD video and more.

XMAX Class A Preamplifiers

The FireStudio Project starts with eight custom-designed high-voltage, discrete, XMAX Class A microphone preamplifiers.

Many other companies offering recording interfaces add the cheapest possible microphone preamplifier as an afterthought to the interface.

PreSonus knows that the preamplifier is a key component in the sonic quality of a recording. The job of a microphone preamplifier is to boost microphone level signals to line level so that the signal can be converted from analog to digital. This mic to line boost is generally a preamplification of over 400 times the voltage of the original mic level signal. This preamplification stage is one of the most important stages that the signal will go through before converted to digital, and is why a high performance preamplifier is important to achieving great results. A cheap "off the shelf op-amp" type mic preamp that is found in most interfaces translates into thin, noisy and harsh results.

New Advanced Platform Technology - DICE II and JetPLL

The FireStudio Project is loaded with the new ultra powerful DICE II FireWire chipset delivering 10 channels of simultaneous inputs and outputs at professional-quality 24-bit. The strength of the DICE II chip lies with its ability to easilly handle high channel count at high bit-rate while minimizing latency and load on your computer.

The synchronization of the FireStudio Project is handled by patented JetPLLTM jitter reduction technology. JetPLLTM incorporates noise shaping to virtually remove all audio band jitter. JetPLLTM ensures the highest converter performance possible, resulting in better stereo separation and clearer more transparent audio. JetPLLTM delivers ultra-fast locking to any digital format, through a wide range of frequencies and is extremely robust, and tolerant of wide variations in clock frequencies. JetPLLTM ensures near perfect clock performance when networking audio devices thus creating the most stable and robust synchronization to the computer and all devices synchronization with the FireStudio Project.

Computer System Requirements

Windows

• OS Microsoft Windows XP SP1

• Computer Windows compatible computer with FireWire port.

• CPU/Clock Pentium, Celeron with 1.6Ghz or higher
• Memory(RAM) 512 MB (1 GB recommended)

Macintosh

• OS MacOS X 10.4.x or later
• Computer Apple Macintosh series with on-board FireWire port.
• CPU/Clock PowerPC G4/Dual 1 GHZ or faster, all Intel-based Mac models.
• Memory(RAM) 512 MB (1 GB recommended)

Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system.

Not recommended for use with NEC, RICOH, and AGERE chipsets.
