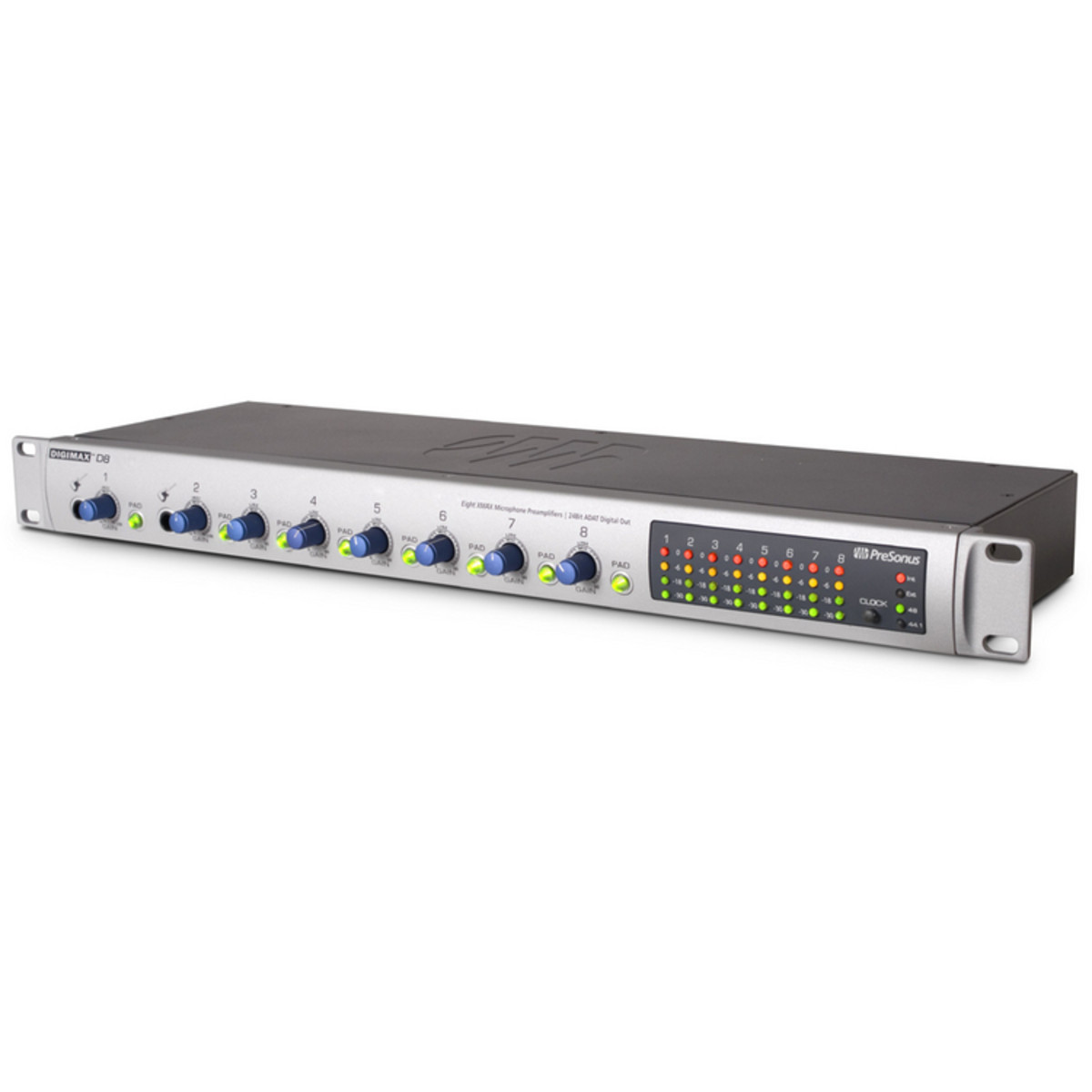

PreSonus DigiMax D8, 8 Channel Preamplifier
PreSonus DigiMax D8, 8 Channel PreamplifierDetails
PreSonus DigiMax D8, 8-Channel Pre-amplifier with 24-bit ADAT Digital Output:
The DigiMax D8 is an 8 channel preamplifier featuring 8 award-winning class A XMAX mic preamps with 24-bit ADAT digital output. All eight preamps include variable trim control, 48V phantom power, ultra-fast acting LED metering and 20 dB pad. In addition, 2 instrument inputs are located on the front panel for direct Hi-Z instrument input.
Product Ref: 14880View Full Description
Buy on finance from £10.86 per month Finance from £10.86 per month
Please note: This is only available where all items in the order are dispatched in a single delivery.
To make it as easy as possible for you to get the gear you want, we offer a range of instant finance options. If you spend £250 or more online, you can choose to pay over 48, 36 or 24 months. The majority of decisions are given instantly, so you could get your new gear sooner than you thought!
To help you understand how our finance options work, the examples below are based on a total order value of £250:
|Finance||APR||Deposit to Pay||Payments||Total Payable|
|Classic Credit 48 Months 14.9%||14.9%||No Deposit||48 months: £6.83 |
Final payment: £6.83
No settlement fee
|Classic Credit 36 Months 15.9%||15.9%||No Deposit||36 months: £8.65 |
Final payment: £8.65
No settlement fee
|Classic Credit 24 Months 18.9%||18.9%||No Deposit||24 months: £12.41 |
Final payment: £12.41
No settlement fee
How to Apply
Applying for finance couldn't be easier - if your order totals £250 or more, simply proceed through the checkout as normal, then select Pay by Finance on the payment page, then click the orange APPLY FOR INSTANT FINANCE button. This will start your application with V12 Retail Finance, our finance partner, and completing this form should take approximately 10 minutes.
You should get an instant answer on whether your application has been successful, though in some rare cases V12 may need to look at the application in more detail.
Please note: This is only available on orders placed via the website consisting of a single delivery, and is not available in store or via phone currently.
Full DescriptionView Full Description
Balanced TRS direct analog outputs are located on the rear panel for routing and flexibility. The DigiMax D8 also includes word clock sync input for ultra-low jitter and robust synchronization.
The DigiMax D8 is the perfect solution to add eight professional microphone preamplifiers to any digital recording system with ADAT optical lightpipe expansion capability including Digidesign?s HD and 003 systems, RME, YAMAHA, Alesis, Mackie, and many others.
- 8 XMAX class A microphone preamps w/ trim control
- 24-bit resolution ADAT digital output
- 44.1 and 48K sampling rates
- External sync via BNC word clock input
- Direct outputs on every channel
- LED input metering
- -20dB Pad on every channel
- Package Type: 1U - steel chassis
- Dimensions: 19(W) X 1.75(H) X 7(D) inches
- Weight: 6 lbs. (2.72 KG
- Type XLR Female Balanced
- Frequency Response (+/-0.5 dB): 20 Hz to 50 kHz
- Frequency Response (+/-3.0 dB): 20 Hz to 150 kHz
- Input Impedance (Balanced): 1600 Ohms
- THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.003%
- EIN (unwtd, 55dB Gain, 150 Ohms Input, 20Hz to 22 kHz): -126 dBu
- S/N Ratio (Unity Gain, unwtd, Ref. = +4 dBu, 20Hz to 22 kHz): > 101 dB
- Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 55 dB
- Gain Control Range (+/- 1dB): -4 dB to 50 dB
- Maximum Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): +14 dBu
- Phantom Power (+/-2 VDC): +48 VDC
Instrument Input (channels 1 and 2 only):
- Type: 1/4" TRS Female Unbalanced
- Input Impedance: 1 MOhms
- Type: 1/4" TRS Balanced
- Output Impedance: 51 Ohms
- ADC Dynamic Range (Awtd, 48 kHz Sample Rate): 107dB
- Bit Depth: 24
- Reference Level for 0dBFS: +10 dBu
- Internal Sample Frequency Selections (kHz): 44.1, 48
- External Sample Frequency Input: 75 Ohms BNC
- Input Connector Type: IEC
- Input Voltage (factory configured): 90 to 230 VAC
- Power Requirements (Continuous): 20W
