KAM KWM1960 HH V2 Wireless UHF Microphone System

  • Video 1
£129.00 (including VAT @ 20%)

This product is currently not available for purchase

  • 606.6MHz - 613.5MHz Wireless Operating Frequency

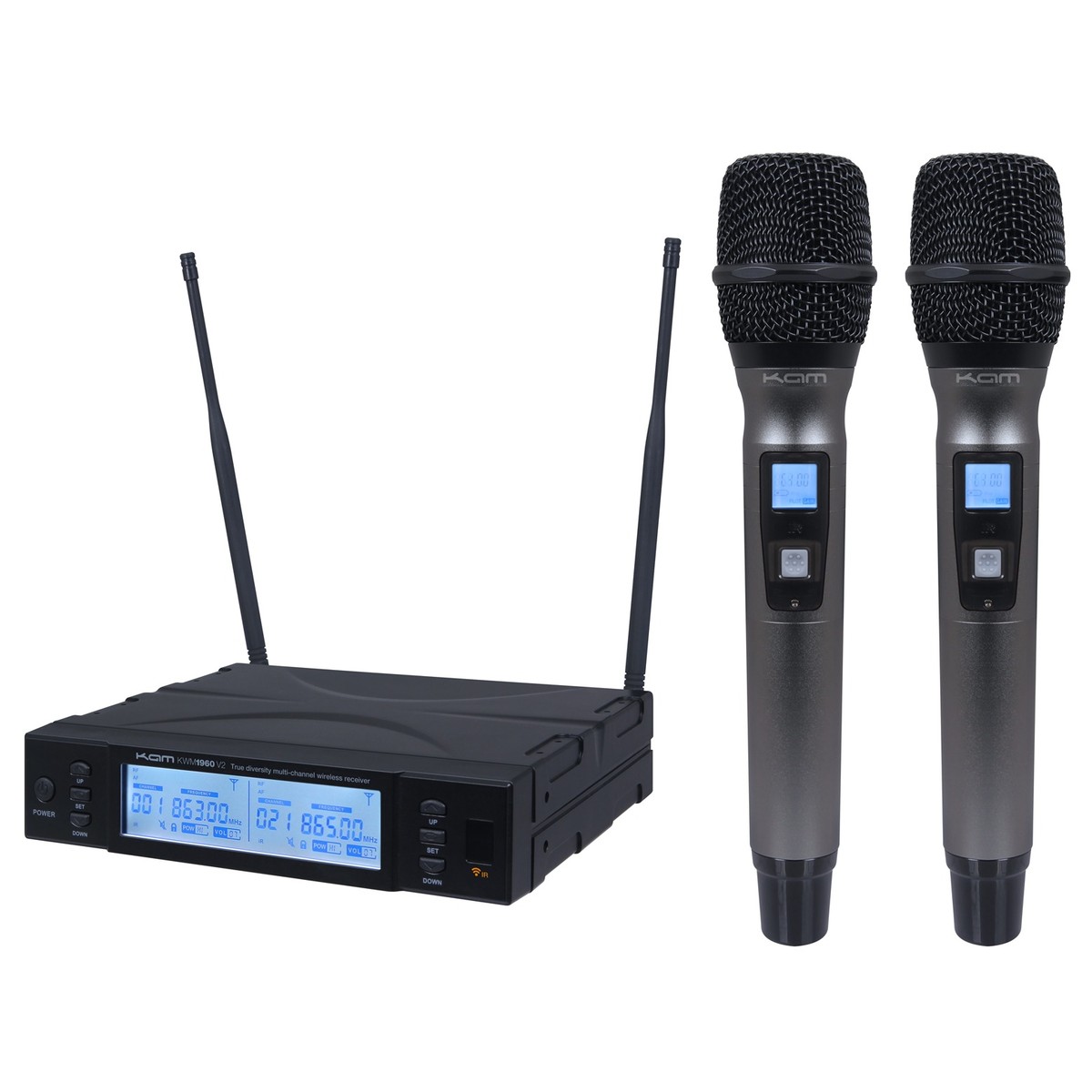

  • Includes Wireless Receiver & 2 x Handheld Microphone Transmitters
  • Large Backlit Display For Simple Performance Monitoring
  • 50 Metre Working Distance With 5 Hour Continuous Use
  • Ideal For Vocalists, Public Speakers, DJs, Theatre & More

KAM KWM1960 HH V2 Wireless UHF Microphone System

Details
The KAM KWM1960 HH V2 Wireless Microphone System operates within the UHF 606.6MHz - 613.5MHz frequency range and includes a multi-channel receiver and 2 x handheld microphone transmitters. The system offers up to 16 channels, 50 metres of operating range and 5 hours of continuous use, making it ideal for vocalists, public speakers, theatre productions, street performers, DJs and many more applications. There are 2 balanced XLR outputs on the receiver with an unbalanced 6.35mm jack mixed output. With a large backlit display, users can easily monitor multiple statuses.

Product Ref: 92827

View Full Description

Full Description

View Full Description

Included In The System

  • 1 x Wireless Receiver

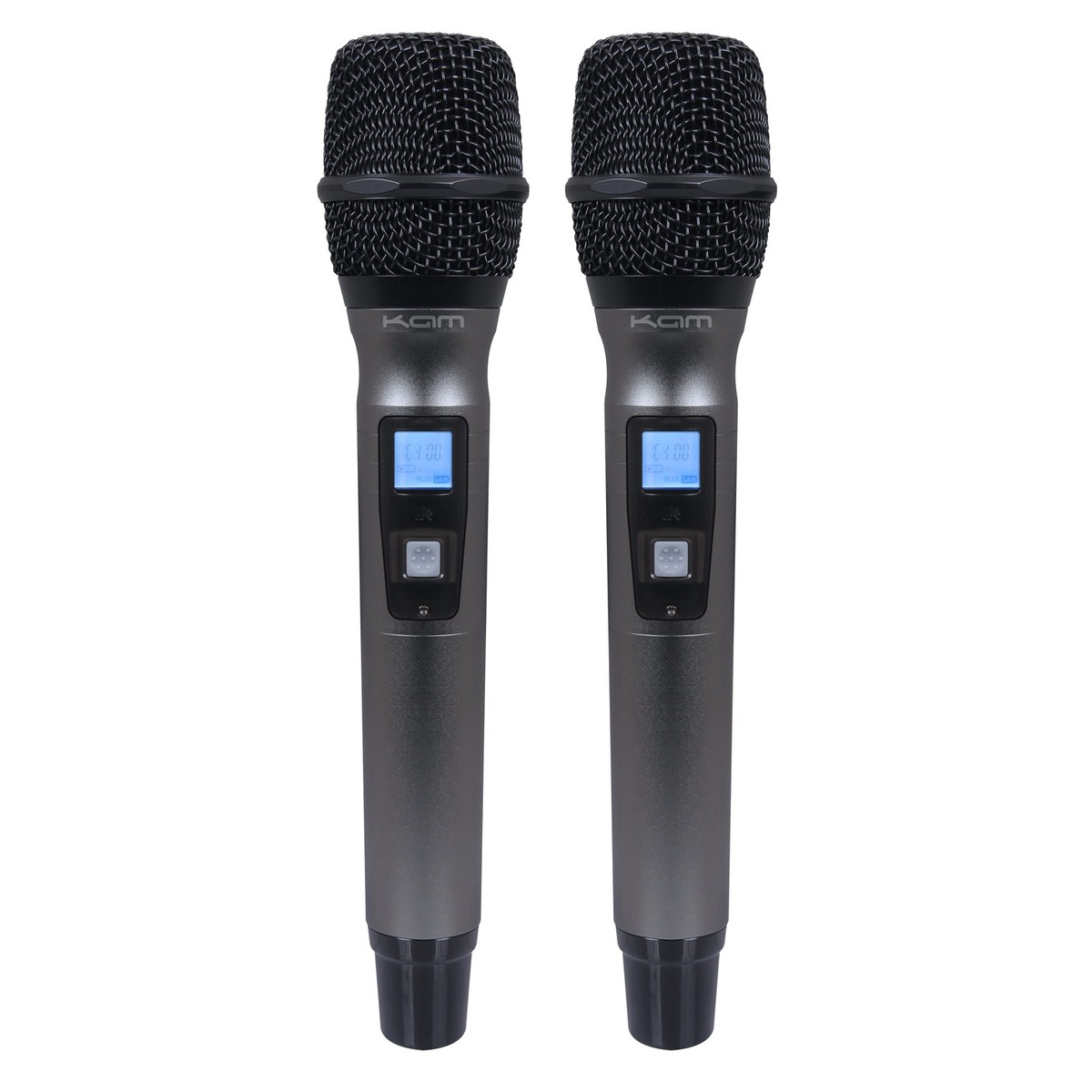

  • 2 x Handheld Microphone Transmitters
  • 1 x Power Supply Unit
  • 4 x AA Batteries
  • 1 x Audio Cable

Features

  • Professional grade UHF wireless system

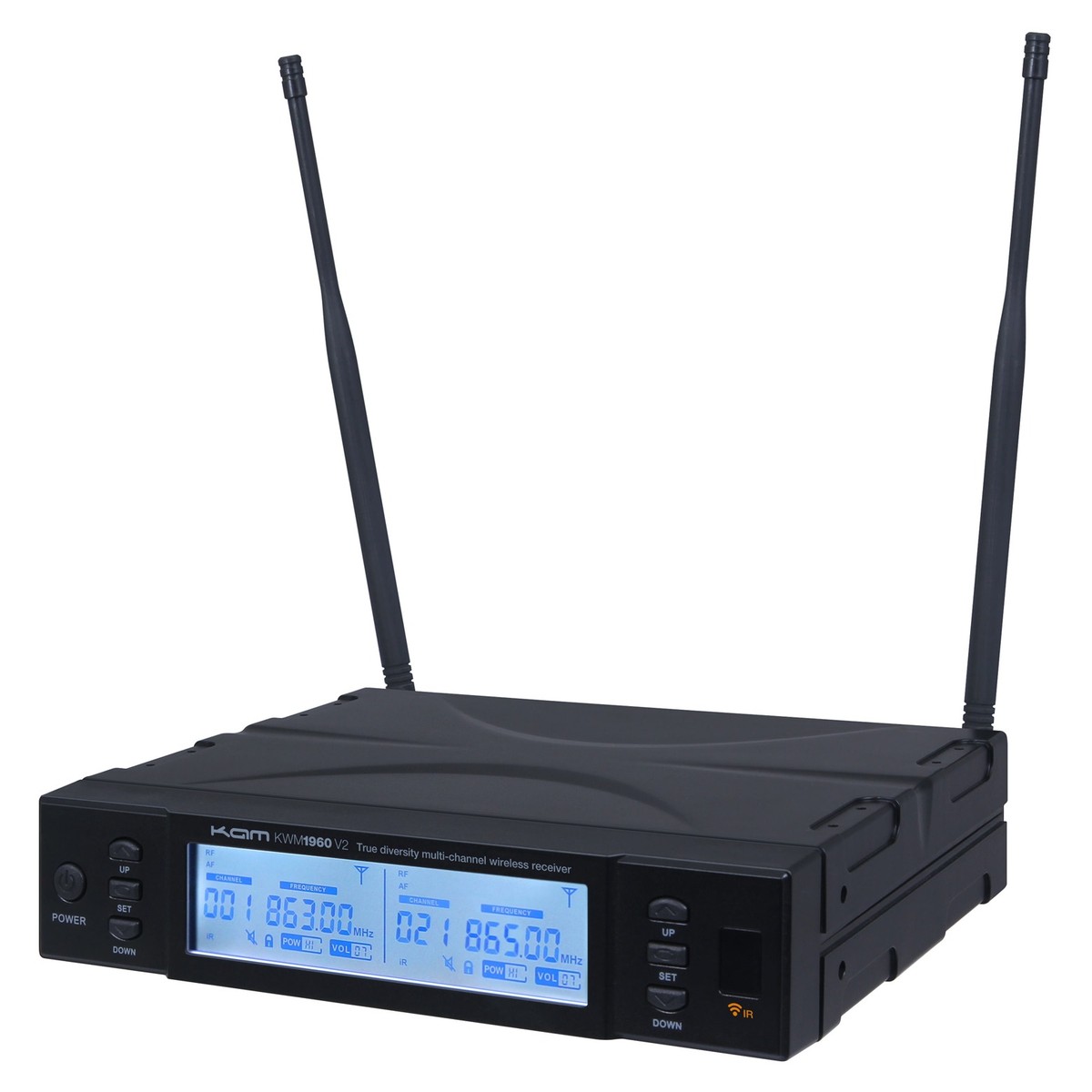

  • Multi-channel UHF PLL receiver
  • Large backlit display with multiple status indicators
  • ACT infrared pairing of mics to receiver

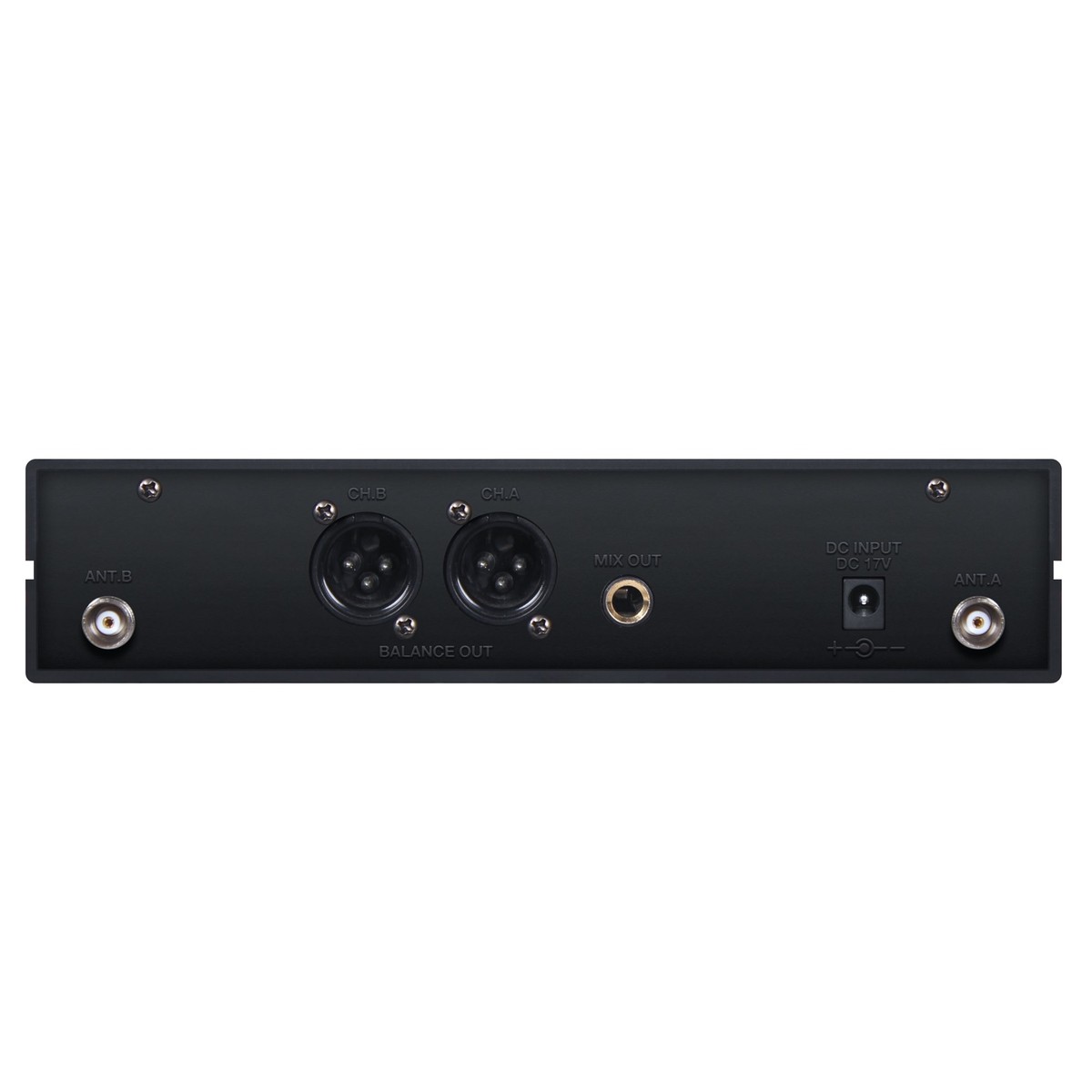

  • 2 x balanced XLR outputs with 1 x unbalanced 6.35mm jack mixed output
  • High efficiency battery consumption design
  • 2 x adjustable/removable high gain antenna
  • 50 metre working distance
  • 5 hours of continuous use
  • Ideal for sports instructors, vocalists, public speakers, musicals & threat productions & more

Specification

  • Frequency Range: UHF 606.6MHz - 613.5MHz
  • Frequency Stabilisation: <±30ppm
  • Dynamic Range: >90 dB
  • Total Harmonic Distortion: <0.5 Percent
  • Frequency Response: 40Hz - 15Hz ±3 dB
  • Audio Output Level: 400 mV Unbalanced/Balanced
  • Signal-to-Noise Ratio: >90 dB
  • Image and Spurious Rejection: >80 dB
  • Border Upon Channel Rejection: >80 dB
  • Receiving Sensitivity: 5 dBuV
  • De-Emphasis: 75uS
  • Power Supply: DC 17V/300 mA
  • Power Consumption: 5W
  • Transmitter Power: 10mW
  • Modulation Type: FM
  • Max Deviation: ±25kHz
  • Spurious Emission: >40 dB
  • Mic Battery Voltage: 3V
  • Dimensions (Receiver)
    • Height: 45 mm
    • Width: 210 mm
    • Depth: 185 mm
  • Dimensions (Microphone)
    • Height: 260 mm
    • Width: 55 mm
    • Depth: 55 mm
